CONTA-CLIP
The PKBZ 1552 from Conta-Clip is a high-performance, pluggable terminal block specifically engineered for industrial control and automation applications. Designed with a cross-section range of up to 2.5 mm² (AWG 14) and a rated current of 24 A, this terminal block supports rated voltages of up to 500 V. It features a push-in wire connection technology, ensuring secure and tool-free conductor insertion, which minimises installation time and enhances operational safety. The PKBZ 1552 is part of Conta-Clip’s PRK/PK series, known for its modular design, compatibility with various mounting rails (TS 35), and clear, user-friendly labelling options.
The PKBZ 1552 is ideal for applications in control cabinets, distribution boards, and automation systems, where fast, reliable, and space-saving wiring solutions are essential. Its pluggable interface enables easy maintenance and system upgrades without the need to disconnect wires individually, which is especially beneficial in complex systems requiring frequent service. The compact form factor and modularity of the PKBZ 1552 make it a practical choice for OEMs and system integrators looking to improve wiring efficiency while maintaining high standards of electrical safety and performance.
General Data |
|
|---|---|
| Type | Plug-in connector |
| Pitch | 3.81 mm |
| Colour | Green |
| Number of poles | 2 |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated current | 8 A |
| Rated voltage | 160 V |
| Rated cross section | 1.5 mm² |
| Rated impulse voltage | 2.5 kV |
| Overvoltage category | III |
| Contamination degree | 3 |

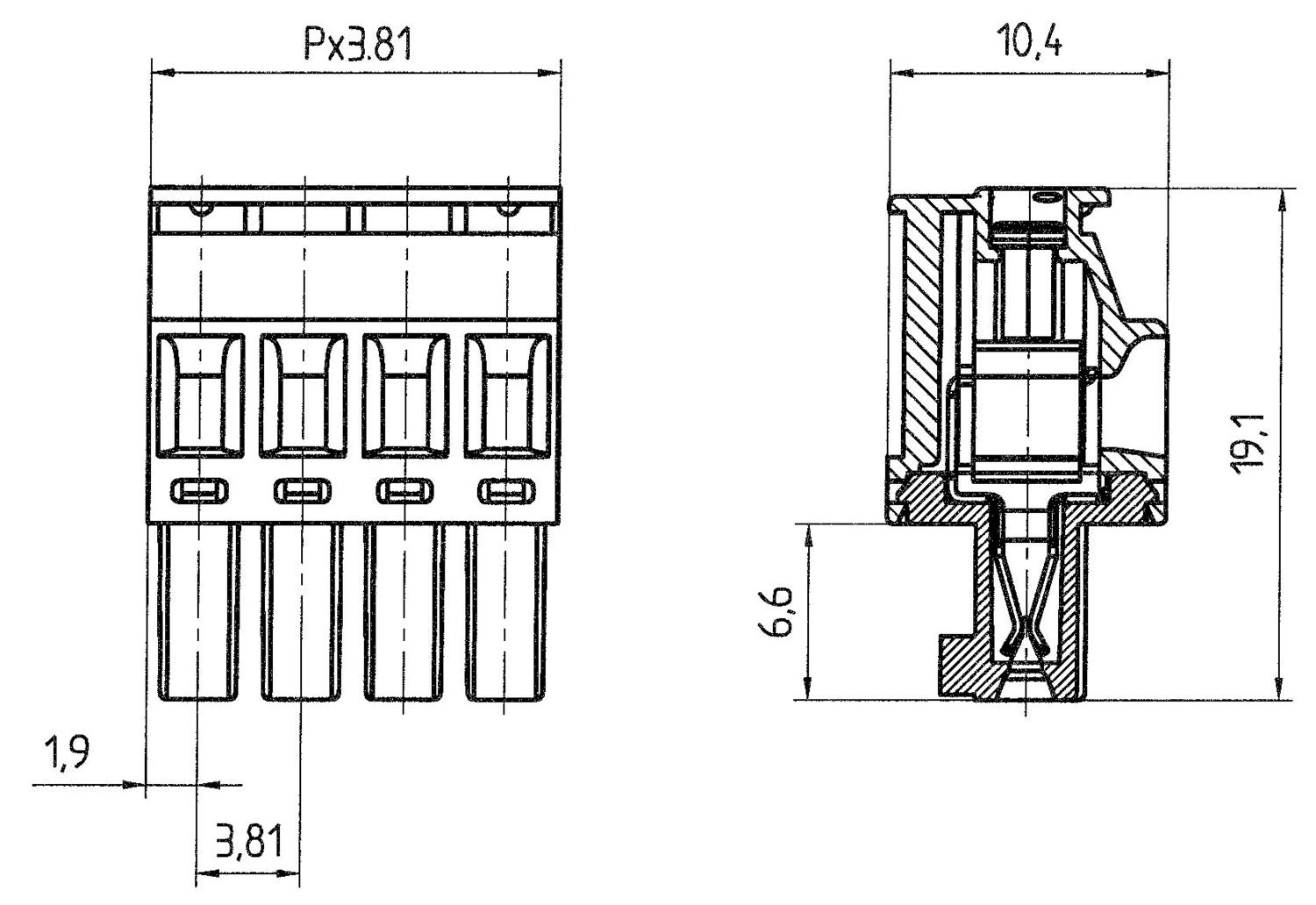

Dimensions |
|
| Length | 10.4 mm |
| Width | 7.62 mm |
| Height | 19.1 mm |
| Width left | 1.905 mm |
| Width right | 1.905 mm |
Connection Data |
|
| Connector type/principle | Screw |
| Contact version | Female connector |
| Connector version | Pluggable |
| Number of plugin rows | 1 |
| Cross section single wire from | 0.14 mm² |
| Cross section single wire to | 1.5 mm² |
| Cross section stranded wire from | 0.14 mm² |
| Cross section stranded with ferrule to | 1 mm² |
| Cross section stranded wire to | 1.5 mm² |
| Cross section stranded with ferrule from | 0.25 mm² |
| Rated wire cross section to (AWG) | 16 |
| Rated wire cross section from (AWG) | 28 |
| Stripping length | 7 mm |
| Screw size | M 2 |
| Torque | 0.25 |
Materials |
|
|---|---|
| Housing material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Contact spring | Bronze |
| Screw material | Bronze |
| Clamp material | Brass |
Approvals |
|
| UL test standard | UL 1059 |
| Rated voltage UL | 300 V |
| Rated current UL | 8 A |
| cUL test standard | CSA 22.2 No.158 |
| Rated voltage cUL | 300 V |
| Rated current cUL | 8 A |
| VDE test standard | DIN EN 61984 |
| Rated voltage VDE | 160 V |
| Rated current VDE | 8 A |
| Plug-in cycles acc. to standard | 100 |
| Tariff code | 85366990 |
| Pack size | 50 |
| Weight | 1.5 g |
| Angle of wire connection/contact | 270° (vertically downwards) |
| Connection cycles acc. to standard | 5 |
| Country of origin | QU |
| Current creepage resistance | CTI 600 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^13 Ω x cm |
The PKBZ 1552 from Conta-Clip is a high-performance, pluggable terminal block specifically engineered for industrial control and automation applications. Designed with a cross-section range of up to 2.5 mm² (AWG 14) and a rated current of 24 A, this terminal block supports rated voltages of up to 500 V. It features a push-in wire connection technology, ensuring secure and tool-free conductor insertion, which minimises installation time and enhances operational safety. The PKBZ 1552 is part of Conta-Clip’s PRK/PK series, known for its modular design, compatibility with various mounting rails (TS 35), and clear, user-friendly labelling options.
The PKBZ 1552 is ideal for applications in control cabinets, distribution boards, and automation systems, where fast, reliable, and space-saving wiring solutions are essential. Its pluggable interface enables easy maintenance and system upgrades without the need to disconnect wires individually, which is especially beneficial in complex systems requiring frequent service. The compact form factor and modularity of the PKBZ 1552 make it a practical choice for OEMs and system integrators looking to improve wiring efficiency while maintaining high standards of electrical safety and performance.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of poles | Width | Width left | Width right | Flange screw | Weight | Angle of wire connection/contact | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
PKBZ1552/3.81/2 2P PLUG VERT
Art:
13062.1
Copied
|
2
|
7.62 mm
|
1.905 mm
|
1.905 mm
|
|
1.5 g
|
270° (vertically downwards)
|
|
||
PKBZ 1552/2/3,81-F GN
Art:
14079.1
Copied
|
2
|
17.62 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
2.35 g
|
90° (vertically upwards)
|
|
||
|
PKBZ1552/3.81/3 3P PLUG VERT
Art:
13063.1
Copied
|
3
|
11.43 mm
|
1.905 mm
|
1.905 mm
|
|
2.3 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/3/3,81-F GN
Art:
14080.1
Copied
|
3
|
21.43 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
3.12 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/4/3,81 GN
Art:
13064.1
Copied
|
4
|
15.24 mm
|
1.905 mm
|
1.905 mm
|
|
3 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/4/3,81-F GN
Art:
14081.1
Copied
|
4
|
25.24 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
3.94 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/5/3,81 GN
Art:
13065.1
Copied
|
5
|
19.05 mm
|
1.905 mm
|
1.905 mm
|
|
3.8 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/5/3,81-F GN
Art:
14082.1
Copied
|
5
|
29.05 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
4.71 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/6/3,81 GN
Art:
13066.1
Copied
|
6
|
22.86 mm
|
1.905 mm
|
1.905 mm
|
|
4.6 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/6/3,81-F GN
Art:
14083.1
Copied
|
6
|
32.86 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
5.42 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/7/3,81 GN
Art:
13067.1
Copied
|
7
|
26.67 mm
|
1.905 mm
|
1.905 mm
|
|
5.7 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/7/3,81-F GN
Art:
14084.1
Copied
|
7
|
36.67 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
6.21 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/8/3,81 GN
Art:
13068.1
Copied
|
8
|
30.48 mm
|
1.905 mm
|
1.905 mm
|
|
6.2 g
|
270° (vertically downwards)
|
|
||
|

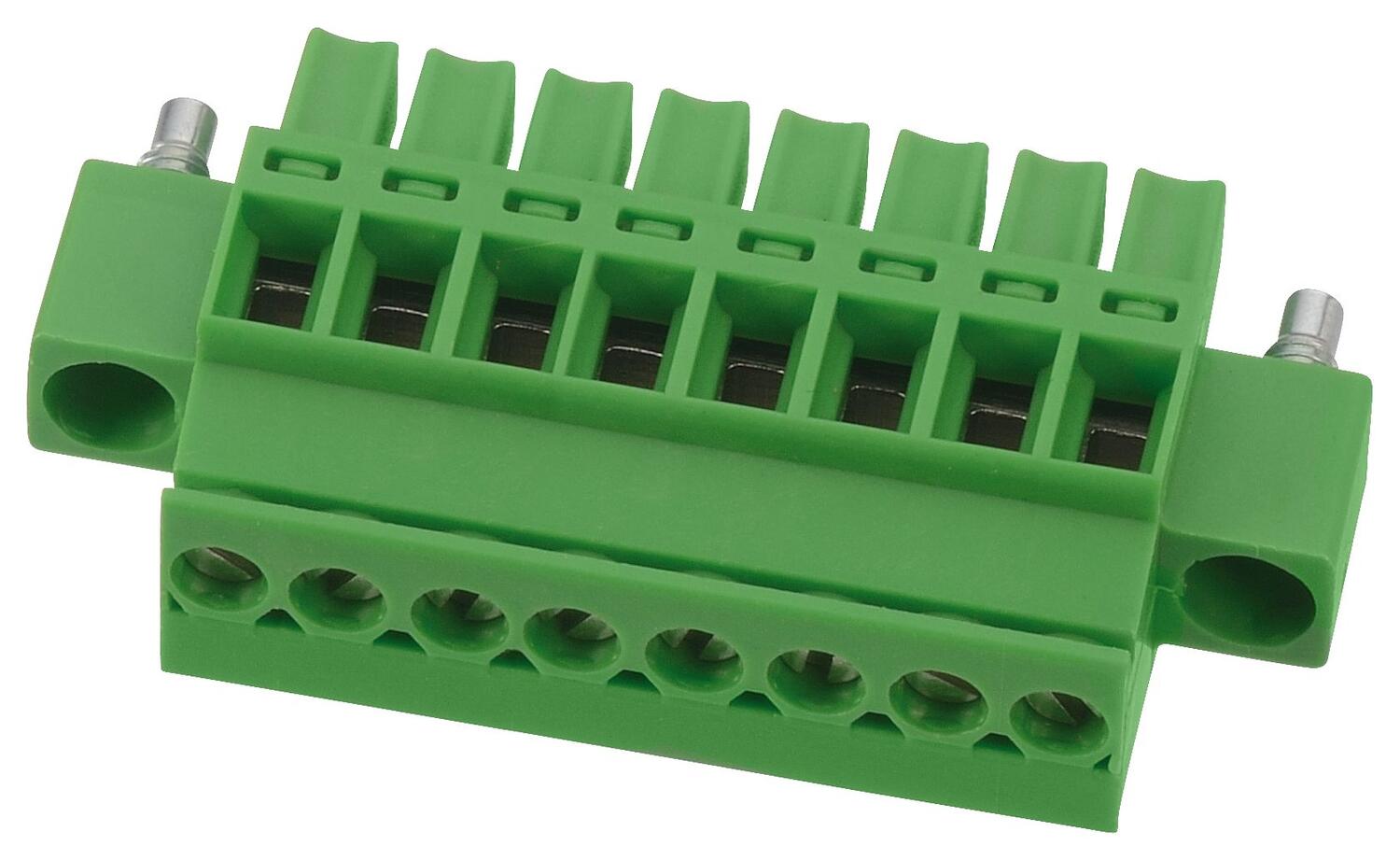

PKBZ 1552/8/3,81-F GN
Art:
14085.1
Copied
|
8
|
40.48 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
6.94 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/9/3,81 GN
Art:
13069.1
Copied
|
9
|
34.29 mm
|
1.905 mm
|
1.905 mm
|
|
7 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/9/3,81-F GN
Art:
14086.1
Copied
|
9
|
44.29 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
7.74 g
|
90° (vertically upwards)
|
|
||
|
PKBZ1552/3.81/10 10P PLUG VERT
Art:
13070.1
Copied
|
10
|
38.1 mm
|
1.905 mm
|
1.905 mm
|
|
7.8 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/10/3,81-F GN
Art:
14087.1
Copied
|
10
|
48.1 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
8.49 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/11/3,81 GN
Art:
13071.1
Copied
|
11
|
41.91 mm
|
1.905 mm
|
1.905 mm
|
|
8.6 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/11/3,81-F GN
Art:
14088.1
Copied
|
11
|
51.91 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
9.25 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/12/3,81 GN
Art:
13072.1
Copied
|
12
|
45.72 mm
|
1.905 mm
|
1.905 mm
|
|
9.4 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/12/3,81-F GN
Art:
14089.1
Copied
|
12
|
55.72 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
10.02 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/13/3,81 GN
Art:
13073.1
Copied
|
13
|
49.53 mm
|
1.905 mm
|
1.905 mm
|
|
10.1 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/13/3,81-F GN
Art:
14090.1
Copied
|
13
|
59.53 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
10.78 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/14/3,81 GN
Art:
13074.1
Copied
|
14
|
53.34 mm
|
1.905 mm
|
1.905 mm
|
|
11 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/14/3,81-F GN
Art:
14091.1
Copied
|
14
|
63.34 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
11.55 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/15/3,81 GN
Art:
13075.1
Copied
|
15
|
57.15 mm
|
1.905 mm
|
1.905 mm
|
|
11.8 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/15/3,81-F GN
Art:
14092.1
Copied
|
15
|
67.15 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
12.32 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/16/3,81 GN
Art:
13076.1
Copied
|
16
|
60.96 mm
|
1.905 mm
|
1.905 mm
|
|
12.4 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/16/3,81-F GN
Art:
14093.1
Copied
|
16
|
70.96 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
13.09 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/17/3,81 GN
Art:
13077.1
Copied
|
17
|
64.77 mm
|
1.905 mm
|
1.905 mm
|
|
13.4 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/17/3,81-F GN
Art:
14094.1
Copied
|
17
|
74.77 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
13.85 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/18/3,81 GN
Art:
13078.1
Copied
|
18
|
68.58 mm
|
1.905 mm
|
1.905 mm
|
|
14.2 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/18/3,81-F GN
Art:
14095.1
Copied
|
18
|
78.58 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
14.62 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/19/3,81 GN
Art:
13079.1
Copied
|
19
|
72.39 mm
|
1.905 mm
|
1.905 mm
|
|
15 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/19/3,81-F GN
Art:
14096.1
Copied
|
19
|
82.39 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
15.39 g
|
90° (vertically upwards)
|
|
||
|
PKBZ 1552/20/3,81 GN
Art:
13080.1
Copied
|
20
|
76.2 mm
|
1.905 mm
|
1.905 mm
|
|
15.8 g
|
270° (vertically downwards)
|
|
||
|
PKBZ 1552/20/3,81-F GN
Art:
14097.1
Copied
|
20
|
86.2 mm
|
6.905 mm
|
6.905 mm
|
Steel
|
15.15 g
|
90° (vertically upwards)
|
|
Select a variant in the list
