CONTA-CLIP
PKBZ 1100/1110

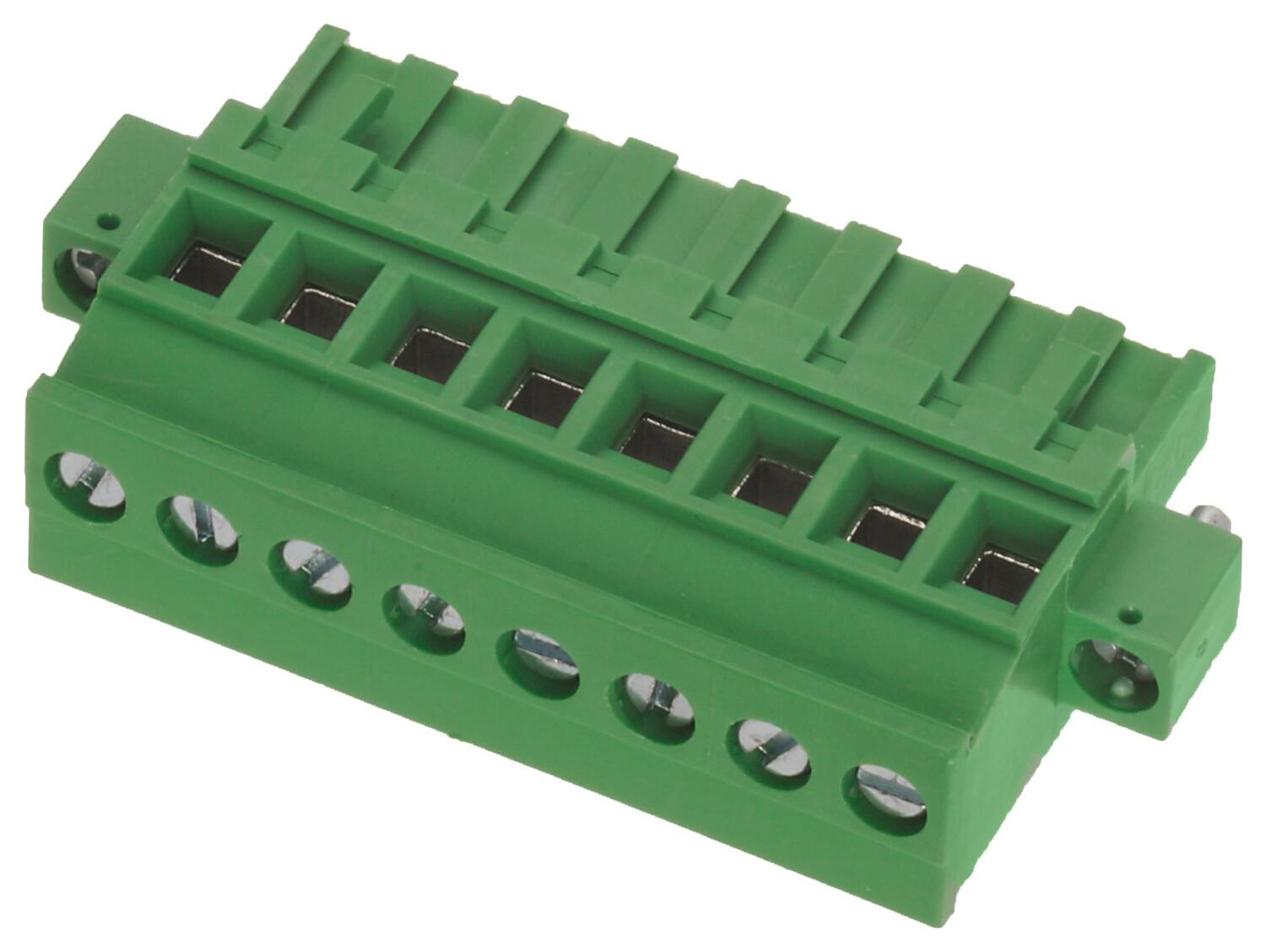

The PKBZ‑1100/1110 series are plug‑in female socket connectors featuring a clamping‑yoke termination mechanism, designed to firmly secure both solid and ferrule‑terminated conductors. The connectors typically support conductor ranges between 0.14–2.5 mm² with a screw torque around 0.4 Nm to 0.6 Nm. Alongside UL94‑V0 polyamide housing, the stainless‑steel contact yoke ensures high reliability in connections supporting currents up to 10 A at voltages between 250 V and 630 V depending on the variant. They offer robust electrical characteristics including high insulation resistance, a pollution degree rating of 3, and dielectric strength, usually several kilovolts per IEC 60664 standards, making them suitable for industrial-level performance.
These connectors are ideal for modular industrial systems and control panels that require secure, quick‑detach wiring without compromising safety or conductivity. Engineers often deploy them in automation zones, power distribution boards, switchgear, and machinery interfaces. The clamping‑yoke design not only accommodates both solid and ferruled conductors but also improves contact reliability in high‑vibration environments. Their plug‑in format enables fast field servicing or swapping of PCB‑mounted modules and when paired with mating male headers, create streamlined, maintainable connections optimised for space‑constrained or DIN‑rail‑mounted equipment.
- conductor ranges between 0.14–2.5 mm²
- Supports 10 A at voltages between 250 V and 630 V
- Screw torque around 0.4 Nm to 0.6 Nm
Selected variant
Technical data
General Data |
|
|---|---|
| Type | Plug-in connector |
| Pitch | 5.08 mm |
| Colour | Green |
| Number of poles | 2 |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated current | 10 A |
| Rated voltage | 250 V |
| Rated cross section | 2.5 mm² |
| Rated impulse voltage | 4 kV |
| Overvoltage category | III |
| Contamination degree | 3 |

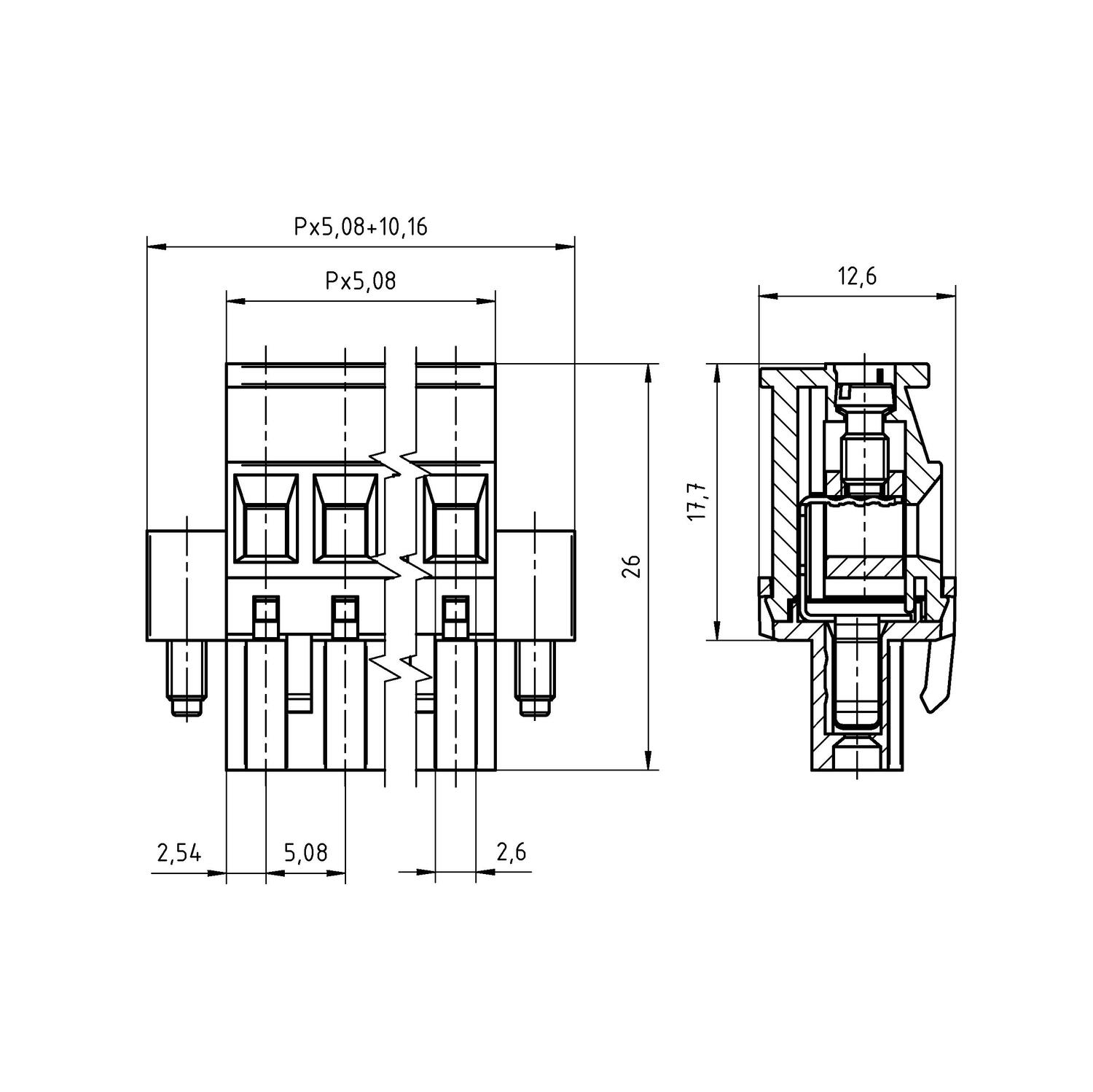

Dimensions |
|
| Length | 12.6 mm |
| Width | 20.32 mm |
| Height | 26 mm |
| Width left | 7.62 mm |
| Width right | 7.62 mm |
Connection Data |
|
| Connector type/principle | Screw |
| Contact version | Female connector |
| Connector version | Pluggable |
| Number of plugin rows | 1 |
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 4 mm² |
| Cross section stranded wire from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Cross section stranded wire to | 4 mm² |
| Cross section stranded with ferrule from | 0.25 mm² |
| Rated wire cross section to (AWG) | 12 |
| Rated wire cross section from (AWG) | 28 |
| Stripping length | 7 mm |
| Screw size | M 3 |
| Torque | 0.5 |
Materials |
|
|---|---|
| Housing material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Contact spring | Bronze |
| Screw material | Steel |
| Clamp material | Brass |
Approvals |
|
| UL test standard | UL 1059 |
| Rated voltage UL | 300 V |
| Rated current UL | 11 A |
| cUL test standard | CSA 22.2 No.158 |
| Rated voltage cUL | 300 V |
| Rated current cUL | 11 A |
| VDE test standard | DIN EN 61984 |
| Rated voltage VDE | 250 V |
| Rated current VDE | 10 A |
| Plug-in cycles acc. to standard | 100 |
| Tariff code | 85366990 |
| Pack size | 50 |
| Weight | 4.42 g |
| Angle of wire connection/contact | 90° (vertically upwards) |
| Connection cycles acc. to standard | 5 |
| Country of origin | QU |
| Current creepage resistance | CTI 600 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^13 Ω x cm |
Product description
The PKBZ‑1100/1110 series are plug‑in female socket connectors featuring a clamping‑yoke termination mechanism, designed to firmly secure both solid and ferrule‑terminated conductors. The connectors typically support conductor ranges between 0.14–2.5 mm² with a screw torque around 0.4 Nm to 0.6 Nm. Alongside UL94‑V0 polyamide housing, the stainless‑steel contact yoke ensures high reliability in connections supporting currents up to 10 A at voltages between 250 V and 630 V depending on the variant. They offer robust electrical characteristics including high insulation resistance, a pollution degree rating of 3, and dielectric strength, usually several kilovolts per IEC 60664 standards, making them suitable for industrial-level performance.
These connectors are ideal for modular industrial systems and control panels that require secure, quick‑detach wiring without compromising safety or conductivity. Engineers often deploy them in automation zones, power distribution boards, switchgear, and machinery interfaces. The clamping‑yoke design not only accommodates both solid and ferruled conductors but also improves contact reliability in high‑vibration environments. Their plug‑in format enables fast field servicing or swapping of PCB‑mounted modules and when paired with mating male headers, create streamlined, maintainable connections optimised for space‑constrained or DIN‑rail‑mounted equipment.
