CONTA-CLIP
PKB 960
Selected variant
Technical data
General Data |
|
|---|---|
| Type | Plug-in connector |
| Pitch | 7.62 mm |
| Colour | Green |
| Number of poles | 2 |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated current | 12 A |
| Rated voltage | 400 V |
| Rated cross section | 2.5 mm² |
| Rated impulse voltage | 6 kV |
| Overvoltage category | III |
| Contamination degree | 3 |

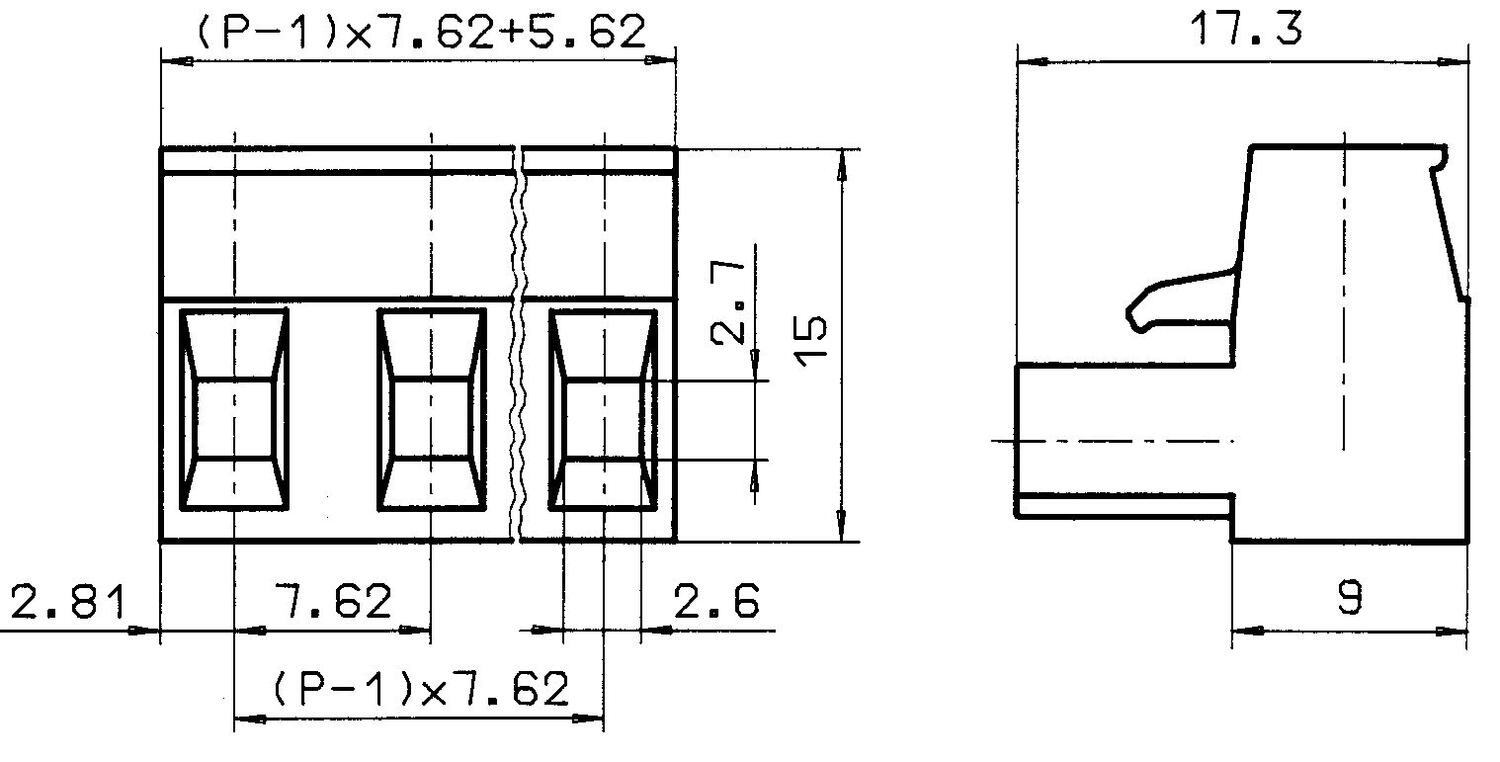

Dimensions |
|
| Length | 15 mm |
| Width | 13.24 mm |
| Height | 17.3 mm |
| Width left | 2.81 mm |
| Width right | 2.81 mm |
Connection Data |
|
| Connector type/principle | Screw |
| Contact version | Female connector |
| Connector version | Pluggable |
| Number of plugin rows | 1 Â |
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 4 mm² |
| Cross section stranded wire from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Cross section stranded wire to | 2.5 mm² |
| Cross section stranded with ferrule from | 0.25 mm² |
| Rated wire cross section to (AWG) | 12 |
| Rated wire cross section from (AWG) | 22 |
| Stripping length | 6 mm |
| Screw size | M 3 |
| Torque | 0.5 |
Materials |
|
|---|---|
| Housing material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Contact spring | Bronze |
| Screw material | Steel |
| Clamp material | Brass |
Approvals |
|
| UL test standard | UL 1059 |
| Rated voltage UL | 300 V |
| Rated current UL | 15 A |
| cUL test standard | CSA 22.2 No.158 |
| Rated voltage cUL | 300 V |
| Rated current cUL | 15 A |
| VDE test standard | DIN EN 61984 |
| Rated voltage VDE | 400 V |
| Rated current VDE | 12 A |
| Plug-in cycles acc. to standard | 100 |
| Tariff code | 85366990 |
| Pack size | 50 Â |
| Weight | 3.5 g |
| Angle of wire connection/contact | 0°/180° (horizontal) |
| Connection cycles acc. to standard | 5 |
| Country of origin | QU |
| Current creepage resistance | CTI 600 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^13 Ω x cm |
