CONTA-CLIP

PKB 950, 955

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General Data
Type Plug-in connector
Pitch 5 mm
Colour Green
Number of poles 2
Approvals UL, cUL, VDE

Ratings
Rated current 12 A
Rated voltage 250 V
Rated cross section 2.5 mm²
Rated impulse voltage 4 kV
Overvoltage category III
Contamination degree 3

Dimensions
Length 15 mm
Width 10 mm
Height 17.3 mm
Width left 2.5 mm
Width right 2.5 mm

Connection Data
Connector type/principle Screw
Contact version Female connector
Connector version Pluggable
Number of plugin rows 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Cross section stranded wire to 2.5 mm²
Cross section stranded with ferrule from 0.25 mm²
Rated wire cross section to (AWG) 12
Rated wire cross section from (AWG) 22
Stripping length 6 mm
Screw size M 3
Torque 0.5

Materials
Housing material Polyamide 6.6
Flammability class UL94-V0
Operating temperature from -30 °C
Operating temperature to 105 °C
Contact spring Bronze
Screw material Steel
Clamp material Brass

Approvals
UL test standard UL 1059
Rated voltage UL 300 V
Rated current UL 15 A
cUL test standard CSA 22.2 No.158
Rated voltage cUL 300 V
Rated current cUL 15 A
VDE test standard DIN EN 61984
Rated voltage VDE 250 V
Rated current VDE 12 A
Plug-in cycles acc. to standard 100
Tariff code 85366990
Pack size 50
Weight 3.1 g
Angle of wire connection/contact 0°/180° (horizontal)
Connection cycles acc. to standard 5
Country of origin QU
Current creepage resistance CTI 600
Glow wire flammability index (GWFI) GWFI 850
Glow wire ignition temperature (GWIT) GWIT 775
GWFI after-glow time 30 s
GWIT exposure time 5 s
Insulation resistance 1*10^13 Ω x cm

Downloads

Measurements and connections

Technical illustrations

Accessories

Related

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Parts Pitch Colour Number of poles Rated current Rated voltage Rated impulse voltage Width Height Width left Width right Cross section stranded wire to Rated wire cross section from (AWG) Stripping length Contact spring Flange screw Rated current UL Rated current cUL Rated voltage VDE Rated current VDE Tariff code Weight Number of poles Price
PKB 950/2/5,00, 2 pole Plug-in PCB connector
Art:
11207.1 Copied
5 mm
Green
2
12 A
250 V
4 kV
10 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
3.1 g
PKB 950/5.08/2, 2 pole Plug-in PCB connector
Art:
11230.1 Copied
5.08 mm
Green
2
12 A
250 V
4 kV
10.16 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
3.1 g
PKB 950/2/5,08, 2 pole Plug-in PCB connector - Black
Art:
11230.4 Copied
5.08 mm
Black
2
12 A
250 V
4 kV
10.16 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
3.1 g
PKB 950/5/2F, 2 pole Plug-in PCB connector - Screw Flanged
Art:
11268.1 Copied
5 mm
Green
2
12 A
250 V
4 kV
20 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
5.5 g
PKB 950/2/5,08-F, 2 pole Plug-in PCB connector - Screw Flanged
Art:
11277.1 Copied
5.08 mm
Green
2
12 A
250 V
4 kV
20.32 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
4 g
PKB 950/2/5,00-HC, 2 pole Plug-in PCB connector - High Current
Art:
30122.1 Copied
5 mm
Green
2
16 A
630 V
6 kV
10 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
3.09 g
PKB 950/2/5,00-F-HC, 2 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30162.1 Copied
5 mm
Green
2
16 A
630 V
6 kV
20 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
3.95 g

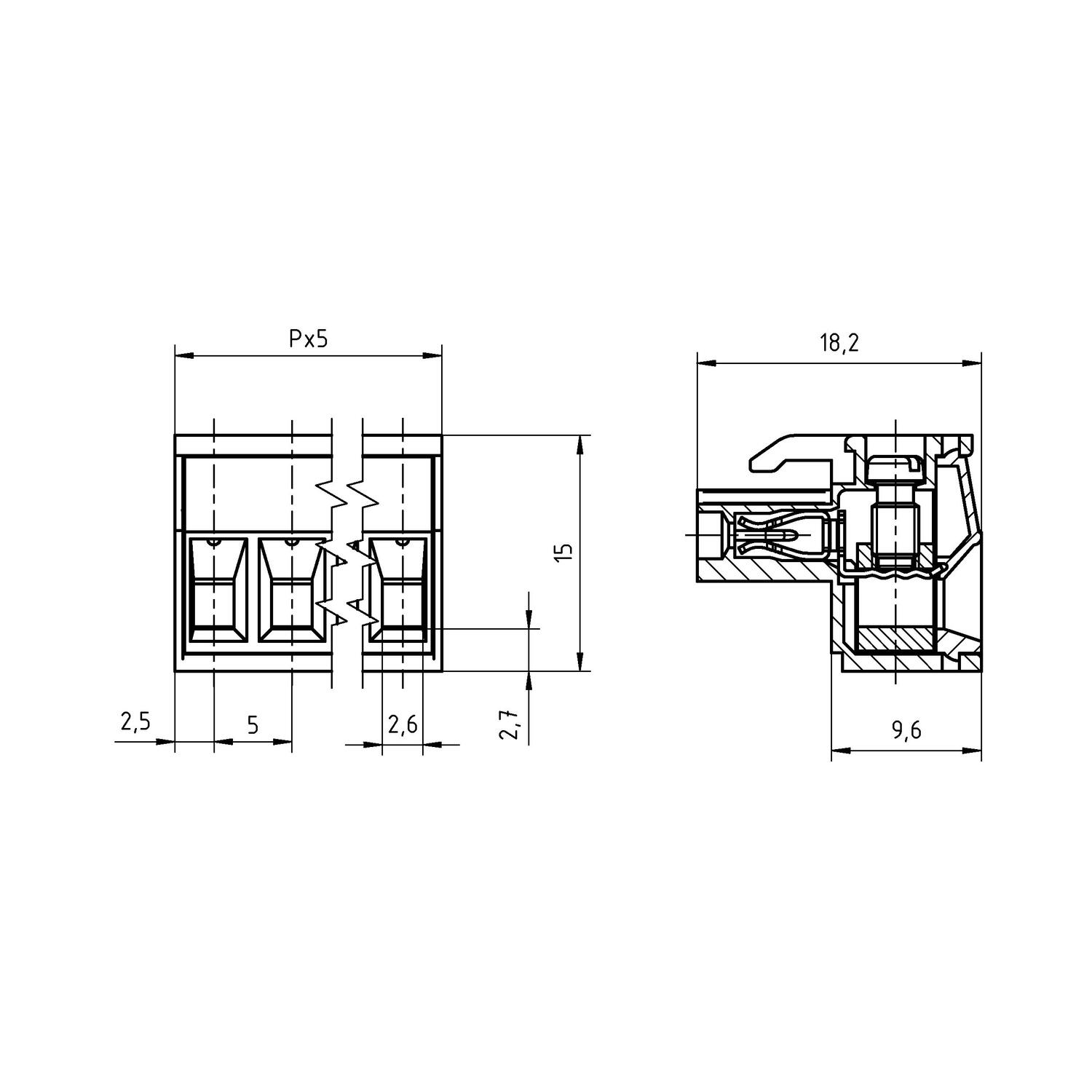

PKB 955/2/5,00, 2 pole Plug-in PCB Connector
Art:
30202.1 Copied
5 mm
Green
2
9 A
250 V
2 kV
10 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
3.26 g
PKB 950/3/5,00, 3 pole Plug-in PCB connector
Art:
11208.1 Copied
5 mm
Green
3
12 A
250 V
4 kV
15 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
4.7 g
PKB 950/5.08/3, 3 pole Plug-in PCB connector
Art:
11231.1 Copied
5.08 mm
Green
3
12 A
250 V
4 kV
15.24 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
4.7 g
PKB 950/3/5,08, 3 pole Plug-in PCB connector- Orange
Art:
11231.3 Copied
5.08 mm
Orange
3
12 A
250 V
4 kV
15.24 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
4.7 g
PKB 950/5.08/3, 3 pole Plug-in PCB connector - Black
Art:
11231.4 Copied
5.08 mm
Black
3
12 A
250 V
4 kV
15.24 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
4.7 g
PKB 950/3/5,00-F, 3 pole Plug-in PCB connector - Screw Flanged
Art:
11269.1 Copied
5 mm
Green
3
12 A
250 V
4 kV
25 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
4.2 g
PKB 950/5.08/3F, 3 pole Plug-in PCB connector - Screw Flanged
Art:
11278.1 Copied
5.08 mm
Green
3
12 A
250 V
4 kV
25.4 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
5.6 g
PKB 950/3/5,00-HC, 3 pole Plug-in PCB connector - High Current
Art:
30123.1 Copied
5 mm
Green
3
16 A
630 V
6 kV
15 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
4.63 g
PKB 950/3/5,00-F-HC, 3 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30163.1 Copied
5 mm
Green
3
16 A
630 V
6 kV
25 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
5.44 g
PKB 955/3/5,00, 3 pole Plug-in PCB Connector
Art:
30203.1 Copied
5 mm
Green
3
9 A
250 V
2 kV
15 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
4.85 g
PKB 950/4/5,00, 4 pole Plug-in PCB connector
Art:
11209.1 Copied
5 mm
Green
4
12 A
250 V
4 kV
20 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
6.2 g
PKB 950/5.08/4, 4 pole Plug-in PCB connector
Art:
11232.1 Copied
5.08 mm
Green
4
12 A
250 V
4 kV
20.32 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
6.2 g
PKB 950/4/5,08, 4 pole Plug-in PCB connector- Orange
Art:
11232.3 Copied
5.08 mm
Orange
4
12 A
250 V
4 kV
20.32 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
6.2 g
PKB 950/4/5,08, 4 pole Plug-in PCB connector - Black
Art:
11232.4 Copied
5.08 mm
Black
4
12 A
250 V
4 kV
20.32 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
6.2 g
PKB 950/5/4F, 4 pole Plug-in PCB connector - Screw Flanged
Art:
11270.1 Copied
5 mm
Green
4
12 A
250 V
4 kV
30 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
7 g
PKB 950/4/5,08-F, 4 pole Plug-in PCB connector - Screw Flanged
Art:
11279.1 Copied
5.08 mm
Green
4
12 A
250 V
4 kV
30.48 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
7 g
PKB 950/4/5,00-HC, 4 pole Plug-in PCB connector - High Current
Art:
30124.1 Copied
5 mm
Green
4
16 A
630 V
6 kV
20 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
6.17 g
PKB 950/4/5,00-F-HC, 4 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30164.1 Copied
5 mm
Green
4
16 A
630 V
6 kV
30 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
7.01 g
PKB 950/5/5,00, 5 pole Plug-in PCB connector
Art:
11210.1 Copied
5 mm
Green
5
12 A
250 V
4 kV
25 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
7.7 g
PKB 950/5.08/5, 5 pole Plug-in PCB connector
Art:
11233.1 Copied
5.08 mm
Green
5
12 A
250 V
4 kV
25.4 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
7.8 g
PKB 950/5/5,00-F, 5 pole Plug-in PCB connector - Screw Flanged
Art:
11271.1 Copied
5 mm
Green
5
12 A
250 V
4 kV
35 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
8 g
PKB 950/5/5,08-F, 5 pole Plug-in PCB connector - Screw Flanged
Art:
11280.1 Copied
5.08 mm
Green
5
12 A
250 V
4 kV
35.56 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
8.6 g
PKB 950/5/5,00-HC, 5 pole Plug-in PCB connector - High Current
Art:
30125.1 Copied
5 mm
Green
5
16 A
630 V
6 kV
25 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
7.71 g
PKB 950/5/5,00-F-HC, 5 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30165.1 Copied
5 mm
Green
5
16 A
630 V
6 kV
35 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
8.55 g
PKB 955/5/5,00, 5 pole Plug-in PCB Connector
Art:
30205.1 Copied
5 mm
Green
5
9 A
250 V
2 kV
25 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
7.97 g
PKB 950/6/5,00, 6 pole Plug-in PCB connector
Art:
11211.1 Copied
5 mm
Green
6
12 A
250 V
4 kV
30 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
9.3 g
PKB 950/5.08/6, 6 pole Plug-in PCB connector
Art:
11234.1 Copied
5.08 mm
Green
6
12 A
250 V
4 kV
30.48 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
9.2 g
PKB 950/6/5,00-F, 6 pole Plug-in PCB connector - Screw Flanged
Art:
11272.1 Copied
5 mm
Green
6
12 A
250 V
4 kV
40 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
10.2 g
PKB 950/6/5,08-F, 6 pole Plug-in PCB connector - Screw Flanged
Art:
11281.1 Copied
5.08 mm
Green
6
12 A
250 V
4 kV
40.64 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
10.2 g
PKB 950/6/5,00-HC, 6 pole Plug-in PCB connector - High Current
Art:
30126.1 Copied
5 mm
Green
6
16 A
630 V
6 kV
30 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
9.26 g
PKB 950/6/5,00-F-HC, 6 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30166.1 Copied
5 mm
Green
6
16 A
630 V
6 kV
40 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
10.1 g
PKB 955/6/5,00, 6 pole Plug-in PCB Connector
Art:
30206.1 Copied
5 mm
Green
6
9 A
250 V
2 kV
30 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
9.54 g
PKB 950/7/5,00, 7 pole Plug-in PCB connector
Art:
11212.1 Copied
5 mm
Green
7
12 A
250 V
4 kV
35 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
10.8 g
PKB 950/5.08/7 7 pole Plug-in PCB connector
Art:
11235.1 Copied
5.08 mm
Green
7
12 A
250 V
4 kV
35.56 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
10.9 g
PKB 950/7/5,00-F, 7 pole Plug-in PCB connector - Screw Flanged
Art:
11273.1 Copied
5 mm
Green
7
12 A
250 V
4 kV
45 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
11.2 g
PKB 950/7/5,08-F, 7 pole Plug-in PCB connector - Screw Flanged
Art:
11282.1 Copied
5.08 mm
Green
7
12 A
250 V
4 kV
45.72 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
11.6 g
PKB 950/7/5,00-HC, 7 pole Plug-in PCB connector - High Current
Art:
30127.1 Copied
5 mm
Green
7
16 A
630 V
6 kV
35 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
10.8 g
PKB 950/7/5,00-F-HC, 7 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30167.1 Copied
5 mm
Green
7
16 A
630 V
6 kV
45 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
11.63 g
PKB 955/7/5,00, 7 pole Plug-in PCB Connector
Art:
30207.1 Copied
5 mm
Green
7
9 A
250 V
2 kV
35 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
11.1 g
PKB 950/5/8, 8 pole Plug-in PCB connector
Art:
11213.1 Copied
5 mm
Green
8
12 A
250 V
4 kV
40 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
12.4 g
PKB 950/5.08/8, 8 pole Plug-in PCB connector
Art:
11236.1 Copied
5.08 mm
Green
8
12 A
250 V
4 kV
40.64 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
12.5 g
PKB 950/8/5,00-F, 8 pole Plug-in PCB connector - Screw Flanged
Art:
11274.1 Copied
5 mm
Green
8
12 A
250 V
4 kV
50 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
12.8 g
PKB 950/8/5,08-F, 8 pole Plug-in PCB connector - Screw Flanged
Art:
11283.1 Copied
5.08 mm
Green
8
12 A
250 V
4 kV
50.8 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
13.2 g

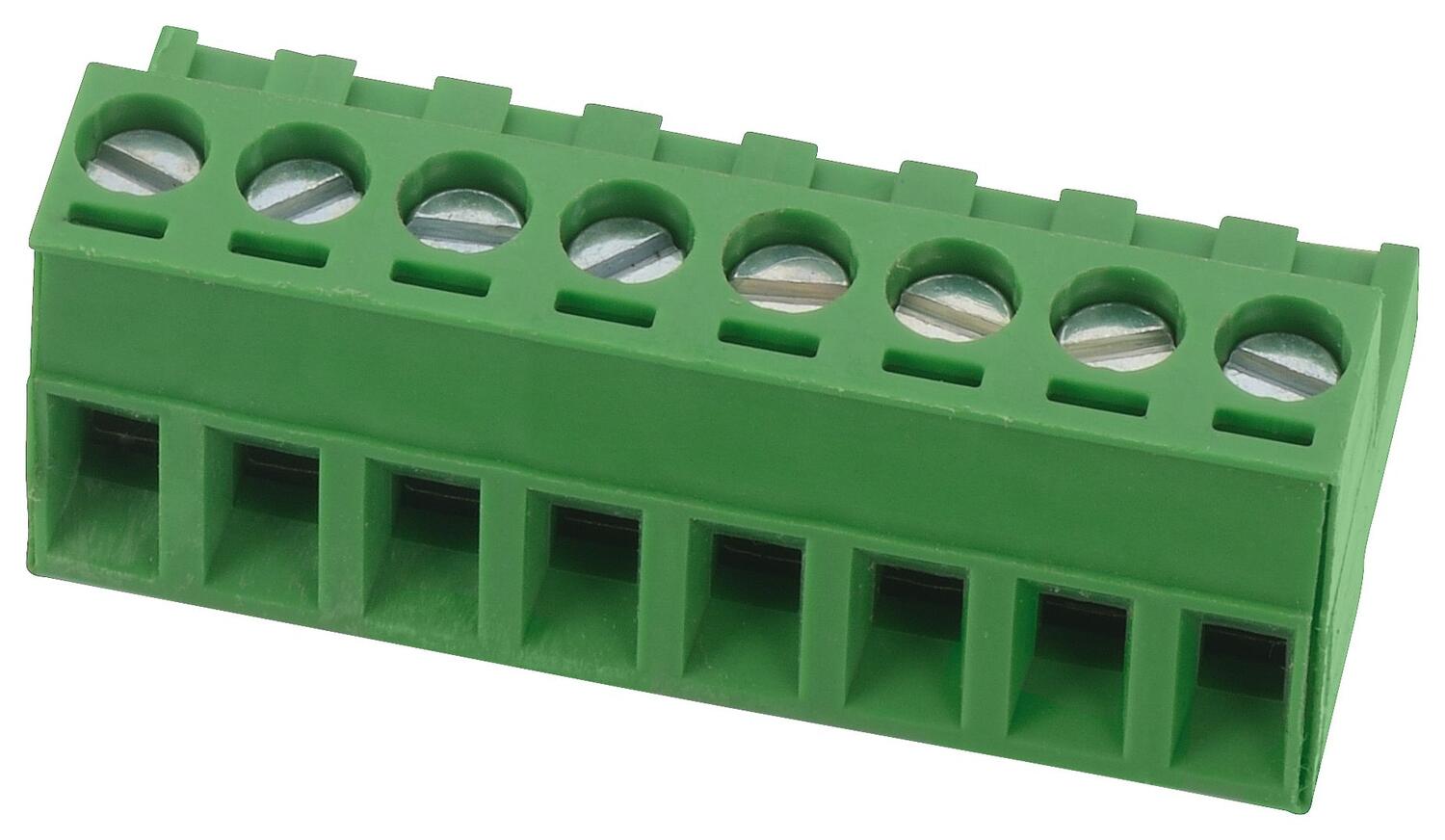

PKB 950/8/5,00-HC, 8 pole Plug-in PCB connector - High Current
Art:
30128.1 Copied
5 mm
Green
8
16 A
630 V
6 kV
40 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
12.34 g
PKB 950/8/5,00-F-HC, 8 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30168.1 Copied
5 mm
Green
8
16 A
630 V
6 kV
50 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
13.17 g
PKB 955/8/5,00, 8 pole Plug-in PCB Connector
Art:
30208.1 Copied
5 mm
Green
8
9 A
250 V
2 kV
40 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
12.67 g
PKB 950/5/9 9 pole Plug-in PCB connector
Art:
11214.1 Copied
5 mm
Green
9
12 A
250 V
4 kV
45 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
13.9 g
PKB 950/5.08/9, 9 pole Plug-in PCB connector
Art:
11237.1 Copied
5.08 mm
Green
9
12 A
250 V
4 kV
45.72 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
14.1 g
PKB 950/9/5,00-F, 9 pole Plug-in PCB connector - Screw Flanged
Art:
11275.1 Copied
5 mm
Green
9
12 A
250 V
4 kV
55 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
14.7 g
PKB 950/9/5,08-F, 9 pole Plug-in PCB connector - Screw Flanged
Art:
11284.1 Copied
5.08 mm
Green
9
12 A
250 V
4 kV
55.88 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
15.3 g
PKB 950/9/5,00-HC, 9 pole Plug-in PCB connector - High Current
Art:
30129.1 Copied
5 mm
Green
9
16 A
630 V
6 kV
45 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
13.88 g
PKB 950/9/5,00-F-HC, 9 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30169.1 Copied
5 mm
Green
9
16 A
630 V
6 kV
55 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
14.75 g
PKB 955/9/5,00, 9 pole Plug-in PCB Connector
Art:
30209.1 Copied
5 mm
Green
9
9 A
250 V
2 kV
45 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
14.23 g
PKB 950/10/5,00, 10 pole Plug-in PCB connector
Art:
11215.1 Copied
5 mm
Green
10
12 A
250 V
4 kV
50 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
15.4 g
PKB 950/5.08/10, 10 pole Plug-in PCB connector
Art:
11238.1 Copied
5.08 mm
Green
12 A
250 V
4 kV
50.8 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
15.6 g
10
PKB 950/10/5,00-F, 10 pole Plug-in PCB connector - Screw Flanged
Art:
11276.1 Copied
5 mm
Green
10
12 A
250 V
4 kV
60 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
16.2 g
PKB 950/10/5,08-F, 10 pole Plug-in PCB connector - Screw Flanged
Art:
11285.1 Copied
5.08 mm
Green
10
12 A
250 V
4 kV
60.96 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
16.4 g
PKB 950/10/5,00-HC, 10 pole Plug-in PCB connector - High Current
Art:
30130.1 Copied
5 mm
Green
10
16 A
630 V
6 kV
50 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
15.42 g
PKB 950/10/5,00-F-HC, 10 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30170.1 Copied
5 mm
Green
10
16 A
630 V
6 kV
60 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
16.28 g
PKB 955/10/5,00, 10 pole Plug-in PCB Connector
Art:
30210.1 Copied
5 mm
Green
10
9 A
250 V
2 kV
50 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
15.79 g
PKB 950/11/5,00, 11 pole Plug-in PCB connector
Art:
11216.1 Copied
5 mm
Green
11
12 A
250 V
4 kV
55 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
16.9 g
PKB 950/5.08/11, 11 pole Plug-in PCB connector
Art:
11239.1 Copied
5.08 mm
Green
12 A
250 V
4 kV
55.88 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
17.1 g
11
PKB 950/11/5,08-F, 11 pole Plug-in PCB connector - Screw Flanged
Art:
13212.1 Copied
5.08 mm
Green
11
12 A
250 V
4 kV
66.04 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
17.9 g
PKB 950/11/5,00-F, 11 pole Plug-in PCB connector - Screw Flanged
Art:
13226.1 Copied
5 mm
Green
11
12 A
250 V
4 kV
65 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
17.78 g
PKB 950/11/5,00-HC, 11 pole Plug-in PCB connector - High Current
Art:
30131.1 Copied
5 mm
Green
11
16 A
630 V
6 kV
55 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
16.96 g
PKB 950/11/5,00-F-HC, 11 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30171.1 Copied
5 mm
Green
11
16 A
630 V
6 kV
65 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
17.81 g
PKB 955/11/5,00, 11 pole Plug-in PCB Connector
Art:
30211.1 Copied
5 mm
Green
11
9 A
250 V
2 kV
55 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
17.36 g
PKB 950/5/12 12 pole Plug-in PCB connector
Art:
11217.1 Copied
5 mm
Green
12
12 A
250 V
4 kV
60 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
18.6 g
PKB 950/5.08/12 12 pole Plug-in PCB connector
Art:
11240.1 Copied
5.08 mm
Green
12
12 A
250 V
4 kV
60.96 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
18.7 g
PKB 950/12/5,08-F, 12 pole Plug-in PCB connector - Screw Flanged
Art:
13213.1 Copied
5.08 mm
Green
12
12 A
250 V
4 kV
71.12 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
19.6 g
PKB 950/12/5,00-F, 12 pole Plug-in PCB connector - Screw Flanged
Art:
13227.1 Copied
5 mm
Green
12
12 A
250 V
4 kV
70 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
19.4 g
PKB 950/12/5,00-HC, 12 pole Plug-in PCB connector - High Current
Art:
30132.1 Copied
5 mm
Green
12
16 A
630 V
6 kV
60 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Copper alloy
16 A
16 A
630 V
16 A
85366990
18.5 g
PKB 950/12/5,00-F-HC, 12 pole Plug-in PCB connector - Screw Flanged, High Current
Art:
30172.1 Copied
5 mm
Green
12
16 A
630 V
6 kV
70 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Copper alloy
Steel
16 A
16 A
630 V
16 A
85366990
19.36 g
PKB 955/12/5,00, 12 pole Plug-in PCB Connector
Art:
30212.1 Copied
5 mm
Green
12
9 A
250 V
2 kV
60 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
18.92 g
PKB 950/5/13 13 pole Plug-in PCB connector
Art:
11218.1 Copied
5 mm
Green
13
12 A
250 V
4 kV
65 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
20.1 g
PKB 950/5.08/13 13 pole Plug-in PCB connector
Art:
11241.1 Copied
5.08 mm
Green
13
12 A
250 V
4 kV
66.04 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
20.3 g
PKB 950/13/5,08-F, 13 pole Plug-in PCB connector - Screw Flanged
Art:
13214.1 Copied
5.08 mm
Green
13
12 A
250 V
4 kV
76.2 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
21 g
PKB 950/13/5,00-F, 13 pole Plug-in PCB connector - Screw Flanged
Art:
13228.1 Copied
5 mm
Green
13
12 A
250 V
4 kV
75 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
21 g
PKB 955/13/5,00, 13 pole Plug-in PCB Connector
Art:
30213.1 Copied
5 mm
Green
13
9 A
250 V
2 kV
65 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
20.49 g
PKB 950/14/5,00, 14 pole Plug-in PCB connector
Art:
11219.1 Copied
5 mm
Green
14
12 A
250 V
4 kV
70 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
21.6 g
PKB 950/5.08/14 14 pole Plug-in PCB connector
Art:
11242.1 Copied
5.08 mm
Green
14
12 A
250 V
4 kV
71.12 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
21.6 g
PKB 950/14/5,08-F, 14 pole Plug-in PCB connector - Screw Flanged
Art:
13215.1 Copied
5.08 mm
Green
14
12 A
250 V
4 kV
81.28 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
22.7 g
PKB 950/14/5,00-F, 14 pole Plug-in PCB connector - Screw Flanged
Art:
13229.1 Copied
5 mm
Green
14
12 A
250 V
4 kV
80 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
22.6 g
PKB 955/14/5,00, 14 pole Plug-in PCB Connector
Art:
30214.1 Copied
5 mm
Green
14
9 A
250 V
2 kV
70 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
22.05 g
PKB 950/5/15 15 pole Plug-in PCB connector
Art:
11220.1 Copied
5 mm
Green
15
12 A
250 V
4 kV
75 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
23.1 g
PKB 950/15/5,08, 15 pole Plug-in PCB connector
Art:
11243.1 Copied
5.08 mm
Green
15
12 A
250 V
4 kV
76.2 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
23.4 g
PKB 950/15/5,08-F, 15 pole Plug-in PCB connector - Screw Flanged
Art:
13216.1 Copied
5.08 mm
Green
15
12 A
250 V
4 kV
86.36 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
24.4 g
PKB 950/15/5,00-F, 15 pole Plug-in PCB connector - Screw Flanged
Art:
13230.1 Copied
5 mm
Green
15
12 A
250 V
4 kV
85 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
24.18 g
PKB 955/15/5,00, 15 pole Plug-in PCB Connector
Art:
30215.1 Copied
5 mm
Green
15
9 A
250 V
2 kV
75 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
23.61 g
PKB 950/16/5,00, 16 pole Plug-in PCB connector
Art:
11221.1 Copied
5 mm
Green
16
12 A
250 V
4 kV
80 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
24.8 g
PKB 950/5.08/16 16 pole Plug-in PCB connector
Art:
11244.1 Copied
5.08 mm
Green
16
12 A
250 V
4 kV
81.28 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
24.9 g
PKB 950/16/5,08-F, 16 pole Plug-in PCB connector - Screw Flanged
Art:
13217.1 Copied
5.08 mm
Green
16
12 A
250 V
4 kV
91.44 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
26.1 g
PKB 950/16/5,00-F, 16 pole Plug-in PCB connector - Screw Flanged
Art:
13231.1 Copied
5 mm
Green
16
12 A
250 V
4 kV
90 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
25.8 g
PKB 955/16/5,00, 16 pole Plug-in PCB Connector
Art:
30216.1 Copied
5 mm
Green
16
9 A
250 V
2 kV
80 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
25.18 g
PKB 950/17/5,00, 17 pole Plug-in PCB connector
Art:
11222.1 Copied
5 mm
Green
17
12 A
250 V
4 kV
85 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
26.4 g
PKB 950/17/5,08, 17 pole Plug-in PCB connector
Art:
11245.1 Copied
5.08 mm
Green
17
12 A
250 V
4 kV
86.36 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
26.5 g
PKB 950/17/5,08-F, 17 pole Plug-in PCB connector - Screw Flanged
Art:
13218.1 Copied
5.08 mm
Green
17
12 A
250 V
4 kV
96.52 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
27.8 g
PKB 950/17/5,00-F, 17 pole Plug-in PCB connector - Screw Flanged
Art:
13232.1 Copied
5 mm
Green
17
12 A
250 V
4 kV
95 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
27.38 g
PKB 955/17/5,00, 17 pole Plug-in PCB Connector
Art:
30217.1 Copied
5 mm
Green
17
9 A
250 V
2 kV
85 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
26.74 g
PKB 950/18/5,00, 18 pole Plug-in PCB connector
Art:
11223.1 Copied
5 mm
Green
18
12 A
250 V
4 kV
90 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
27.76 g
PKB 950/18/5,08, 18 pole Plug-in PCB connector
Art:
11246.1 Copied
5.08 mm
Green
18
12 A
250 V
4 kV
91.44 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
27.9 g
PKB 950/18/5,08-F, 18 pole Plug-in PCB connector - Screw Flanged
Art:
13219.1 Copied
5.08 mm
Green
18
12 A
250 V
4 kV
101.6 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
29.5 g
PKB 950/18/5,00-F, 18 pole Plug-in PCB connector - Screw Flanged
Art:
13233.1 Copied
5 mm
Green
18
12 A
250 V
4 kV
100 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
29 g
PKB 955/18/5,00, 18 pole Plug-in PCB Connector
Art:
30218.1 Copied
5 mm
Green
18
9 A
250 V
2 kV
90 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
28.31 g
PKB 950/19/5,00, 19 pole Plug-in PCB connector
Art:
11224.1 Copied
5 mm
Green
19
12 A
250 V
4 kV
95 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
29.4 g
PKB 950/19/5,08, 19 pole Plug-in PCB connector
Art:
11247.1 Copied
5.08 mm
Green
19
12 A
250 V
4 kV
96.52 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
29.85 g
PKB 950/19/5,08-F, 19 pole Plug-in PCB connector - Screw Flanged
Art:
13220.1 Copied
5.08 mm
Green
19
12 A
250 V
4 kV
106.68 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
31.2 g
PKB 950/19/5,00-F, 19 pole Plug-in PCB connector - Screw Flanged
Art:
13234.1 Copied
5 mm
Green
19
12 A
250 V
4 kV
105 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
30.6 g
PKB 955/19/5,00, 19 pole Plug-in PCB Connector
Art:
30219.1 Copied
5 mm
Green
19
9 A
250 V
2 kV
95 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
29.87 g
PKB 950/20/5,00, 20 pole Plug-in PCB connector
Art:
11225.1 Copied
5 mm
Green
20
12 A
250 V
4 kV
100 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
30.9 g
PKB 950/20/5,08, 20 pole Plug-in PCB connector
Art:
11248.1 Copied
5.08 mm
Green
20
12 A
250 V
4 kV
101.6 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
31.1 g
PKB 950/20/5,08-F, 20 pole Plug-in PCB connector - Screw Flanged
Art:
13221.1 Copied
5.08 mm
Green
20
12 A
250 V
4 kV
111.76 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
32.1 g
PKB 950/20/5,00-F, 20 pole Plug-in PCB connector - Screw Flanged
Art:
13235.1 Copied
5 mm
Green
20
12 A
250 V
4 kV
110 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
32.2 g
PKB 955/20/5,00, 20 pole Plug-in PCB Connector
Art:
30220.1 Copied
5 mm
Green
20
9 A
250 V
2 kV
100 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
31.43 g
PKB 950/21/5,00, 21 pole Plug-in PCB connector
Art:
11226.1 Copied
5 mm
Green
21
12 A
250 V
4 kV
105 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
32.38 g
PKB 950/21/5,08, 21 pole Plug-in PCB connector
Art:
11249.1 Copied
5.08 mm
Green
21
12 A
250 V
4 kV
106.68 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
32.99 g
PKB 950/21/5,08-F, 21 pole Plug-in PCB connector - Screw Flanged
Art:
13222.1 Copied
5.08 mm
Green
21
12 A
250 V
4 kV
116.84 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
34.6 g
PKB 950/21/5,00-F, 21 pole Plug-in PCB connector - Screw Flanged
Art:
13236.1 Copied
5 mm
Green
21
12 A
250 V
4 kV
115 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
33.8 g
PKB 955/21/5,00, 21 pole Plug-in PCB Connector
Art:
30221.1 Copied
5 mm
Green
21
9 A
250 V
2 kV
105 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
33 g
PKB 950/22/5,00, 22 pole Plug-in PCB connector
Art:
11227.1 Copied
5 mm
Green
22
12 A
250 V
4 kV
110 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
33.92 g
PKB 950/5.08/22 22 polePlug-in PCB connector
Art:
11250.1 Copied
5.08 mm
Green
22
12 A
250 V
4 kV
111.76 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
34.57 g
PKB 950/22/5,08-F, 22 pole Plug-in PCB connector - Screw Flanged
Art:
13223.1 Copied
5.08 mm
Green
22
12 A
250 V
4 kV
121.92 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
36.3 g
PKB 950/22/5,00-F, 22 pole Plug-in PCB connector - Screw Flanged
Art:
13237.1 Copied
5 mm
Green
22
12 A
250 V
4 kV
120 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
35.4 g
PKB 955/22/5,00, 22 pole Plug-in PCB Connector
Art:
30222.1 Copied
5 mm
Green
22
9 A
250 V
2 kV
110 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
34.56 g
PKB 950/23/5,00, 23 pole Plug-in PCB connector
Art:
11228.1 Copied
5 mm
Green
23
12 A
250 V
4 kV
115 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
35.46 g
PKB 950/23/5,08, 23 pole Plug-in PCB connector
Art:
11251.1 Copied
5.08 mm
Green
23
12 A
250 V
4 kV
116.84 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
35.9 g
PKB 950/23/5,00-F, 23 pole Plug-in PCB connector - Screw Flanged
Art:
13238.1 Copied
5 mm
Green
23
12 A
250 V
4 kV
125 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
46 g
PKB 950/23/5,08-F, 23 pole Plug-in PCB connector - Screw Flanged
Art:
13707.1 Copied
5.08 mm
Green
23
12 A
250 V
4 kV
127 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
46 g
PKB 955/23/5,00, 23 pole Plug-in PCB Connector
Art:
30223.1 Copied
5 mm
Green
23
9 A
250 V
2 kV
115 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
36.13 g
PKB 950/24/5,00, 24 pole Plug-in PCB connector
Art:
11229.1 Copied
5 mm
Green
24
12 A
250 V
4 kV
120 mm
17.3 mm
2.5 mm
2.5 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
37.2 g
PKB 950/24/5,08, 24 pole Plug-in PCB connector
Art:
11252.1 Copied
5.08 mm
Green
24
12 A
250 V
4 kV
121.92 mm
17.3 mm
2.54 mm
2.54 mm
2.5 mm²
22
6 mm
Bronze
15 A
15 A
250 V
12 A
85366990
37.5 g
PKB 950/24/5,00-F, 24 pole Plug-in PCB connector - Screw Flanged
Art:
13239.1 Copied
5 mm
Green
24
12 A
250 V
4 kV
130 mm
17.3 mm
7.5 mm
7.5 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
48 g
PKB 950/24/5,08-F, 24 pole Plug-in PCB connector - Screw Flanged
Art:
13708.1 Copied
5.08 mm
Green
24
12 A
250 V
4 kV
132.08 mm
17.3 mm
7.62 mm
7.62 mm
2.5 mm²
22
6 mm
Bronze
Steel
15 A
15 A
250 V
12 A
85366990
48 g
PKB 955/24/5,00, 24 pole Plug-in PCB Connector
Art:
30224.1 Copied
5 mm
Green
24
9 A
250 V
2 kV
120 mm
18.2 mm
2.5 mm
2.5 mm
4 mm²
28
7 mm
Bronze
10 A
10 A
250 V
9 A
85369010
37.69 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
