General Data |
|
|---|---|
| Type | Inverted plug-in connector |
| Pitch | 5.08 mm |
| Colour | Green |
| Number of poles | 2 |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated current | 10 A |
| Rated voltage | 250 V |
| Rated cross section | 2.5 mm² |
| Rated impulse voltage | 4 kV |
| Overvoltage category | III |
| Contamination degree | 3 |

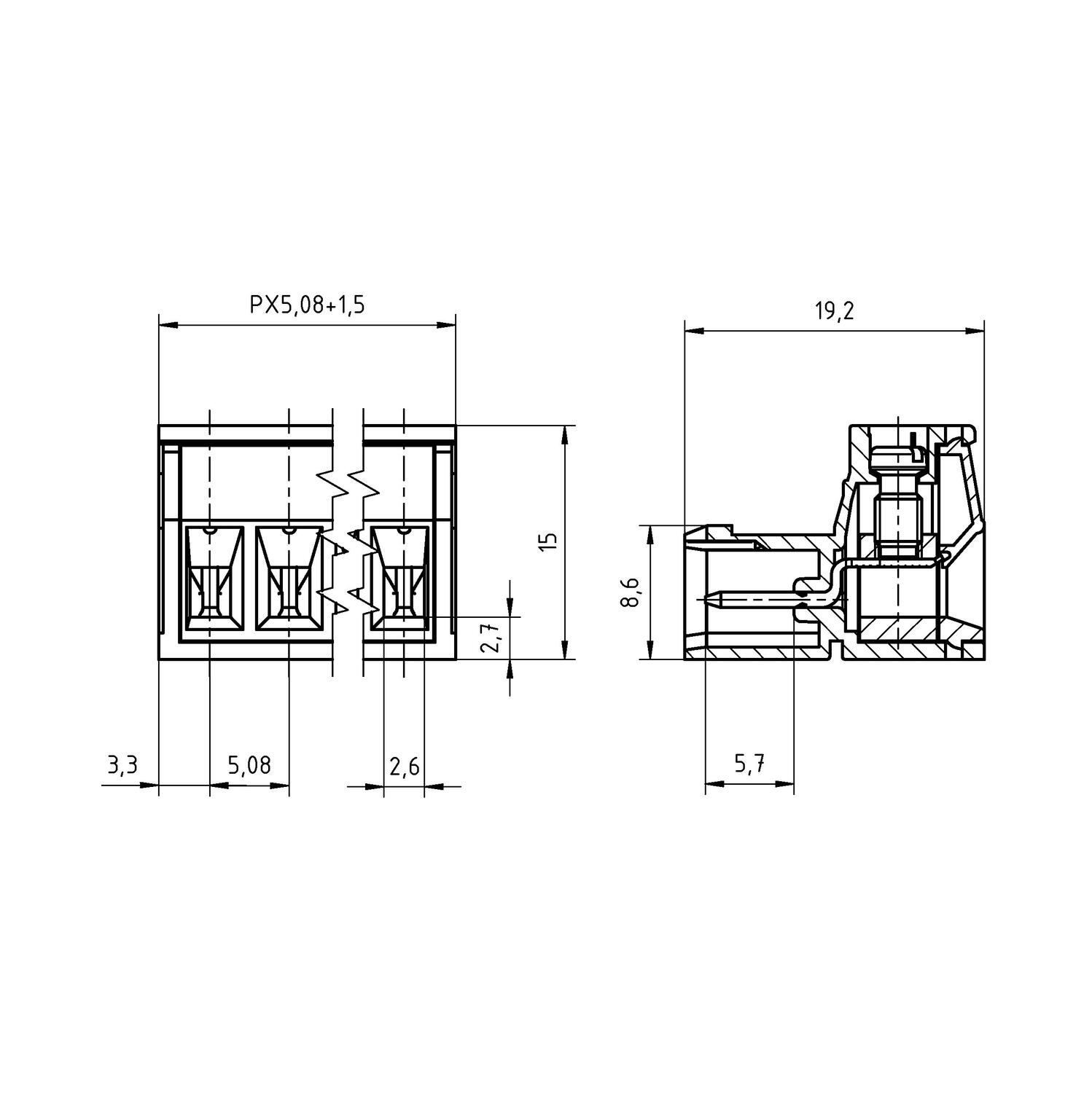

Dimensions |
|
| Length | 15 mm |
| Width | 11.66 mm |
| Height | 19.2 mm |
| Width left | 3.29 mm |
| Width right | 3.29 mm |
Connection Data |
|
| Connector type/principle | Screw |
| Contact version | Female connector |
| Connector version | Pluggable |
| Number of plugin rows | 1 Â |
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 4 mm² |
| Cross section stranded wire from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Cross section stranded wire to | 4 mm² |
| Cross section stranded with ferrule from | 0.25 mm² |
| Rated wire cross section to (AWG) | 12 |
| Rated wire cross section from (AWG) | 28 |
| Stripping length | 7 mm |
| Screw size | M 3 |
| Torque | 0.5 |
Materials |
|
|---|---|
| Housing material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Contact pin | Brass |
| Screw material | Steel |
| Clamp material | Brass |
Approvals |
|
| UL test standard | UL 1059 |
| Rated voltage UL | 300 V |
| Rated current UL | 10 A |
| cUL test standard | CSA 22.2 No.158 |
| Rated voltage cUL | 300 V |
| Rated current cUL | 10 A |
| VDE test standard | DIN EN 61984 |
| Rated voltage VDE | 250 V |
| Rated current VDE | 10 A |
| Plug-in cycles acc. to standard | 100 |
| Tariff code | 85366990 |
| Pack size | 50 Â |
| Weight | 3.41 g |
| Angle of wire connection/contact | 0°/180° (horizontal) |
| Connection cycles acc. to standard | 5 |
| Country of origin | QU |
| Current creepage resistance | CTI 600 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^13 Ω x cm |
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of poles | Width | Weight | Price | ||
|---|---|---|---|---|---|---|
IPKBZ 950/2/5,08 GN
Art:
14196.1
Copied
|
2
|
11.66 mm
|
3.41 g
|
|
||
|
IPKBZ 950/5.08/3 3P PLUG FEMALE
Art:
14197.1
Copied
|
3
|
16.74 mm
|
5 g
|
|
||
|
IPKBZ 950/5.08/4 4P PLUG FEMALE
Art:
14198.1
Copied
|
4
|
21.82 mm
|
6.59 g
|
|
||
|
IPKBZ 950/5.08/5 5P PLUG FEMALE
Art:
14199.1
Copied
|
5
|
26.9 mm
|
8.18 g
|
|
||
|
IPKBZ 950/6/5,08 GN
Art:
14200.1
Copied
|
6
|
31.98 mm
|
9.76 g
|
|
||
|
IPKBZ 950/5.08/7 7P PLUG HORZ
Art:
14201.1
Copied
|
7
|
37.06 mm
|
11.35 g
|
|
||
|
IPKBZ 950/5.08/8 8P PLUG HORZ
Art:
14202.1
Copied
|
8
|
42.14 mm
|
12.94 g
|
|
||
|
IPKBZ 950/9/5,08 GN
Art:
14203.1
Copied
|
9
|
47.22 mm
|
14.53 g
|
|
||
|
IPKBZ 950/10/5,08 GN
Art:
14204.1
Copied
|
10
|
52.3 mm
|
16.12 g
|
|
||
|
IPKBZ 950/11/5,08 GN
Art:
14205.1
Copied
|
11
|
57.38 mm
|
17.7 g
|
|
||
|
IPKBZ 950/12/5,08 GN
Art:
14206.1
Copied
|
12
|
62.46 mm
|
19.29 g
|
|
||
|
IPKBZ 950/13/5,08 GN
Art:
14207.1
Copied
|
13
|
67.54 mm
|
20.88 g
|
|
||
|
IPKBZ 950/14/5,08 GN
Art:
14208.1
Copied
|
14
|
72.62 mm
|
22.47 g
|
|
||
|
IPKBZ 950/15/5,08 GN
Art:
14209.1
Copied
|
15
|
77.7 mm
|
24.06 g
|
|
||
|
IPKBZ 950/16/5,08 GN
Art:
14210.1
Copied
|
16
|
82.78 mm
|
25.64 g
|
|
||
|
IPKBZ 950/17/5,08 GN
Art:
14211.1
Copied
|
17
|
87.86 mm
|
27.23 g
|
|
||
|
IPKBZ 950/18/5,08 GN
Art:
14212.1
Copied
|
18
|
92.94 mm
|
28.82 g
|
|
||
|
IPKBZ 950/19/5,08 GN
Art:
14213.1
Copied
|
19
|
98.02 mm
|
30.41 g
|
|
||
|
IPKBZ 950/20/5,08 GN
Art:
14214.1
Copied
|
20
|
103.1 mm
|
32 g
|
|
||
|
IPKBZ 950/21/5,08 GN
Art:
14215.1
Copied
|
21
|
108.18 mm
|
33.58 g
|
|
||
|
IPKBZ 950/22/5,08 GN
Art:
14216.1
Copied
|
22
|
113.26 mm
|
35.17 g
|
|
||
|
IPKBZ 950/23/5,08 GN
Art:
14217.1
Copied
|
23
|
118.34 mm
|
36.76 g
|
|
||
|
IPKBZ 950/24/5,08 GN
Art:
14218.1
Copied
|
24
|
123.42 mm
|
38.35 g
|
|
Select a variant in the list
