FLEXA

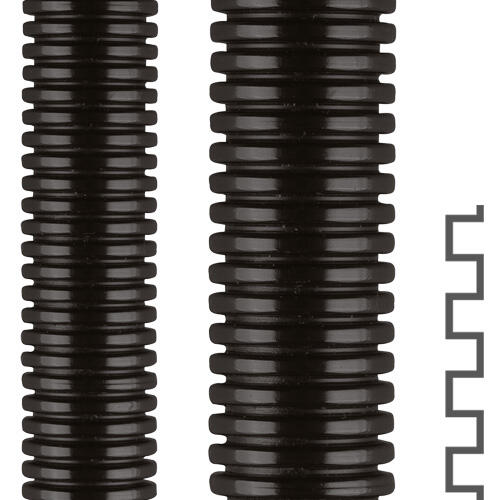

ROHRflex® PA 6-HT protective conduit
ROHRflex PA 6-HT is fit for demanding environments with high temperatures up to +200 °C. Good chemical resistance against solvents, acids and alkalis.
Â
Supplied in full packages.
- Temperature range - 25 °C …+ 200 °C
- Self-extinguishing, halogen-free
- Air- and liquid-tight
Selected variant
Technical data
| Approvals | VDE |
|---|---|
| Bending radius ±10% dynamic | 35 |
| Bending radius -10% static | 13 |
| Colour | Black |
| Fire rating | UL94-V2 |
| Hose dimension AD | 10 |
| Inner dimensions | 6.5 mm |
| Material | Polyamide |
|---|---|
| Outer dimensions | 10 mm |
| Pack size | 50 m |
| Temperature operational max | 200 °C |
| Temperature operational min | -25 °C |
| Weight / m | 0.02 |
Product description
ROHRflex PA 6-HT is fit for demanding environments with high temperatures up to +200 °C. Good chemical resistance against solvents, acids and alkalis.
Â
Supplied in full packages.
