High density Cable Entry Systems
They are great alternative to conventional glands, as they allow a high density of cables to be mounted in a small space.
Square options come in several options, KES having a built in strain relief for the cables and IP66, to KES-E which have a single membrane and achieves IP54.
Round versions from M20 to M63 can be easily retro-fitted to existing panels to increase the number of entries, these versions simply push in to the panels
KES IP66 Cable Entry with strain relief
Cable Entry System - KES, KES-R
- For cable, pipe & hose diameters 3.2mm to 20.5mm
- Double Sealing to IP66
- Polymide 6.6 Glass fibre reinforced core
- Hygienic design for wash down - Ecolab approved
- Integrated strain relief to EN62444
KES-E Eco Flexible Push-in Square Cable Entry Grommet
KES-E
- For cable, pipe & hose diameters 1mm to 16.1mm
- IP54 Push in cable entry
- Halogen and Silicon free
- High density, up to 50 cables
- Ecolab approved
KES-E-R Flexible Push-in Round Cable Entry Grommet
KES-E-R
- For cable, pipe & hose diameters 1mm to 22.5mm
- High density, up to 35 cables
- IP54 Push in cable entry
- 20 to 50mm ø cut out
KES-R-M Round Latching and Screw Mount Cable Entry
KES-R-M
- For cable, pipe & hose diameters 1.5mm to 22.2mm
- High density, up to 68 cables
- For wall thickness 1 to 11mm
- IP54- Snap in, IP66 - Screw Mount
- M25 to M63mm ø hole sizes
KES-GB-FDA IP66 FDA Approved Cable Entry with strain relief
KES-GB-FDA
- For cable, pipe & hose diameters 3.2mm to 20.5mm
- Double Sealing to IP66
- FDA approved material, Ecolab approved - Hygienic design for wash down
- Polymide 6.6 Glass fibre reinforced core
- Integrated strain relief to EN62444

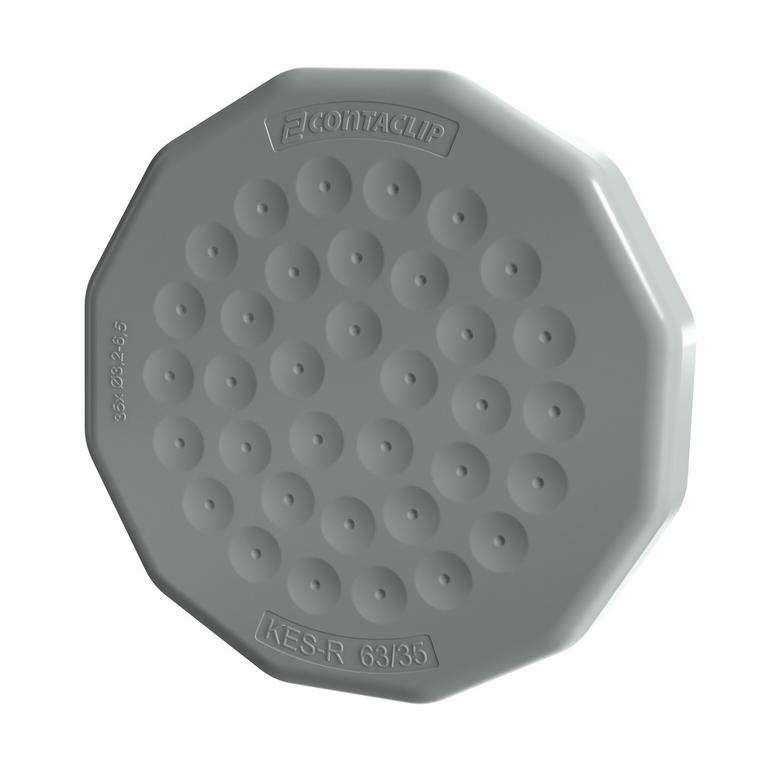

KES-R-FDA High density Cable Entry Systems
FDA Round Cable Entry - KES-R-FDA
- For Cable, Pipe & Hose Diameters 1.5mm To 22.5mm
- High Density, Up To 68 Cables
- For Wall Thickness 1-11mm
- M25 To M63 Hole Sizes
- FDA Certified
KES-R M Cone Latching and Screw mount Cable Entry
KES-R M Cone Cable Entry
- Snap-on (IP54) and Screw-on (IP66)
- High flexibility
- Polyamide PA 6.6, glass-fibre reinforced with TPE
- Increased strain relief
- Simple assembly
More information about High density Cable Entry Systems
