CONTA-CLIP
KES-R-FDA High density Cable Entry Systems

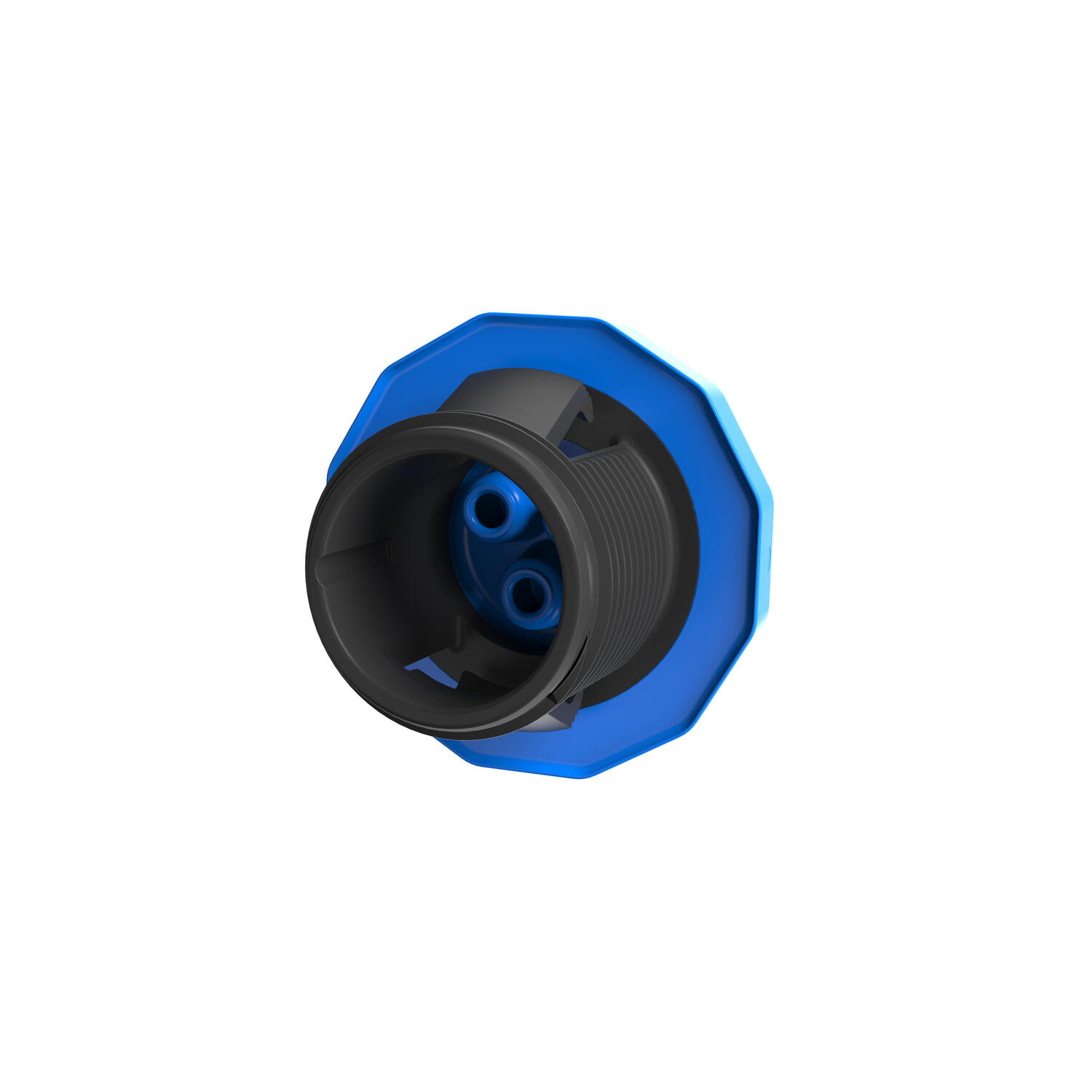

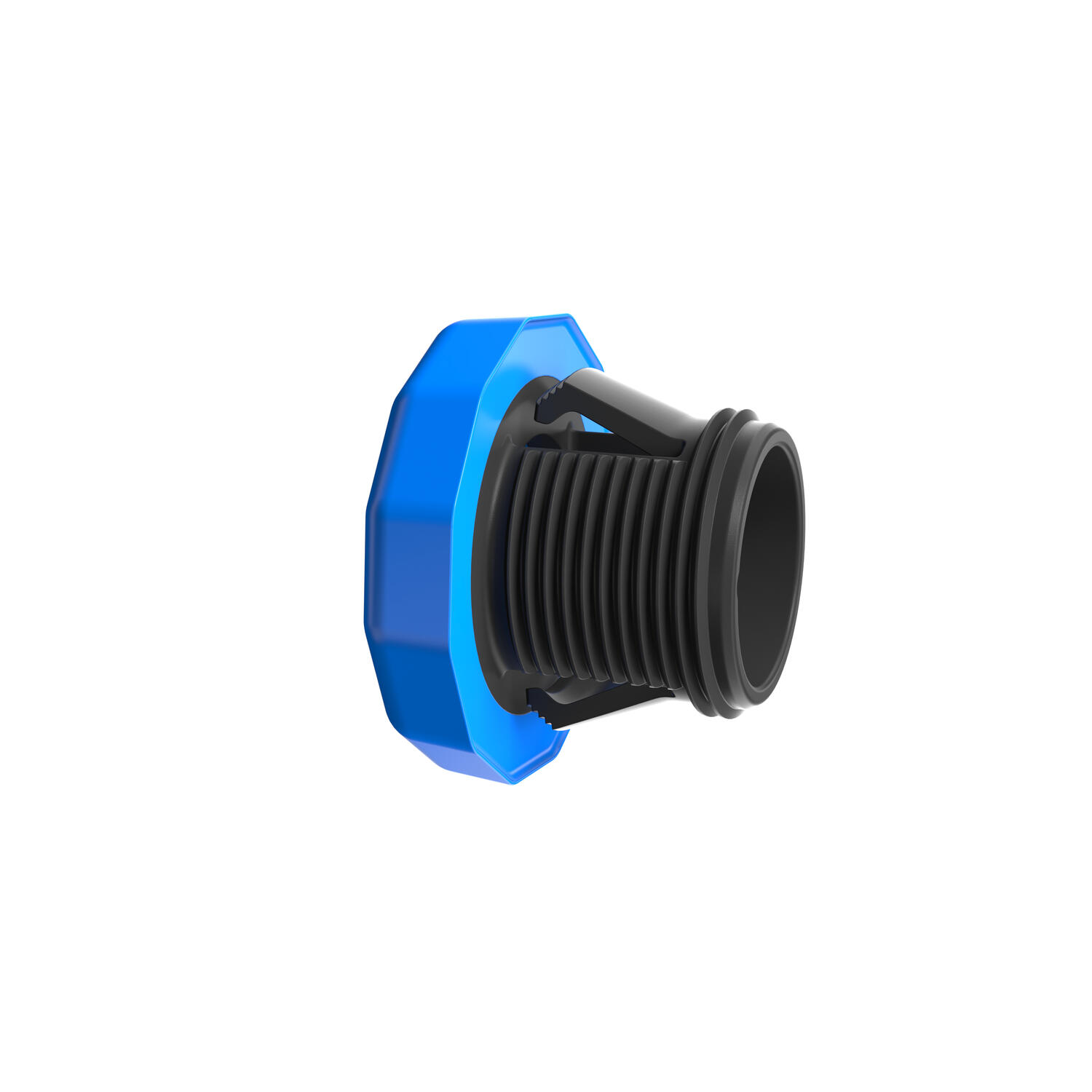

The KES-R-M from Contaclip has an additional glass-fibre reinforced screw thread to achieve IP66 rating to and allows it to be fitted in to enclosures up to 11mm thick.
Â
These can be reto-fitted in place of a conventional gland form M25 through to M63.
Â

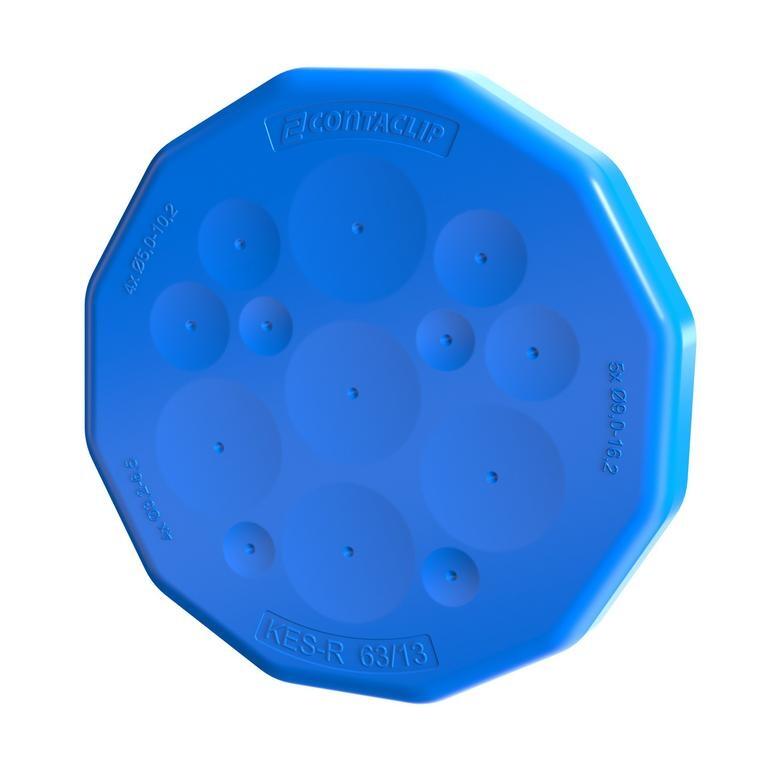

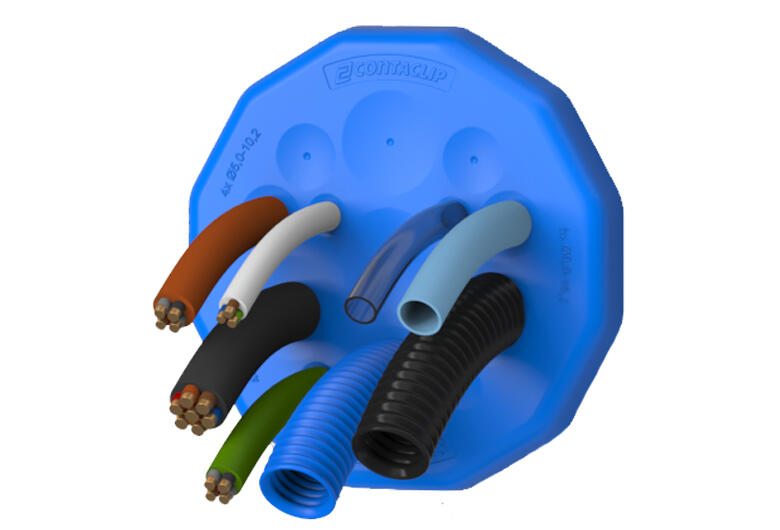

TheTPE membrane is the same as the KES-E-R cable entry solution and is ideal for bringing in  multiple cables, tubes and pipes where space is tight.
Â
These are quick and easy to fit on enclosures, they can be snapped in (IP54) or with an additional nut, IP66 can be achieved. Â This system is ideal for applications where there are multiple entries that need a higher IP and strain relief is not required. Â Available for panel thickness 1 to 11mm with configurations of up to 68 entries of 1mm to 22.2mm cable diameter.
- For Cable, Pipe & Hose Diameters 1.5mm To 22.5mm

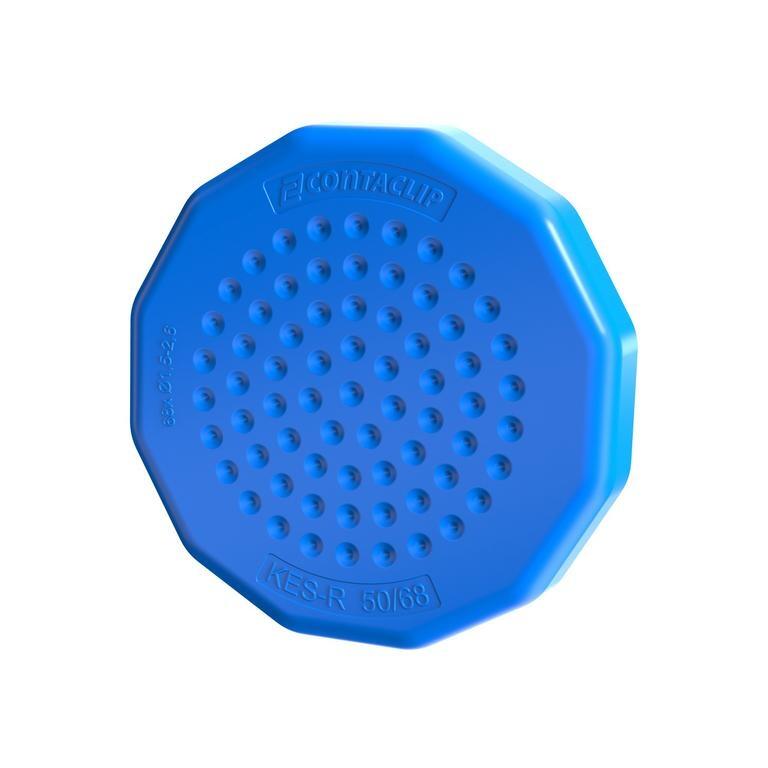

- High Density, Up To 68 Cables
- For Wall Thickness 1-11mm
- M25 To M63 Hole Sizes
- FDA Certified
Selected variant
Technical data
General data |
|
|---|---|
| Type | KES-R-M |
| Mounting | Push in, Screw fixing |
| Colour | Blue |
| IP class | IP54, IP66 |
| Approvals | cUL, UL |
| NEMA class | 12, 4X |

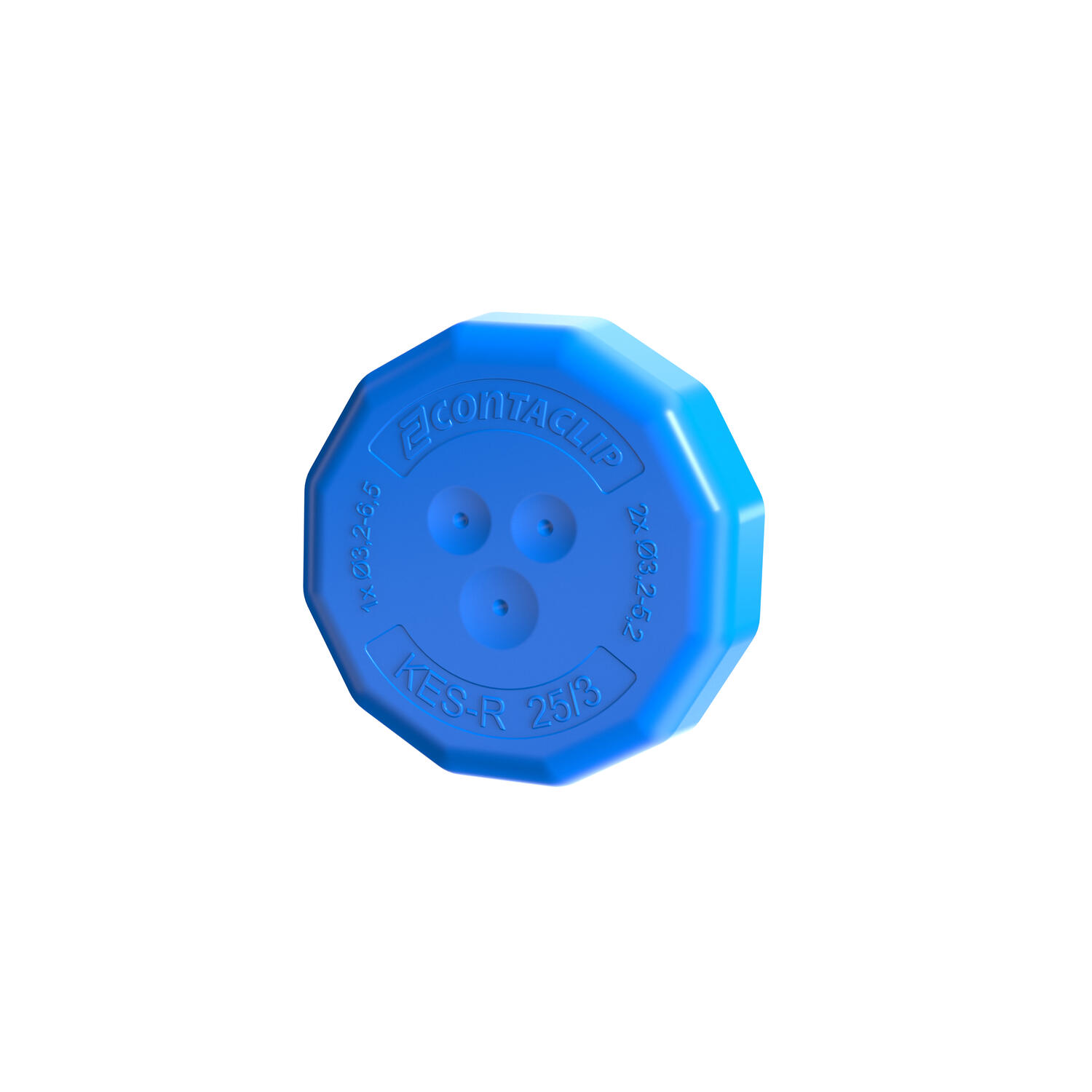

| Number of cables | 3 Â |
| Number of cables x cable diameter | 1 x 3.2mm-6.5mm, 2 x 3.2mm-5.2mm |
| Length | 38 mm |
| Width | 38 mm |
| Installed height | 8 mm |
Mounting details |
|
| Wall thickness | 1.0mm-2.5mm (snap-in), 1.0mm-11mm (screw) |

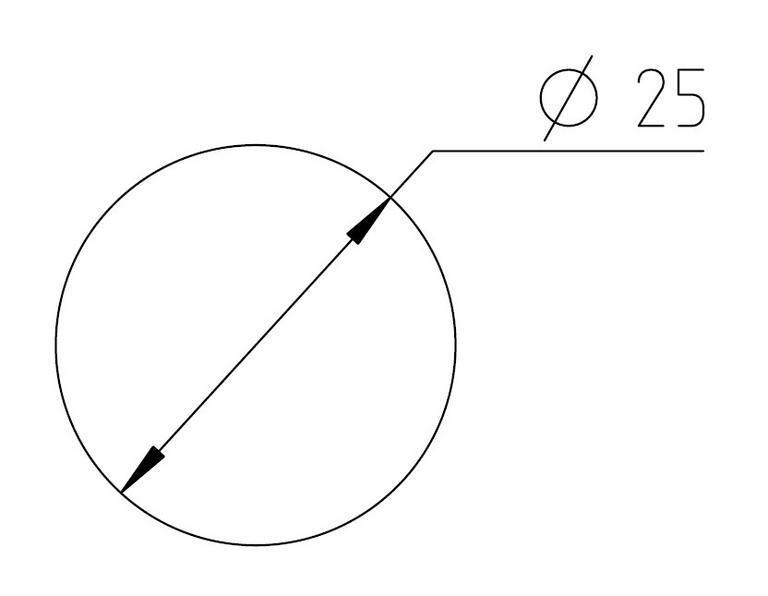

| Drillhole diameter | 25 mm |
| Torque of the fixing screws | 3 |
Materials |
|
| Material | Polyamide 6.6, TPE |
*Invisible Heading* |
|
|---|---|
| Flammability class | V-0 |
| Sealing material | TPE |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Operating temperature from | -40 °C |
| Operating temperature to | 90 °C |
| Approvals | cUL, UL |
Approvals |
|
| UL test standard | UL 508A |
| cUL test standard | CSA C22.2 No.1-18 |
Additional data |
|
| Tariff code | 39259020 |
| Country of origin | DE |
| Weight | 13.61 g |
| Pack size | 10 Â |
Product description
The KES-R-M from Contaclip has an additional glass-fibre reinforced screw thread to achieve IP66 rating to and allows it to be fitted in to enclosures up to 11mm thick.
Â
These can be reto-fitted in place of a conventional gland form M25 through to M63.
Â
TheTPE membrane is the same as the KES-E-R cable entry solution and is ideal for bringing in  multiple cables, tubes and pipes where space is tight.
Â
These are quick and easy to fit on enclosures, they can be snapped in (IP54) or with an additional nut, IP66 can be achieved. Â This system is ideal for applications where there are multiple entries that need a higher IP and strain relief is not required. Â Available for panel thickness 1 to 11mm with configurations of up to 68 entries of 1mm to 22.2mm cable diameter.
