AUER SIGNAL

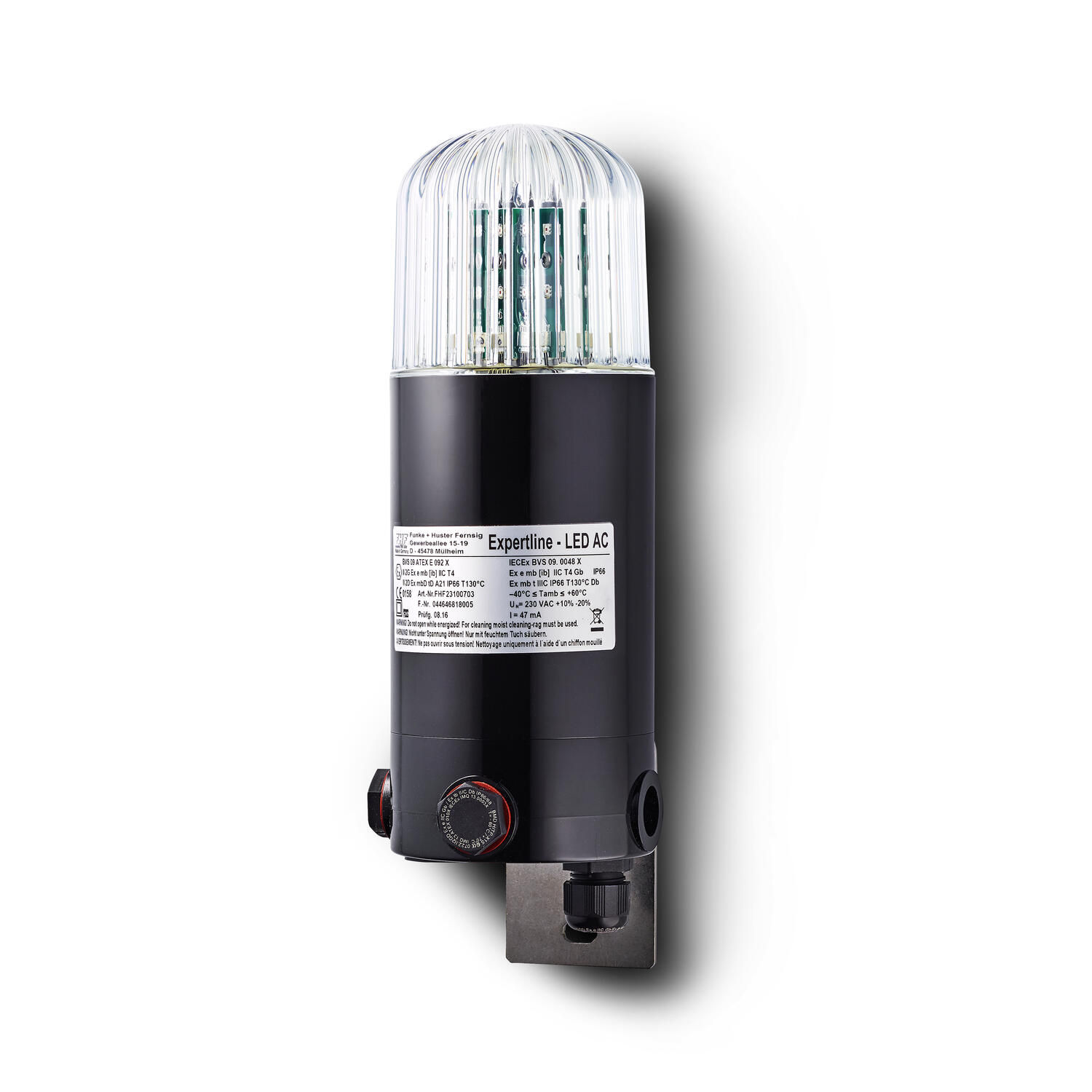

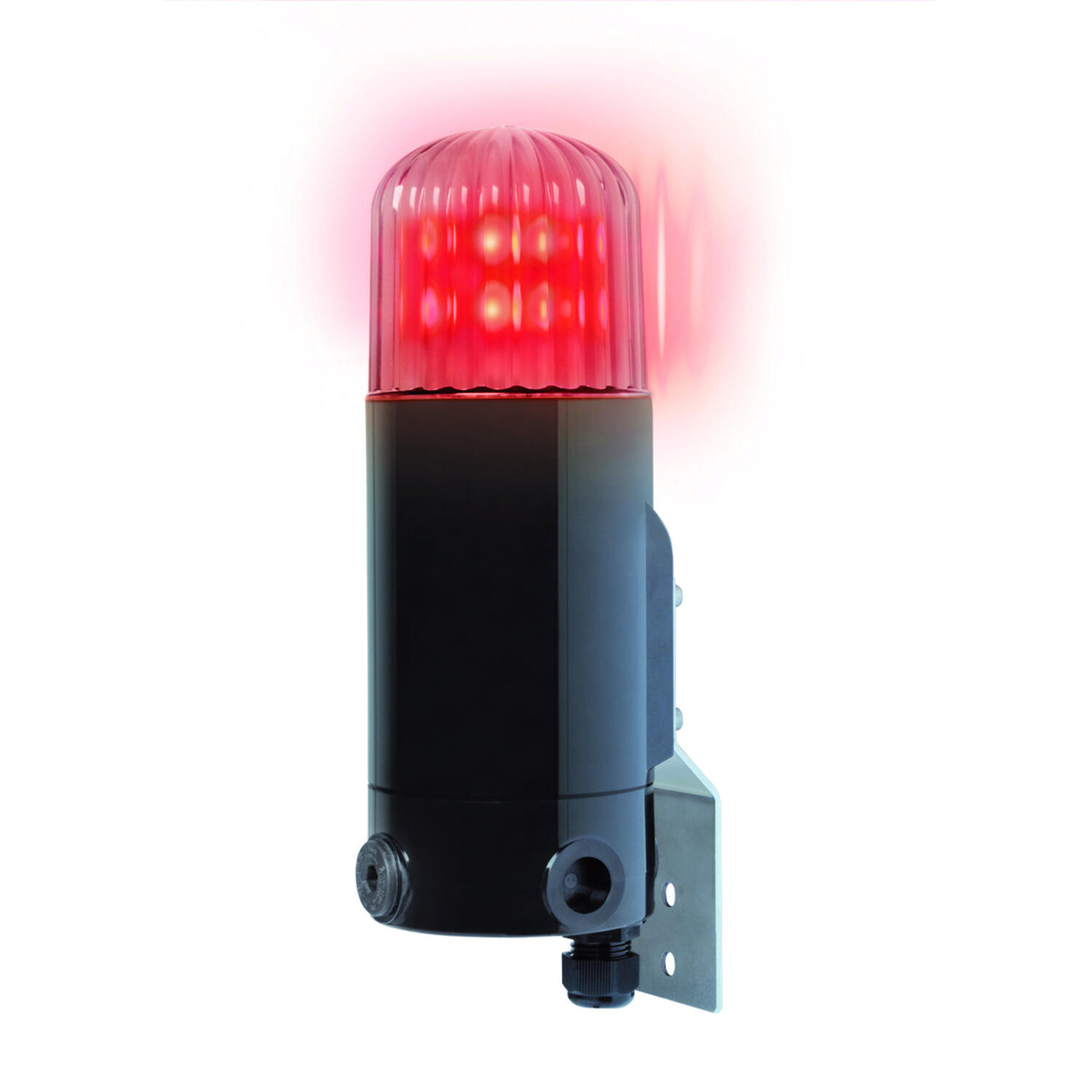

mDD is an Ex module with high intensity LED that gives a very good shine. It is also possible to choose between four different operating modes to suit the application - fixed, flashing, flash or rotating light. The housing is made of polycarbonate which guarantees a robust and powerful mudul with high IP grade for indoor and outdoor use. mDD is available in five different colors: red, clear / white, blue, green and yellow.
Â
This product has the following explosion protection:
II 2 G Ex e mb (ib) IIC T4
II 2 D Ex mbD tD A21 IP 66 T130 °C
-40 °C ≤ Ta ≤ +60 °C (AC-Mod.)
-40 °C ≤ Ta ≤ +65 °C (DC-Mod.)
Zone 1, 2, 21, 22
Â
General data |
|
---|---|
Lens colour | Clear |
Light type | Red LED |
Light source | LED |
Housing Colour | Black |
Mounting | Vertical |
Rated operating conditions |
|
Nominal Supply Voltage | 230 V AC |
Nominal current | 47 mA |
Lamp power | 9 W |
*Invisible Heading* |
|
---|---|
Operational temperature | -40°C ... 60°C |
Terminal connection | 2.5 mm² |

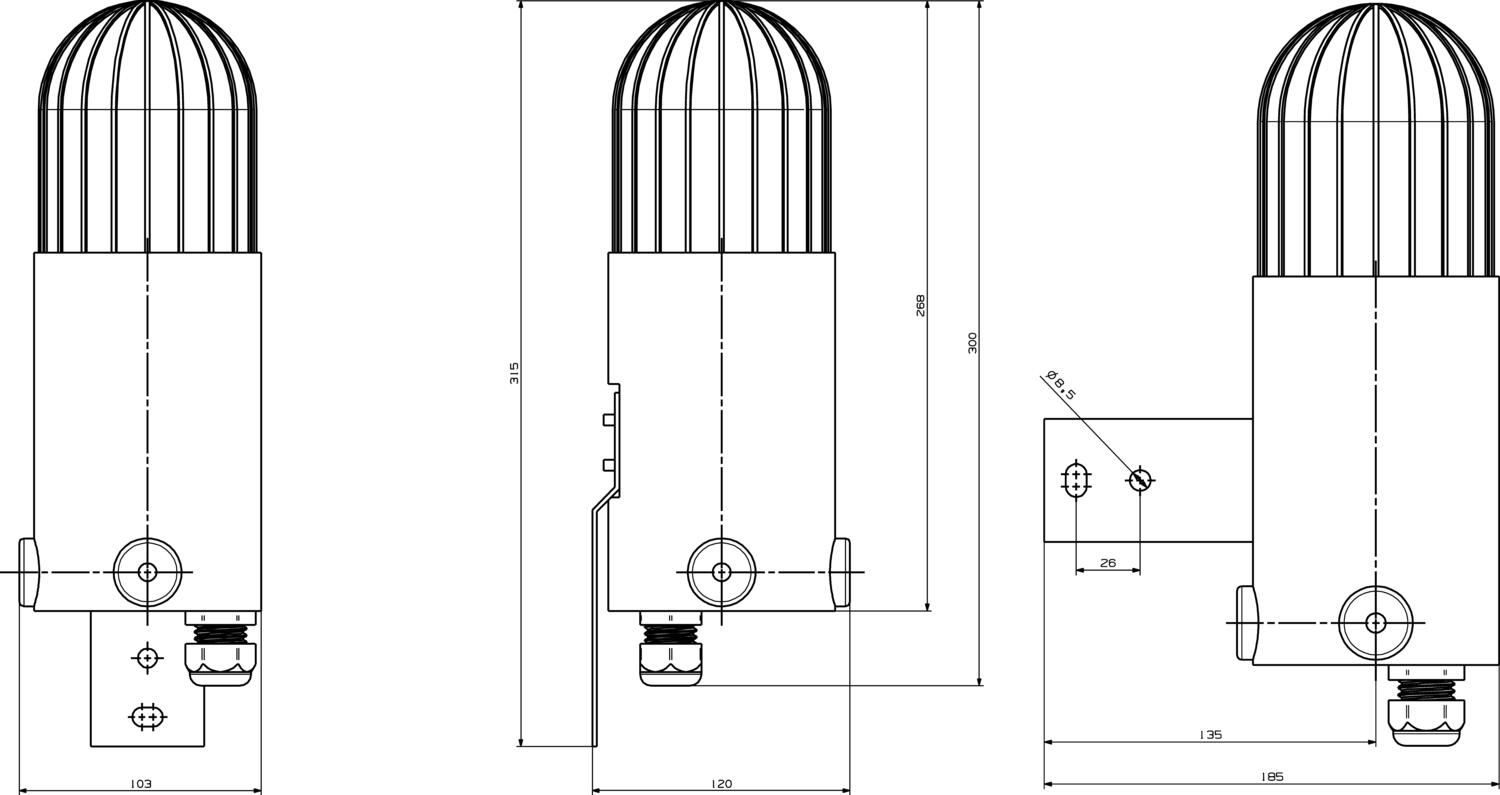

Dimensions |
|
Height | 268 mm |
Diameter | 103 mm |
Weight | 2500 g |
Additional data |
|
IP class | IP66 |
mDD is an Ex module with high intensity LED that gives a very good shine. It is also possible to choose between four different operating modes to suit the application - fixed, flashing, flash or rotating light. The housing is made of polycarbonate which guarantees a robust and powerful mudul with high IP grade for indoor and outdoor use. mDD is available in five different colors: red, clear / white, blue, green and yellow.
Â
This product has the following explosion protection:
II 2 G Ex e mb (ib) IIC T4
II 2 D Ex mbD tD A21 IP 66 T130 °C
-40 °C ≤ Ta ≤ +60 °C (AC-Mod.)
-40 °C ≤ Ta ≤ +65 °C (DC-Mod.)
Zone 1, 2, 21, 22
Â
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
Optimise your production line with encoders, inclinometers, displays and slip rings
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Light type | Nominal Supply Voltage | Nominal current | Lamp power | Price | ||
---|---|---|---|---|---|---|---|
![]()
Ex/ATEX LED Beacon, Red, 230 V ac, MDD
Art:
336002413
Copied
|
Red LED
|
230 V AC
|
47 mA
|
9 W
|
| ||
![]()
Ex/ATEX LED Beacon, Clear, 230 V ac, MDD
Art:
336004413
Copied
|
White LED
|
230 V AC
|
55 mA
|
9 W
|
| ||
![]()
Ex/ATEX LED Beacon, Green, 230 V ac, MDD
Art:
336006413
Copied
|
Green LED
|
230 V AC
|
55 mA
|
9 W
|
| ||
![]()
Ex/ATEX LED Beacon, Blue, 230 V ac, MDD
Art:
336005413
Copied
|
Blue LED
|
230 V AC
|
55 mA
|
9 W
|
| ||
![]()
Ex/ATEX LED Beacon, Clear, 24 V dc, MDD
Art:
336004005
Copied
|
White LED
|
24 V DC
|
1280 mA
|
|
| ||
![]()
Ex/ATEX LED Beacon, Red, 24 V dc, MDD
Art:
336002005
Copied
|
Red LED
|
24 V DC
|
850 mA
|
|
| ||
![]()
Ex/ATEX LED Beacon, Blue, 24 V dc, MDD
Art:
336005005
Copied
|
Blue LED
|
24 V DC
|
1280 mA
|
|
| ||
![]()
Ex/ATEX LED Beacon, Green, 24 V dc, MDD
Art:
336006005
Copied
|
Green LED
|
24 V DC
|
1280 mA
|
|
| ||
![]()
Ex/ATEX LED Beacon, Yellow, 230 V ac, MDD
Art:
336007413
Copied
|
Yellow LED
|
230 V AC
|
47 mA
|
9 W
|
| ||
![]()
Ex/ATEX LED Beacon, Yellow, 24 V dc, MDD
Art:
336007005
Copied
|
Yellow LED
|
24 V DC
|
900 mA
|
|
|
Select a variant in the list
