Electromen - EM-324C
DC motor 2Q drive 12-24Vdc, 4A

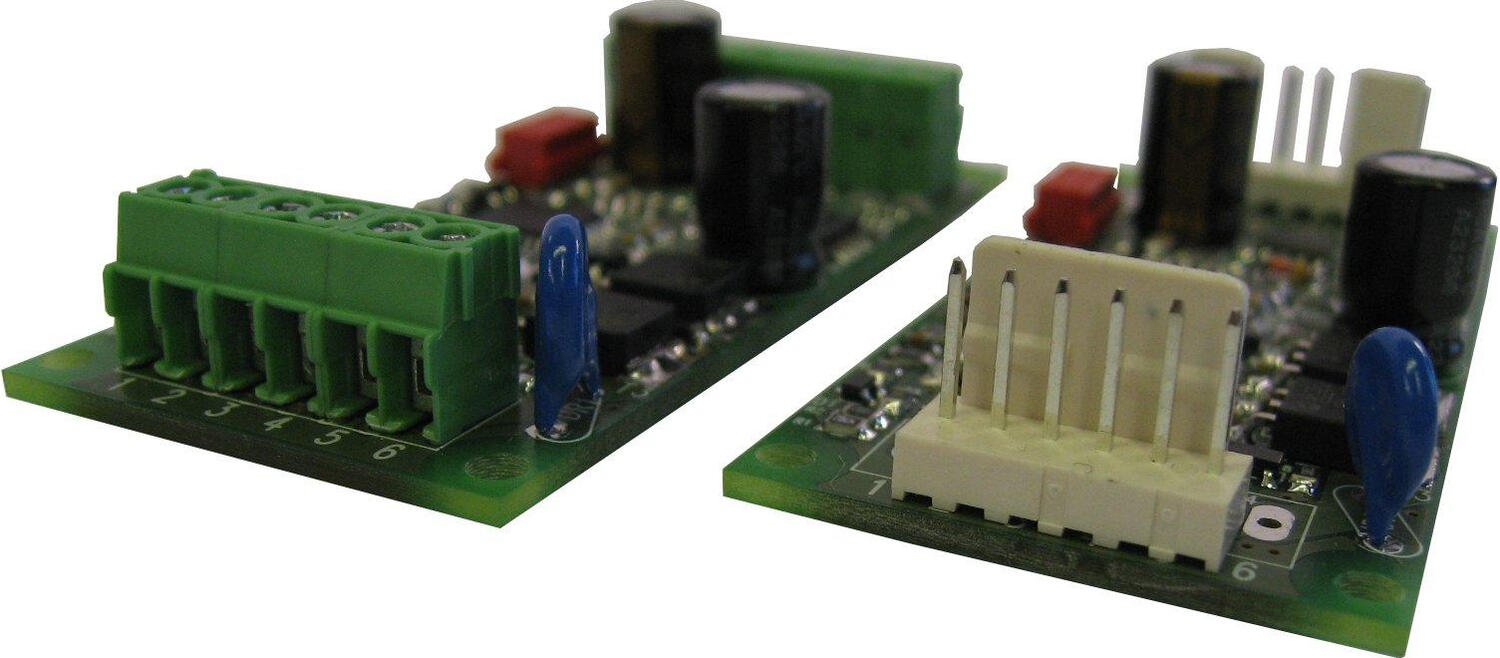

EM-324 is brushed DC motor drive with a 4A nominal output and offers a number of special functions.
There are adjustable acceleration and deceleration ramps to ensure smooth motion and adjustable current limits to protect the motor against overcurrent damage - this feature can also be used as an end-stop limiter. The device has also two settable speeds, which can be useful in positioning applications.

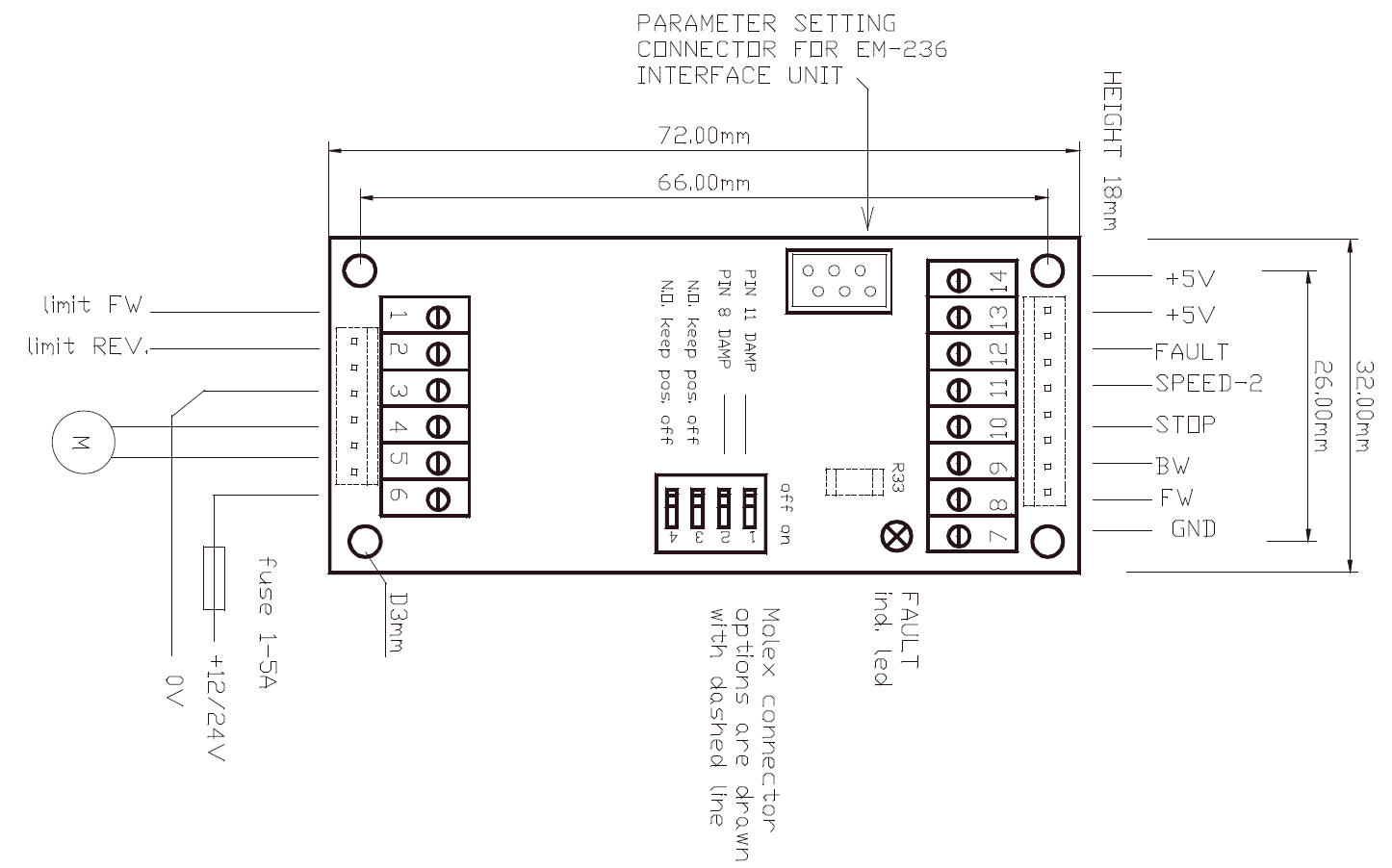

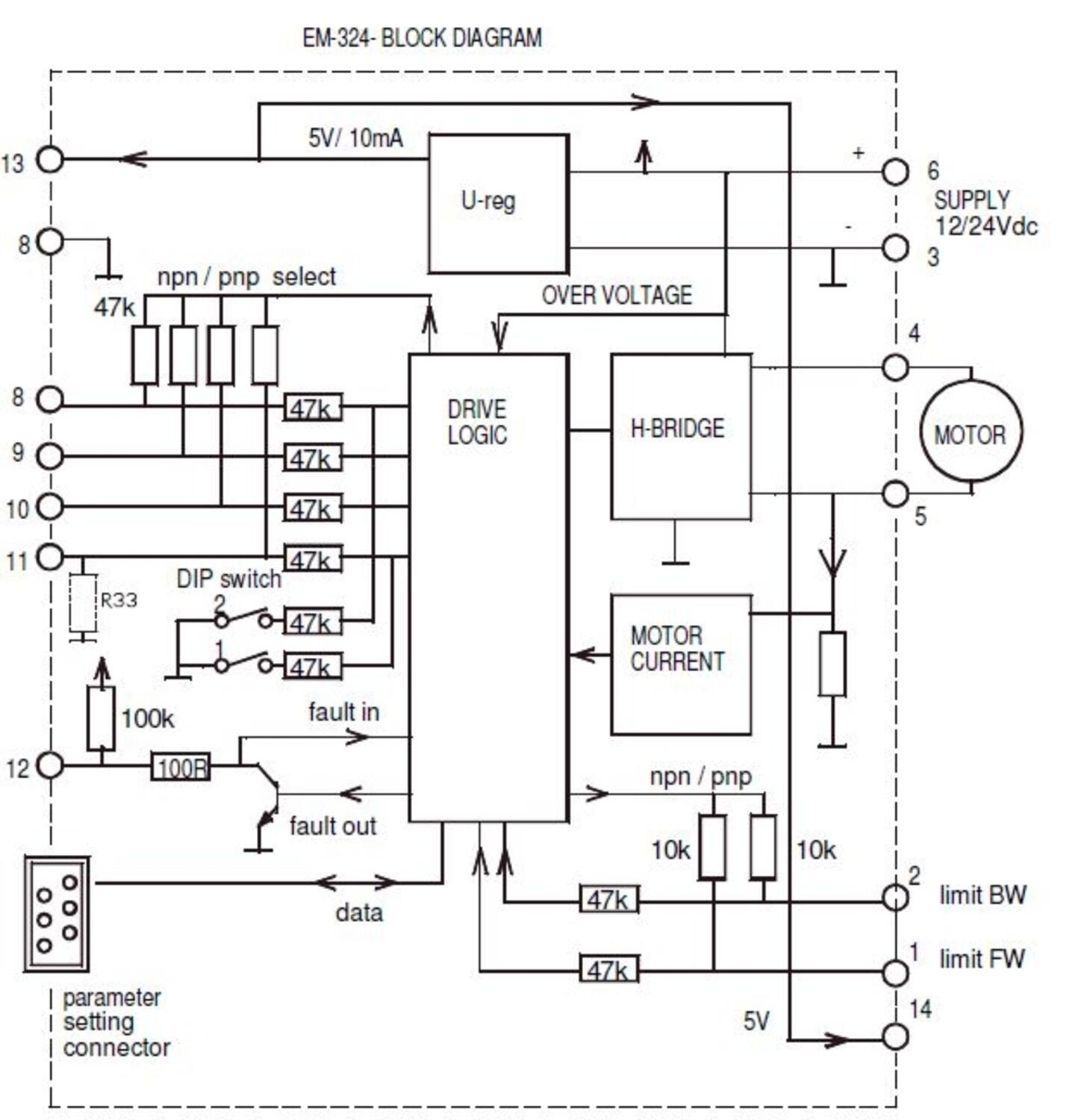

Control inputs FW and BW start the forward and backward motion, STOP will shut the motor down, and there are also available limit switch inputs for both directions. The SPEED-2 input by default activates preset speed-2, although it can also be used for analog speed control with 0-5V signal. FAULT terminal pin can be used to signal fault conditions, or pulled down to ground to disable the drive - for example, several fault pins could be linked together on multiple units and ensure a synchronised stop.
There are two selectable control modes - continuous and impulse. In continuous mode the motor runs as long as the control is active, in impluse mode the drive only needs a momentary comand start the motor, and further impulse to change the status. Additionally, there are user adjustable 'starting kick' and auto reverse settings, as well as selectable NPN or PNP input logics.
The parameters can be set with the EM-236 stand-alone interface unit or the EM-328 programming cable (with free PC software), both the software and programmer allow for monitoring and diagnostics of some of the functional values on the unit.
Features
- Small size with high current output
- Current limit
- Zero current limit
- Overvoltage brake
- Speed setting
- Flexible control inputs
- Impulse / continuous mode
- DIN rail base mountable
- 2kHz or 16kHz PWM frequency
- Suited to 5-50W DC motors
- Digital parameter setting
* Motor current cont. max. 3A, peak 7A ( @ 16kHz Ta >50°C )
Motor current cont. max. 4A, peak 7A ( @ 2kHz Ta >50°C )
- 12-24Vdc, 4A continuous, 7A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
Selected variant
Technical data
| 2053_Current limit (A) | 0,1-7 |
|---|---|
| 2421_Peak current (A) | 7 |
| 5646_Dimensions length x width x height (mm) | 32.5x73x18mm |
| Analogue input | 0-5V |
| Control type | Speed, Direction, Torque, Soft start / stop |
| Current setting range | 0.1-5 A |
| Functions | Currenttrip autoreversing, Brake output, Speed settings, Impulse/continuous mode, Softstart/stop, Potentiometer adjustable speed, RS485/Modbus, Stop at limit position, Speedregulator, Change direction of rotation (CW/CCW) |
| Logic input high | >4V = ON |
| Logic input low | <1V = OFF |
| Max continuous current | *4 A |
|---|---|
| Mounting | DIN rail |
| Operating temperature | -40°C...+60°C |
| PWM frequency | 2kHz/16kHz |
| Suitable engine | DC |
| Supplier | Electromen |
| Supply voltage | 12 V DC, 24 V DC |
| Weight | 25 g |
Product description
EM-324 is brushed DC motor drive with a 4A nominal output and offers a number of special functions.
There are adjustable acceleration and deceleration ramps to ensure smooth motion and adjustable current limits to protect the motor against overcurrent damage - this feature can also be used as an end-stop limiter. The device has also two settable speeds, which can be useful in positioning applications.
Control inputs FW and BW start the forward and backward motion, STOP will shut the motor down, and there are also available limit switch inputs for both directions. The SPEED-2 input by default activates preset speed-2, although it can also be used for analog speed control with 0-5V signal. FAULT terminal pin can be used to signal fault conditions, or pulled down to ground to disable the drive - for example, several fault pins could be linked together on multiple units and ensure a synchronised stop.
There are two selectable control modes - continuous and impulse. In continuous mode the motor runs as long as the control is active, in impluse mode the drive only needs a momentary comand start the motor, and further impulse to change the status. Additionally, there are user adjustable 'starting kick' and auto reverse settings, as well as selectable NPN or PNP input logics.
The parameters can be set with the EM-236 stand-alone interface unit or the EM-328 programming cable (with free PC software), both the software and programmer allow for monitoring and diagnostics of some of the functional values on the unit.
