NAFSA - ERB series

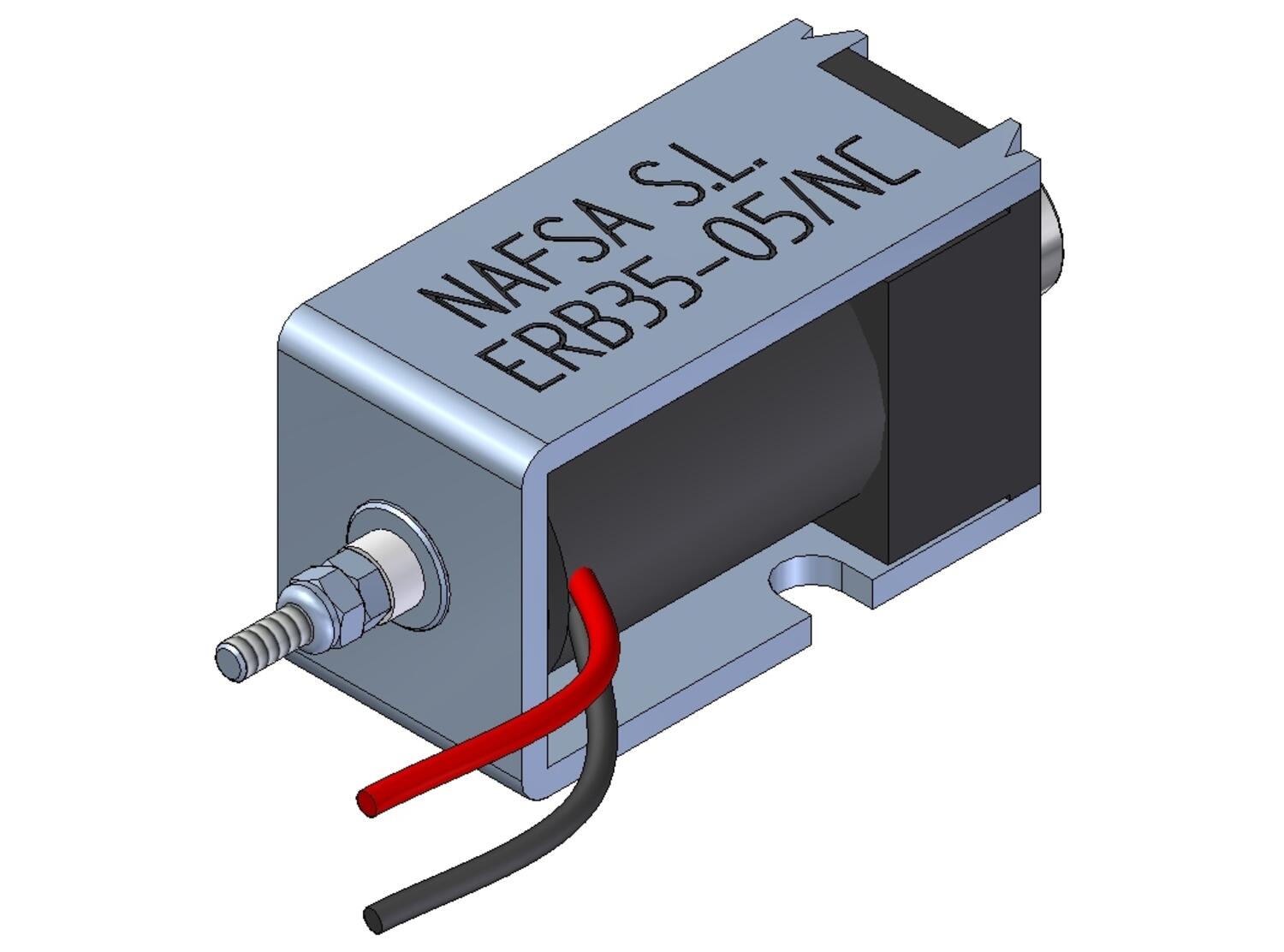

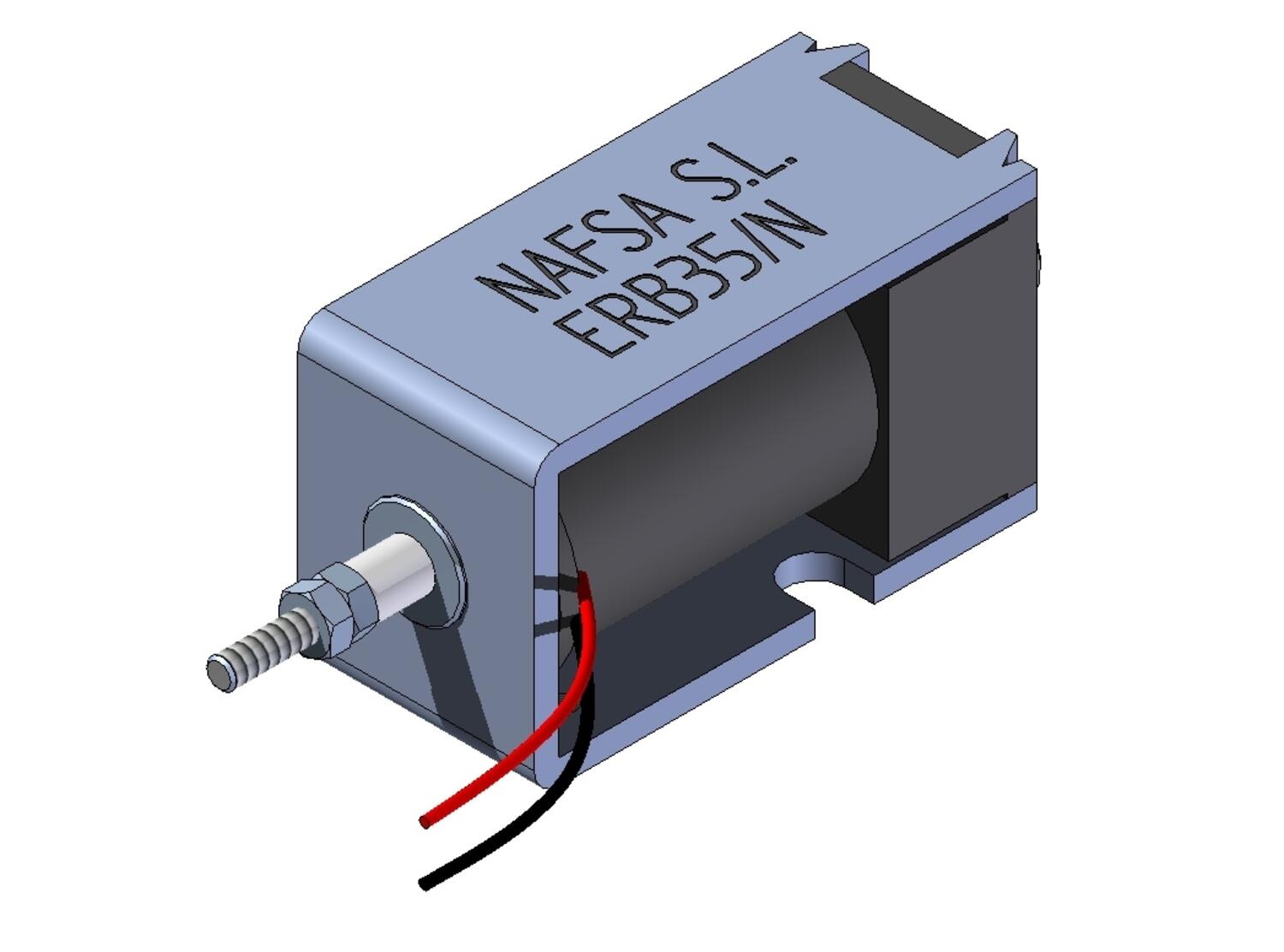

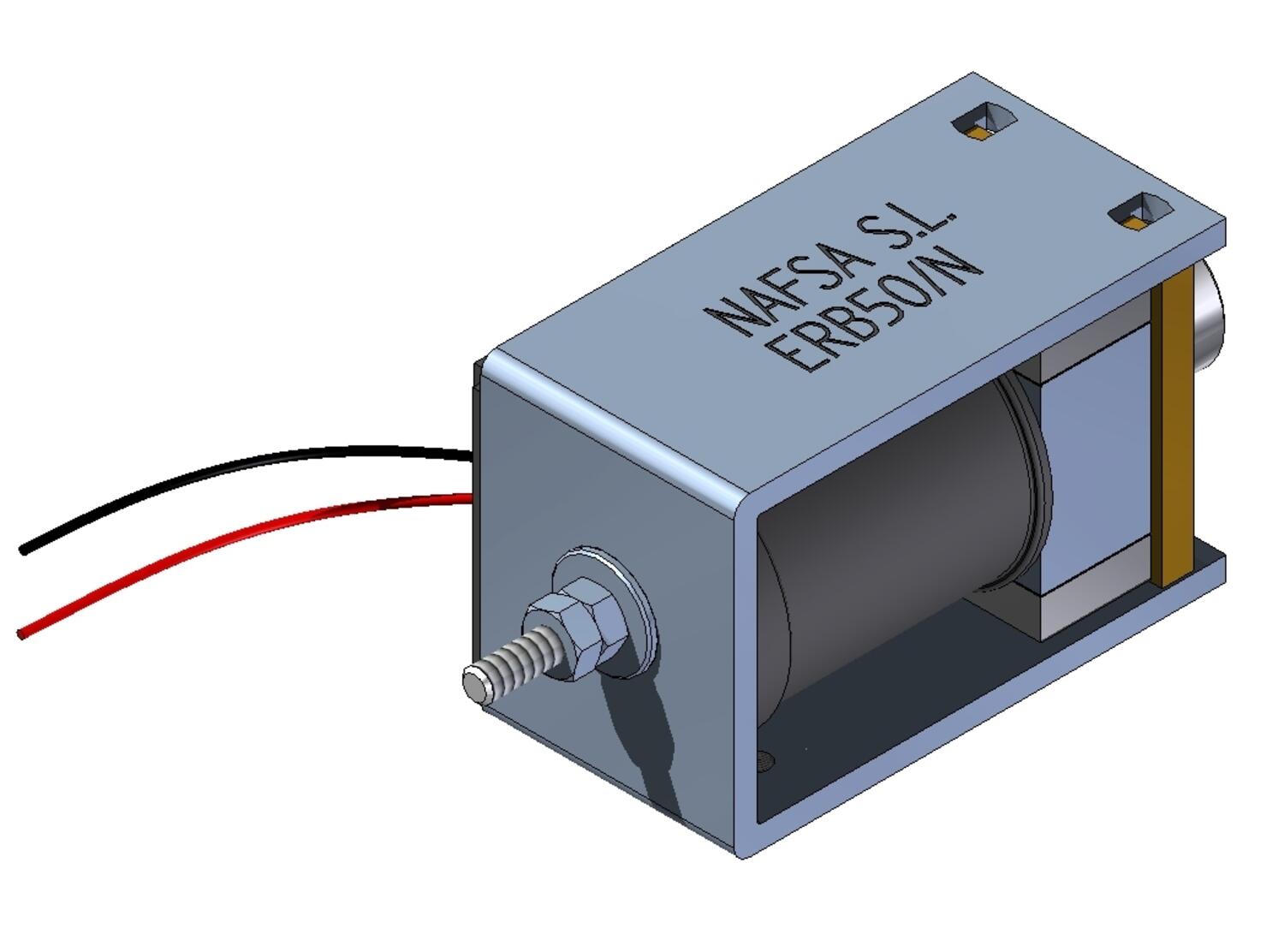

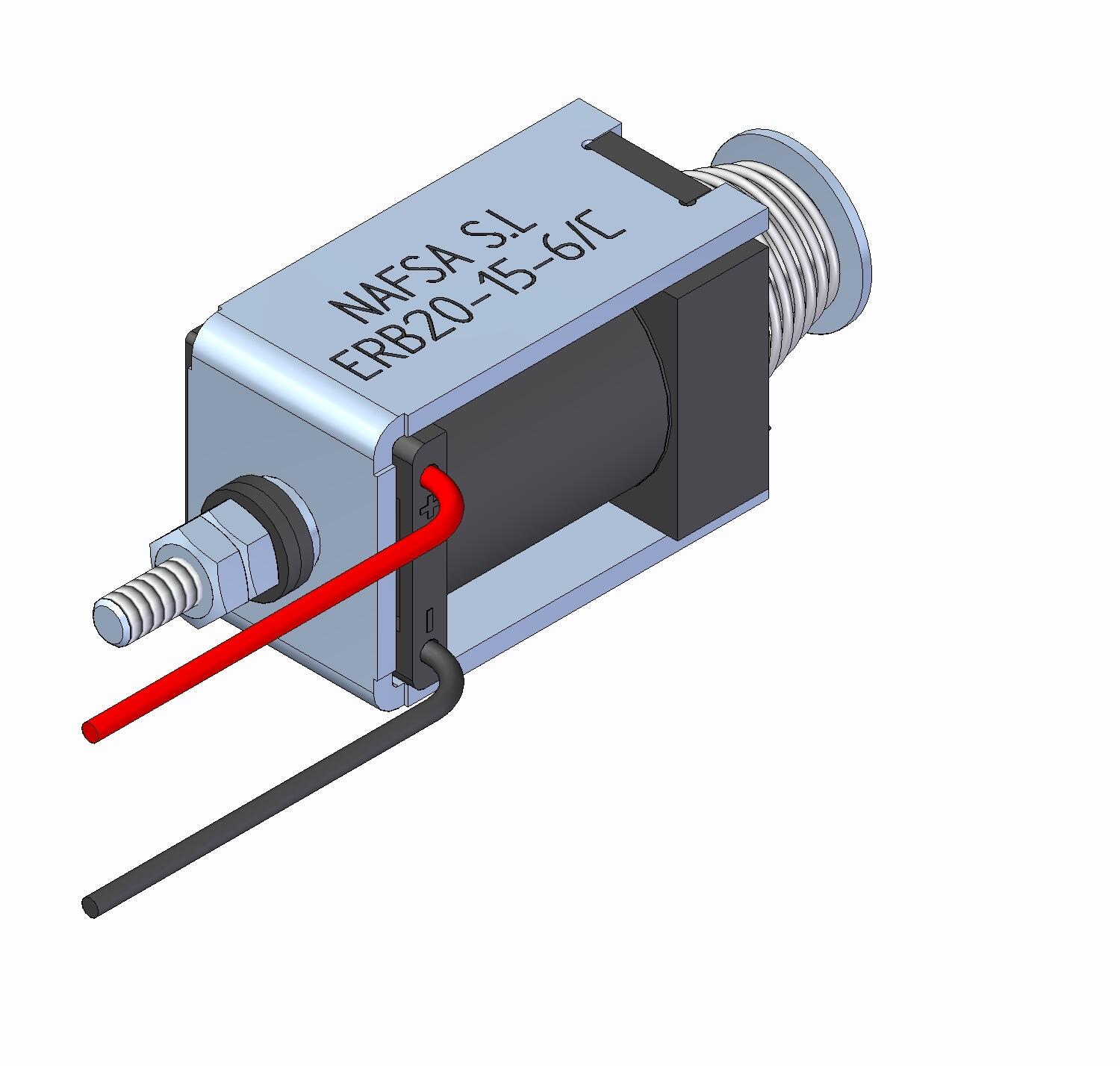

The ERB series is a bistable linear solenoid where the start to end position are made with electromagnetic forces.



Return direction is controlled by reverse polarity or a mechanical spring.



Ideally suited to long periods at the extremes of either position.

Read more
  • Bi-stable for holding open or closed
  • Class Y winding (90ºC)
  • Ideal for locking applications

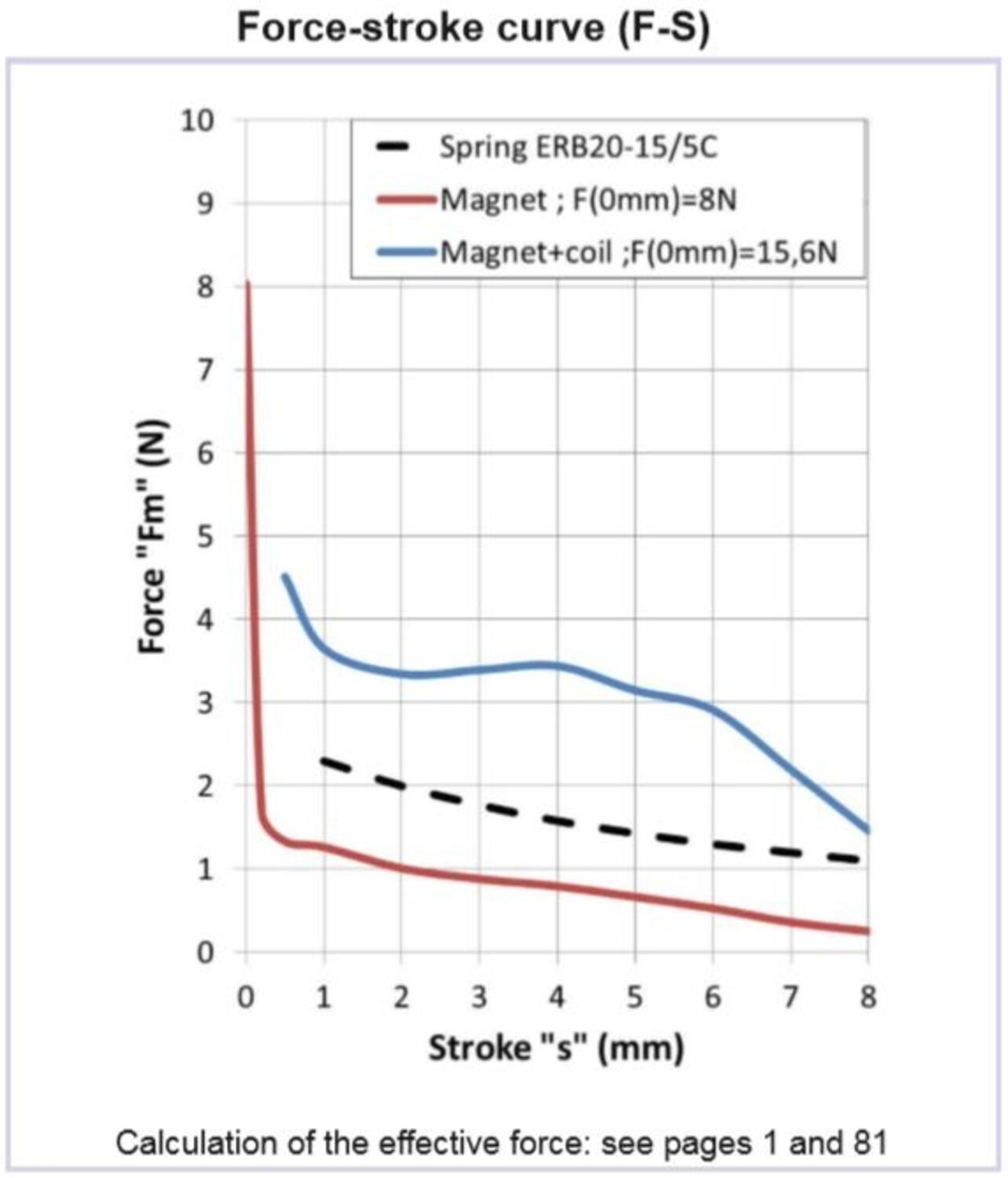

  • Up to 140N force
  • Customer specific version available

Selected variant

Available in several variants

Selected variant

Technical data

Duty cycle 25 %
Function push/pull
Insulation class Y (90°C)
IP class IP00
Power 10 W
Spring return Yes
Stroke 6 mm
Total weight 47 g
Voltage dc max 205 V
Voltage dc min 6 V
Voltage type DC

Product description

The ERB series is a bistable linear solenoid where the start to end position are made with electromagnetic forces.



Return direction is controlled by reverse polarity or a mechanical spring.



Ideally suited to long periods at the extremes of either position.

Accessories

Related products

Parts Duty cycle Power Stroke Total weight Price
25 %
10 W
6 mm
47 g
20 %
35 W
8 mm
165 g
20 %
35 W
5 mm
165 g
20 %
57 W
10 mm
365 g

Selected variant

Select a variant in the list
