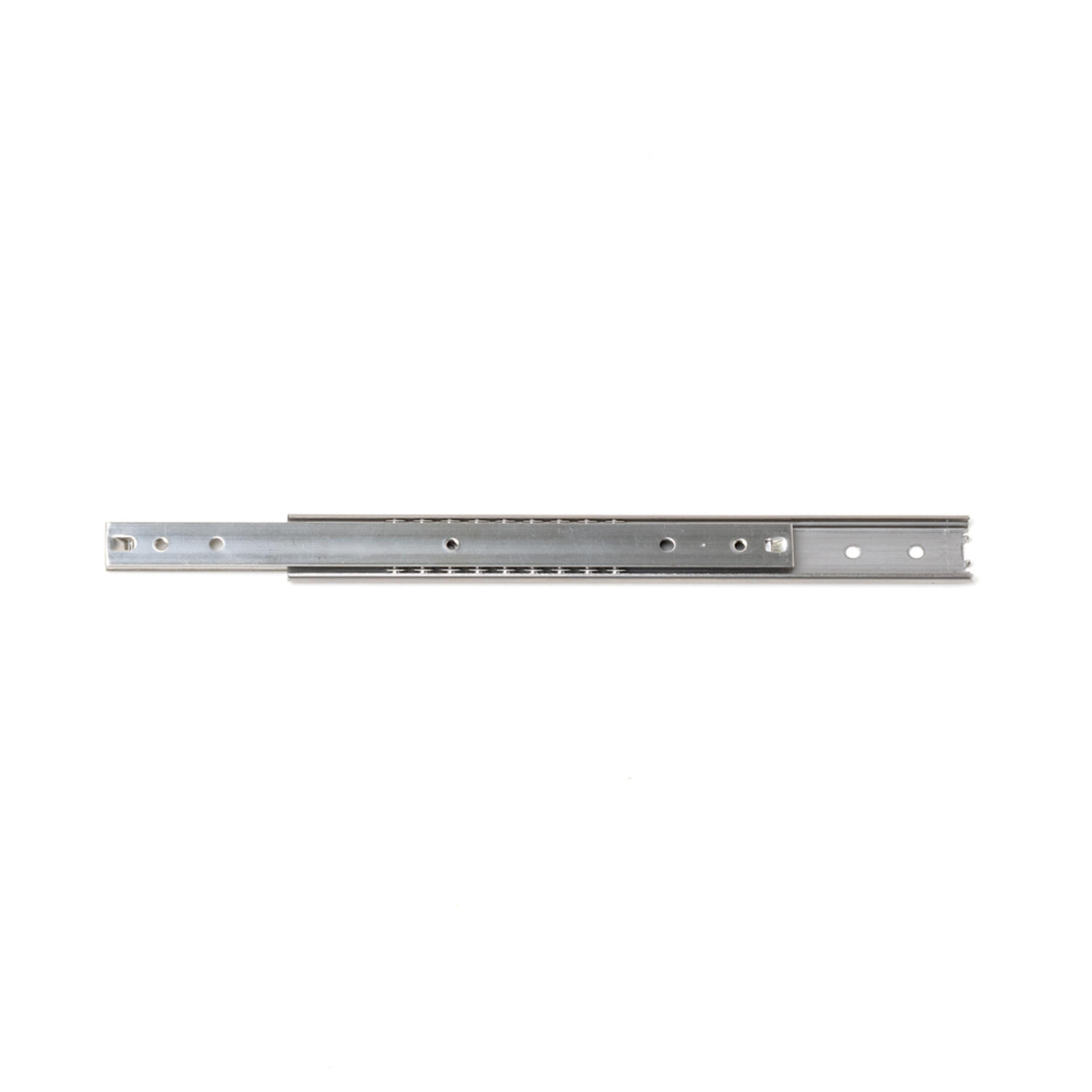

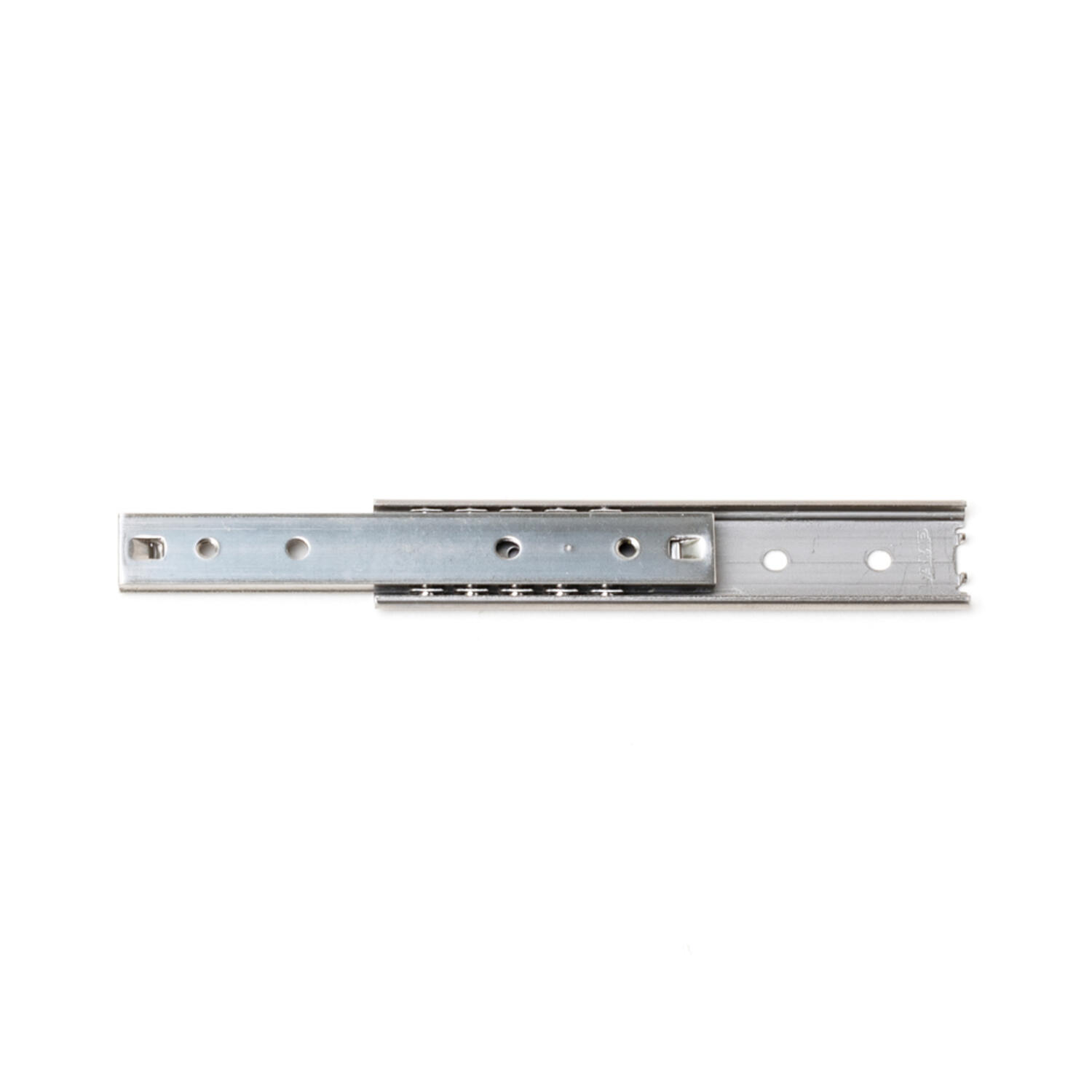

SCRW-15S Linear Slides

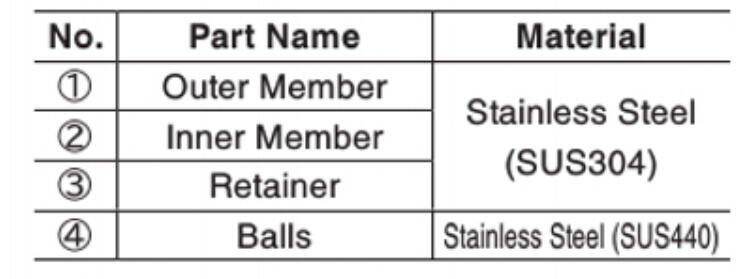

The Sugatsune SCRW2‑15S Linear Slide is a high‑precision, two‑member, ¾‑extension slide engineered in durable stainless steel (SUS 304). With an ultra‑slim 15.5 mm profile and minimal deflection, it’s ideal for tight installations in furniture, cabinetry, industrial machinery, or marine environments. Available in three slide‑length options, with load capacities of 14–18 kg per pair, make it capable of handling moderate loads with smooth and reliable motion. The slide is side‑mountable, non‑handed, and features RoHS 3 compliance.

Practically, the SCRW2‑15S series excels in environments demanding both compact form and clean operation. In professional kitchens, laboratory drawer systems, medical carts, or marine vessels, its all‑stainless construction resists corrosion while its food‑grade lubrication ensures cleanliness and compliance. The slide’s low‑deflection, thin profile allows installation in narrow gaps—particularly useful for embedded drawers or slim pull‑outs—while its two‑way travel enables opening in either direction, enhancing flexibility in bespoke furniture design or machine access panels. Overall, the SCRW2‑15S is a compact, hygienic, and versatile solution for precision linear motion in demanding or space‑constrained applications.
