Sugatsune

MLG Linear Guide

Sugatsune's MLG Multi Rollers are high-quality roller units designed for smooth, low-friction linear motion in demanding industrial and commercial settings. Built for durability and precision, they offer excellent load capacity and corrosion resistance, making them ideal for sliding doors, machine guards, and automated systems.

Can be used with a motor drive

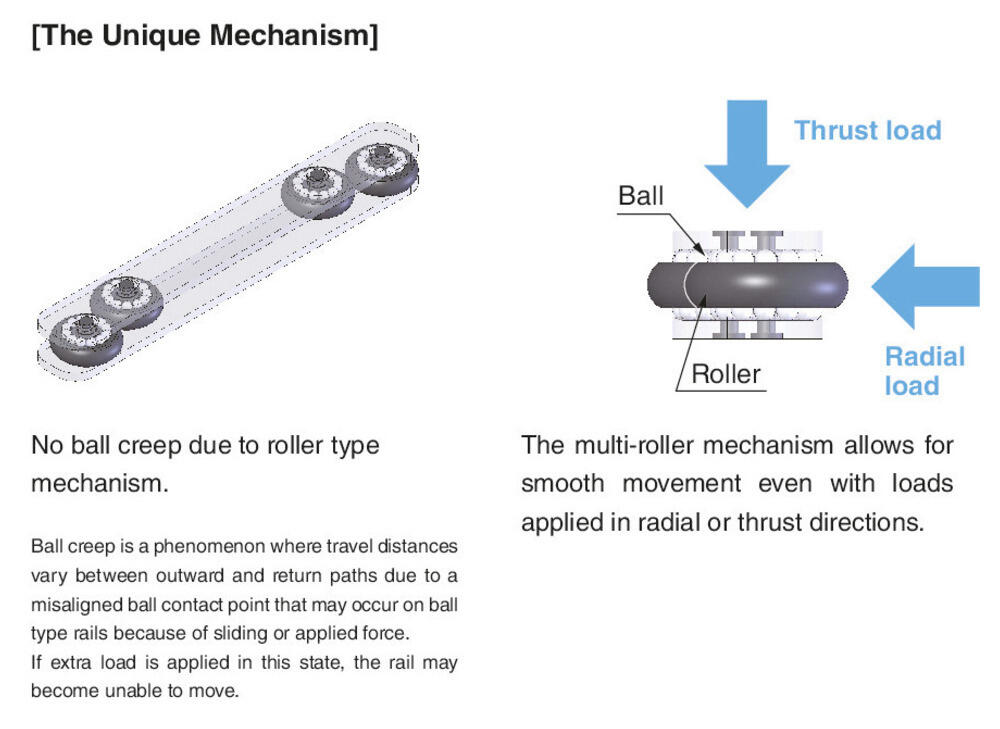

Smooth movement due to "multi-Roller" technology
Various lengths available

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Feature	Slim
Guide Block Length	61 mm
Guide Block Screw Size	M3
Horizontal Load FX	40 N
Load Moment MX	1 Nm
Load Moment MY	1.2 Nm
Load Moment MZ	1.2 Nm
Load Type	Static Rated Load
Material	Stainless steel, Steel

Rail & Guide Block Height	10.5 mm
Rail & Guide Block Width	13 mm
Rail Hole Pitch	50 mm
Rail Screw Size	M4
Rail Width	13 mm
Weight	11 g
Vertical Load FY	40 N

Downloads

Linear Rail Catalogue.pdf

Measurements and connections

Product description

Sugatsune MLG Multi Rollers are precision-engineered roller units designed to provide smooth, low-friction linear motion in various industrial and commercial applications. Built from high-quality stainless steel or aluminium alloy, MLG Multi Rollers are ideal for environments requiring corrosion resistance, clean operation, and high load capacity.

These rollers feature multiple rows of ball bearings to distribute weight evenly, ensuring consistent movement and stability even under heavy loads. Available in a range of sizes and configurations, they are commonly used in sliding doors, movable partitions, machine guards, and automated equipment. Sugatsune's attention to detail and engineering excellence make the MLG series a trusted choice for architects, engineers, and manufacturers seeking long-lasting performance and seamless motion control.

Accessories

Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic

Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic

Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.

Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions

Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts	Feature	Guide Block Length	Guide Block Screw Size	Horizontal Load FX	Load Moment MX	Load Moment MY	Load Moment MZ	Material	Number of holes	Rail & Guide Block Height	Rail & Guide Block Width	Rail Length	Rail Width	Surface finish	Weight	Vertical Load FY
MLG Multi-Roller Type, 61mm, 11g, Static Rated Load, Slim Art: MLG-13C Copied	Slim	61 mm	M3	40 N	1 Nm	1.2 Nm	1.2 Nm	Stainless steel, Steel		10.5 mm	13 mm		13 mm		11 g	40 N

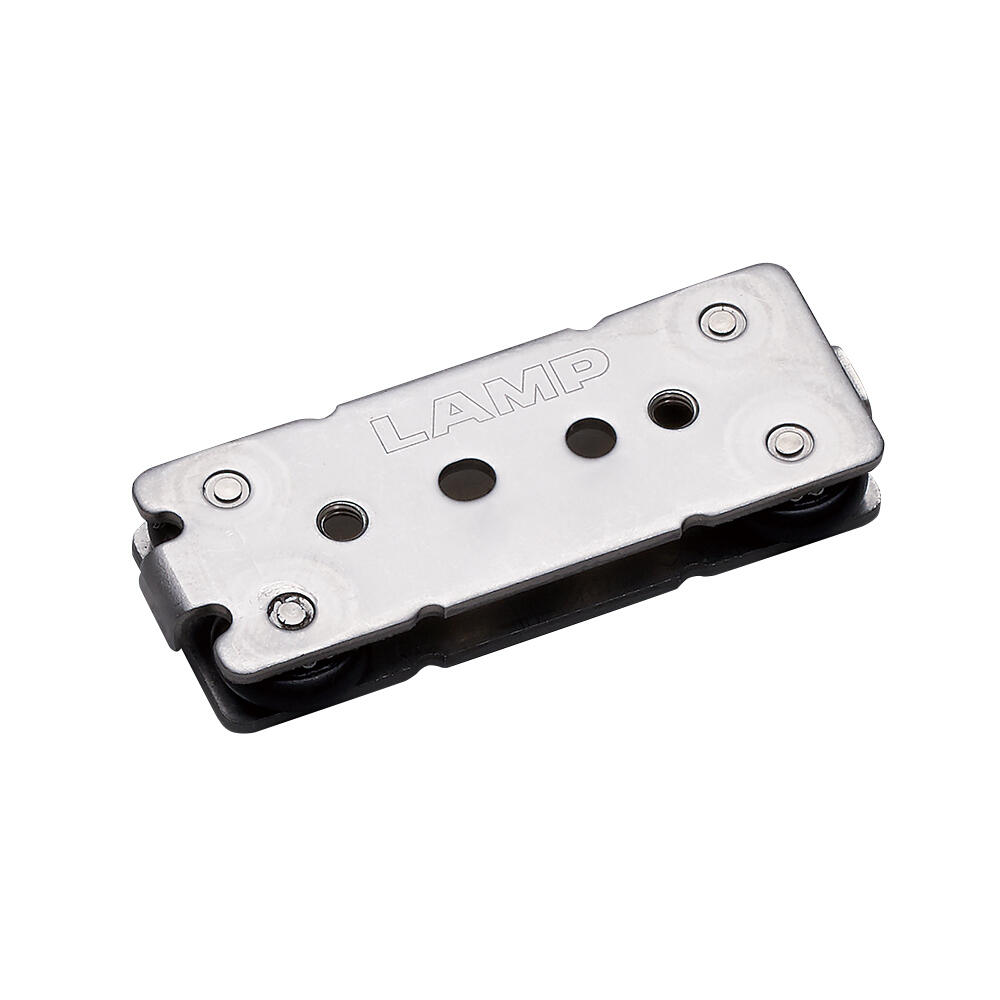

MLG Multi-Roller Type, 43mm, 13g, Static Rated Load Art: MLG-20C Copied		43 mm	M2.6	40 N	1.2 Nm	0.4 Nm	0.8 Nm	POM, Stainless steel, Steel		10.5 mm	20.2 mm		20.2 mm		13 g	40 N

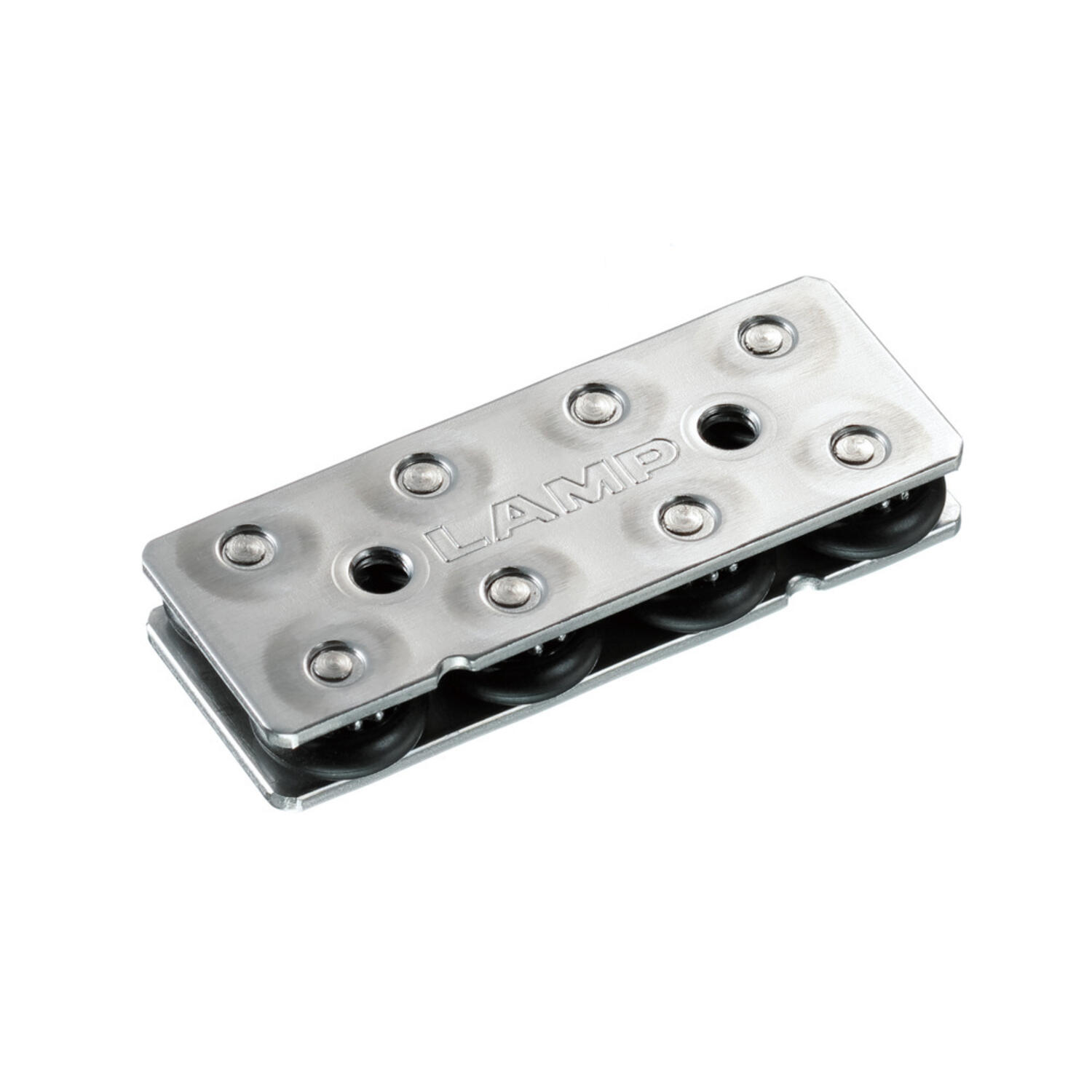

MLG Multi-Roller Type, 40mm, 15g, Static Rated Load, 8-Wheel Roller Art: MLG-20C-8 Copied	8-Wheel Roller	40 mm	M3	80 N	1.8 Nm	80 Nm	1.2 Nm	POM, Stainless steel, Steel		10.5 mm	20.2 mm		20.2 mm		15 g	0.8 N

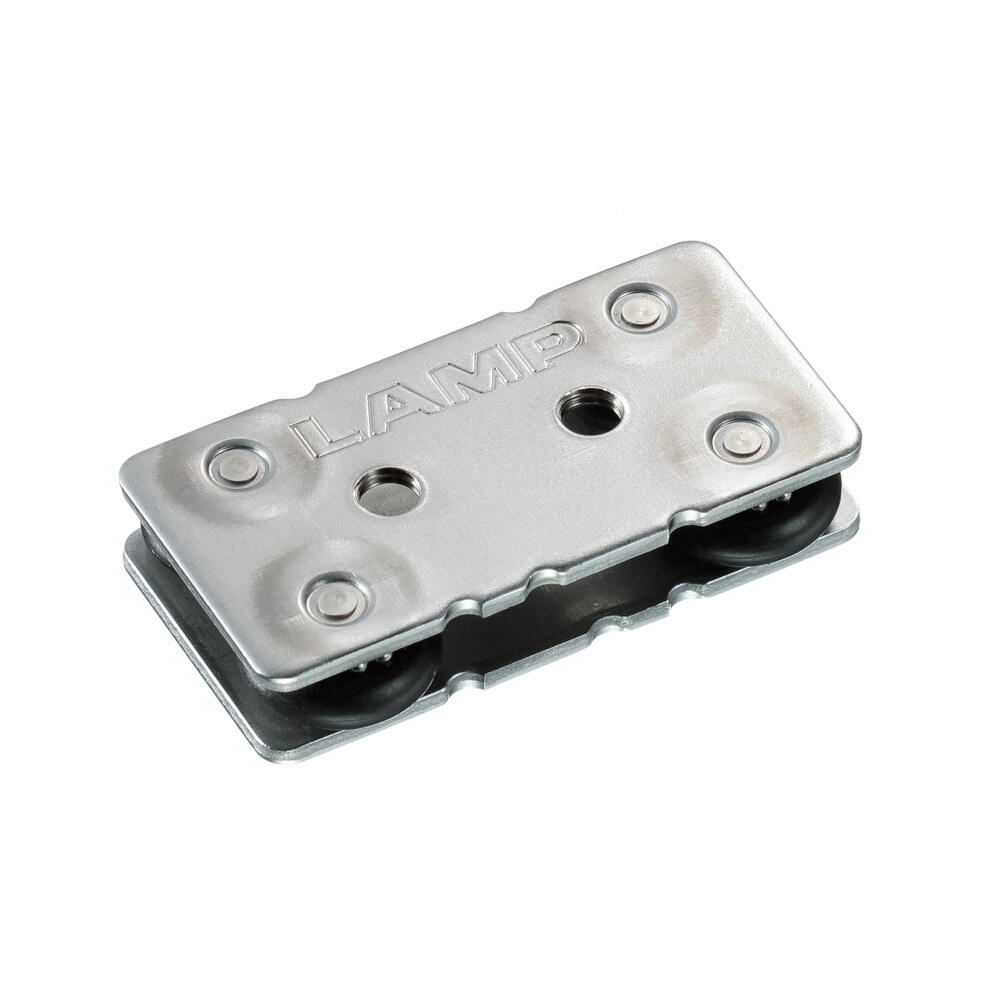

MLG Multi-Roller Type, 30mm, 11g, Static Rated Load, Compact Art: MLG-20CS Copied	Compact	30 mm	M3	40 N	0.8 Nm	40 Nm	0.4 Nm	POM, Stainless steel, Steel		10.5 mm	20.2 mm		20.2 mm		11 g	40 N

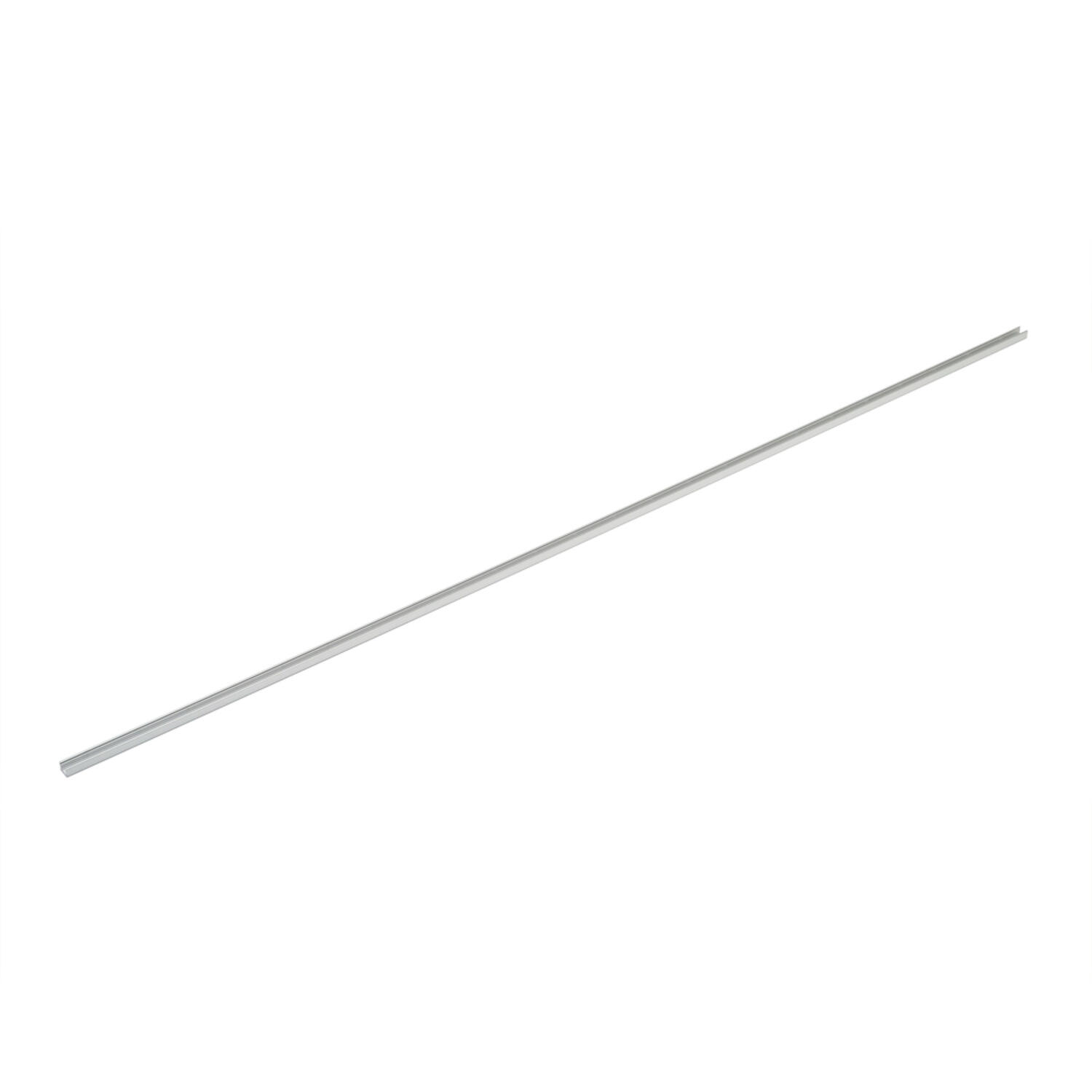

MLG Multi-Roller Type, 1200mm, 24 Holes, 137g, Aluminium Alloy, Static Rated Load Art: MLG13-1200 Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	Aluminium alloy	24	10.5 mm	13 mm	1200 mm	13 mm	Silver Anodised	137 g	40 N

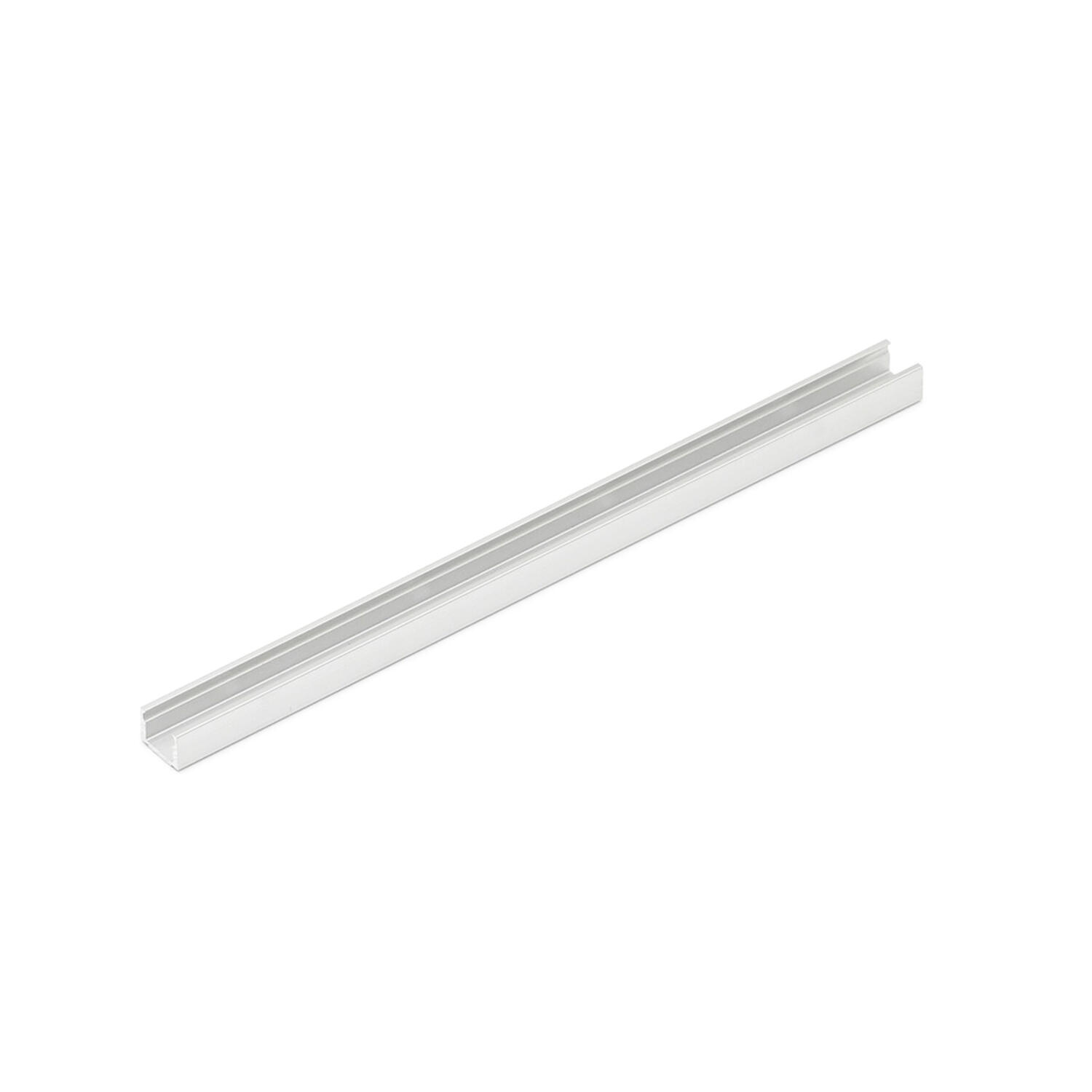

MLG Multi-Roller Type, 200mm, 4 Holes, 23g, Aluminium Alloy, Static Rated Load Art: MLG13-200 Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	Aluminium alloy	4	10.5 mm	13 mm	200 mm	13 mm	Silver Anodised	23 g	40 N

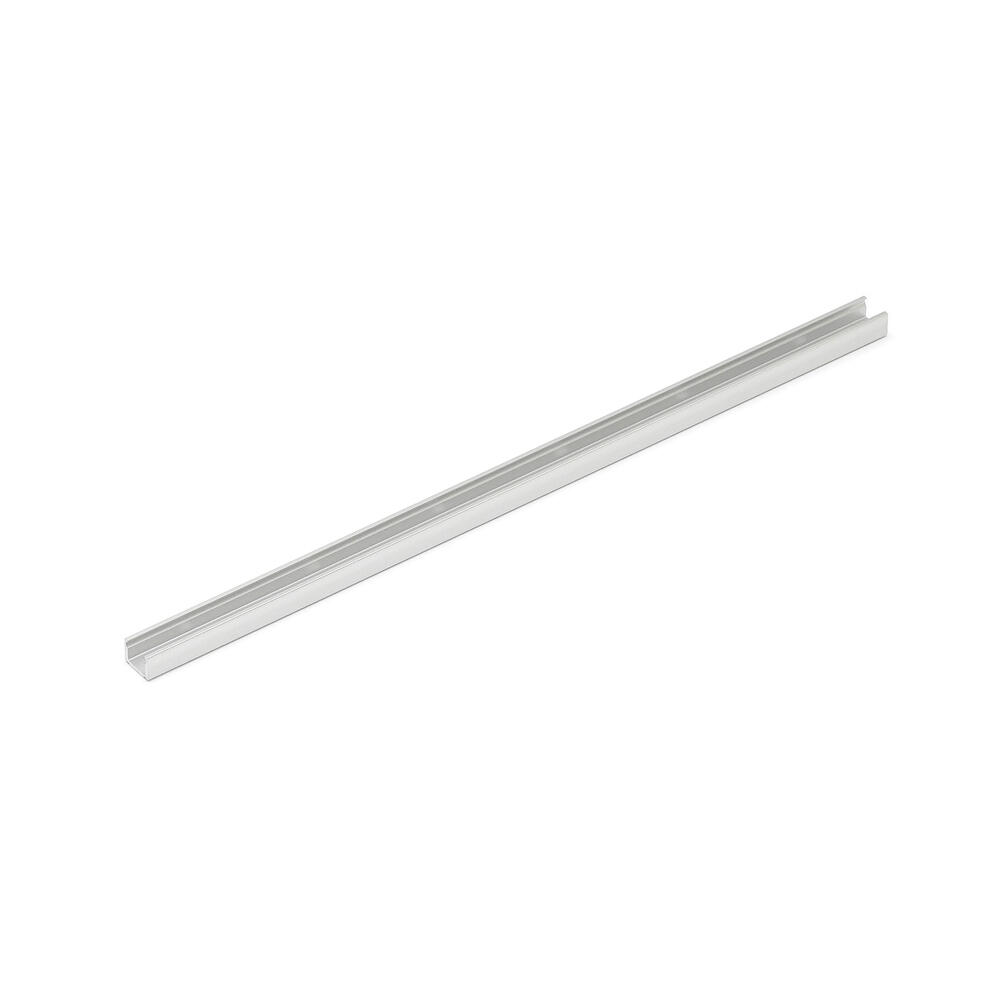

MLG Multi-Roller Type, 300mm, 6 Holes, 34g, Aluminium Alloy, Static Rated Load Art: MLG13-300 Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	Aluminium alloy	6	10.5 mm	13 mm	300 mm	13 mm	Silver Anodised	34 g	40 N
MLG Multi-Roller Type, 400mm, 8 Holes, 45g, Aluminium Alloy, Static Rated Load Art: MLG13-400 Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	Aluminium alloy	8	10.5 mm	13 mm	400 mm	13 mm	Silver Anodised	45 g	40 N
MLG Multi-Roller Type, 600mm, 12 Holes, 68g, Aluminium Alloy, Static Rated Load Art: MLG13-600 Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	Aluminium alloy	12	10.5 mm	13 mm	600 mm	13 mm	Silver Anodised	68 g	40 N

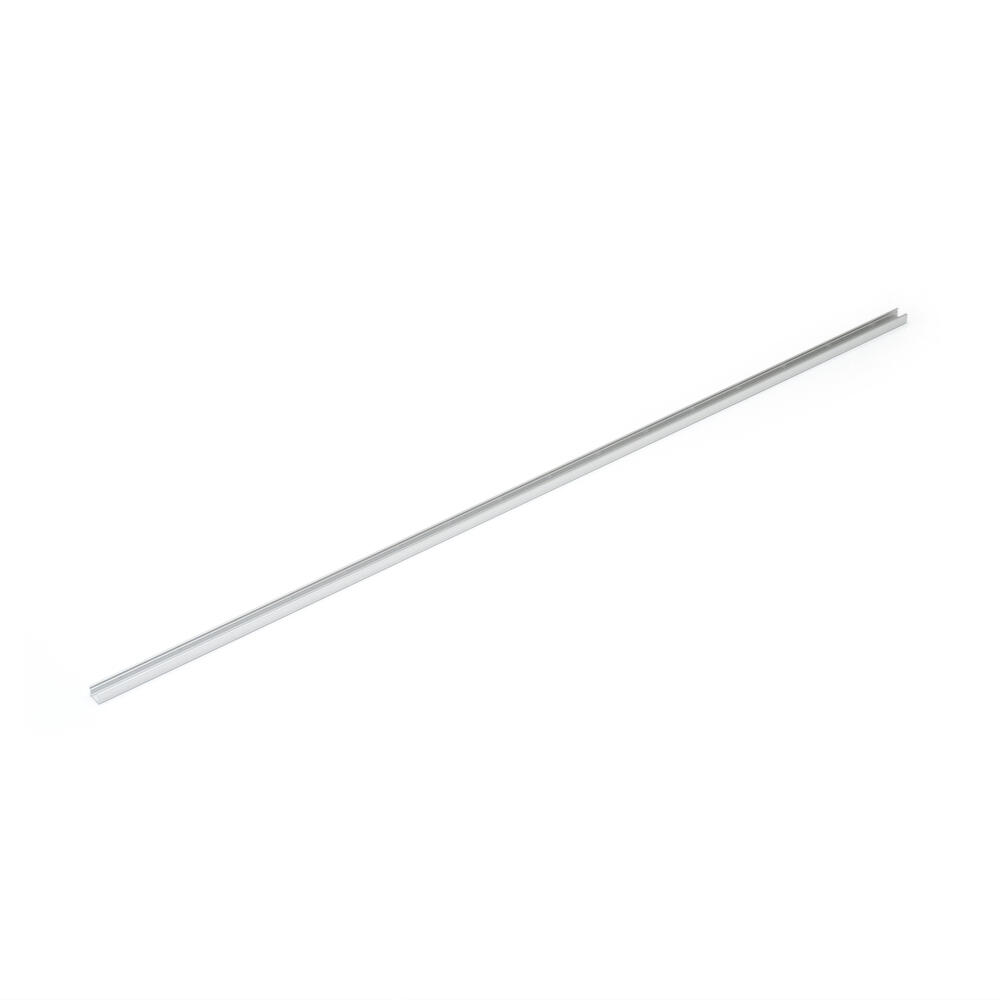

MLG Multi-Roller Type, 800mm, 16 Holes, 91g, Aluminium Alloy, Static Rated Load Art: MLG13-800 Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	Aluminium alloy	16	10.5 mm	13 mm	800 mm	13 mm	Silver Anodised	91 g	40 N
MLG Multi-Roller Type, Static Rated Load Art: MLG13-EC Copied		61 mm	M3	40 N	1 Nm	0.2 Nm	1.2 Nm	POM		12 mm	13 mm		13 mm		1.2 g	40 N

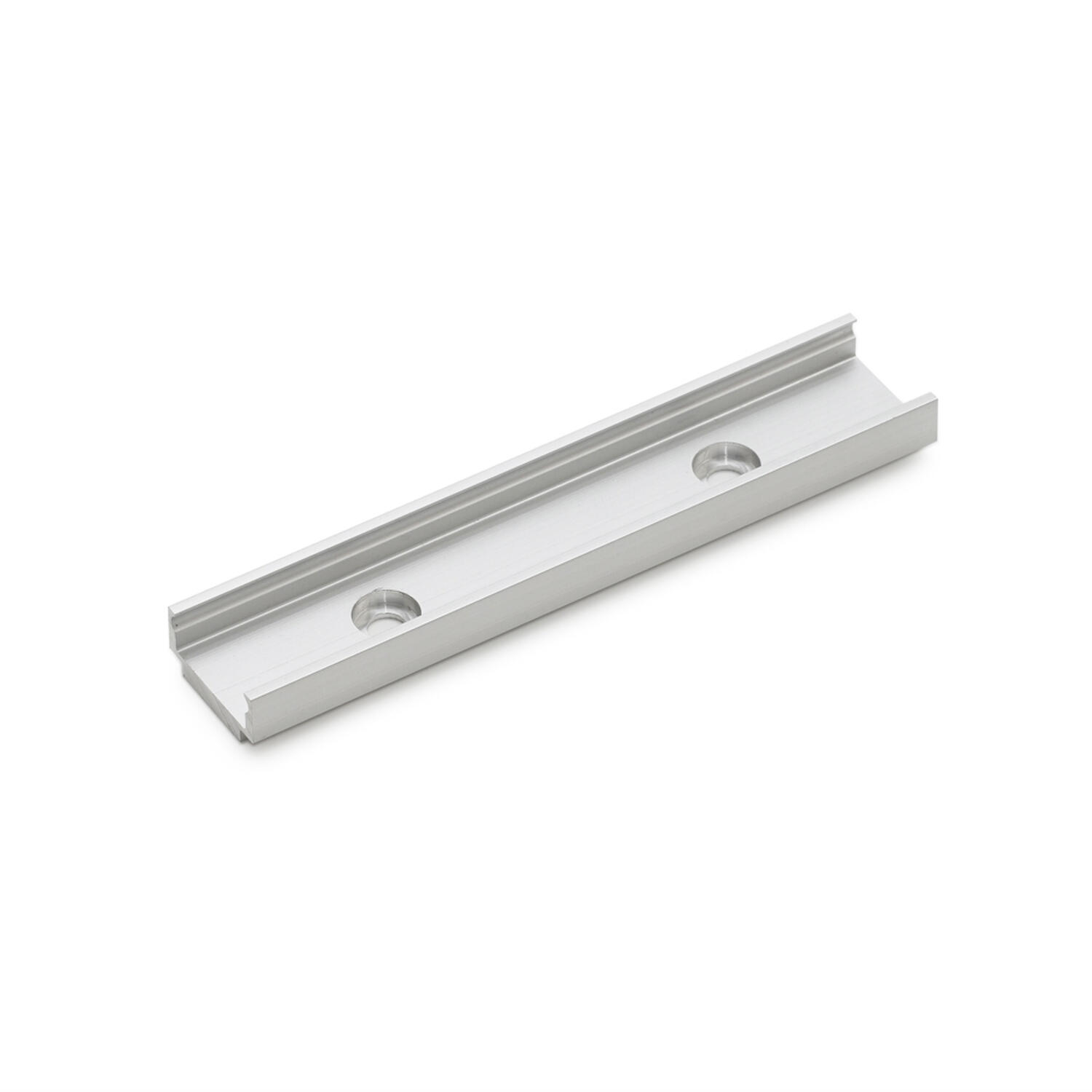

MLG Multi-Roller Type, 100mm, 2 Holes, 18g, Aluminium Alloy, Static Rated Load Art: MLG20-100 Copied								Aluminium alloy	2	10.5 mm	20.2 mm	100 mm	20.2 mm	Silver Anodised	18 g

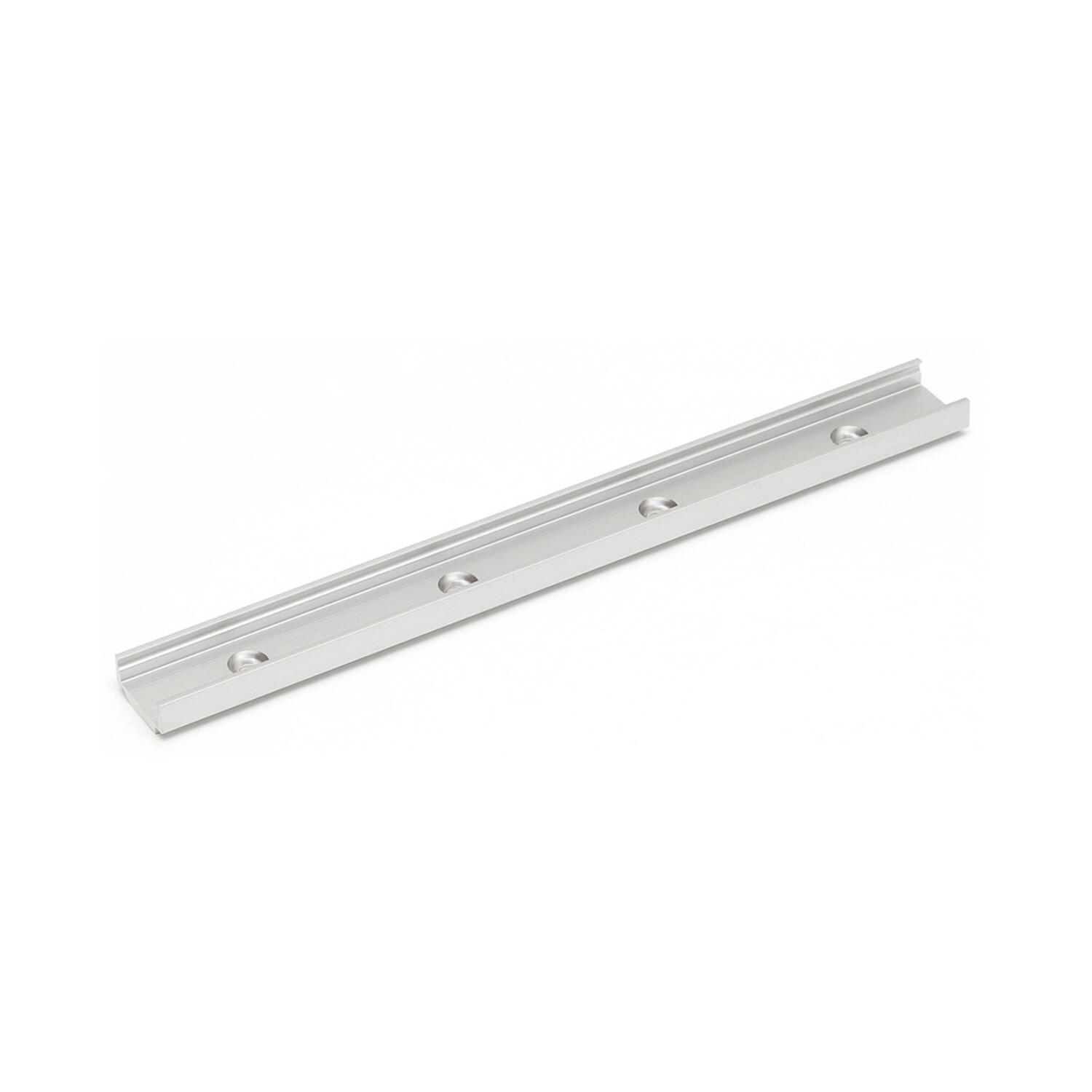

MLG Multi-Roller Type, 200mm, 4 Holes, 36g, Aluminium Alloy, Static Rated Load Art: MLG20-200 Copied								Aluminium alloy	4	10.5 mm	20.2 mm	200 mm	20.2 mm	Silver Anodised	36 g

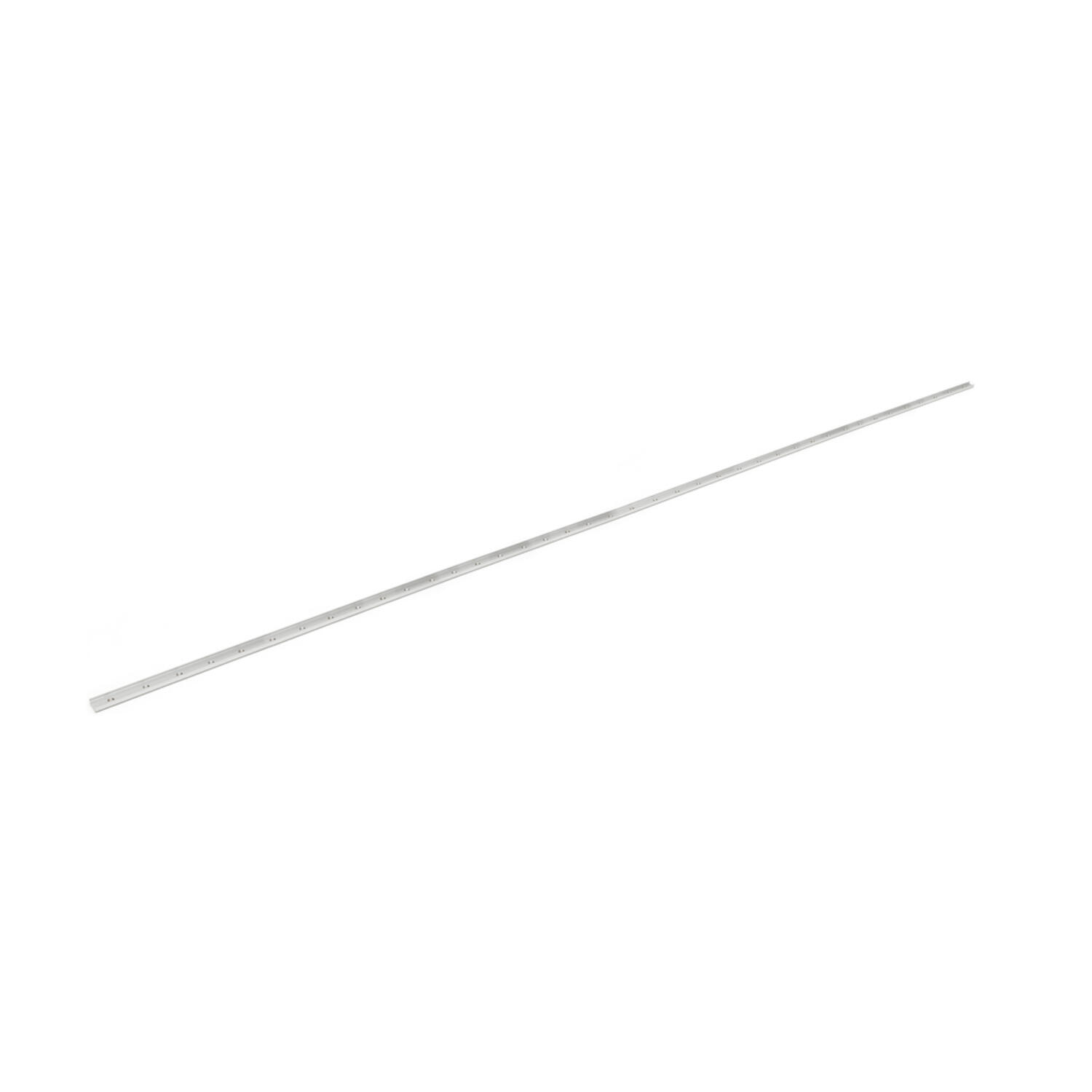

MLG Multi-Roller Type, 2000mm, 40 Holes, 359g, Aluminium Alloy, Static Rated Load Art: MLG20-2000 Copied								Aluminium alloy	40	10.5 mm	20.2 mm	2000 mm	20.2 mm	Silver Anodised	40 g
MLG Multi-Roller Type, 300mm, 6 Holes, 54g, Aluminium Alloy, Static Rated Load Art: MLG20-300 Copied								Aluminium alloy	6	10.5 mm	20.2 mm	300 mm	20.2 mm	Silver Anodised	54 g

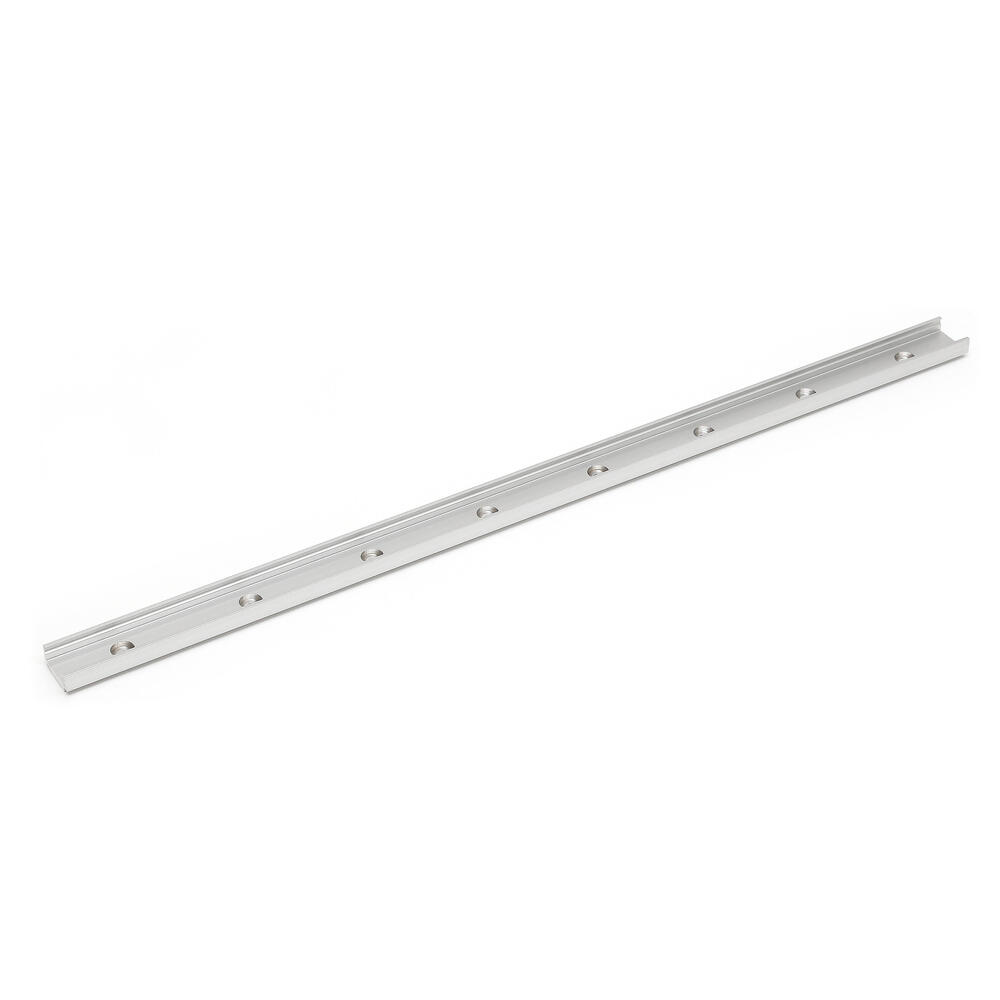

MLG Multi-Roller Type, 400mm, 8 Holes, 72g, Aluminium Alloy, Static Rated Load Art: MLG20-400 Copied								Aluminium alloy	8	10.5 mm	20.2 mm	400 mm	20.2 mm	Silver Anodised	72 g

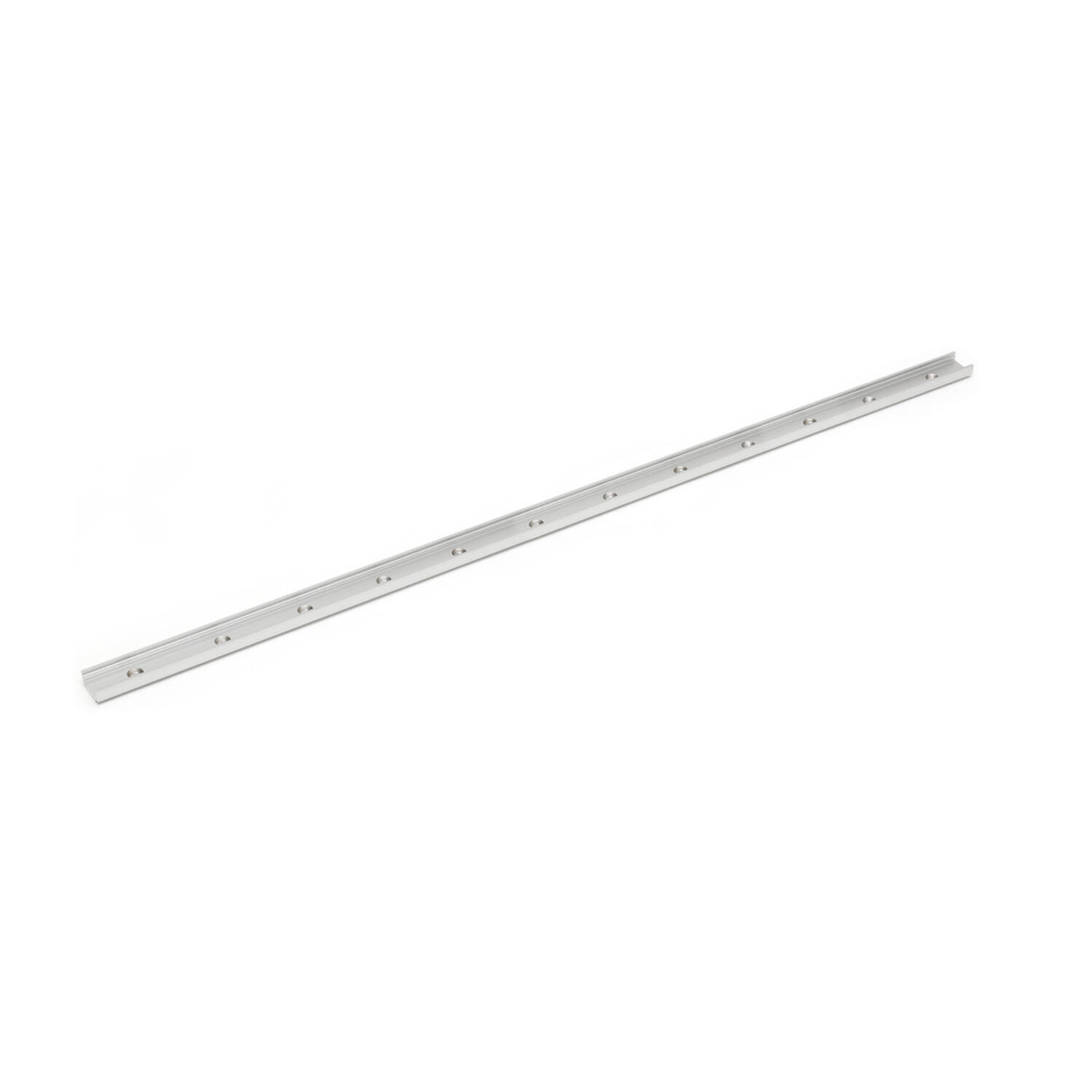

MLG Multi-Roller Type, 600mm, 12 Holes, 108g, Aluminium Alloy, Static Rated Load Art: MLG20-600 Copied								Aluminium alloy	12	10.5 mm	20.2 mm	600 mm	20.2 mm	Silver Anodised	108 g

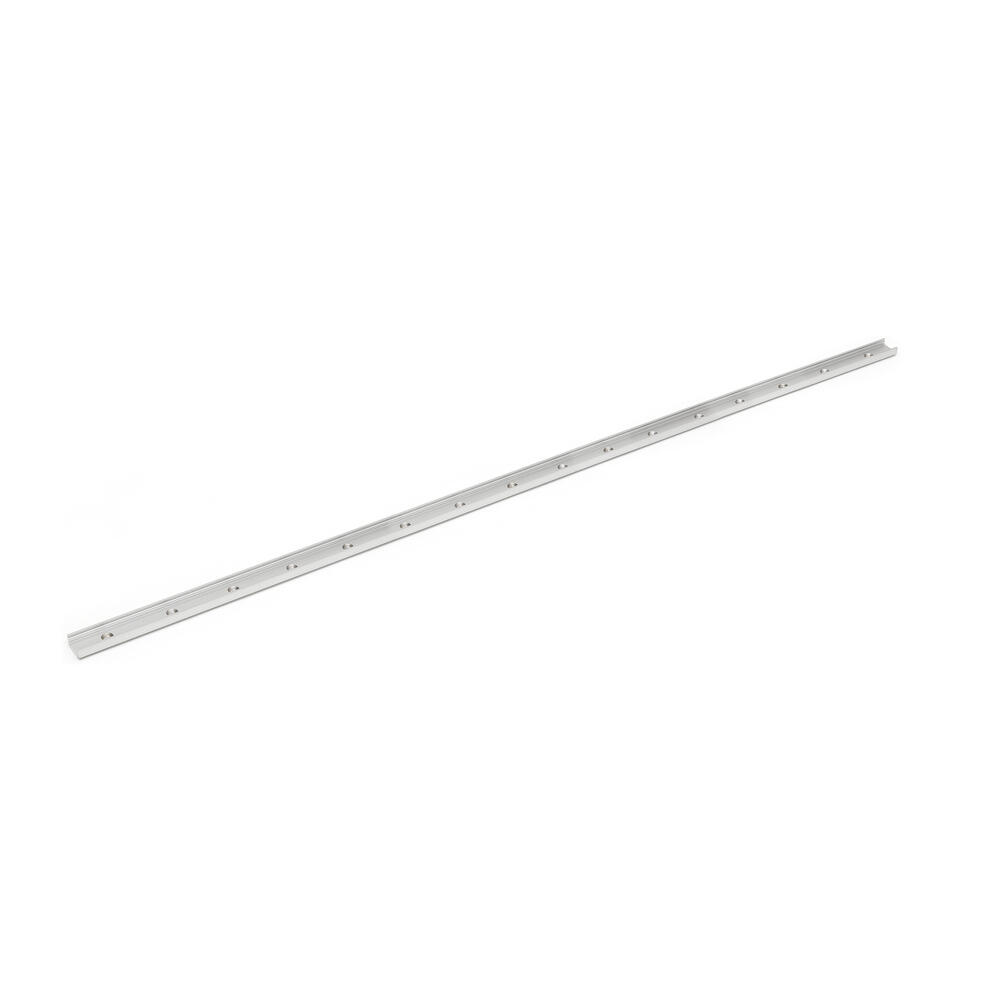

MLG Multi-Roller Type, 800mm, 16 Holes, 144g, Aluminium Alloy, Static Rated Load Art: MLG20-800 Copied								Aluminium alloy	16	10.5 mm	20.2 mm	800 mm	20.2 mm	Silver Anodised	144 g
MLG Multi-Roller Type, Static Rated Load Art: MLG20-EC Copied								POM							1.8 g
MLG Multi-Roller Type, 26g, Static Rated Load Art: MLG20-P55-40 Copied								Stainless steel		10.5 mm	20.2 mm		20.2 mm		26 g
