ARW Linear Slide

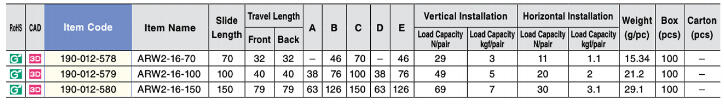

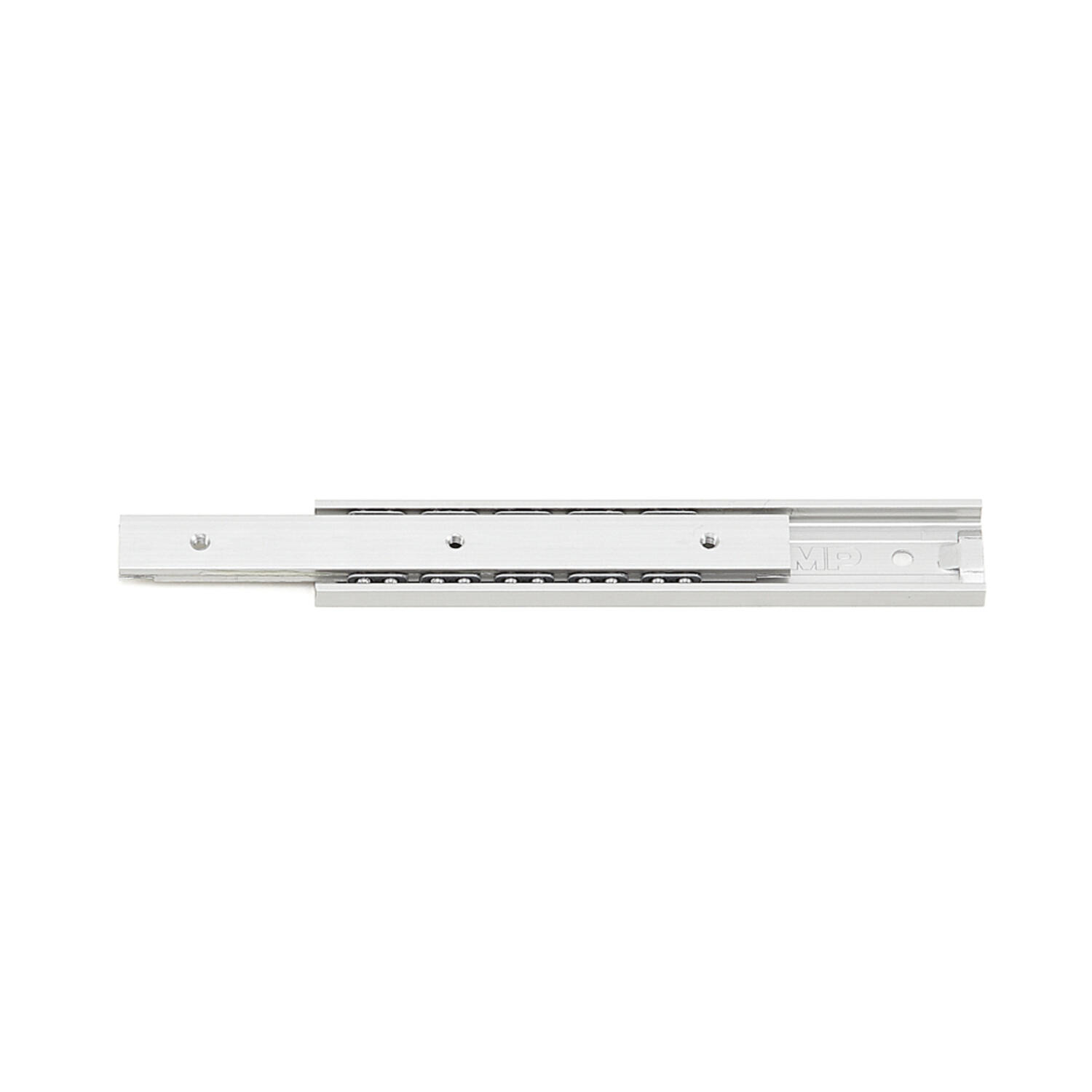

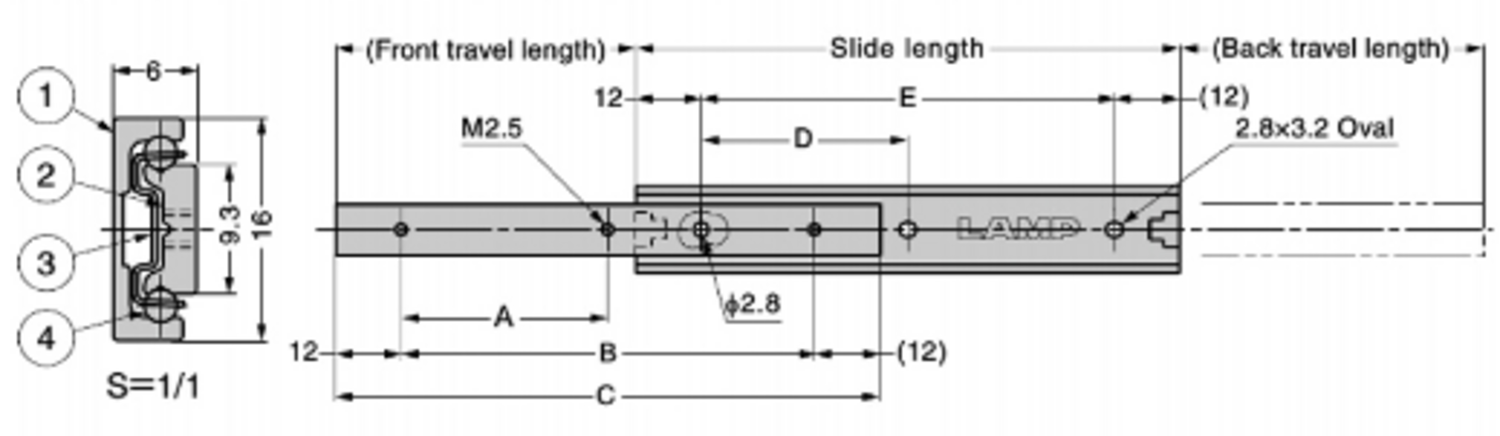

The Sugatsune ARW2-16 Mini Slide is a compact, precision-engineered linear motion component designed for applications requiring smooth, bidirectional travel within a confined space. Constructed from lightweight anodised aluminium, the ARW2-16-100 model measures 100 mm in closed length and extends to 140 mm when fully opened, offering a travel length of 52 mm. With a slim profile of 6 mm width and 16 mm height, it supports a load capacity of up to 5 kg per pair. The slide is designed without a positive stop, allowing for ease of assembly and integration into various systems; however, a secondary stopper should be added if necessary. Mounting options include side-mount and undermount configurations, accommodating diverse design requirements.

In practical applications, the ARW2-16 Mini Slide is ideal for use in compact mechanical assemblies where space is at a premium, such as in vending machines, automated industrial equipment, and small-scale cabinetry. Its two-way travel capability allows for flexible movement in both directions, enhancing accessibility and functionality in tight spaces. The lightweight aluminium construction not only reduces the overall weight of the assembly but also provides corrosion resistance, making it suitable for various environments. Whether in precision instruments or compact storage solutions, the ARW2-16 Mini Slide offers reliable performance and adaptability.
