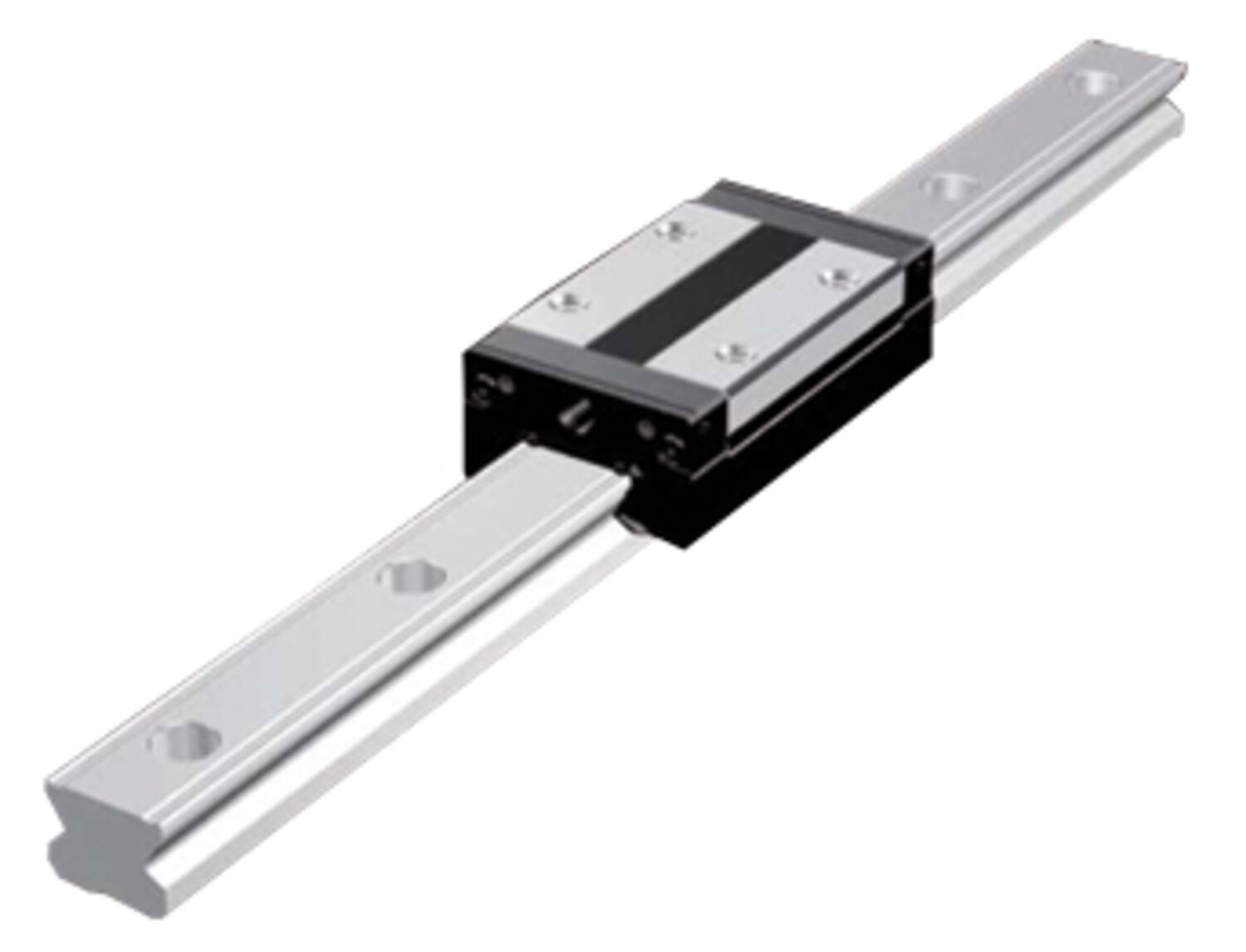

THK - SR rail and blocks SR 15 V/VM

Dynamic load	5.39 kN
Height	24 mm
Length	40.4 mm
Static load	11.1 kN
Width	34 mm

Parts	Dynamic load	Height	Length	Static load	Width
Art: SR 15 V/VM Copied	5.39 kN	24 mm	40.4 mm	11.1 kN	34 mm
Art: SR 15 W/WM Copied	9.51 kN	24 mm	57 mm	19.3 kN	34 mm
Art: SR 20 W/WM Copied	12.5 kN	42 mm	66.2 mm	25.2 kN	28 mm
Art: SR 30 V/VM Copied	17.2 kN	42 mm	67.9 mm	32.5 kN	60 mm
Art: SR 30 W/WM Copied	30 kN	42 mm	96.8 mm	56.8 kN	60 mm
Art: SR 35 V/VM Copied	23.8 kN	48 mm	77.6 mm	44.1 kN	70 mm
Art: SR 35 W/WM Copied	41.7 kN	48 mm	111 mm	77.2 kN	70 mm
Art: SR 45 W Copied	55.3 kN	60 mm	126 mm	101 kN	86 mm
Art: SR 55 W Copied	89.1 kN	68 mm	156 mm	157 kN	100 mm
Art: SR 70 T Copied	156 kN	85 mm	194.6 mm	266 kN	126 mm
Art: SR 85 T Copied	120 kN	110 mm	180 mm	224 kN	156 mm
Art: SR 100 T Copied	148 kN	120 mm	200 mm	283 kN	178 mm
Art: SR 120 T Copied	279 kN	110 mm	235 mm	377 kN	205 mm
Art: SR 150 T Copied	411 kN	135 mm	280 mm	537 kN	250 mm
Art: SR 15 SB/SBM Copied	5.39 kN	24 mm	40.4 mm	11.1 kN	52 mm
Art: SR 15 TB/TBM Copied	9.51 kN	24 mm	57 mm	19.3 kN	52 mm
Art: SR 20 SB/SBM Copied	7.16 kN	28 mm	47.3 mm	14.4 kN	59 mm
Art: SR 20 TB/TBM Copied	12.5 kN	28 mm	66.2 mm	25.2 kN	59 mm
Art: SR 30 SB/SBM Copied	17.2 kN	42 mm	67.9 mm	32.5 kN	90 mm
Art: SR 30 TB/TBM Copied	30 kN	42 mm	96.8 mm	56.8 kN	90 mm
Art: SR 35 SB/SBM Copied	23.8 kN	48 mm	77.6 mm	44.1 kN	100 mm
Art: SR 35 TB/TBM Copied	41.7 kN	48 mm	111 mm	77.2 kN	100 mm
Art: SR 45 TB Copied	55.3 kN	60 mm	126 mm	101 kN	120 mm
Art: SR 55 TB Copied	89.1 kN	68 mm	156 mm	157 kN	140 mm
Art: SR 25 SBY/SBMY Copied	11.7 kN	33 mm	59.2 mm	22.5 kN	73 mm
Art: SR 25 TBY/TBMY Copied	20.3 kN	33 mm	83 mm	39.5 kN	73 mm
Art: SR 25 VY/VMY Copied	11.7 kN	33 mm	59.2 mm	22.5 kN	48 mm
Art: SR 25 WY/WMY Copied	20.3 kN	33 mm	83 mm	39.5 kN	48 mm
