HG-JH210 Lift Assist Hinge HG-JH210

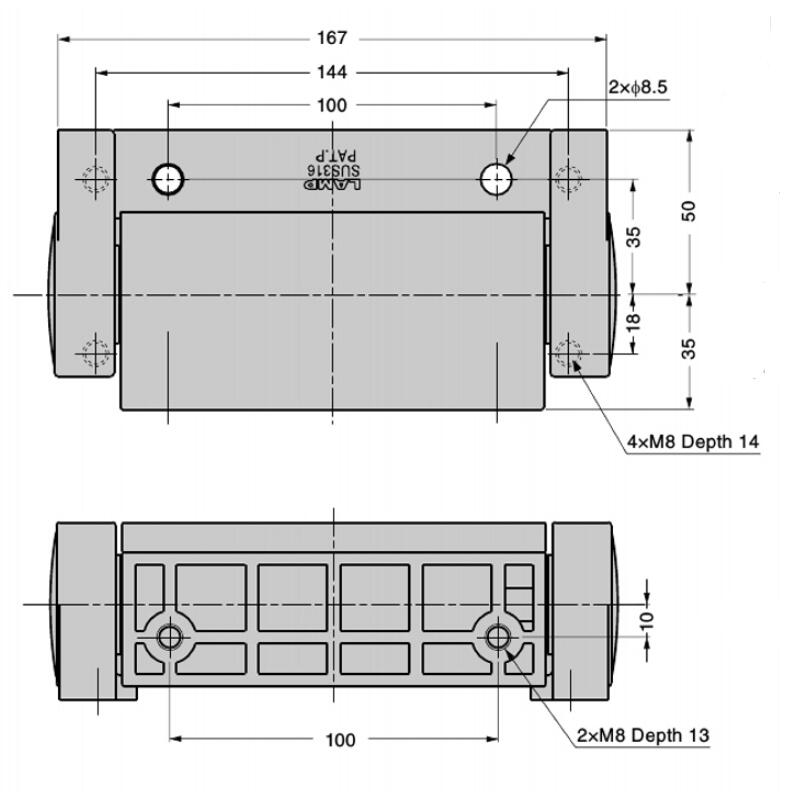

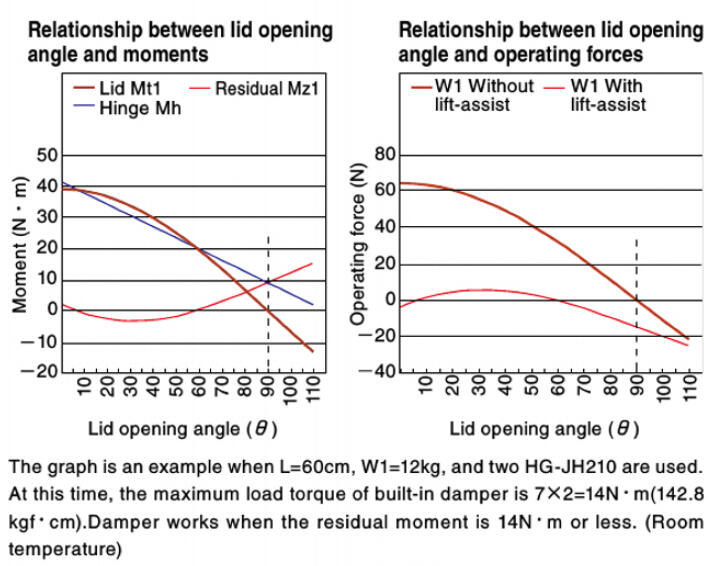

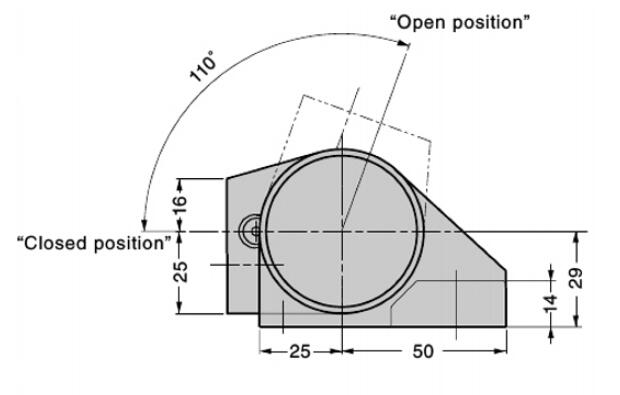

The HG‑JH210 is a robust stainless-steel lift‑assist hinge designed for industrial-grade access panels, doors, or lids where controlled movement is essential. With a helical torsion spring that provides lift‑assist functionality, reducing the effort needed to raise heavy lids. It includes a built‑in damper effective from about 30° of opening, ensuring a slow, soft‑close action and preventing slamming. Each hinge offers a maximum torque of 7Nm with ±10 % tolerance, supports up to 110° of opening angle, has passed rigorous 30,000–cycle durability testing, and mounts with M8 fasteners.

In practice, the HG‑JH210 is ideal for heavy-duty industrial environments, such as engine bays, machinery inspection panels, and equipment cabinets, where safety, precision, and longevity are critical. Its combination of lift‑assist and damping motions aligns with Sugatsune’s core Motion Design Tec philosophy, which promotes intuitive, smooth hardware interaction. The corrosion‑resistant stainless construction and polished finish make it well‑suited for marine, pharmaceutical, or food‑grade settings. Thanks to its high torque capacity and soft‑closing mechanism, operators can effortlessly open and close heavy lids without sudden movement or impact.
