2D scanners
Image based scanners use cutting edge image sensor, micro processor and LED technology to offer fast omni-directional barcode scanning.
Datalogic's range starts with the worlds smallest industrial imager with the MATRIX120 and continues all the way upto total pallet scanning with the MATRIX450N.
The MATRIX300N is our best selling imager and offers all around performace in a cost effective package.
Datalogic AV500/900 series
- 5MP or 9MP resolution
- Detects 1D and 2D code types
- Up to 32 fps
- Integrated communication via Ethernet TCP/IP, Serial
Datalogic Matrix 320 Imager
- 2MP imager
- Detects 1D and 2D code types
- Frame rates up to 60fps
- Integrated communication via Ethernet 10/100/1000Mbit/s, Serial RS232/RS422FD, OPC UA

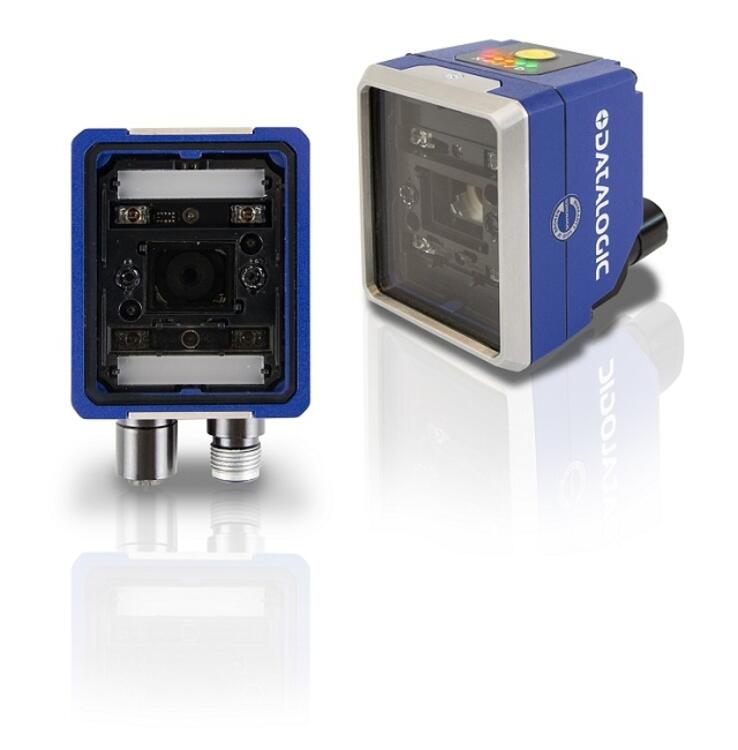

Datalogic Matrix 220 Imager
- 1.2 MP resolution
- Detects 1D and 2D code types
- Up to 45 fps
- Integrated communication via Ethernet 10/100 Mbit/s: Fieldbus PROFINET-IO, Ethernet IP, Modbus TCP, Serial RS-232/RS422FD, OPC UA
Datalogic Matrix 120 imager
- WVGA or 1.2 MP resolution
- Detects 1D and 2D code types
- Up to 57 fps
- Integrated communication via RS-232/RS-422/USB 2.0 high speed, Ethernet 10/100: Ethernet, Profinet I/O
Datalogic Matrix 300N Imager
**OBSOLETE - Please contact [email protected] for possible replacements**
- 1.3 MP and 2 MP resolutions
- Detects 1D and 2D code types
- Upto 60 fps
- Integrated communication via Ethernet 10/100: Ethernet IP, TCP/IP, UDP, FTP, MODBUS TCP, RS232/RS422/RS485 On-board PROFINET-IO as standard
Datalogic Matrix 410N Imager
LTB - 31.12.2023Contact [email protected] for possible replacements.
- 2 MP imager
- Detects 1D and 2D code types
- Up to 60 fps
- Integrated communication via RS232/485 ,TCP/IP, HTTP, FTP, PROFINET IO, ETHERNET/IP, MODBUS TCP as standard
Datalogic - Matrix 450N Extreme Performance
**OBSOLETE - Please contact [email protected] for possible replacements**
- 5MP image sensor
- White and Blue lighting options
- PACKTRACK™ capability
- Gigabit Ethernet Integrated Connectivity
Datalogic Matrix 210N Imager
***OBSOLETE - Please see Matrix 120 and Matrix 220 ranges for alternatives***
- WVGA image sensor
- Detect 1D and 2D code types
- Upto 60 fps
- Integrated communication via EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, MODBUS TCP
