Mini Motor DBSE brushless servomotors with integrated drive
2020-11-18

Stay in sync with MiniMotor DBSE

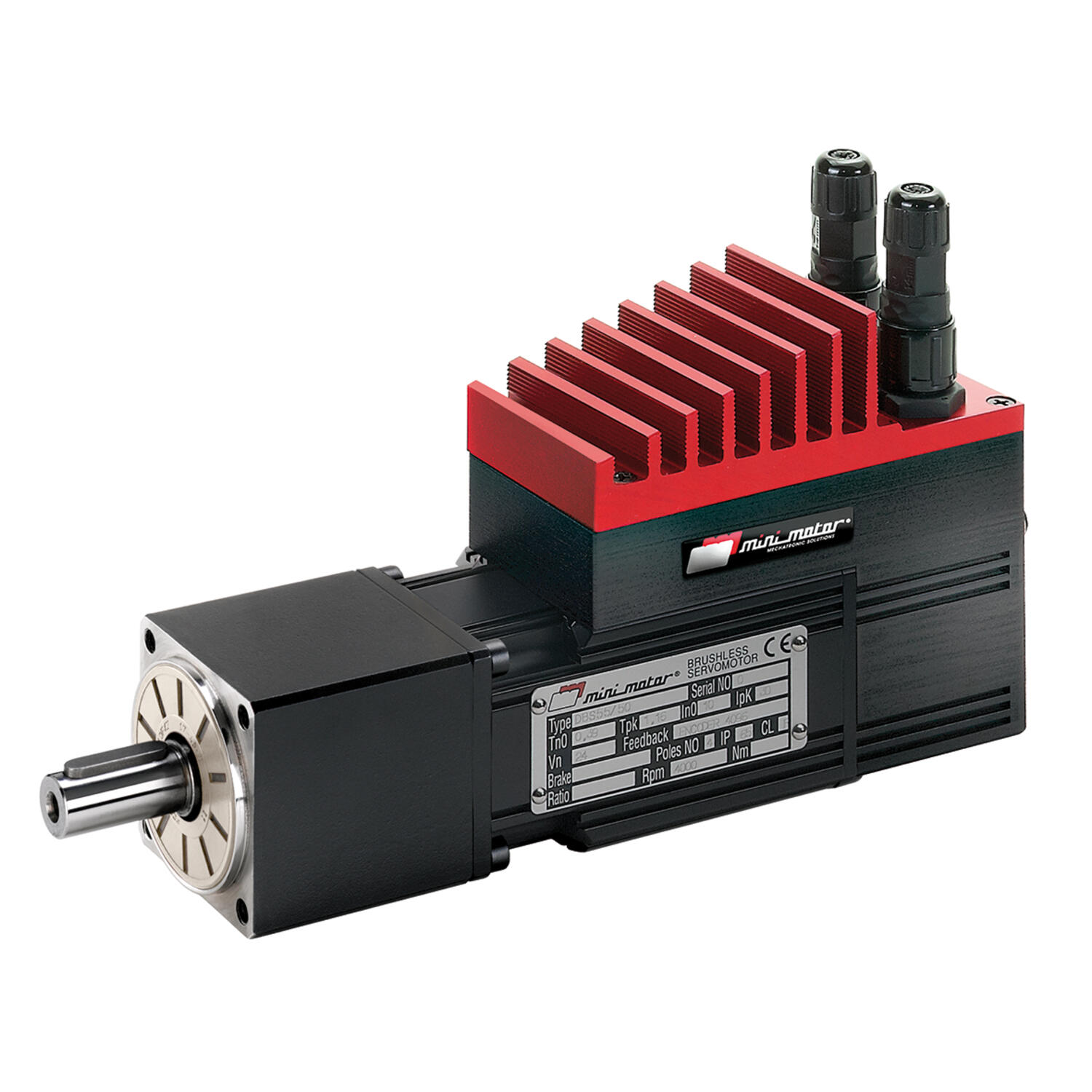

Mini Motor - DBSE brushless servomotors
Gearboxes in packaging, food & beverage, labelling and pharmaceutical machinery are subject to sudden speed changes and format changeovers are often required – which take time and cost money.

The DBSE motors

Mini Motor’s DBSE brushless servomotors with integrated drive and planetary reduction gear are very well suited to these sectors, and can reduce machine downtime to a minimum.
With CSP (Cyclic Synchronous Positioning), they are able to move independently or in a synchronised manner, depending on what the process requires.
All models are implemented with the new ‘open’ platform which permits configuration with these primary protocols: CANopen, EtherCAT, Modbus, EtherNet/IP, PROFINET, Powerlink.

Advantages of the DBSE motors

  • Machine downtime is reduced to the bare minimum
  • Efficient and compact
  • Fewer individual cable runs
  • Allow highly precise operations
  • Up to 36.5Nm
  • Open bus protocols
  • Reduce machine build components

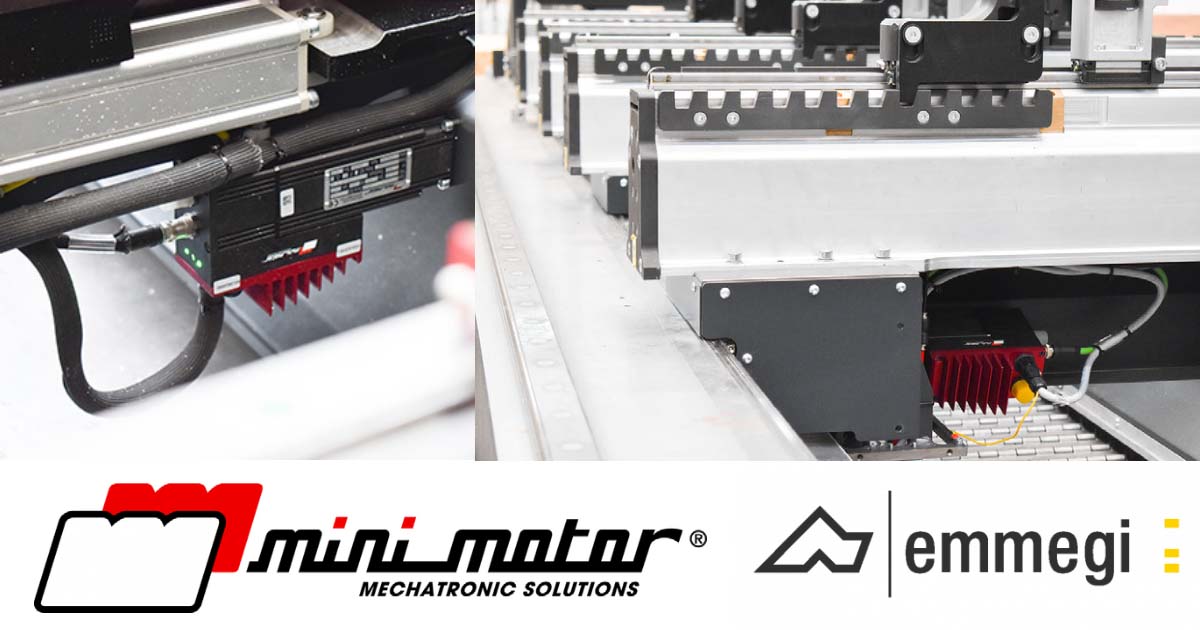

Mini Motor's DBSE motors used by Emmegi

Based in Italy, Emmegi are a leader in the design, production and sale of aluminium, light alloy, PVC and steel profile machining systems. They use Mini Motor’s series of DBSE brushless motors to drive vice clamps in their top-class Satellite XTE and Comet R6 I 5-axis CNC machining centres.
This means that the machining centres can be used in a dynamic twin operation, with the clamps being automatically positioned at the same time as the machining processes in the opposite working field. This has the enormous advantage of minimising time-consuming machine stops for set up and clamp positioning.

Case studies

DBS servomotors variants available

MOTOR:

  • Brushless 4-pole three-phase sinusoidal motor, totally enclosed.
  • Rotor with NdFeB magnets.
  • Thermal cutoff.
  • Winding Class F.
  • Protection IP65 in compliance with IEC/EN 60529 standards.
  • Bearings with reduced backlash and special grease for high temperatures.

DRIVE:

  • Power 24 and/or 48 Vdc
  • Magnetic absolute encoder SSI (12bit single-turn / 16bit multi-turn) with internal buffer battery
  • 5 PNP digital inputs and 1 analogue input -10 +10V ext. (0-5 o 4-20mA optional)
  • 1 relay output (NC-NO)
  • USB port for parametrisation
  • Torque, speed, position and homing control.

GEAR UNIT:

  • planetary with hardened steel case and broached precision teeth Class 7.
  • Heat-treated sun and planet gears.
  • Seal rings in special high-temperature rubber (FKM).
  • Lubrication with special long-lasting oil.
  • Rated torque up to 33.2 Nm.

All models are implemented with the new ‘open’ platform which permits configuration with these primary protocols: CANopen, EtherCAT, Modbus, EtherNet/IP, PROFINET, Powerlink.

For more information get in touch with our Motors team : [email protected]
