CROUZET SWITCHES

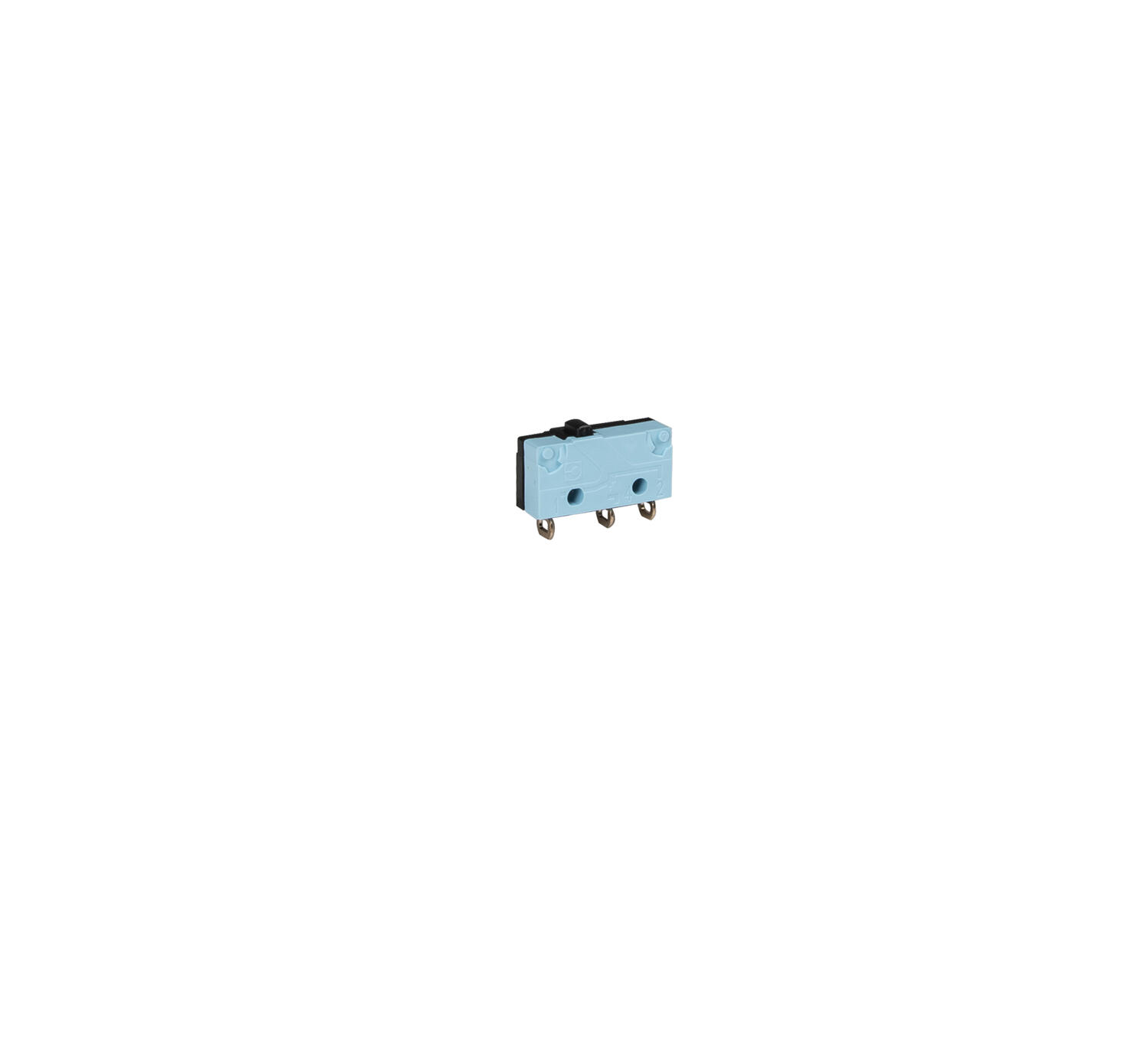

Crouzet Switches - V4

  • Load 0.1-10 A 250 V ac
  • Minimum load 1 mA 4 V dc
  • Available with sponge trigger
  • Control arm can be fitted in two different positions

Selected variant

Available in several variants

Selected variant

Technical data

Connection W2
Contact gap 0.4 mm
Contact type Changeover (SPDT)
Force of the return movement min 0.3 N
Hysteresis max 0.15 mm
IP class IP40
Operating force max 1.5 N
Operating power total max 1.8 N
Overtravel min 0.5 mm
Permissible overvoltage max 10 N
Rated current at 250 V ac 10 A
Sleep max 9.2 mm
Switching point 8,4 ±0,3 mm
Temperature operational max 125 °C
Temperature operational min -40 °C
Thermal current at 250 V ac 12.5 A

Measurements and connections

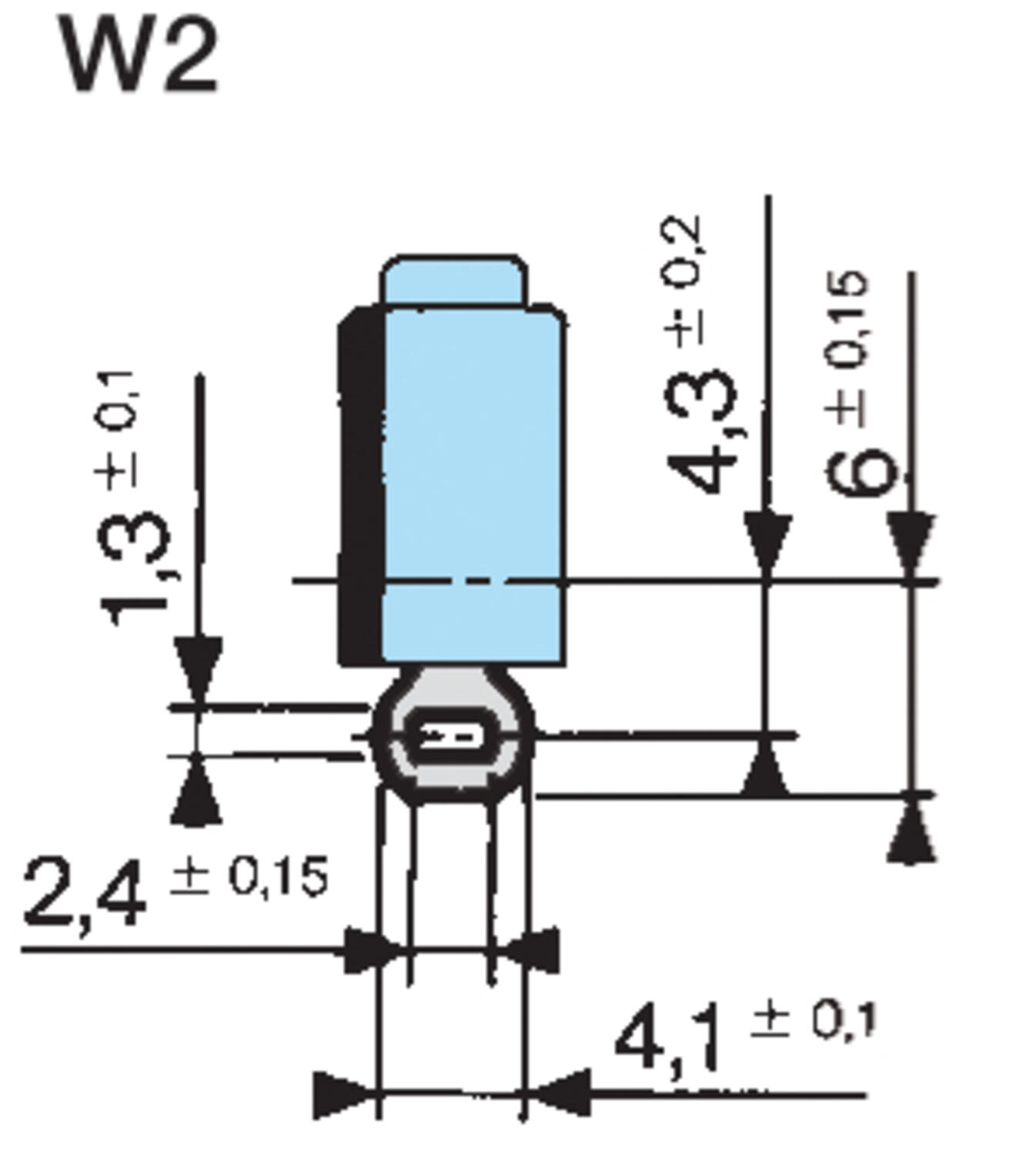

W2.tif

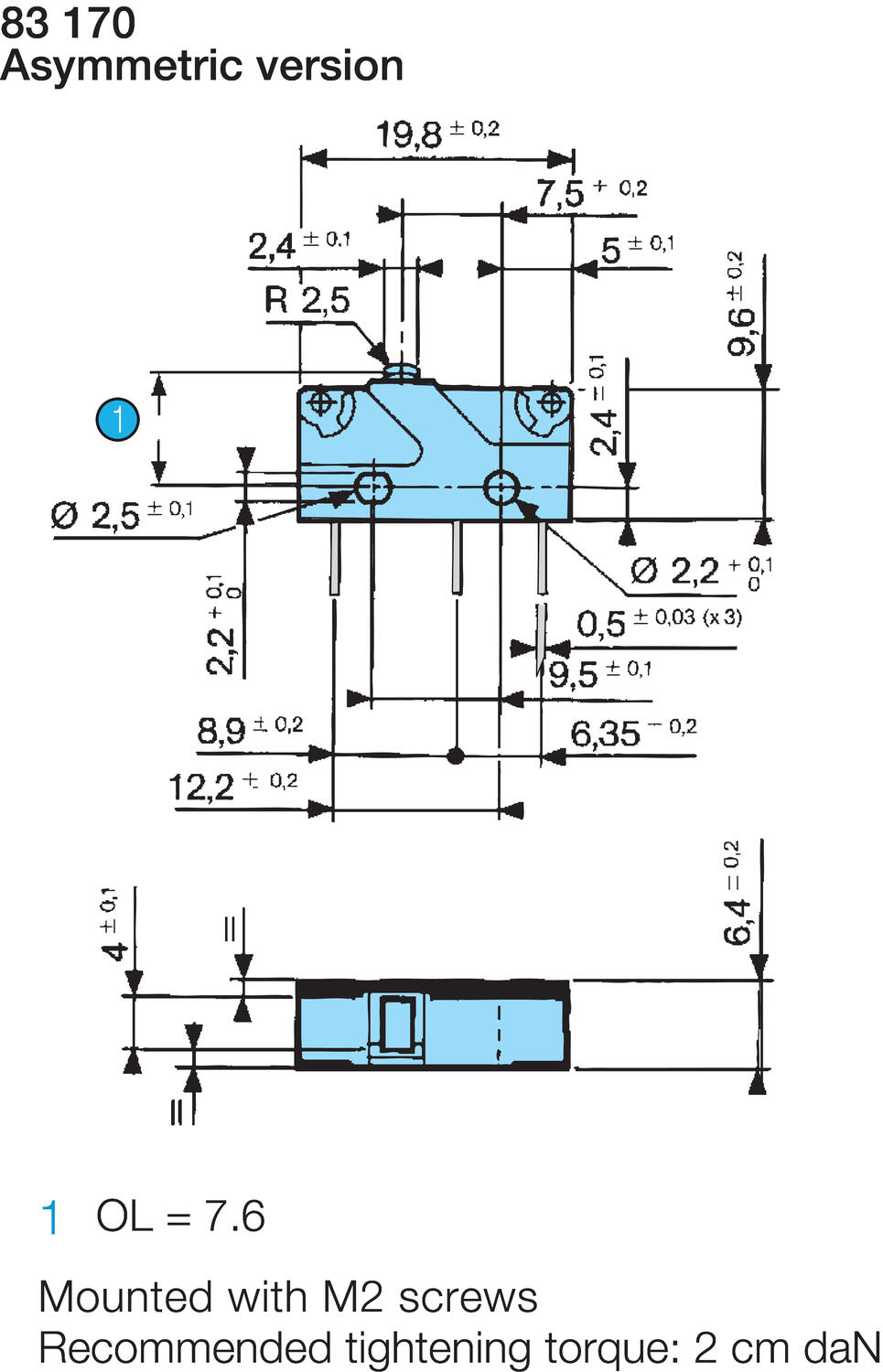

V4 dimensions - asymmetrical version

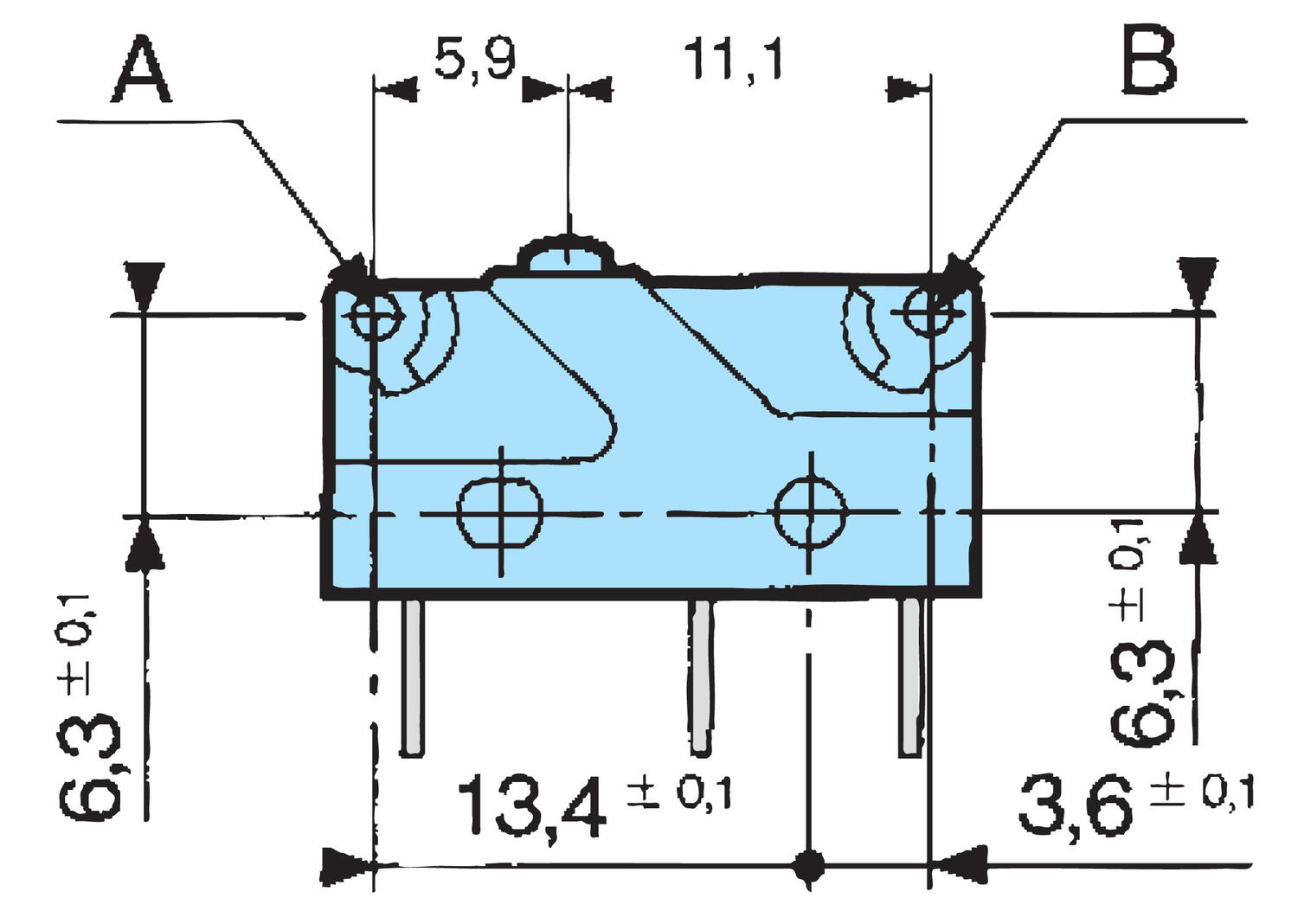

V4 Installation position for control arm

Fixing position: The control arms are supplied unfitted unless specified otherwise.
For factory fitting, specify installation position A or B.
To calculate the force: divide the breaking force by the coefficient in the table.
To calculate movement: multiply the breaking movement by the same coefficient.

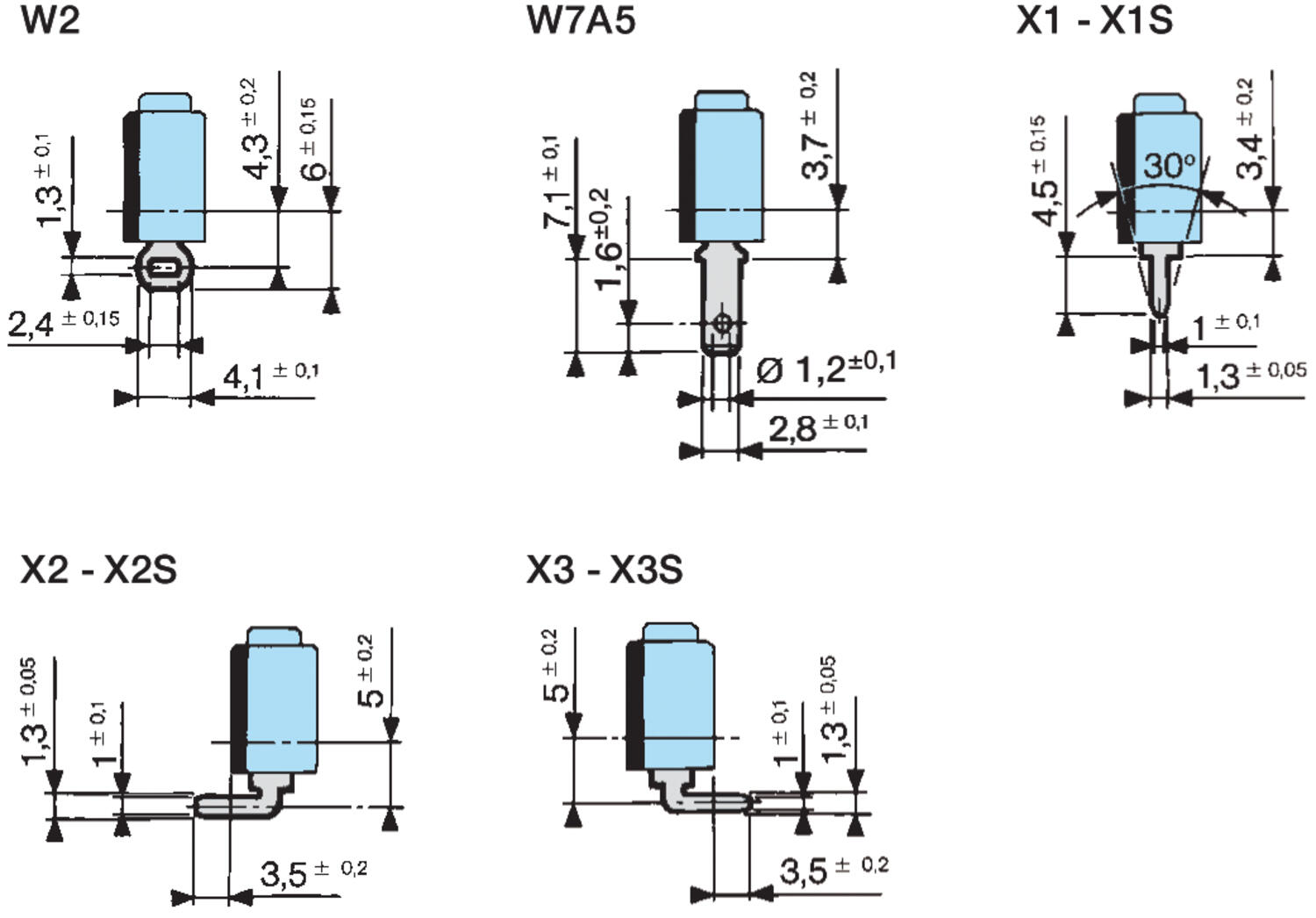

V4 dimensions

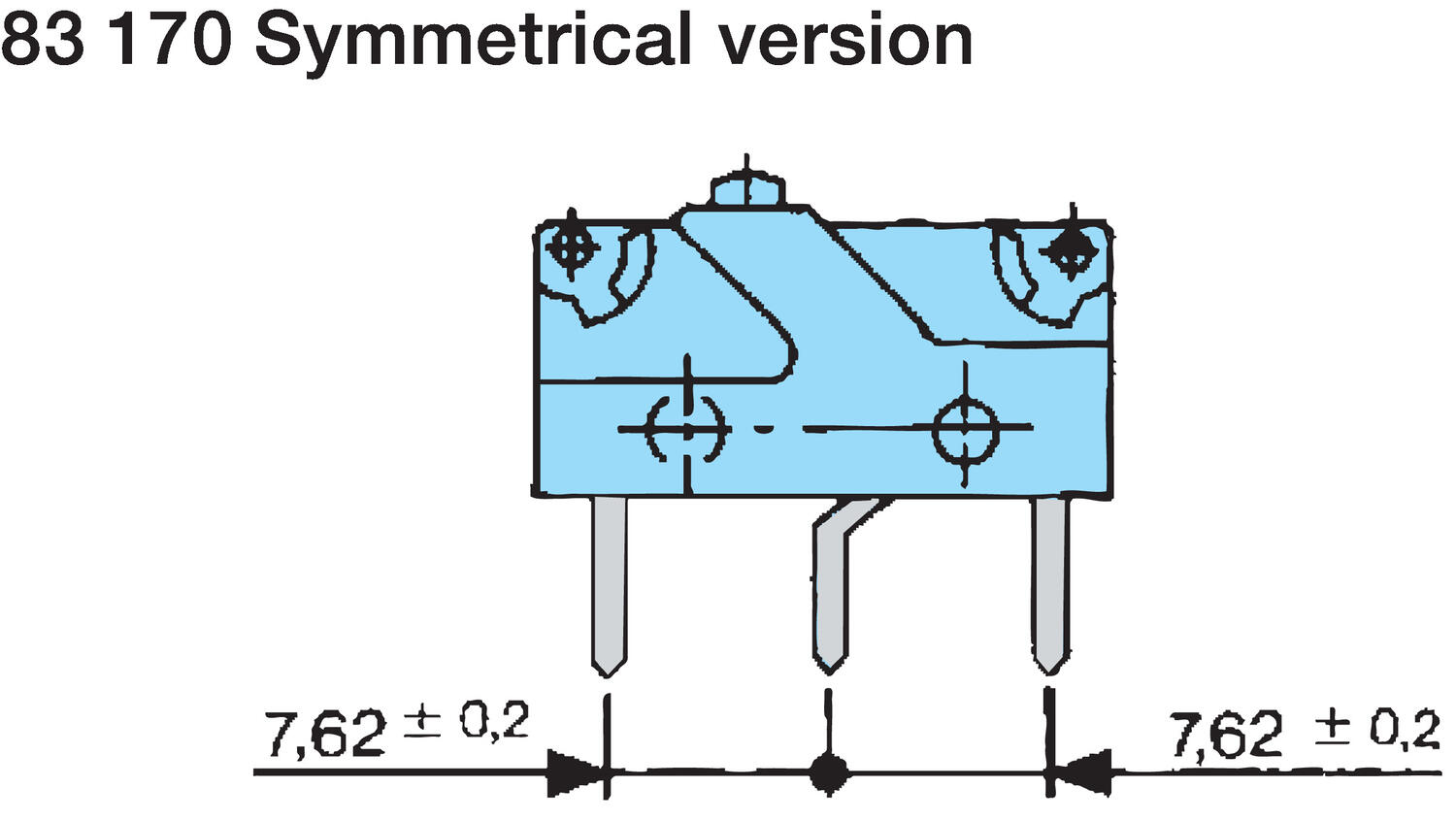

V4 dimensions - symmetrical version

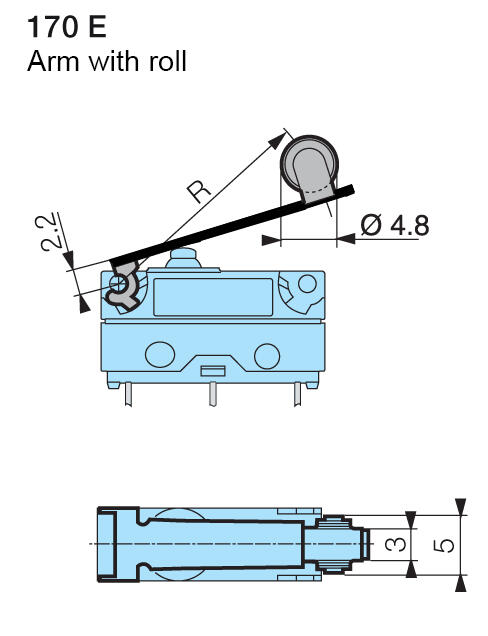

170E Control arms

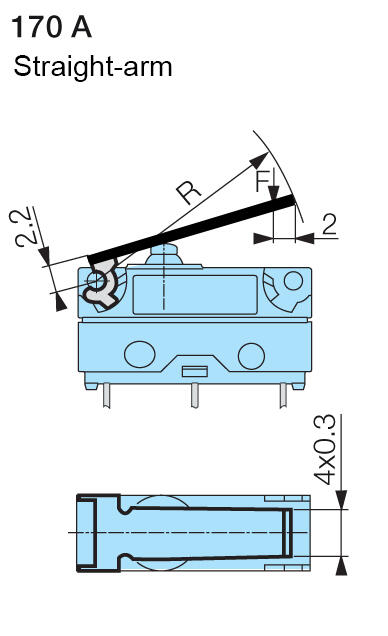

170A Control arms

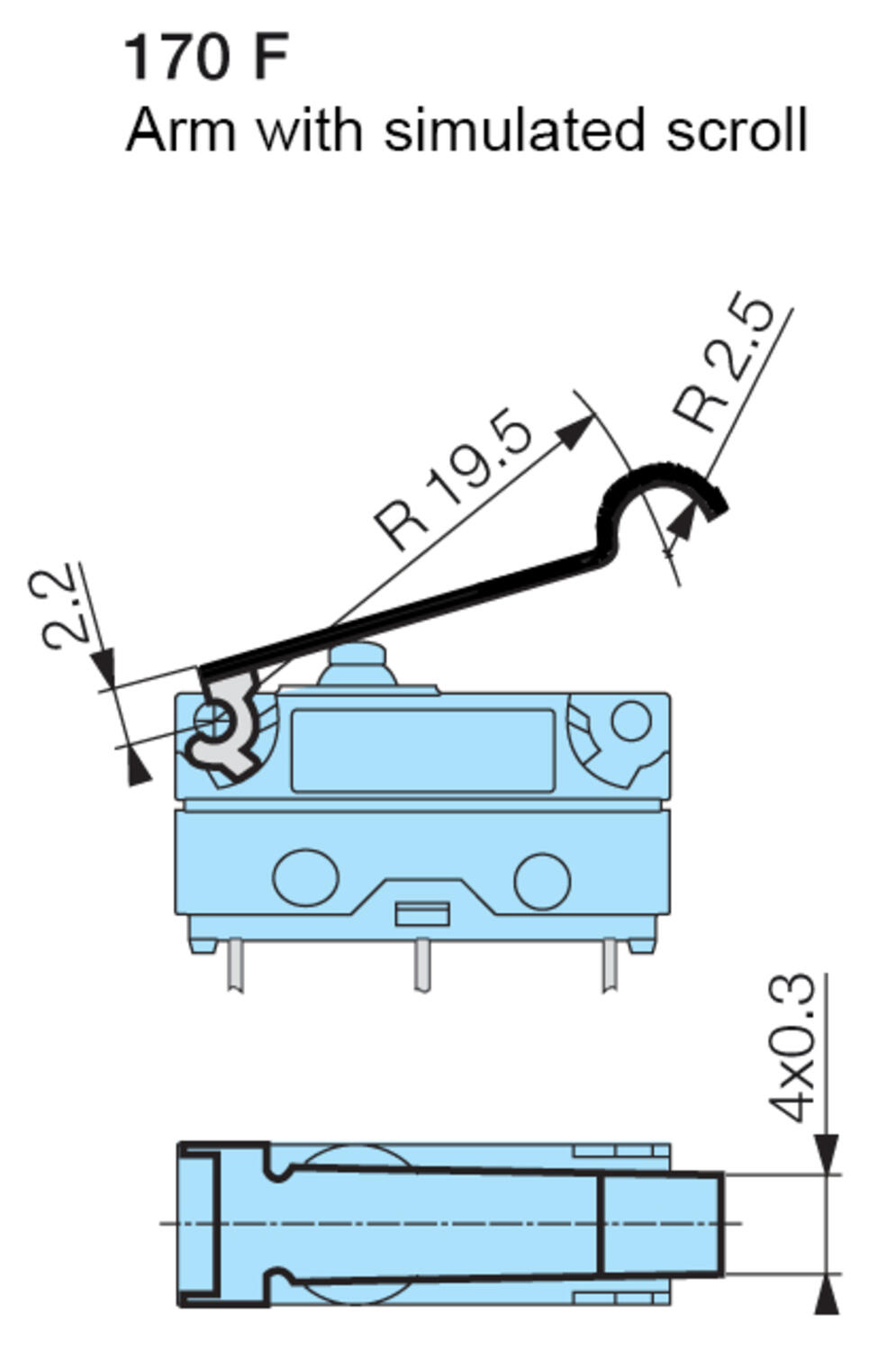

170F Control arms

Technical illustrations

V4 - Operating curve for 83170 8/83 170 9

1: Number of cycles
2: Resistance
3: Inductive load
4: Mechanical lifetime
5: Current

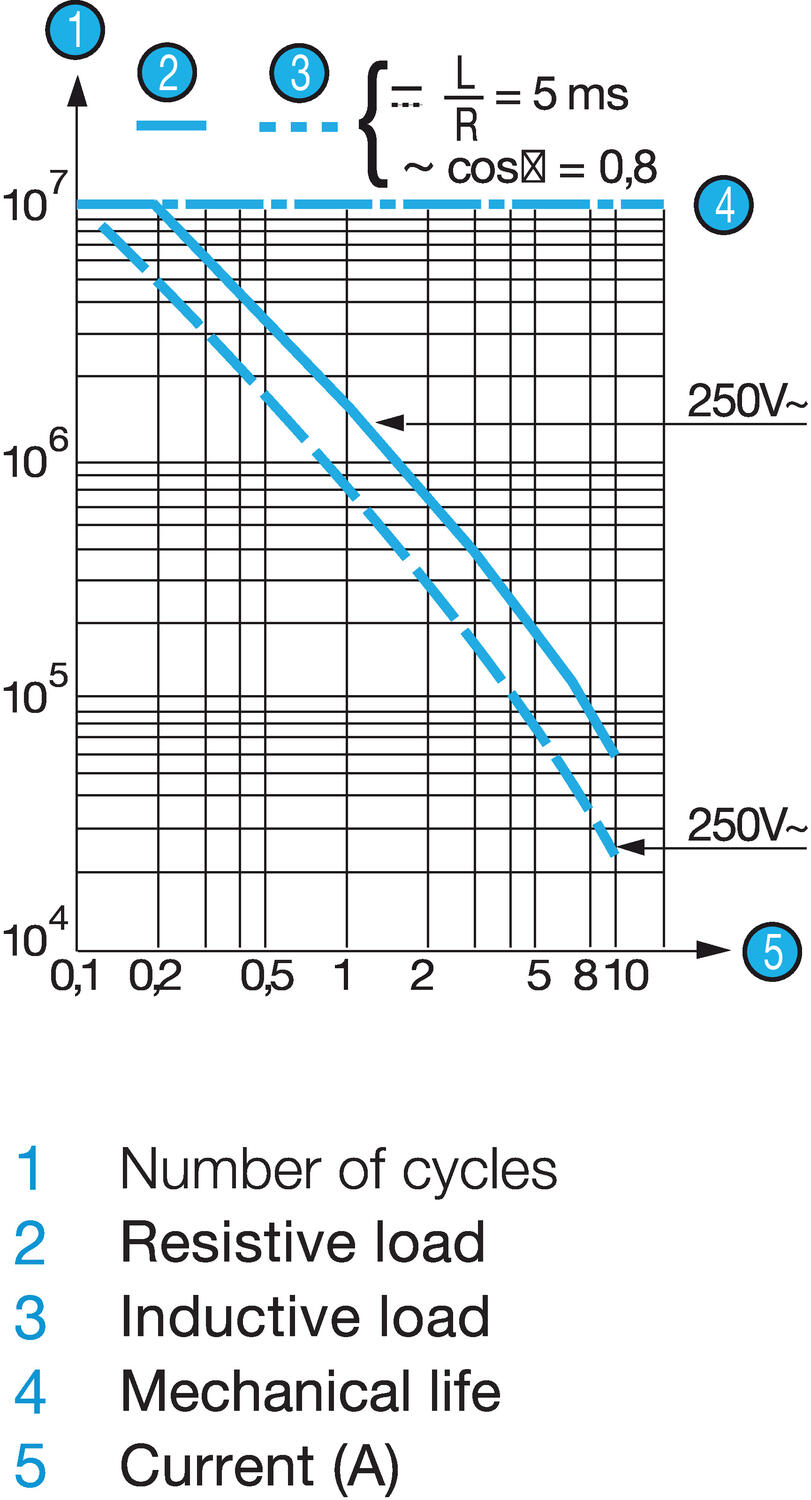

V4 - Operating curve for 83 170 0

1: Number of cycles
2: Resistance
3: Inductive load
4: Mechanical lifetime
5: Current

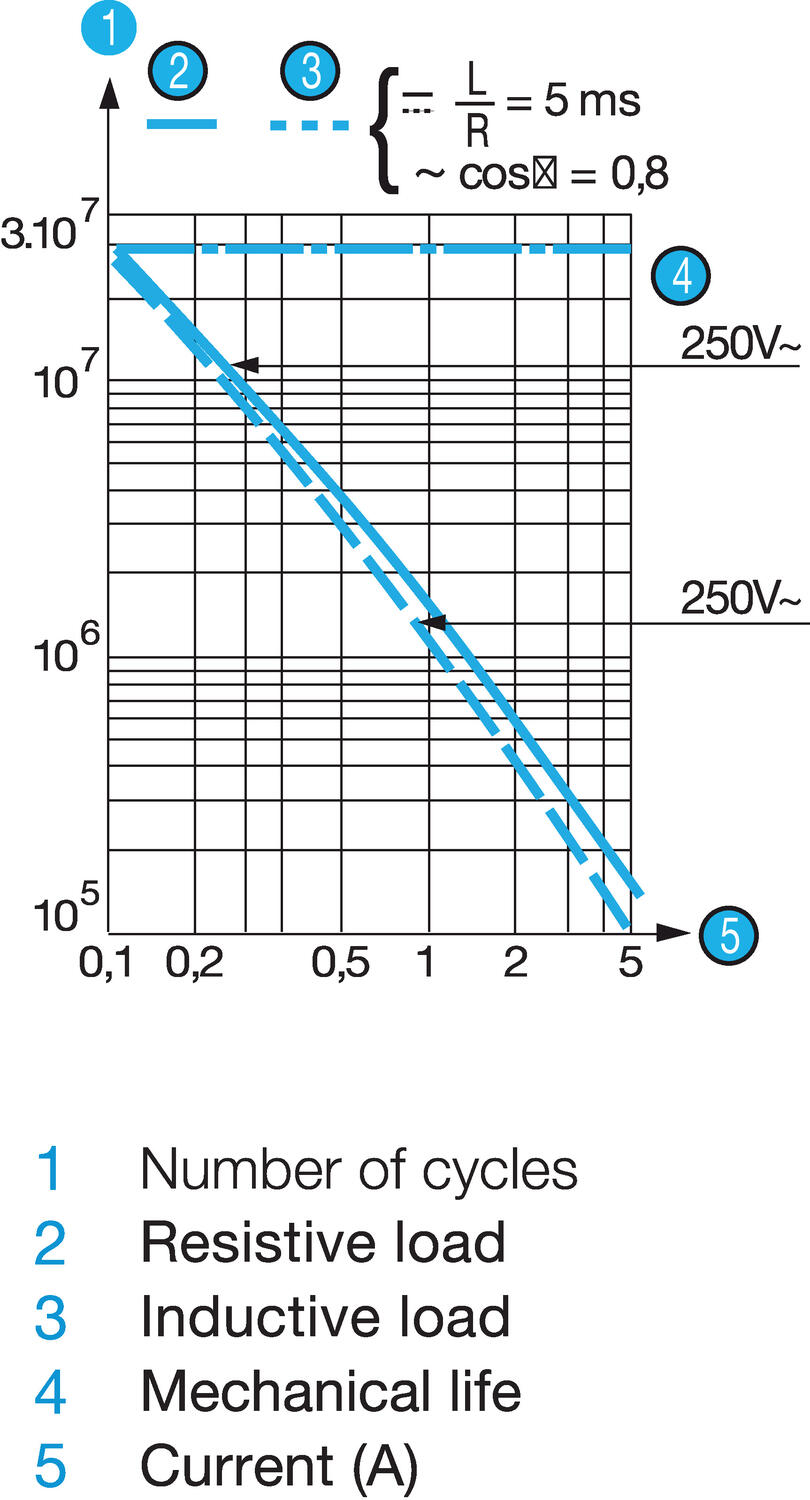

V4 - Operating curve for 83 170 4

1: Number of cycles
2: Resistance
3: Inductive load
4: Mechanical lifetime
5: Current

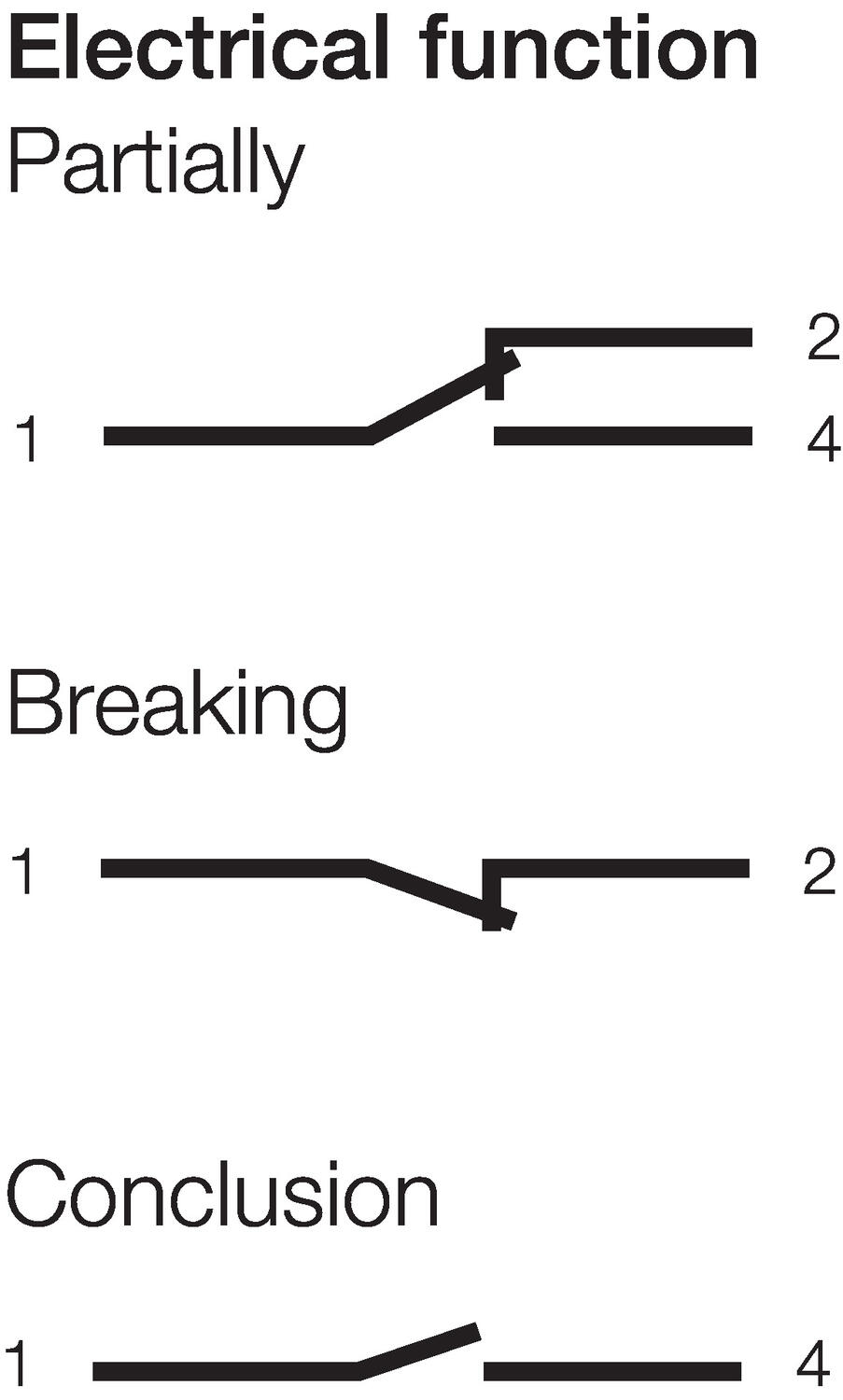

Switching function

Changeover
Normally closed
Normally open

Accessories

Related products

Related

Parts Connection Power min Rated current at 250 V ac Thermal current at 250 V ac Voltage ac max Voltage min Price
W2
10 A
12.5 A
X1
10 A
12.5 A
W2
0.001 A
5 A
6 A
250 V
4 V

Selected variant

Select a variant in the list
