CROUZET SWITCHES

Crouzet Switches - Microswitch 83 123

  • IP66
  • Extremely compact dimensions
  • Supplied complete with cable and mounting plate

Selected variant

Available in several variants
Crouzet_Switches_logo.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Cable length 500 mm
Contact gap 0.5 mm

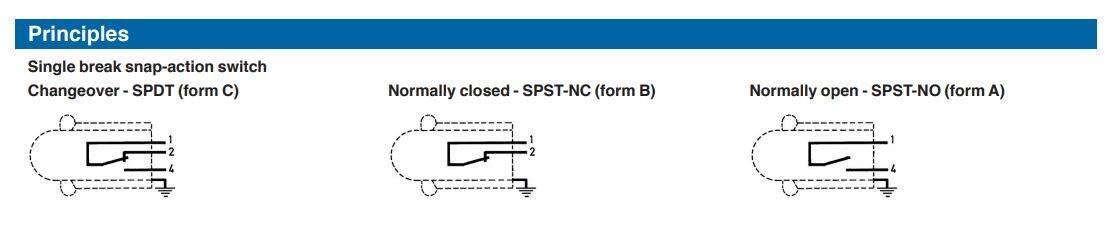

Contact type Changeover (SPDT)
Force of the return movement min 1.5 N
Hysteresis max 0.2 mm
IP class IP66, IP67, IP69
Operating force max 7.5 N
Operating power total min 8 N
Overtravel min 0.25 mm
Permissible overvoltage max 30 N
Rated current at 250 V ac 5 A
Switching point 11,4 ±0,4 mm
Temperature operational max 85 °C
Temperature operational min 0 °C
Thermal current at 250 V ac 12 A
Voltage ac max 250 V

Downloads

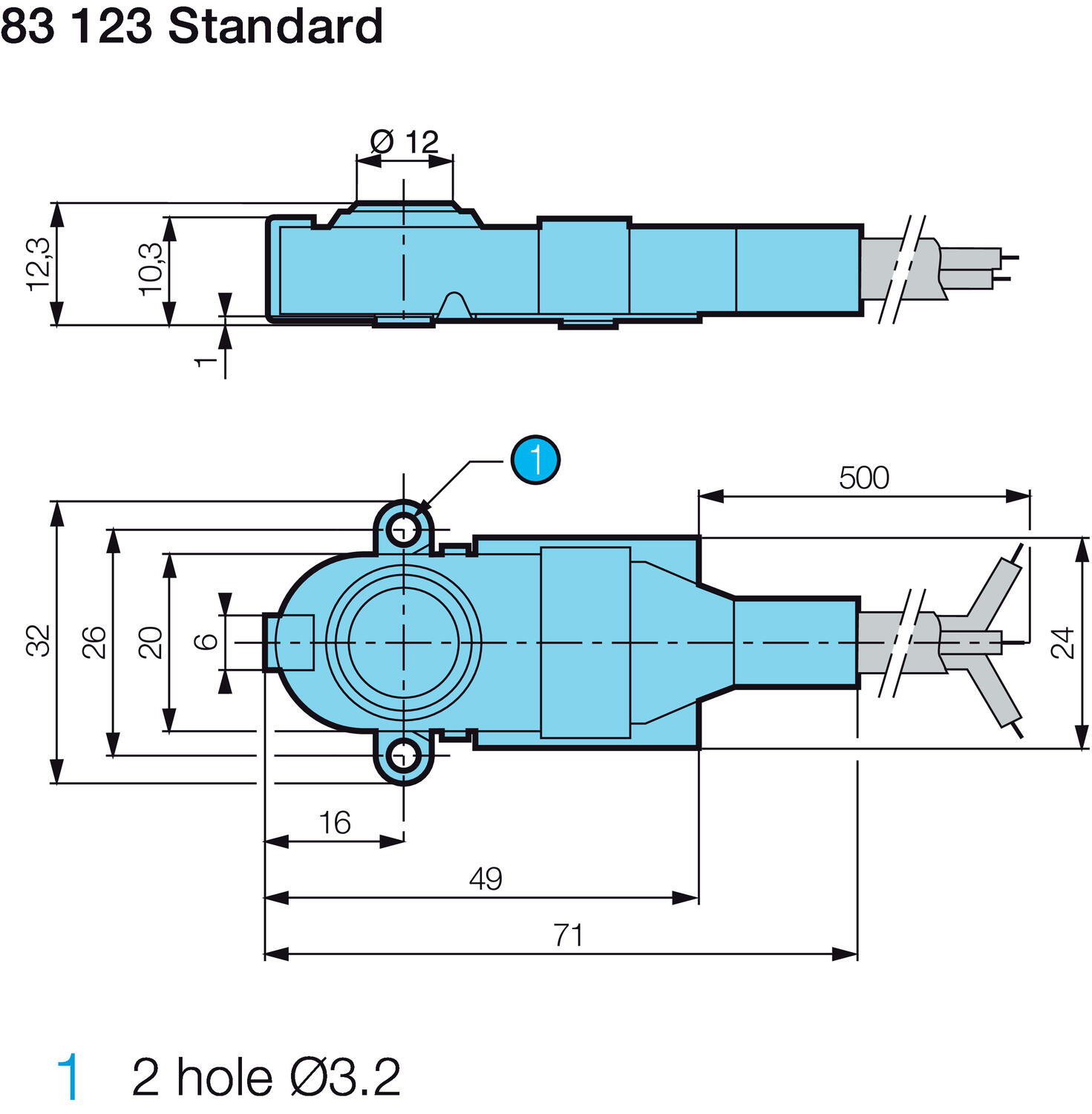

Measurements and connections

Technical illustrations

Accessories

Related products

Parts Cable length Price
83123-photo
831230 C/O 0.50M
Art:
83123018 Copied
500 mm
83123-photo
Microswitch CO 5A 250VAC
Art:
83123005 Copied
2000 mm
83123-photo
Microswitch CO 5A 250VAC
Art:
83123023 Copied
5000 mm
