CROUZET SWITCHES

Crouzet Switches - Microswitch, tight V3, IP67

  • Nominal rated current from 0.1 A to 10 A/250 V ac
  • Lowest rated current 1 mA/4 V dc
  • Cable output left or right

Selected variant

Available in several variants
Crouzet_Switches_logo.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Cable length 500 mm
Connection Leader exit left
Contact gap 0.4 mm
Contact type Changeover (SPDT)
Force of the return movement min 1 N
Hysteresis max 0.35 mm
IP class IP67, IP69
Operating force max 4.5 N
Operating power total max 8 N
Overtravel min 1 mm
Permissible overvoltage max 20 N
Rated current at 250 V ac 8 A
Sleep max 15.9 mm
Switching point 14,7±0,3 mm
Temperature operational max 105 °C
Temperature operational min -40 °C
Thermal current at 250 V ac 10 A

Downloads

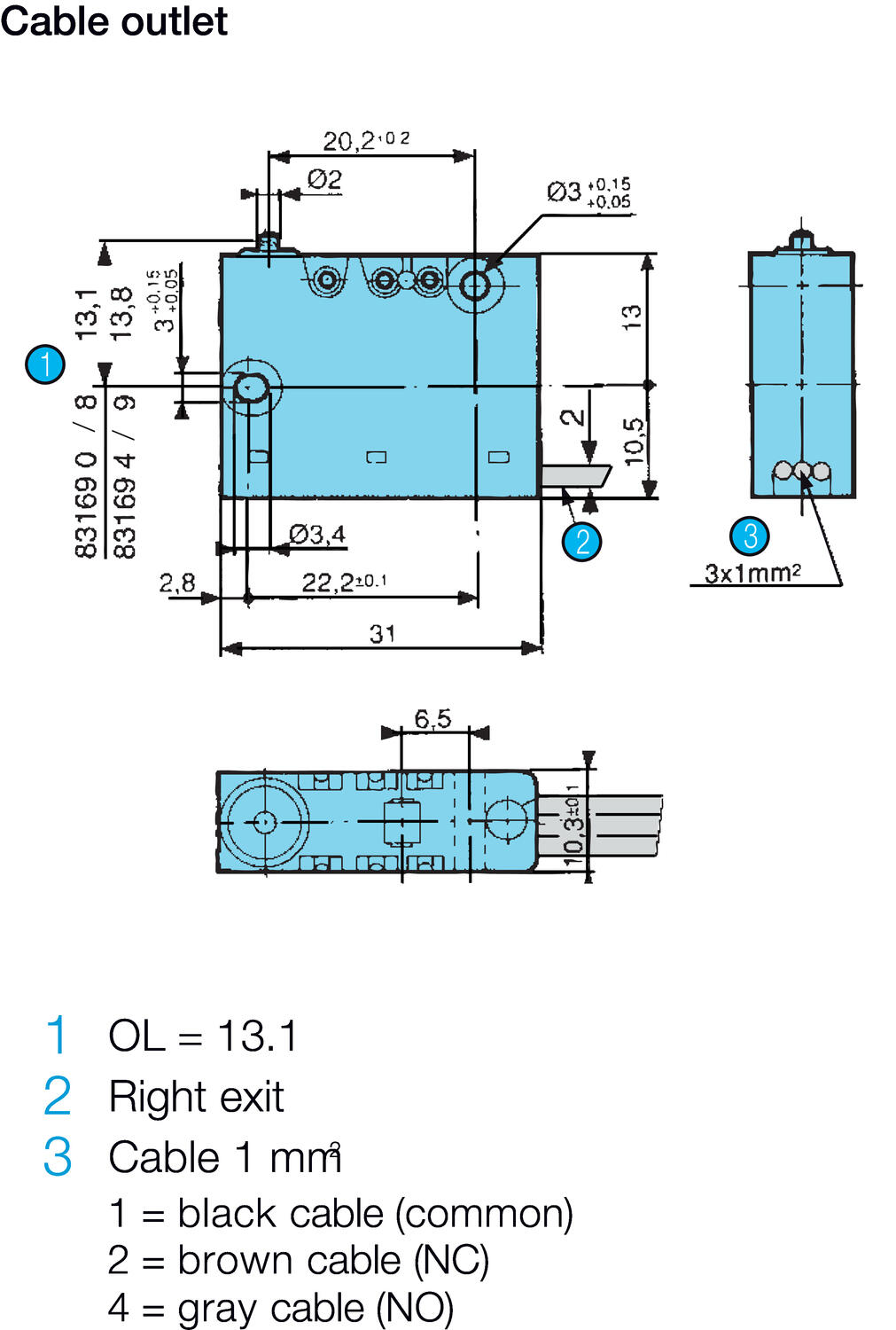

Measurements and connections

Technical illustrations

Accessories

Related products

Parts Connection Price
V3-photo
Microswitch CO 0,5m left
Art:
83169001 Copied
Leader exit left
V3-photo
831690 STD C/O O/LET:D L:0.50
Art:
83169002 Copied
Leader exit right

Selected variant

Select a variant in the list
