CROUZET SWITCHES

Crouzet Switches - 83132 Double breaking miniature

  • Double breaking function/two-pole microswitch
  • Connections in three different directions
  • Option of actuating several switches in the same control movement

Selected variant

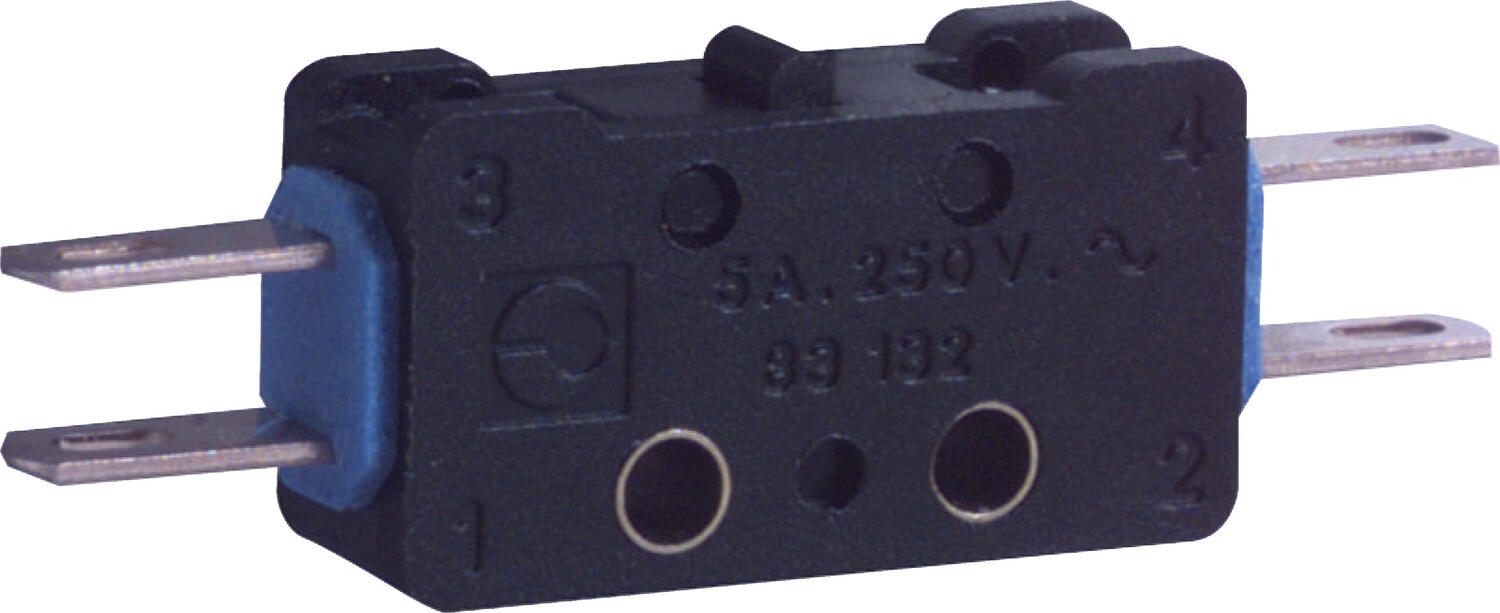

83132-photo

831320 D/BRK W2

Art:

Selected variant

Technical data

Connection W2
Contact gap 0,3 x 2 mm
Contact type 1 x N/O, 1 x N/C
Force of the return movement min 0.4 N
Hysteresis max 0.45 mm
IP class IP40
Operating force max 1.6 N
Overtravel min 0.27 mm
Permissible overvoltage max 10 N
Rated current at 250 V ac 6 A
Sleep max 8.45 mm
Switching point 7,7±0,2 mm
Temperature operational max 125 °C
Temperature operational min -40 °C
Thermal current at 250 V ac 10 A

Measurements and connections

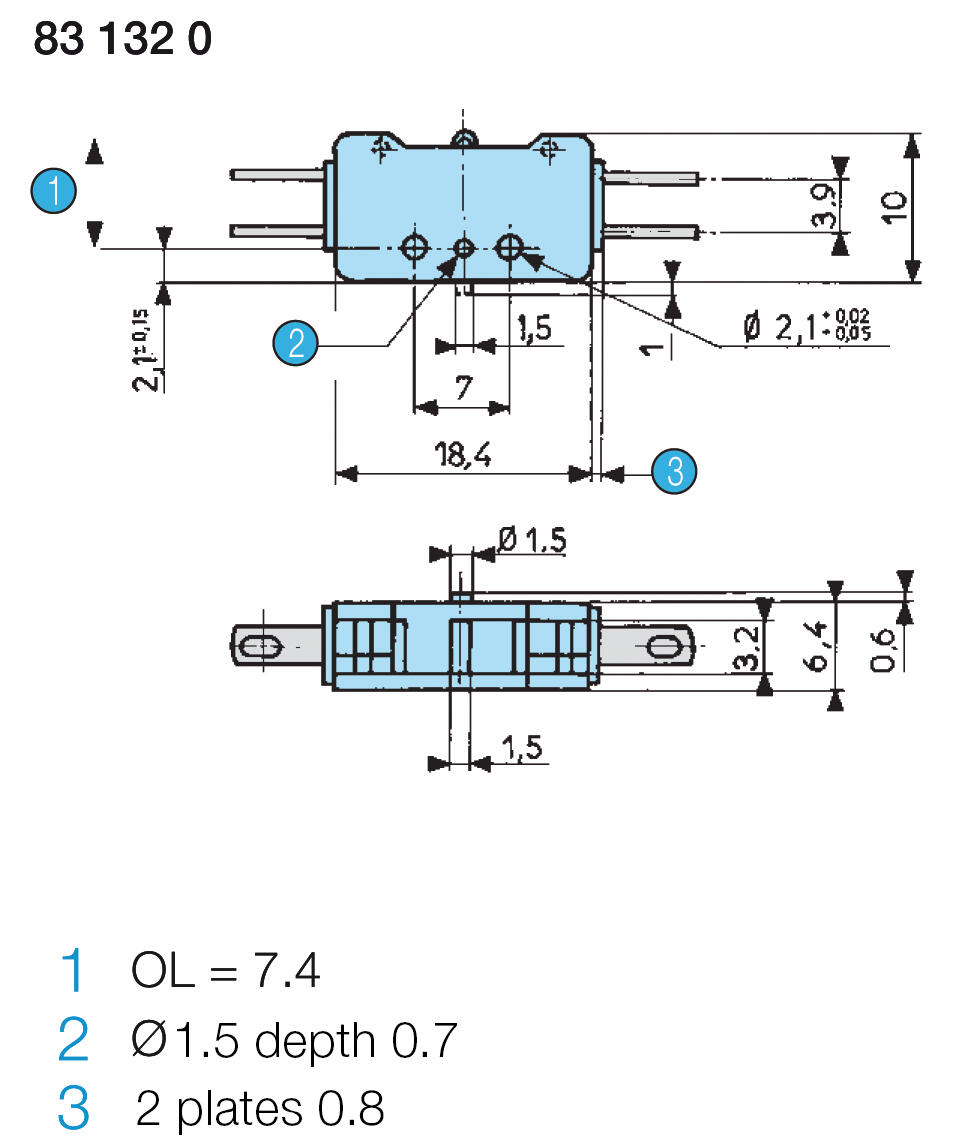

831320 dimensions

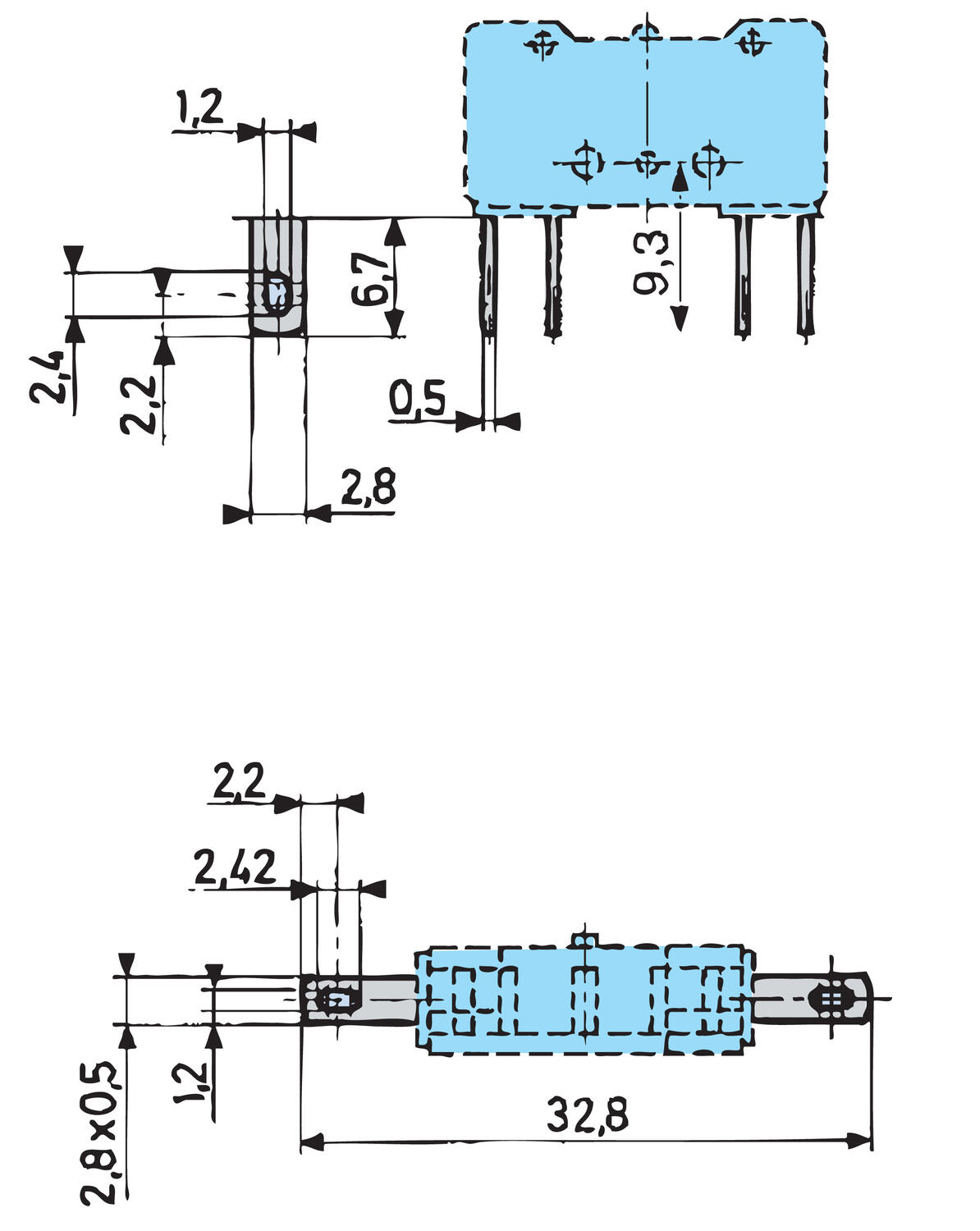

831320 connection

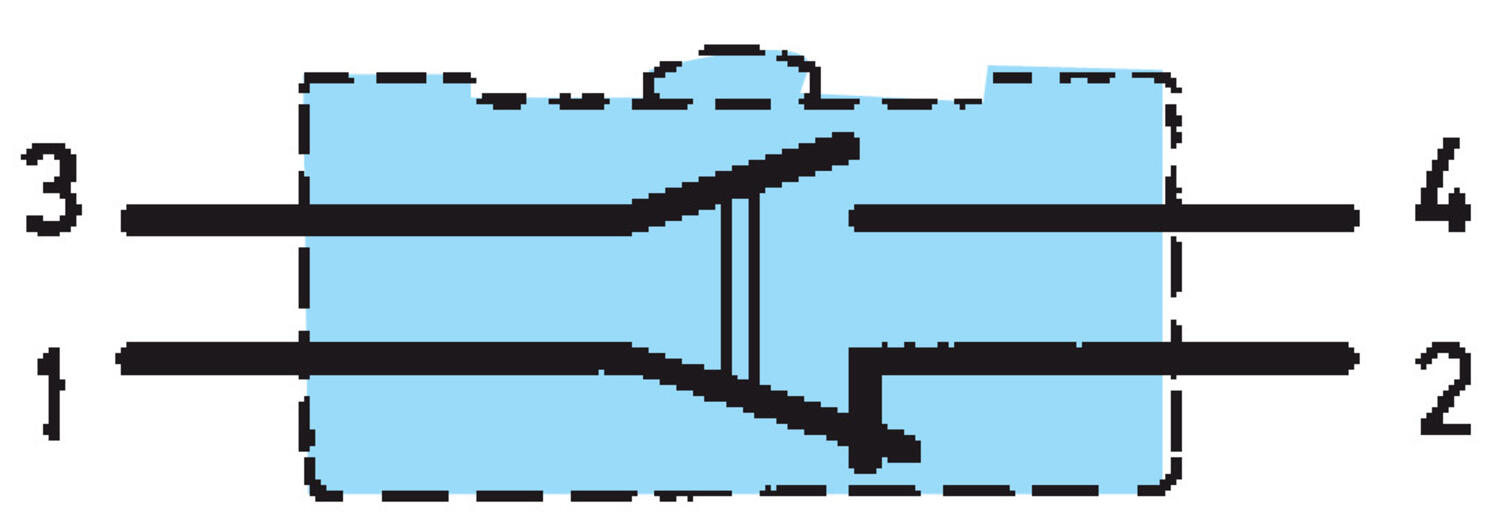

Contact function

Two-pole alternating function

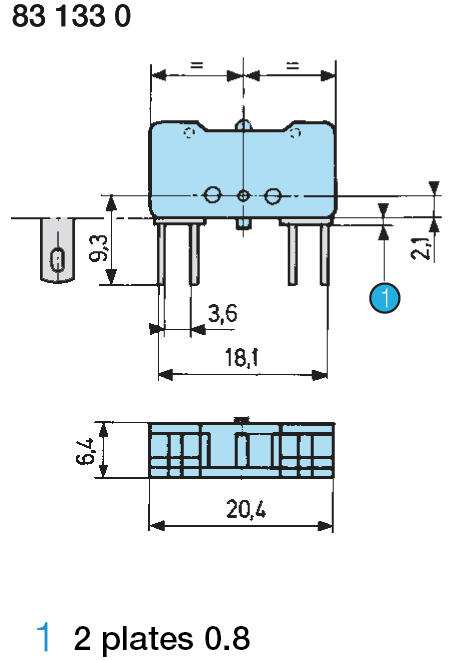

831330 dimensions

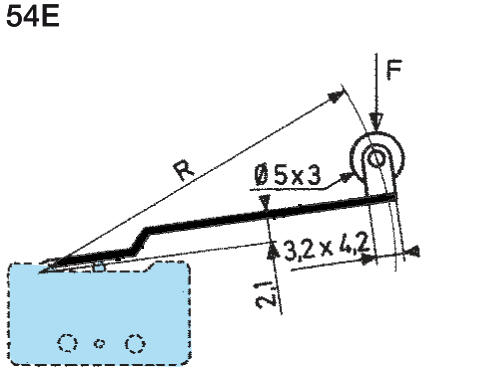

83132-54E Control arms

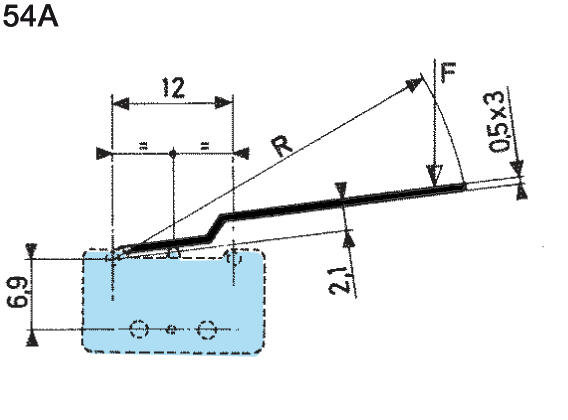

83132-54A Control arms

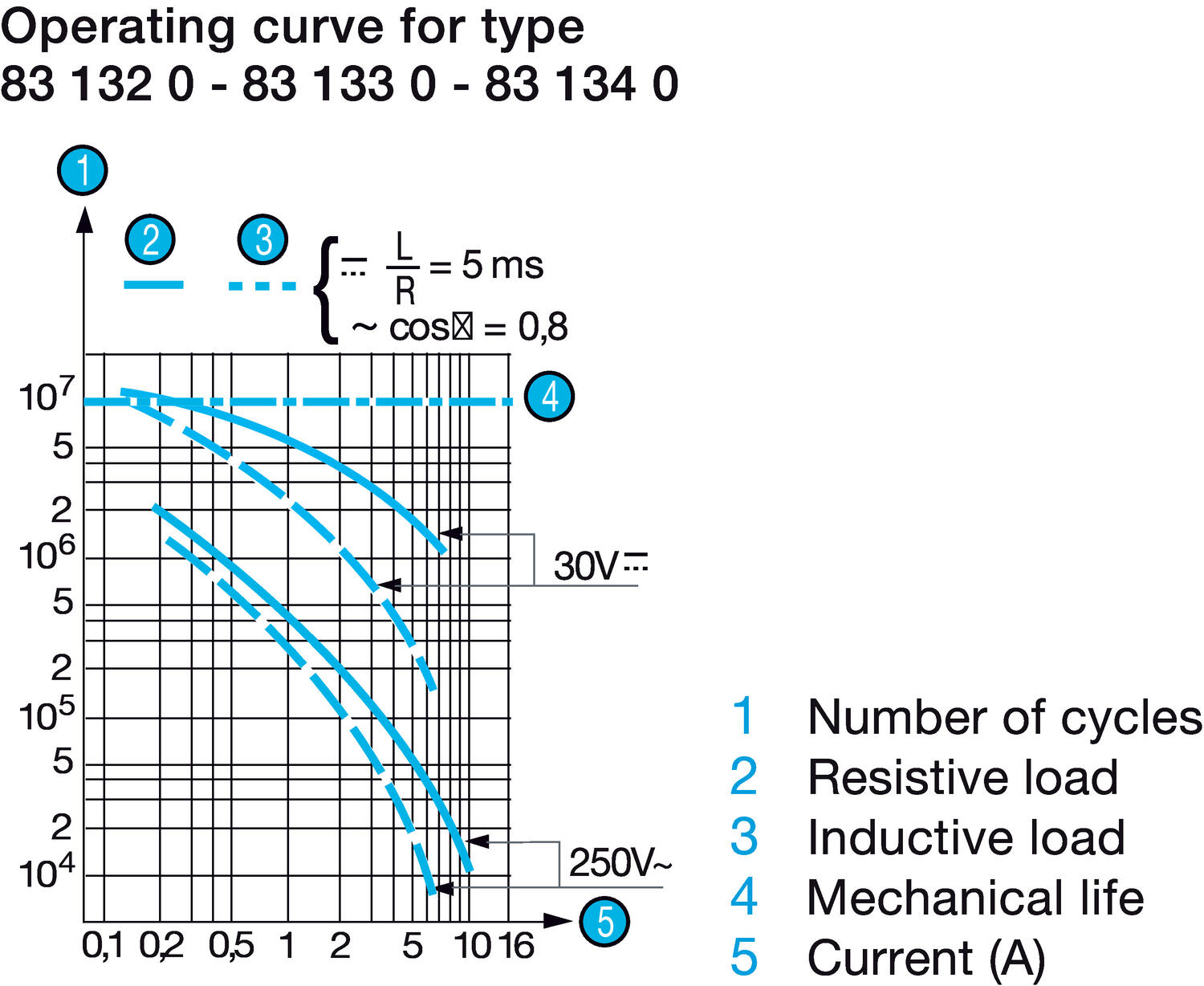

83132 Curves

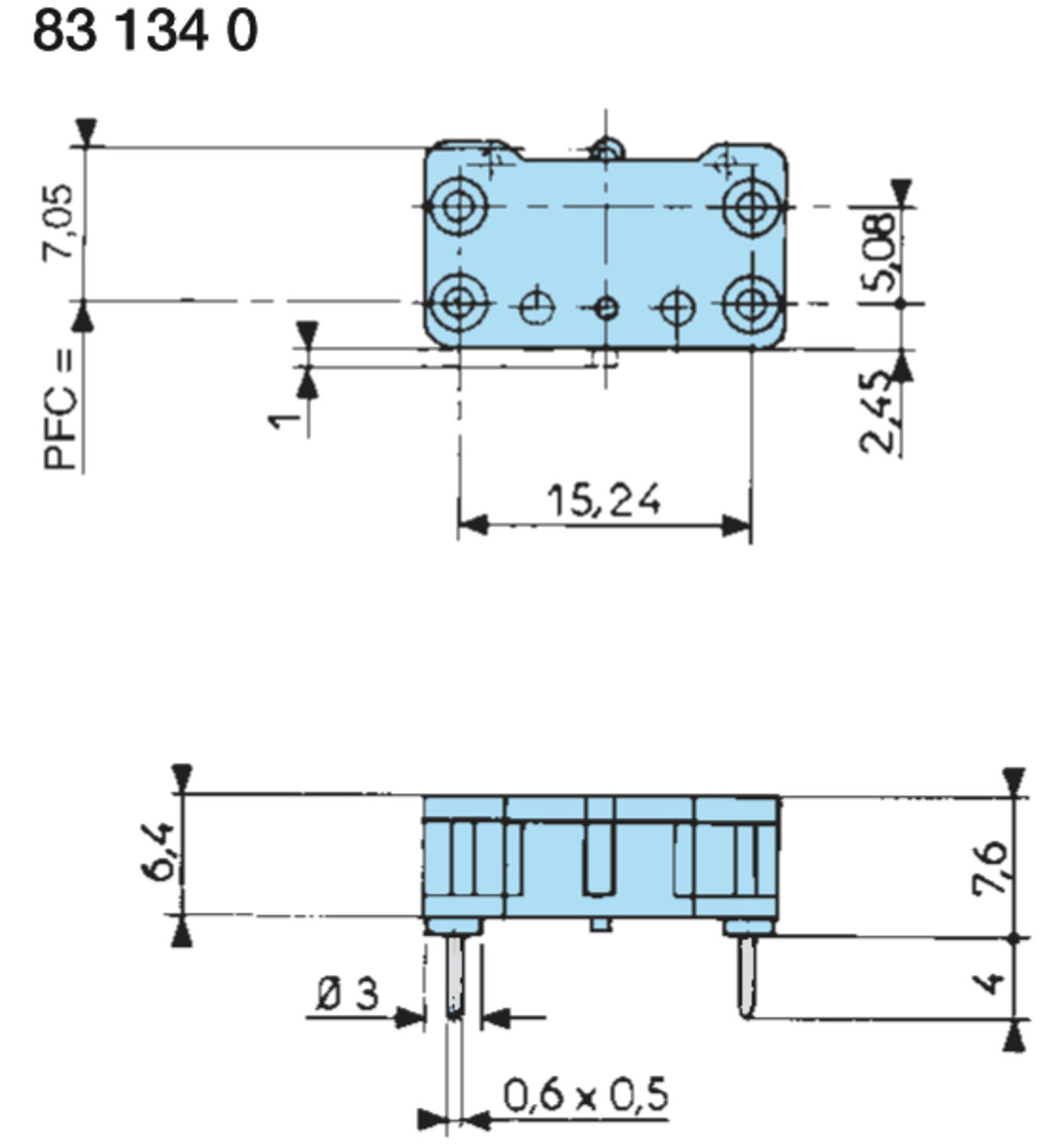

831340 dimensions

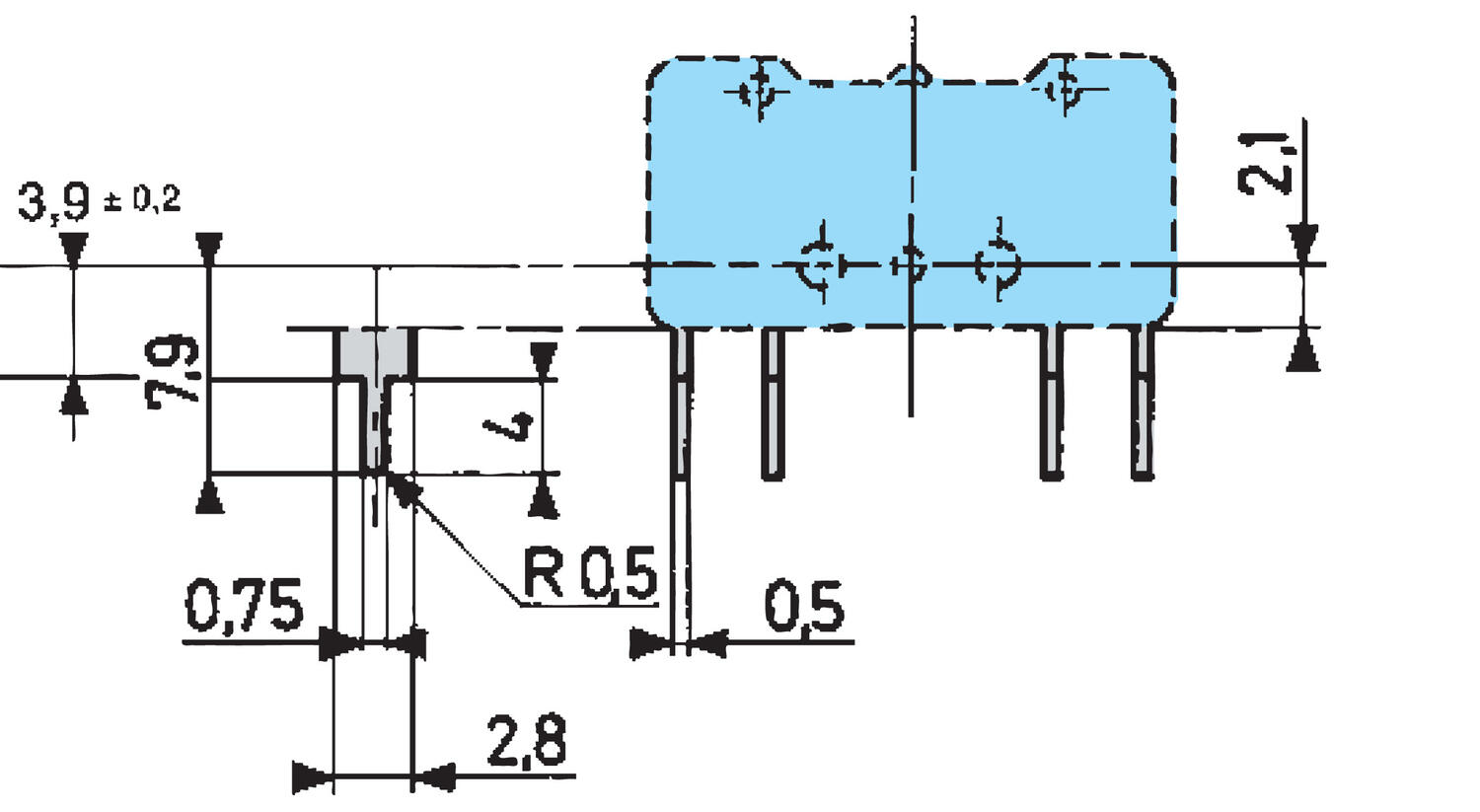

Connection

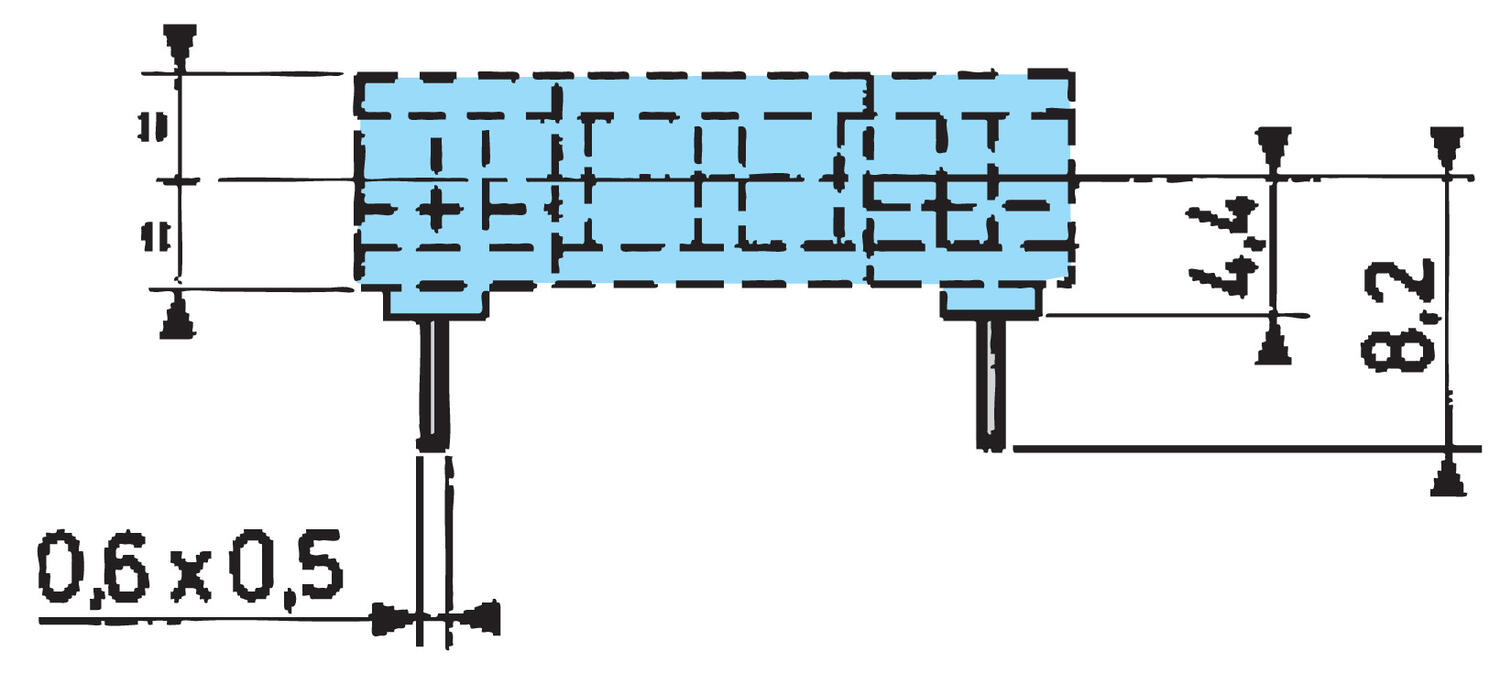

831340 connection

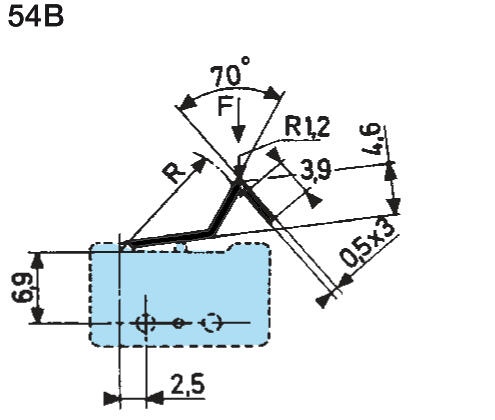

83132-54B Control arms

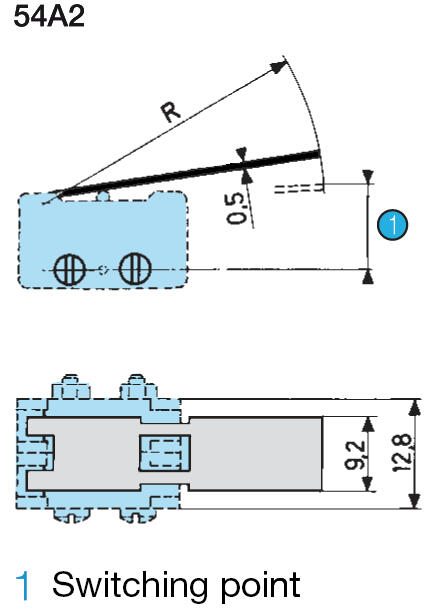

83132-54A2 Control arms

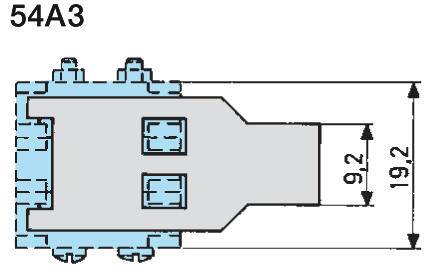

83132-54A3 Dimensions

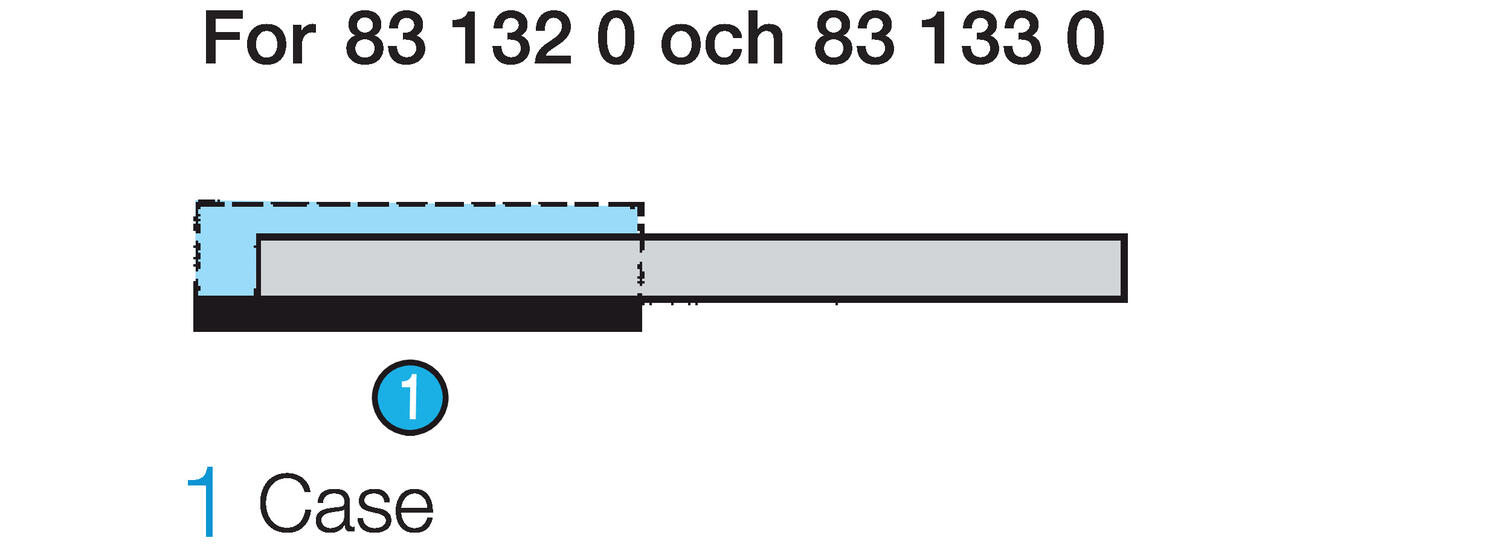

831320-accessories

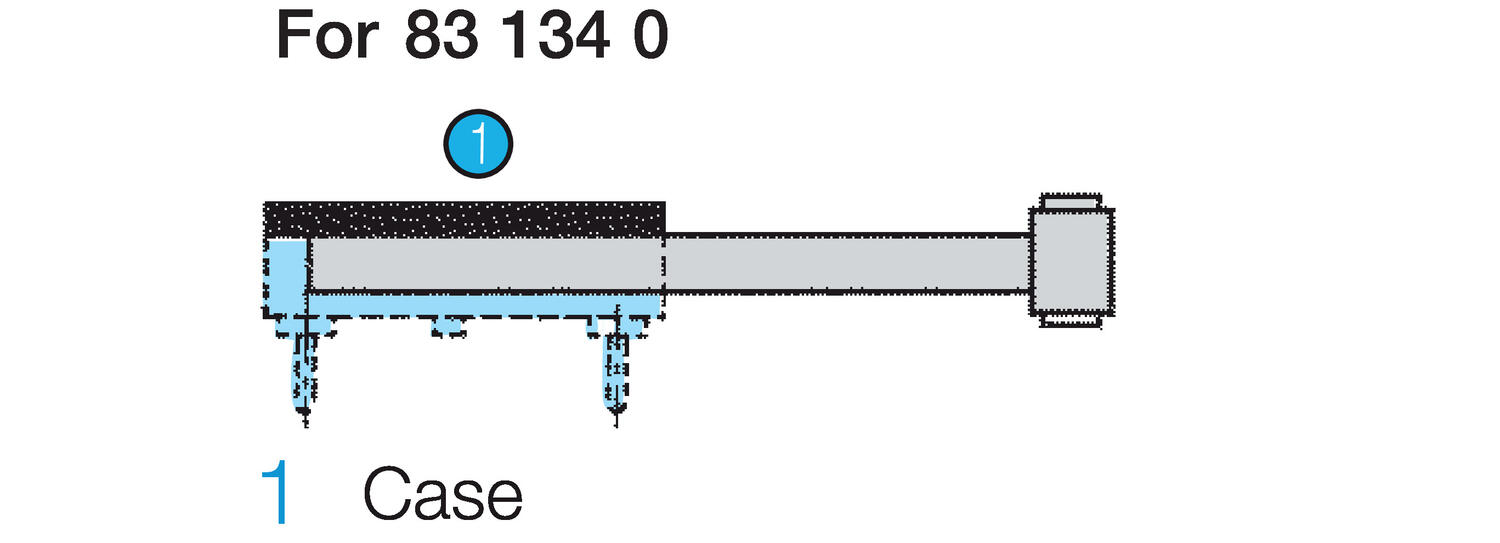

83134-accessories

Technical illustrations

Accessories
