CROUZET SWITCHES

Crouzet Switches - Series 83589 for tough environments

This switch has been specially developed to operate in tough and dirty environments. An O-ring placed around the button prevents dirt from penetrating and the button sticking down.

Read more
  • Embedded cable for IP67
  • Broad temperature range -40 °C to + 80 °C
  • Protective O-ring round the button to prevent dirt
  • Gold-plated contacts for low voltages/currents

Selected variant

Crouzet limit switch 83589

LIMIT SWITCH 0.5M LEAD

Art:

Selected variant

Technical data

Actuation force min 10 N
Cable length 500 mm
Contact type Changeover (SPDT)
IP class IP66
Operating power total min 15 N
Rated current at 250 V ac 8 A
Switching point 2 mm
Temperature operational max 85 °C
Temperature operational min -40 °C

Measurements and connections

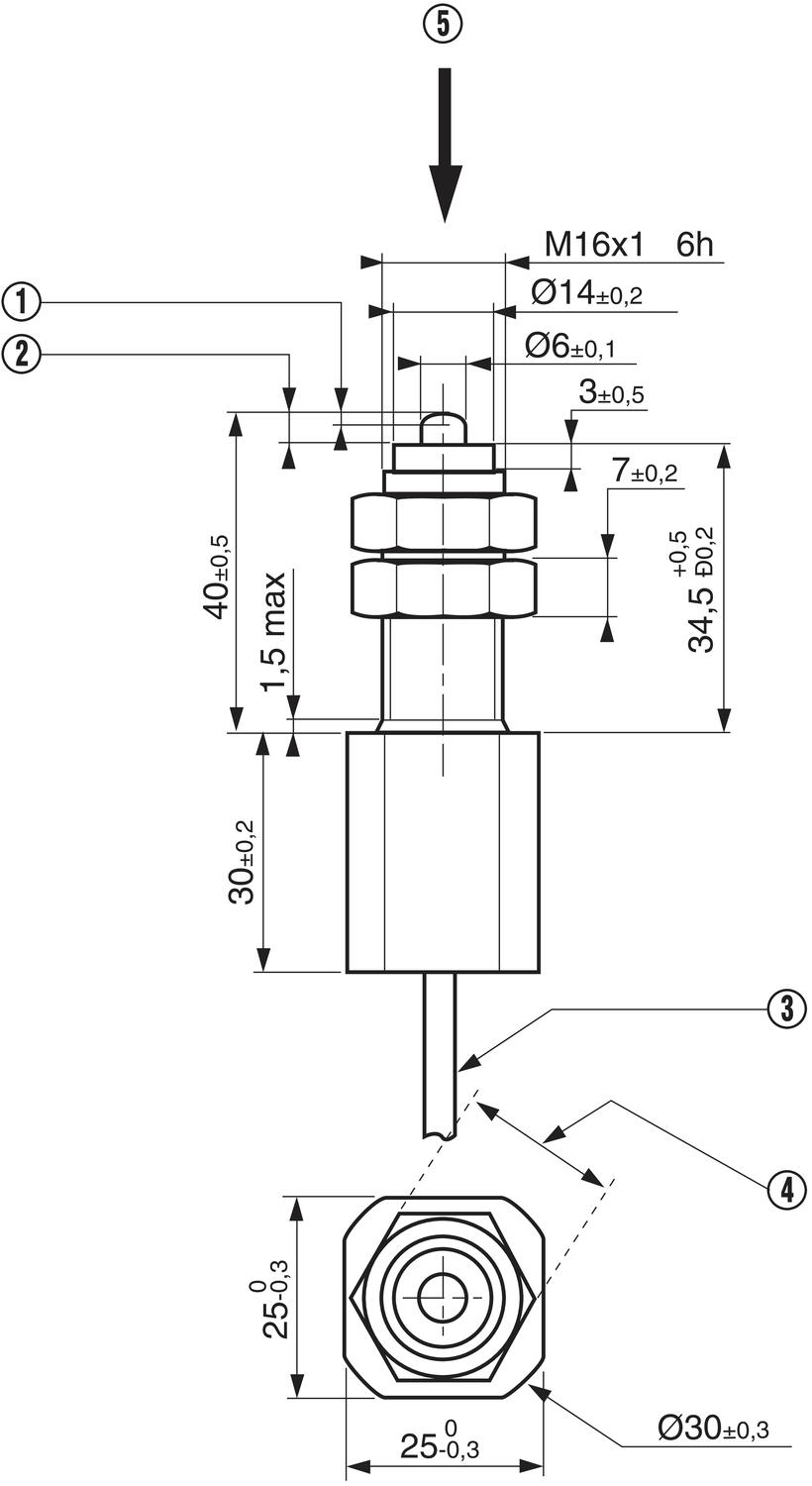

Dimensions 83 589.

1 Operating point 2 mm from standby
2 Total movement 4.5 mm
3 Cable Ø5 - 3x0.75 mm2
4 Width 21 mm
5 Angle of impact

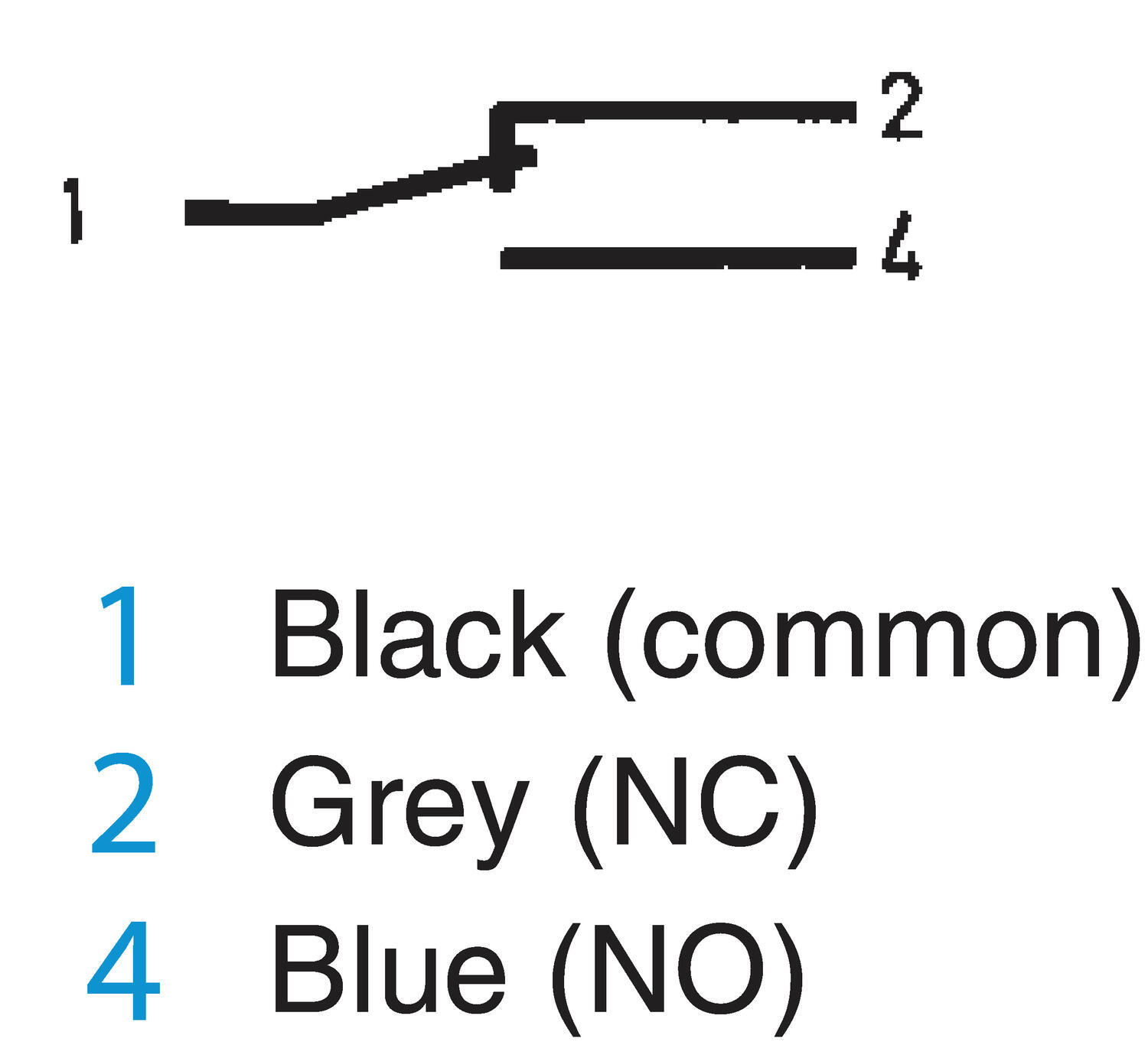

Connection series 83 589.

Product description

This switch has been specially developed to operate in tough and dirty environments. An O-ring placed around the button prevents dirt from penetrating and the button sticking down.
