IDEM
The KLT-SS Series Guard Locking switch is a tongue type safety interlock switch incorporating traditional mechanical anti-tamper tongue technology utilising IDEM Safety Switched patented cam system.
They interlock and hold closed guard doors to protect operators from moving or hazardous machinery. They are particularly suited to where a high degree of anti-tamper technology is required to prevent accidental or deliberate atttempts to by-pass the interlock.
The KLT-SS Solenoid Locking Switch has a mirror polished Stainless Steel 316 body design and have been developed with a maximum holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.
The KLT-SS has a low profile and fixing holes are on an industry standard 73mm centre to enable easy retrofitting to new or existing guards (or where extra anti-tamper is required).

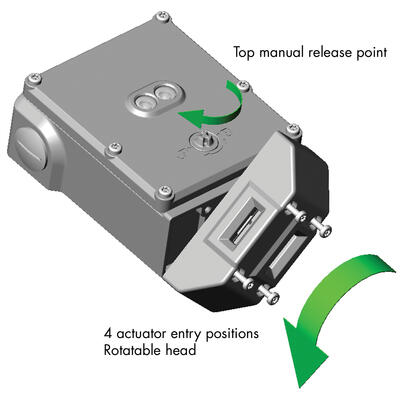

The head has been designed to allow rotation to provide up to 4 actuator entry positions.
| Actuator | Not included |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
| Conduit entry | M20 |
| Contact type | 4NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (guard locked) (selectable option for LED2 guard locked) |
| Contacts | 4NO 2NC |
| Head material | Stainless steel 316 |
| Holding force (F1Max) | 3000 N |
| Housing material | Stainless steel 316 |
| IP class | IP69K |
| LED indication | LED1 red solenoid power on, LED2 green switch locked (if selected) |
| Manual operation | Manual release lid only |
| Maximum approach / withdrawal speed | 600 mm/s |
| Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
| Mounting | 2 x M5 |
|---|---|
| MTTFd | 356 years |
| Operating temperature | -25..40°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| Rated insulation voltage | 600V ac |
| SIL | 3 acc. EN62061 |
| Solenoid Voltage | 24V ac/dc |
| Thermal current (lth) | 5 A |
| Travel for positive opening | 10 mm |
| Utilisation category | AC15, A300, 3 A |
| Withstand voltage | 2500V ac |
The KLT-SS Series Guard Locking switch is a tongue type safety interlock switch incorporating traditional mechanical anti-tamper tongue technology utilising IDEM Safety Switched patented cam system.
They interlock and hold closed guard doors to protect operators from moving or hazardous machinery. They are particularly suited to where a high degree of anti-tamper technology is required to prevent accidental or deliberate atttempts to by-pass the interlock.
The KLT-SS Solenoid Locking Switch has a mirror polished Stainless Steel 316 body design and have been developed with a maximum holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.
The KLT-SS has a low profile and fixing holes are on an industry standard 73mm centre to enable easy retrofitting to new or existing guards (or where extra anti-tamper is required).
The head has been designed to allow rotation to provide up to 4 actuator entry positions.
If you are a machine builder or system integrator within the manufacturing, intralogistics or food and bev industry. Take a look at our article on barcode verification.
At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.
We now offer NON-SAFETY light curtains, for measuring and detection. We can customise and tailor our light curtains to your application.
The SH4 series is a complete family of safety light curtains that not only meet high performance and environmental standards, but also take safety to new levels.
We now present the Smart-VS+, the newest line extension to the Smart VS family. This smart sensor has a new electronic platform, enhanced capability of image handling and many more features, explored below.
We present Kublers ultimate package: Encoders and Process Displays, which can be used together to create efficient processes.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Actuator | Conduit entry | Solenoid Voltage | Price | ||
|---|---|---|---|---|---|---|
KLT-SS (Mechanical Only) M20 24v
Art:
451001
Copied
|
Not included
|
M20
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) M20 24v - Std Actuator
Art:
451001A
Copied
|
Standard
|
M20
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) M20 24v - Flat Actuator
Art:
451001F
Copied
|
Flat
|
M20
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) M20 24v - HF Actuator
Art:
451001HF
Copied
|
Heavy duty flexible
|
M20
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) M20 24v - HFH Actuator
Art:
451001HFH
Copied
|
Heavy duty s/steel
|
M20
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 24v
Art:
451002
Copied
|
Not included
|
1/2" NPT
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 24v - Std Actuator
Art:
451002A
Copied
|
Standard
|
1/2" NPT
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 24v - Flat Actuator
Art:
451002F
Copied
|
Flat
|
1/2" NPT
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 24v - HF Actuator
Art:
451002HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 24v - HFH Actuator
Art:
451002HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) QC M23 24v
Art:
451003
Copied
|
Not included
|
M23 12 Pole
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) QC M23 24v - Std Actuator
Art:
451003A
Copied
|
Standard
|
M23 12 Pole
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) QC M23 24v - Flat Actuator
Art:
451003F
Copied
|
Flat
|
M23 12 Pole
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) QC M23 24v - HF Actuator
Art:
451003HF
Copied
|
Heavy duty flexible
|
M23 12 Pole
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) QC M23 24v - HFH Actuator
Art:
451003HFH
Copied
|
Heavy duty s/steel
|
M23 12 Pole
|
24V ac/dc
|
| ||
|
KLT-SS (Mechanical Only) M20 110v
Art:
451004
Copied
|
Not included
|
M20
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 110v - Std Actuator
Art:
451004A
Copied
|
Standard
|
M20
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 110v - Flat Actuator
Art:
451004F
Copied
|
Flat
|
M20
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 110v - HF Actuator
Art:
451004HF
Copied
|
Heavy duty flexible
|
M20
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 110v - HFH Actuator
Art:
451004HFH
Copied
|
Heavy duty s/steel
|
M20
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 110v
Art:
451005
Copied
|
Not included
|
1/2" NPT
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 110v - Std Actuator
Art:
451005A
Copied
|
Standard
|
1/2" NPT
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 110v - Flat Actuator
Art:
451005F
Copied
|
Flat
|
1/2" NPT
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 110v - HF Actuator
Art:
451005HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 110v - HFH Actuator
Art:
451005HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 110v
Art:
451006
Copied
|
Not included
|
M23 12 Pole
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 110v - Std Actuator
Art:
451006A
Copied
|
Standard
|
M23 12 Pole
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 110v - Flat Actuator
Art:
451006F
Copied
|
Flat
|
M23 12 Pole
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 110v - HF Actuator
Art:
451006HF
Copied
|
Heavy duty flexible
|
M23 12 Pole
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 110v - HFH Actuator
Art:
451006HFH
Copied
|
Heavy duty s/steel
|
M23 12 Pole
|
110V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 230v
Art:
451007
Copied
|
Not included
|
M20
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 230v - Std Actuator
Art:
451007A
Copied
|
Standard
|
M20
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 230v - Flat Actuator
Art:
451007F
Copied
|
Flat
|
M20
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 230v - HF Actuator
Art:
451007HF
Copied
|
Heavy duty flexible
|
M20
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) M20 230v - HFH Actuator
Art:
451007HFH
Copied
|
Heavy duty s/steel
|
M20
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 230v
Art:
451008
Copied
|
Not included
|
1/2" NPT
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 230v - Std Actuator
Art:
451008A
Copied
|
Standard
|
1/2" NPT
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 230v - Flat Actuator
Art:
451008F
Copied
|
Flat
|
1/2" NPT
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 230v - HF Actuator
Art:
451008HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) ½”NPT 230v - HFH Actuator
Art:
451008HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 230v
Art:
451009
Copied
|
Not included
|
M23 12 Pole
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 230v - Std Actuator
Art:
451009A
Copied
|
Standard
|
M23 12 Pole
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 230v - Flat Actuator
Art:
451009F
Copied
|
Flat
|
M23 12 Pole
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 230v - HF Actuator
Art:
451009HF
Copied
|
Heavy duty flexible
|
M23 12 Pole
|
230V ac
|
| ||
|
KLT-SS (Mechanical Only) QC M23 230v - HFH Actuator
Art:
451009HFH
Copied
|
Heavy duty s/steel
|
M23 12 Pole
|
230V ac
|
|
