IDEM KLTM-P2L locking switch

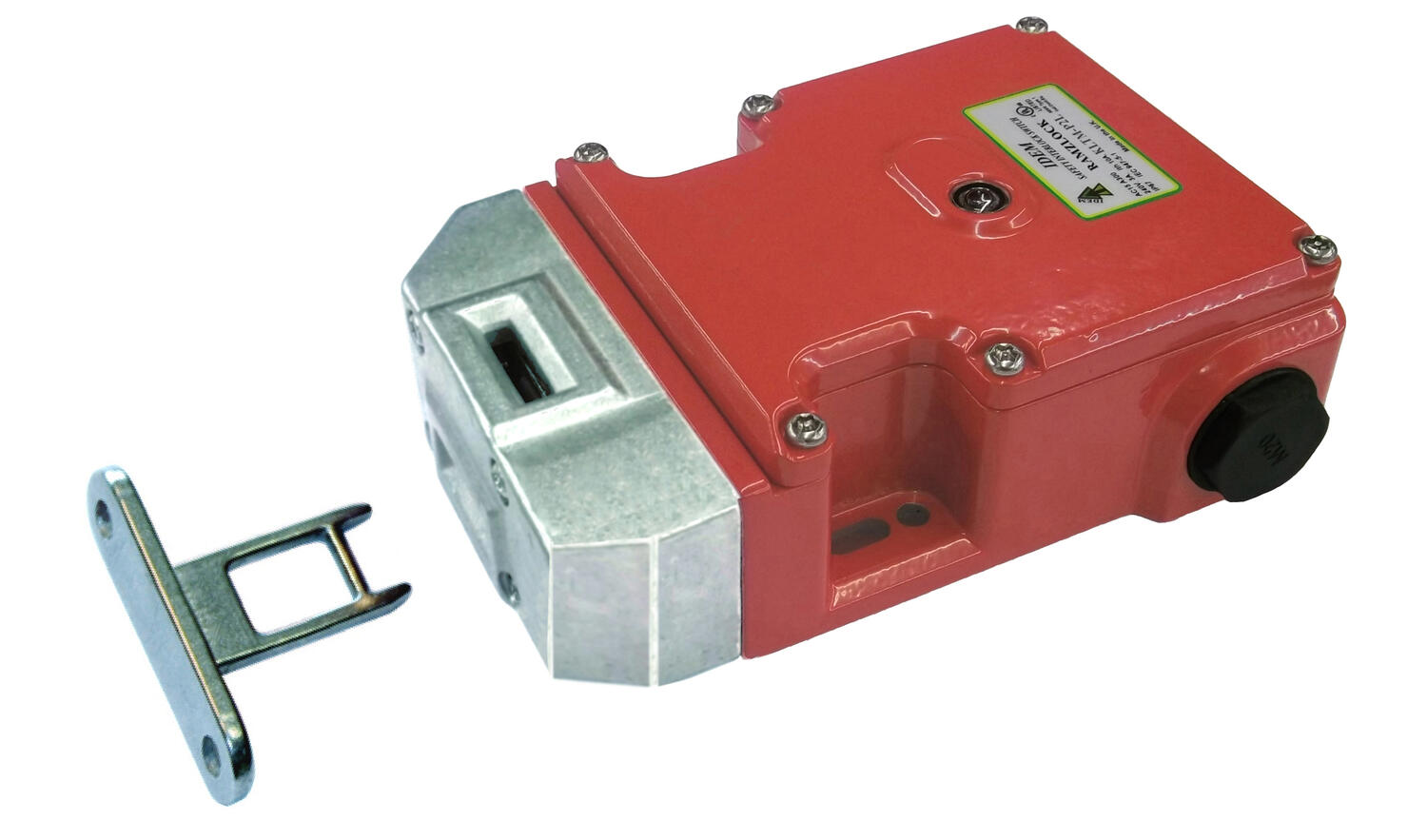

Locking switch with RAMZLOCK locking KLTM-P2L, made of cast metal, with locking force up to 2000N. The breaker head is made of stainless steel. The switch has 1 LED, which shows the status of the solenoid. It also has a rotatable head, which provides 4 key entry positions for easy and flexible mounting.

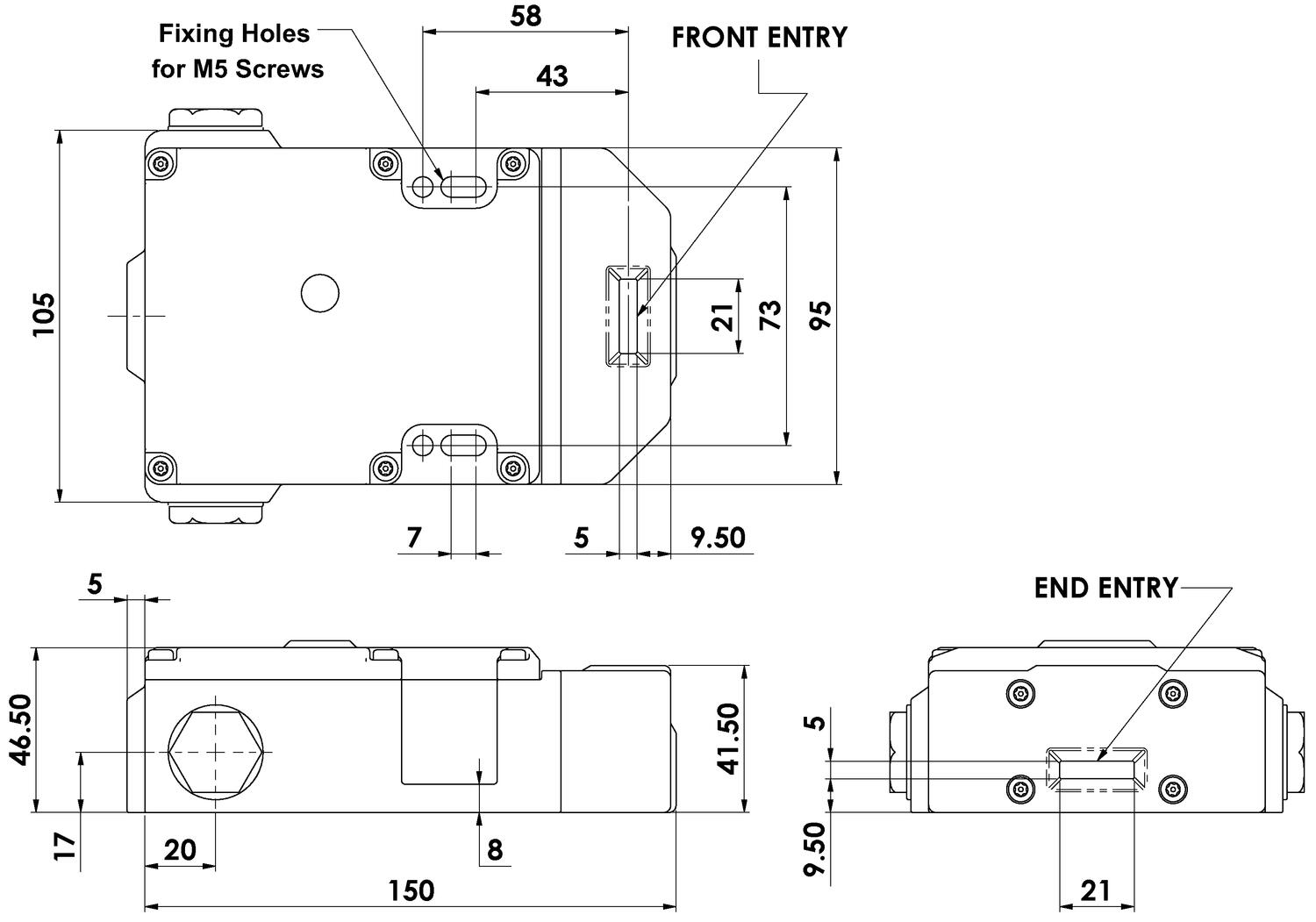

The KLTM-P2L switch has a standard distance between the mounting holes - 73 mm.
The switch is available in the version: voltage locking.
- Electric locking
- 4 key entry positions
- LED indicator
- Locking force up to 2000 N
- Dimensions 105 mm x 150 mm
Selected variant
Technical data
| Actuator | Not included |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
| Conduit entry | M20 |

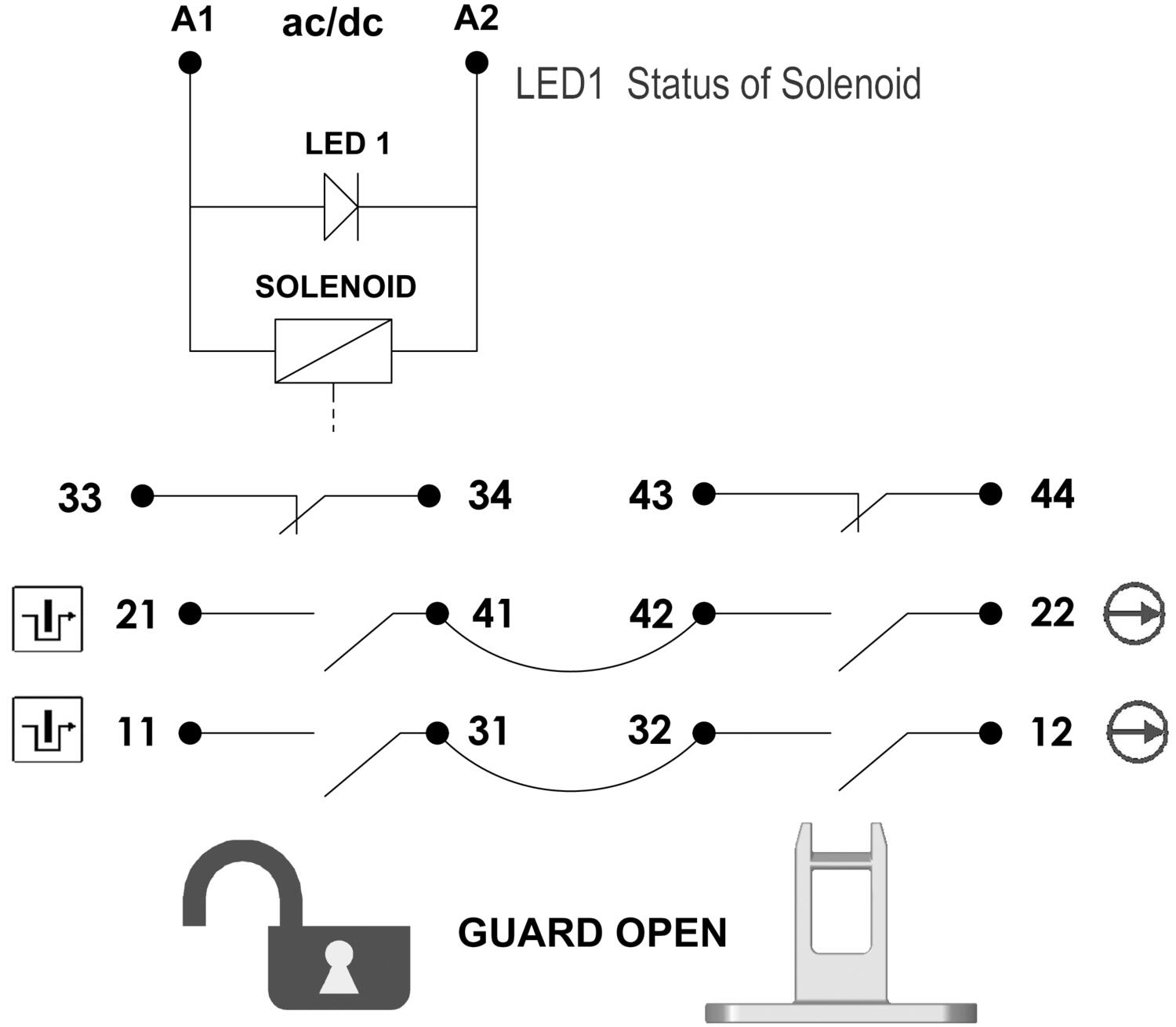

| Contact type | 4NC safety contacts: 2 guard closed, 2 switch locked, 1NO auxiliary contact (guard open), 1NO auxiliary contact (guard locked) |
| Contacts | 4NC 2NO |
| Head material | Stainless steel 316 |
| Holding force (F1Max) | 3000 N |
| Housing material | Die cast metal |
| IP class | IP67 |
| LED indication | LED1 red solenoid power on |
| Manual operation | Manual release lid only |
| Maximum approach / withdrawal speed | 600 mm/s |
| Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
|---|---|
| Mounting | 4 x M5 |
| MTTFd | 356 years |
| Operating temperature | -25..40°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| SIL | 3 acc. EN62061 |
| Solenoid Voltage | 24V dc |
| Thermal current (lth) | 5 A |
| Travel for positive opening | 10 mm |
| Utilisation category | AC15, A300, 3 A |
Product description
Locking switch with RAMZLOCK locking KLTM-P2L, made of cast metal, with locking force up to 2000N. The breaker head is made of stainless steel. The switch has 1 LED, which shows the status of the solenoid. It also has a rotatable head, which provides 4 key entry positions for easy and flexible mounting.
The KLTM-P2L switch has a standard distance between the mounting holes - 73 mm.
The switch is available in the version: voltage locking.
