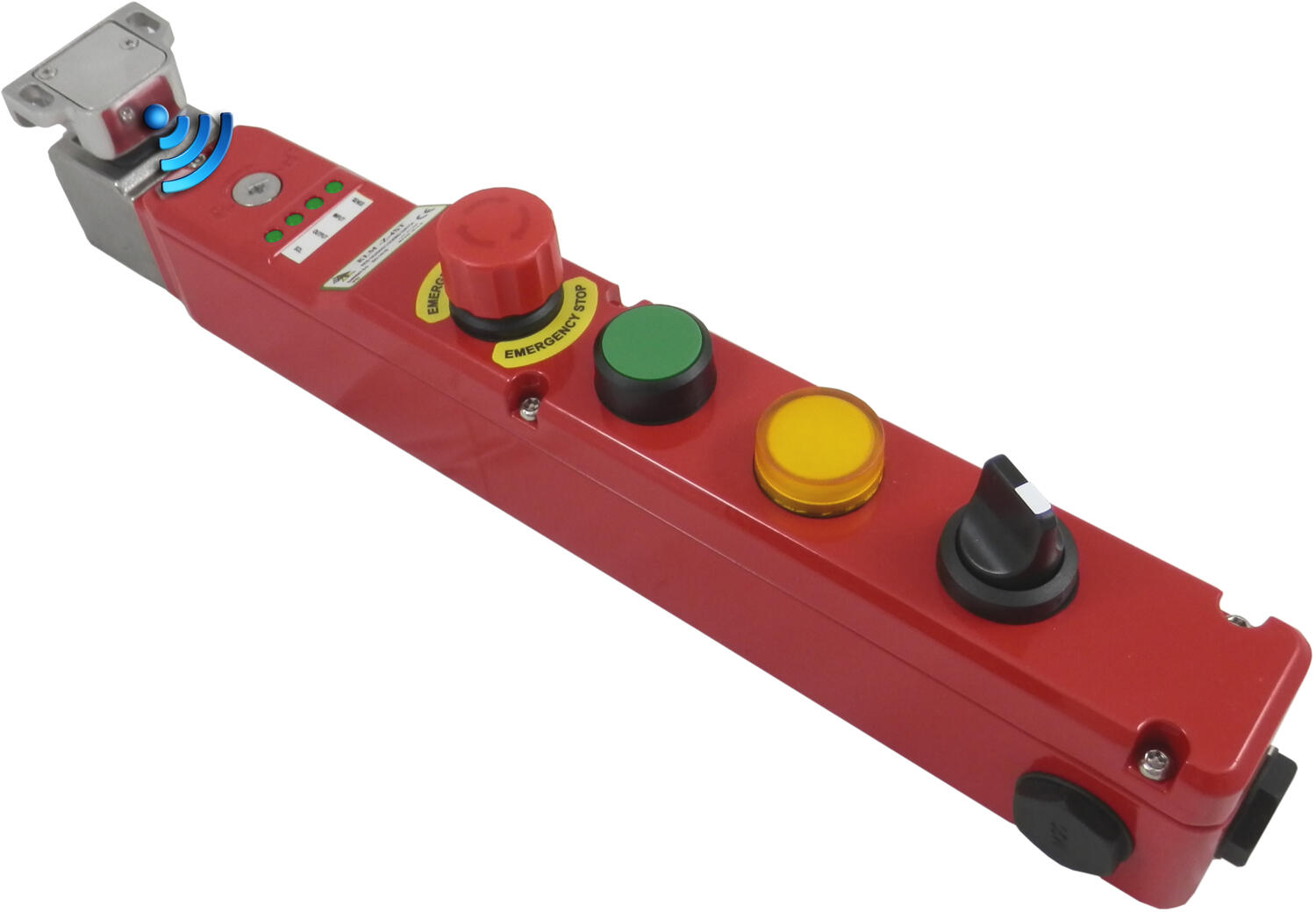

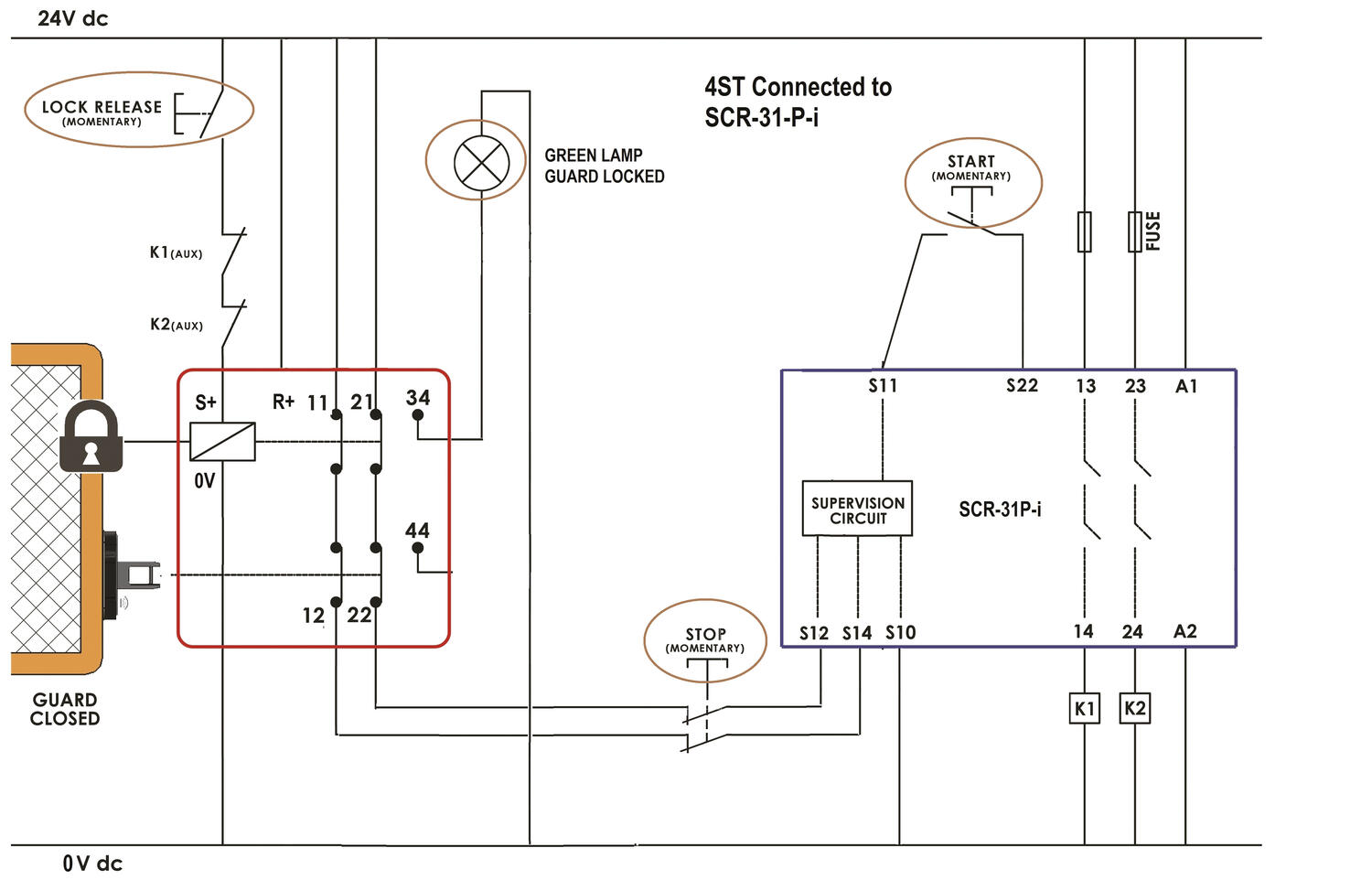

The IDEM KLM‑Z‑4ST is a rugged, RFID‐coded safety interlock switch with built‑in guard locking and enhanced machine control features, all in a compact die‑cast housing with a stainless-steel head. It offers Type 4 high-level coding per ISO 14119 and delivers dual solid-state OSSD safety outputs plus two auxiliary outputs for guard and lock state monitoring, enabling seamless integration into high-performance safety architectures (Cat 4 PLe / SIL 3). The solenoid-actuated lock achieves a holding force of 3 000 N (Fzh ≈ 2 307 N), with a 5 mm actuator insertion ensuring reliable engagement. It operates on 24 Vdc (±10 %), draws ≤50 mA control current and up to 500 mA when energising the solenoid, and provides 22 mm openings for optional push-buttons or indicator lamps housed within the main unit. The rotatable stainless-steel head supports up to eight actuator entry positions, will accommodate pressured front or side entry, and offers versions with lid-only, lid-and-side, manual-release, or rear-release configurations, perfect for flexible mounting needs.
The KLM‑Z‑4ST is ideal for machinery with limited space (designed for 50 mm frame rails), requiring secure interlocking and control request functions, such as in robotics cells, automated packaging, or press lines. Its integrated push-button or lamp stations allow operators to request machine readiness or signal statuses directly at the guard locking unit, eliminating the need for separate HMI panels. With IP65 rating, operating temperatures from –25 °C to +40 °C, vibration resistance, and a mechanical lifespan exceeding 2.5 million cycles, it’s built for durability in industrial environments. Enhanced by continuous self-testing of safety outputs and wiring, and LED diagnostics for guard and lock status, faults, and OSSD activity, the KLM‑Z‑4ST ensures efficient maintenance and reduced downtime in high-safety applications.

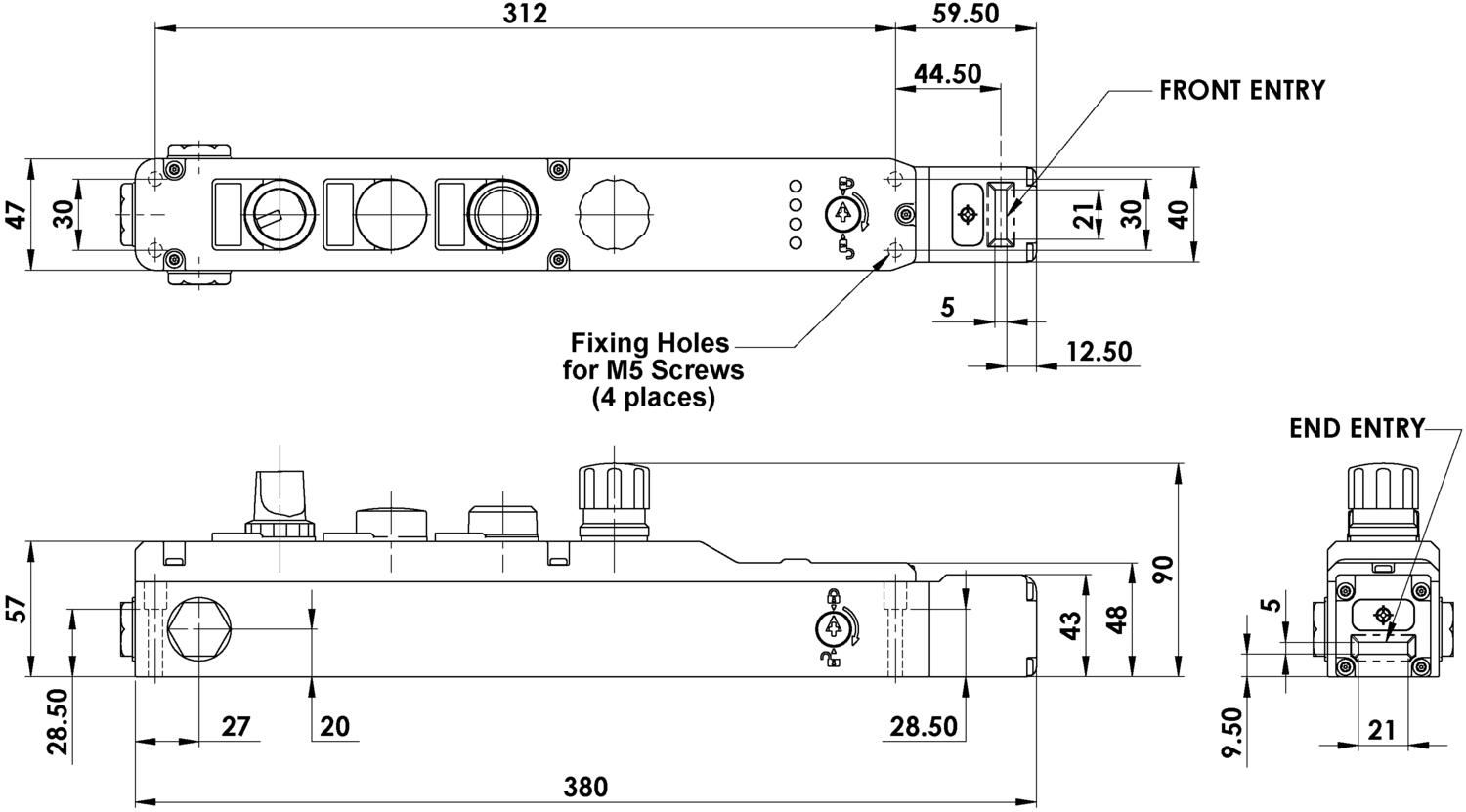

Actuator entry positions | 8 |
---|---|
Approvals | ISO 13849-1, ISO 14119, EN62061, EN60947-5-1, UL 508 |
Conduit entry | M20 |
Head material | Stainless steel 316 |
Holding force (F1Max) | 3000 N |
Housing material | Die cast metal |
Integrated LED indication | Yes |
IP class | IP65 |
Mounting | 4 x M5 |
Operating temperature | -25°C ... +40°C |
---|---|
PL | e acc. EN ISO13849-1 |
Rated insulation voltage | 500V ac |
Safety category | 4 |
SIL | 3 acc. IEC62061 |
Solenoid Voltage | 24V dc |
Vibration | IEC88-2-6, 10-55Hz + 1Hz |
Withstand voltage | 1000V ac |
The IDEM KLM‑Z‑4ST is a rugged, RFID‐coded safety interlock switch with built‑in guard locking and enhanced machine control features, all in a compact die‑cast housing with a stainless-steel head. It offers Type 4 high-level coding per ISO 14119 and delivers dual solid-state OSSD safety outputs plus two auxiliary outputs for guard and lock state monitoring, enabling seamless integration into high-performance safety architectures (Cat 4 PLe / SIL 3). The solenoid-actuated lock achieves a holding force of 3 000 N (Fzh ≈ 2 307 N), with a 5 mm actuator insertion ensuring reliable engagement. It operates on 24 Vdc (±10 %), draws ≤50 mA control current and up to 500 mA when energising the solenoid, and provides 22 mm openings for optional push-buttons or indicator lamps housed within the main unit. The rotatable stainless-steel head supports up to eight actuator entry positions, will accommodate pressured front or side entry, and offers versions with lid-only, lid-and-side, manual-release, or rear-release configurations, perfect for flexible mounting needs.
The KLM‑Z‑4ST is ideal for machinery with limited space (designed for 50 mm frame rails), requiring secure interlocking and control request functions, such as in robotics cells, automated packaging, or press lines. Its integrated push-button or lamp stations allow operators to request machine readiness or signal statuses directly at the guard locking unit, eliminating the need for separate HMI panels. With IP65 rating, operating temperatures from –25 °C to +40 °C, vibration resistance, and a mechanical lifespan exceeding 2.5 million cycles, it’s built for durability in industrial environments. Enhanced by continuous self-testing of safety outputs and wiring, and LED diagnostics for guard and lock status, faults, and OSSD activity, the KLM‑Z‑4ST ensures efficient maintenance and reduced downtime in high-safety applications.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Price | ||
---|---|---|---|
![]()

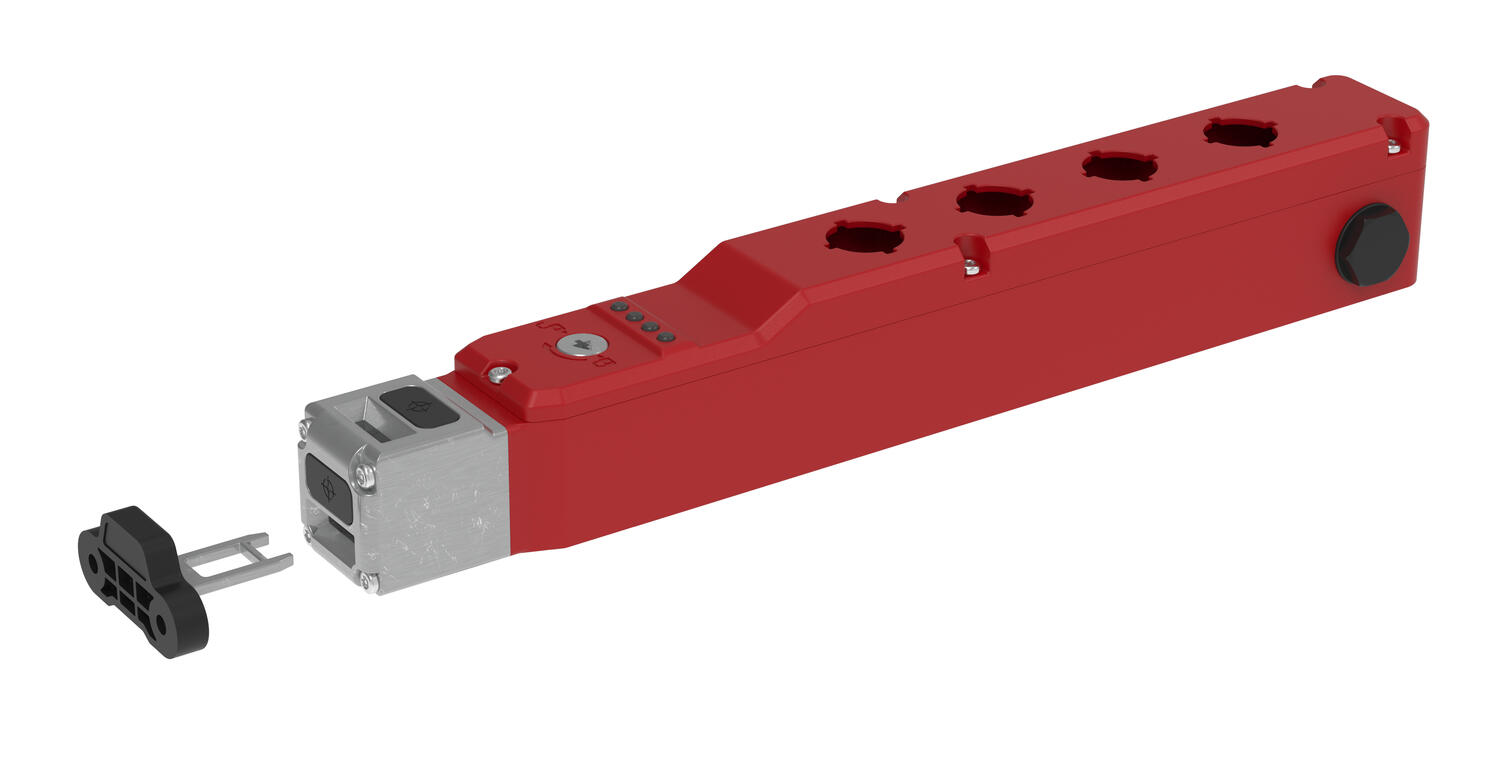

KLM-Z-4ST M20 manual release lid and side Std Actuator
Art:
457001AZ
Copied
|
| ||
![]()
KLM-Z-4ST M20 manual release lid and side Heavy Duty Actuator
Art:
457001HFZ
Copied
|
| ||
![]()
KLM-Z-4ST M20 lid only release Std Actuator
Art:
457401AZ
Copied
|
| ||
![]()
KLM-Z-4ST M20 lid only release Heavy Duty Actuator
Art:
457401HFZ
Copied
|
| ||
![]()
KLM-Z-4ST M20 no release Std Actuator
Art:
457301AZ
Copied
|
| ||
![]()
KLM-Z-4ST M20 no release Heavy Duty Actuator
Art:
457301HFZ
Copied
|
| ||
![]()

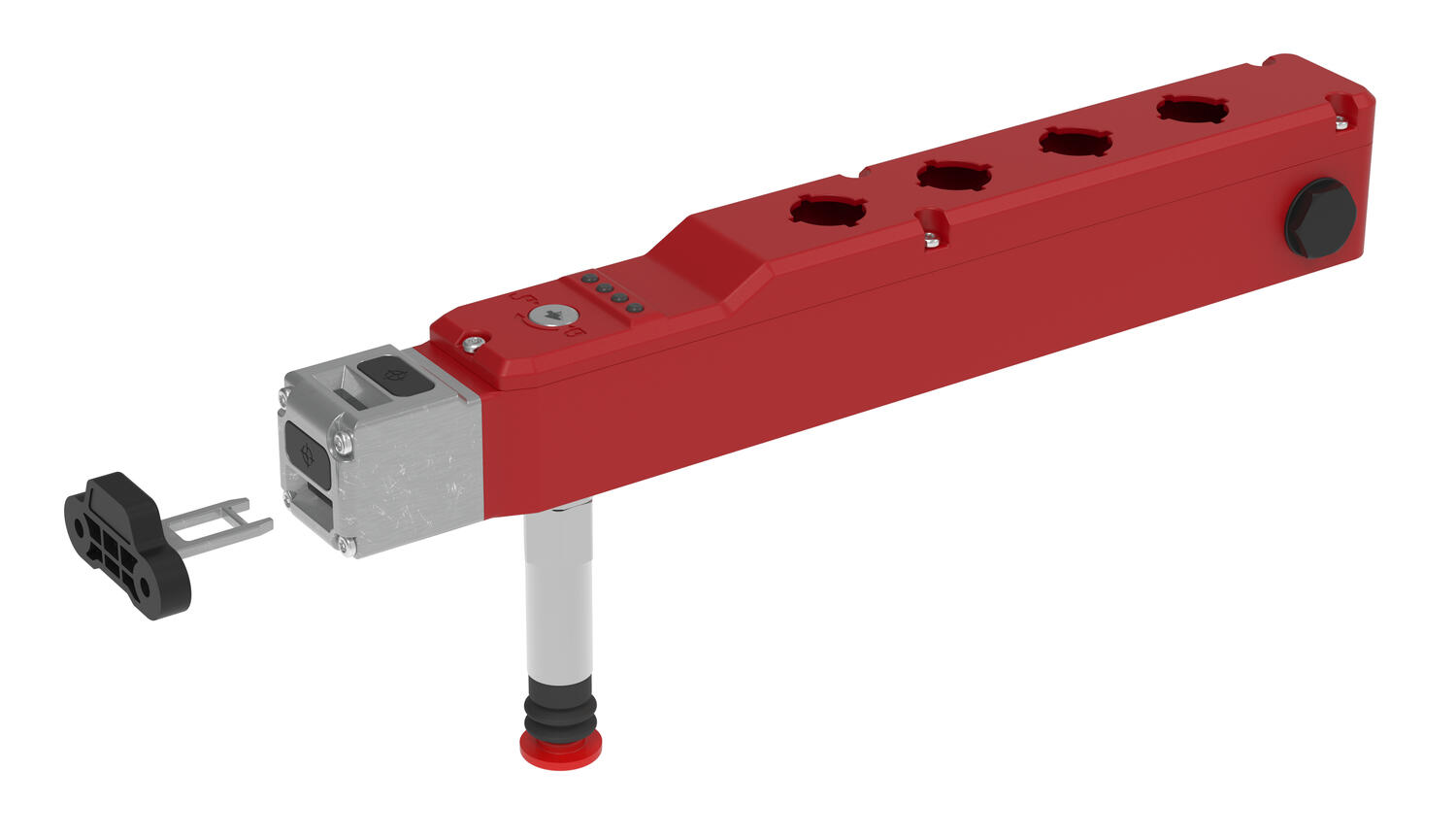

KLM-Z-4ST-RR M20 manual release lid and side Std Actuator
Art:
457011AZ
Copied
|
| ||
![]()
KLM-Z-4ST-RR M20 manual release lid and side Heavy Duty Actuator
Art:
457011HFZ
Copied
|
| ||
![]()
KLM-Z-4ST-RR M20 lid only release Std Actuator
Art:
457411AZ
Copied
|
| ||
![]()
KLM-Z-4ST-RR M20 lid only release Heavy Duty Actuator
Art:
457411HFZ
Copied
|
| ||
![]()
KLM-Z-4ST-RR M20 no release Std Actuator
Art:
457311AZ
Copied
|
| ||
![]()
KLM-Z-4ST-RR M20 no release Heavy Duty Actuator
Art:
457311HFZ
Copied
|
|
Select a variant in the list
