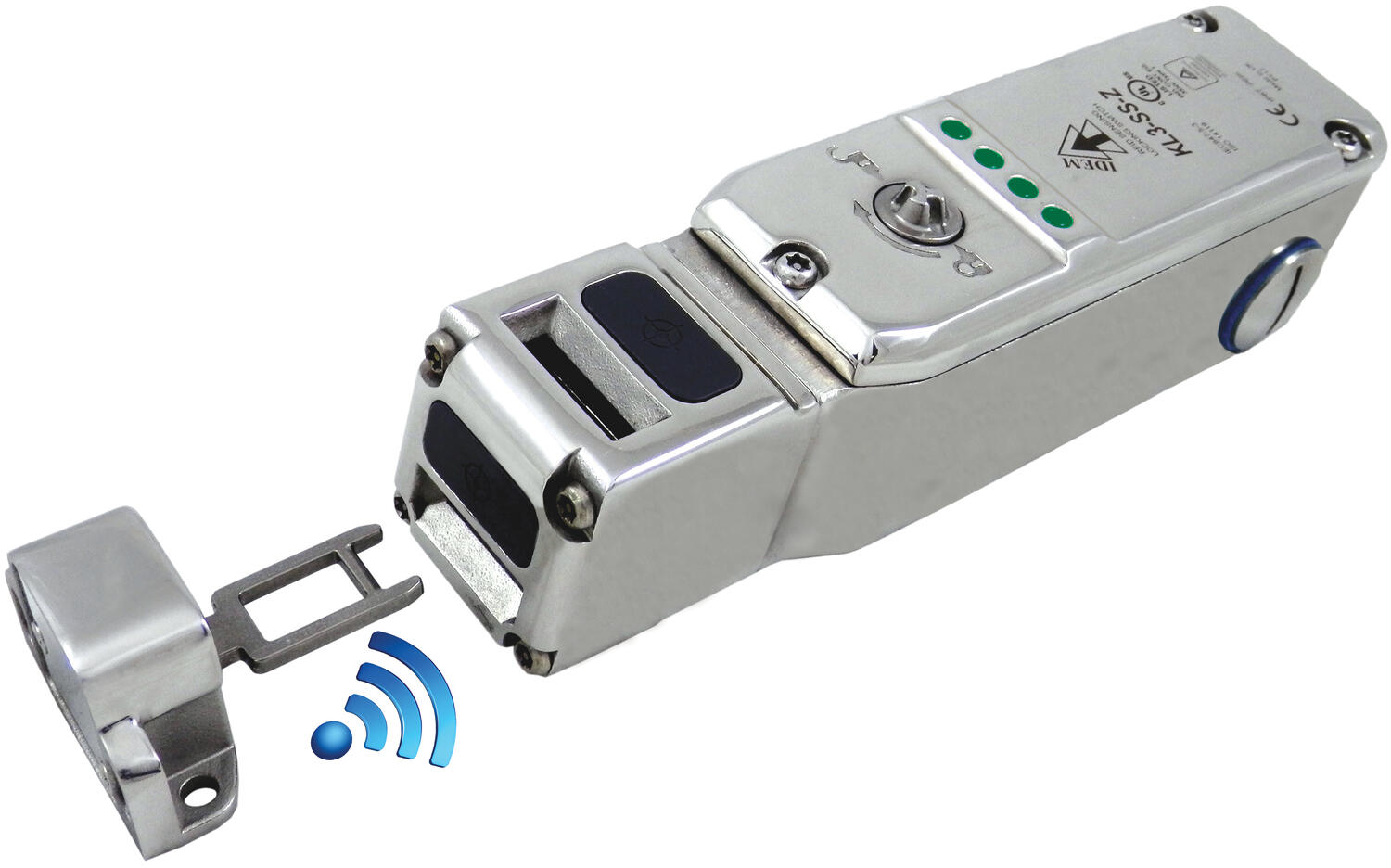

IDEM KL3-SS-Z Stainless Steel Lockable Switch

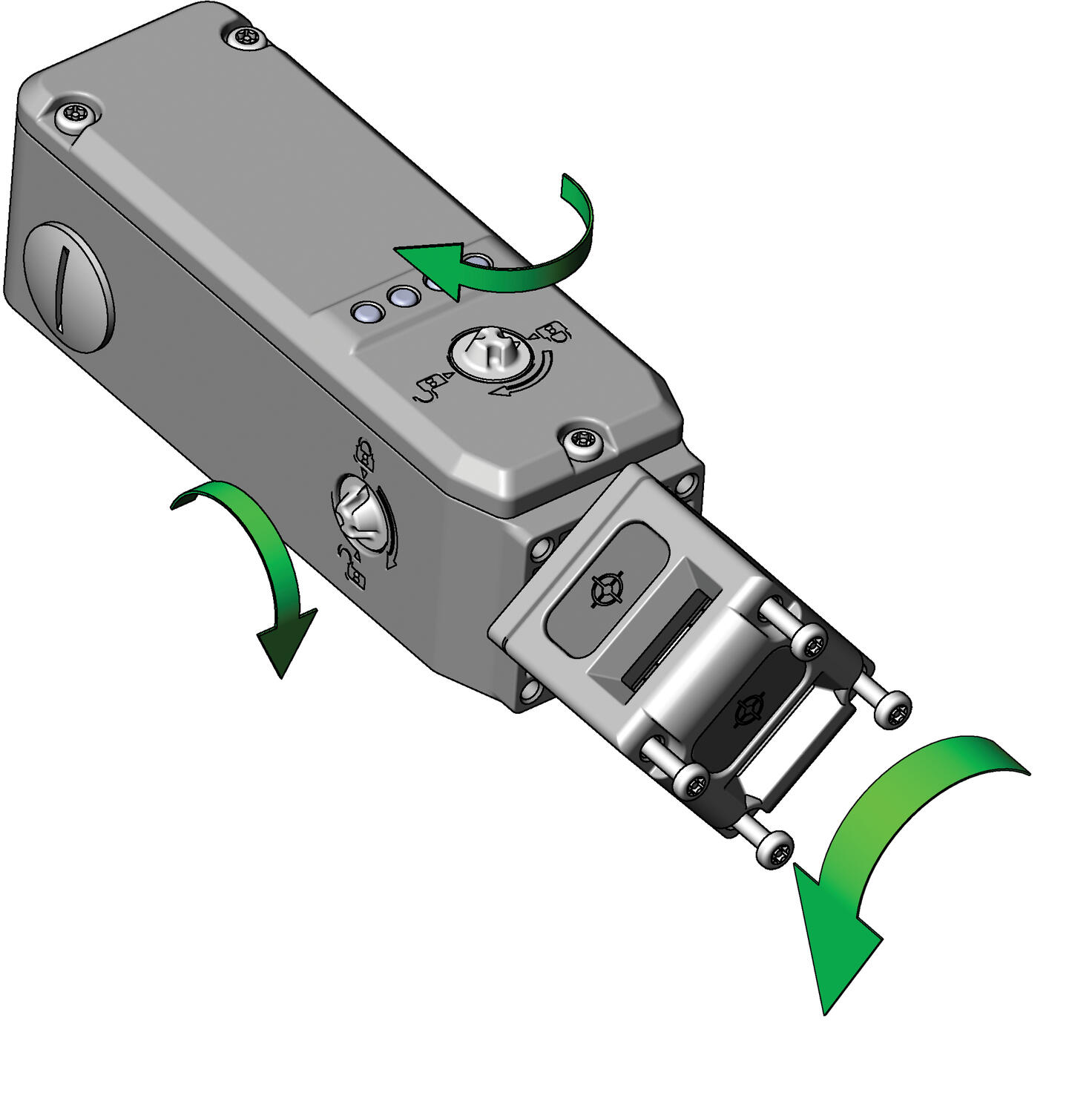

The stainless-steel versions of IDEM’s solenoid-controlled RFID safety interlock switches, combine corrosion-resistant housings with full OSSD safety outputs and guard-locking capabilities. These IP67-rated units are constructed from high-grade stainless steel, making them suitable for corrosive or hygroscopic settings They include dual OSSD safety outputs for direct connection to safety controllers, plus auxiliary outputs that report both guard position and lock status. The internal RFID coding ensures high-level tamper resistance, and the solenoid lock delivers holding forces ranging from 2 000 N (in plastic KLP models) up to 3 000 N (in KLM‑Z‑4ST metal variants), meeting Cat 4 / PLe / SIL 3 machine safety standards. Mounting flexibility is offered via rotatable heads with multiple actuator entry positions, while LED indicators provide real-time status feedback for diagnostics and lock/unlock sequences.
These stainless-steel interlocks are ideal for industries requiring both hygiene and high-security access control such as pharmaceutical filling lines, washdown food machinery, and outdoor equipment exposed to the elements. Their rugged construction stands up to pressure washers, chemical cleaning agents, and process fluids, while the solenoid lock ensures that machinery cannot operate unless the guard is correctly closed and locked. The KLM‑Z‑4ST‑SS variant even includes optional operator interface elements directly on the housing, enabling local lock-release commands or visual status without needing external panels. With automatic diagnostics and proven performance in high-cycle, high-demand environments, these interlocks deliver reliable guard locking and access control across a range of industrial applications.
- Locking force F1Max = 3000N
- PL e/Kat. 4
- An escape option
- 316 stainless steel housing

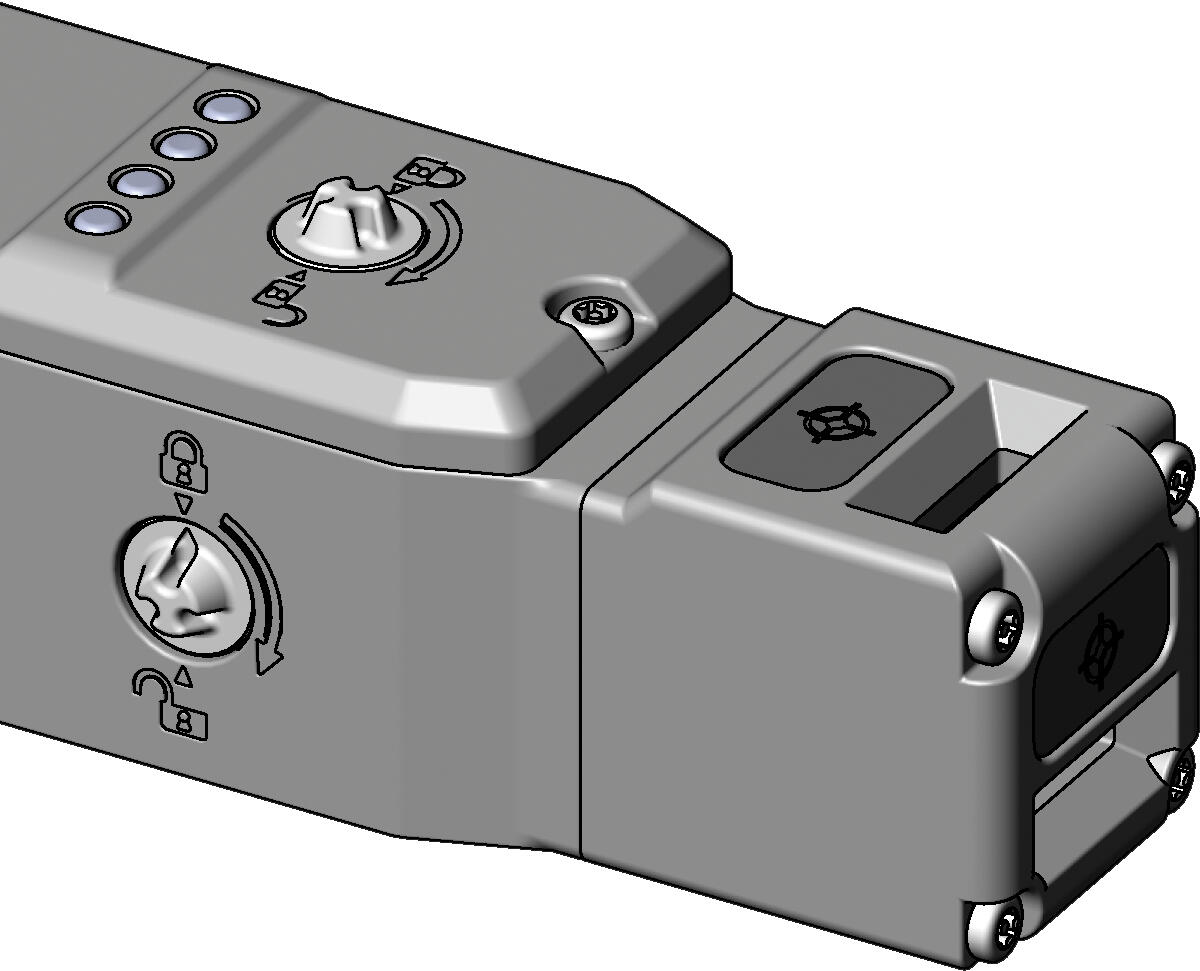

- 4 x LED indicator
Selected variant
Technical data
| Actuator entry positions | 8 |
|---|---|
| Approvals | ISO 13849-1, ISO 14119, EN62061, EN60947-5-1, UL 508 |
| Conduit entry | M20 |
| Head material | Stainless steel 316 |
| Holding force (F1Max) | 3000 N |
| Housing material | Stainless steel 316 |
| Integrated LED indication | Yes |
| IP class | IP67 |
| LED supply voltage | 24v |

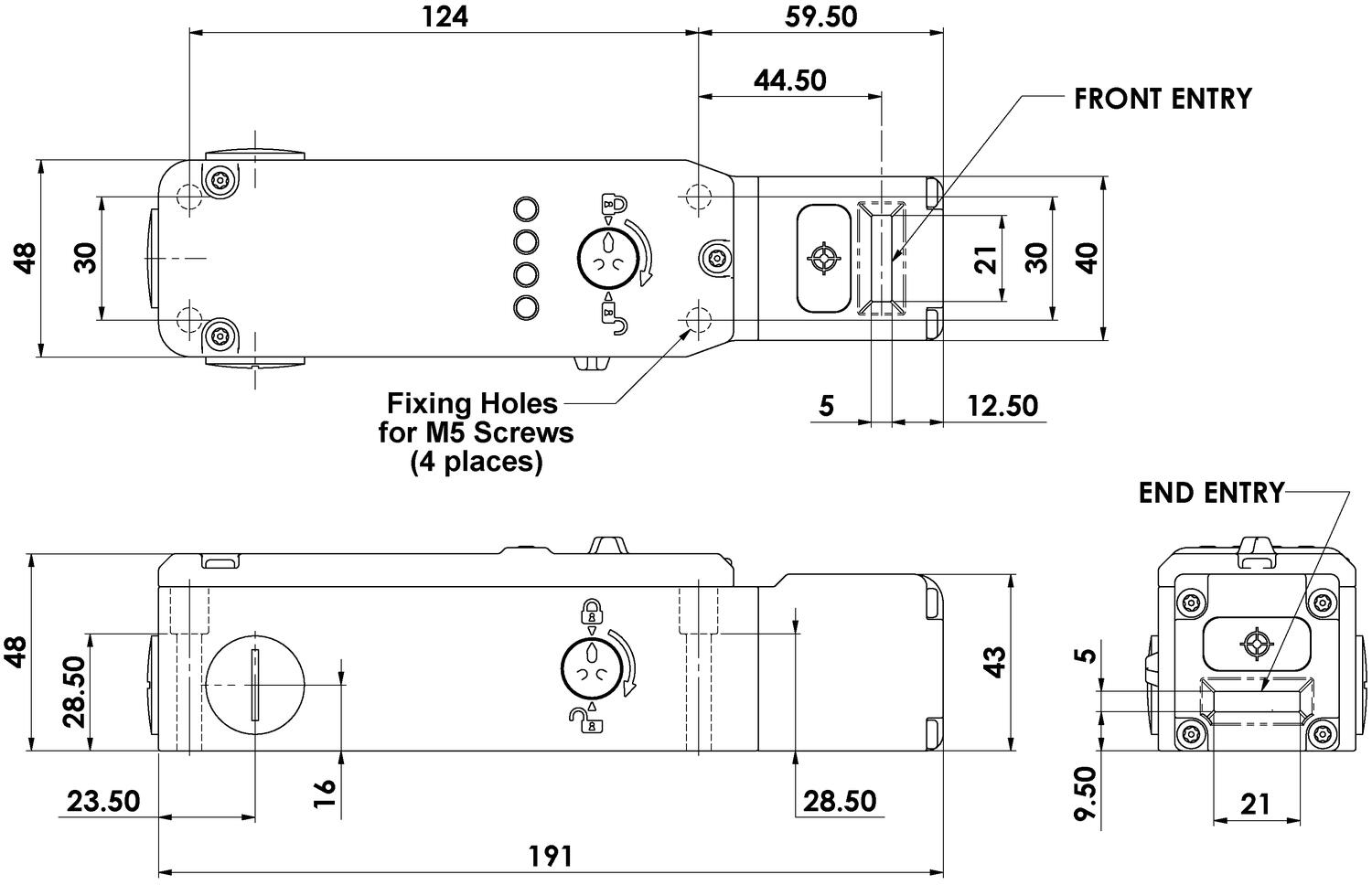

| Mounting | 4 x M5 |
|---|---|
| Operating temperature | -25°C ... +40°C |
| PFHd | 4,80 e-10 |
| PL | e acc. ISO13849-1 |
| Rated insulation voltage | 500 V AC |
| SIL | 3 acc. EN62061 |
| Solenoid Voltage | 24V dc |
| Weight | 1490 g |
Product description
The stainless-steel versions of IDEM’s solenoid-controlled RFID safety interlock switches, combine corrosion-resistant housings with full OSSD safety outputs and guard-locking capabilities. These IP67-rated units are constructed from high-grade stainless steel, making them suitable for corrosive or hygroscopic settings They include dual OSSD safety outputs for direct connection to safety controllers, plus auxiliary outputs that report both guard position and lock status. The internal RFID coding ensures high-level tamper resistance, and the solenoid lock delivers holding forces ranging from 2 000 N (in plastic KLP models) up to 3 000 N (in KLM‑Z‑4ST metal variants), meeting Cat 4 / PLe / SIL 3 machine safety standards. Mounting flexibility is offered via rotatable heads with multiple actuator entry positions, while LED indicators provide real-time status feedback for diagnostics and lock/unlock sequences.
These stainless-steel interlocks are ideal for industries requiring both hygiene and high-security access control such as pharmaceutical filling lines, washdown food machinery, and outdoor equipment exposed to the elements. Their rugged construction stands up to pressure washers, chemical cleaning agents, and process fluids, while the solenoid lock ensures that machinery cannot operate unless the guard is correctly closed and locked. The KLM‑Z‑4ST‑SS variant even includes optional operator interface elements directly on the housing, enabling local lock-release commands or visual status without needing external panels. With automatic diagnostics and proven performance in high-cycle, high-demand environments, these interlocks deliver reliable guard locking and access control across a range of industrial applications.
