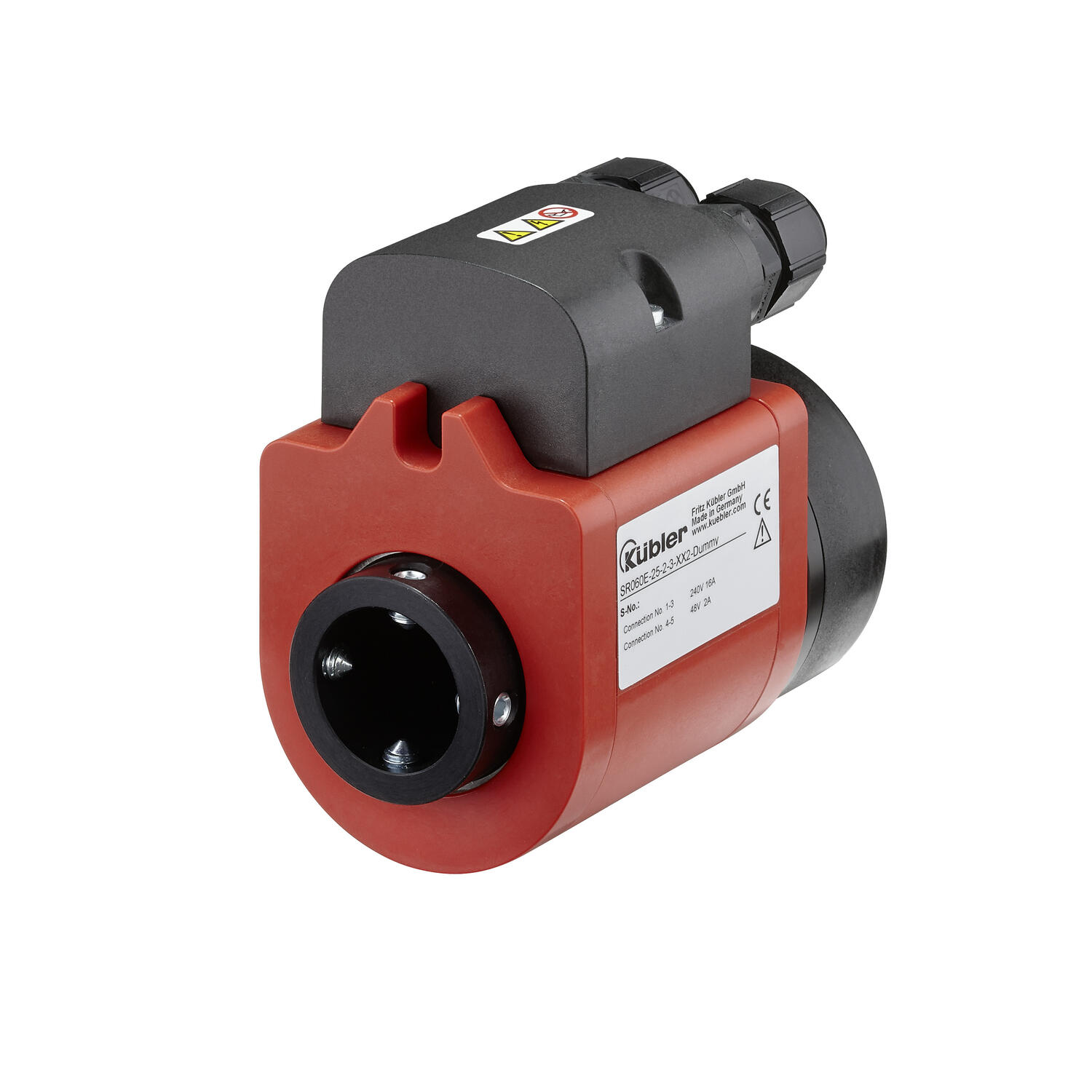

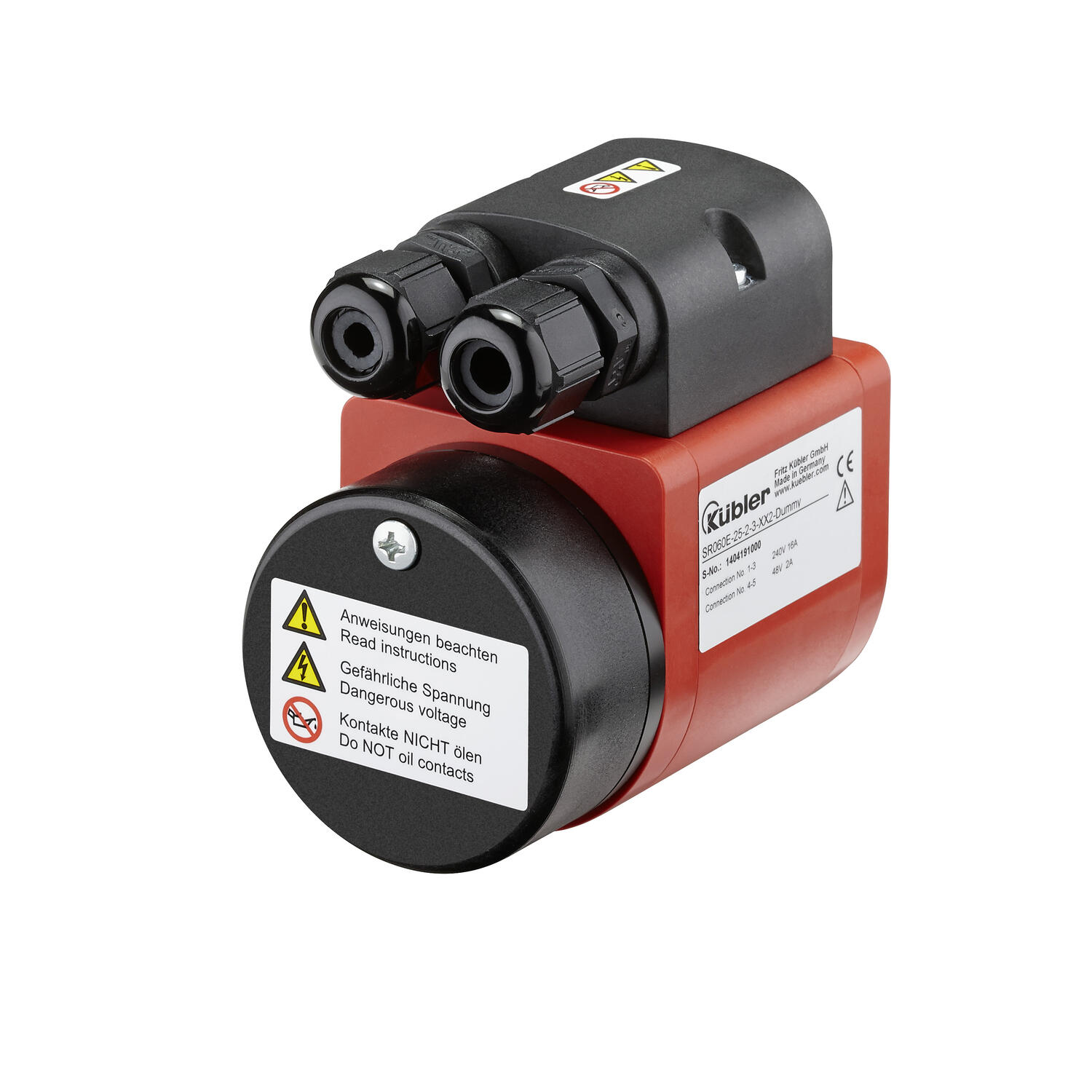

Kubler Slip ring SR060E
SR060E is a compact slip ring for up to 3 power and 2 data transmissions from a stationary to a rotating platform. The power and data transmission takes place securely via trailer contacts.
New innovative contact materials have a long service life and extremely little maintenance during operation. The round shape with smooth surfaces and a high level of protection allow easy cleaning.
Examples of applications: packaging machines, textile machines, robots and handling equipment, rotating tables, etc.
- Standard slipring
- Life span 50 million revolutions
- Easily accessible contacts
- IP64
Selected variant
Technical data
| Contact resistance channel | 1 Ω |
|---|---|
| Contact resistance data channel | 0.1 Ω |
| Dielectric strength | 1000 kV/m |
| Hollow shaft diameter max | 25 mm |
| Insulation resistance | 10³ Ohm(500VDC) |
| IP class | IP64 |
| Life span | 500000000 revolution |
| Power load max | 16 A |
|---|---|
| Signal load | 2 A |
| Speed max | 500 m/s |
| Temperature operational max | 75 °C |
| Temperature operational min | 0 °C |
| Voltage input | 240 V |
Product description
SR060E is a compact slip ring for up to 3 power and 2 data transmissions from a stationary to a rotating platform. The power and data transmission takes place securely via trailer contacts.
New innovative contact materials have a long service life and extremely little maintenance during operation. The round shape with smooth surfaces and a high level of protection allow easy cleaning.
Examples of applications: packaging machines, textile machines, robots and handling equipment, rotating tables, etc.
