DATASENSING - TLu - Contrast sensors

The TLµ contrast sensor series offers solutions for all detection applications of register mark. The microprocessor-based setting can be either 'Teach-in' using two push-buttons or 'Remote' by cable. The LED emission can be red/green with automatic selection, or white offering the possibility of operating on all contrasts.



Models with interchangeable 9mm or 18mm lenses are available, and 22, 28 and 50mm lenses are supplied as accessories. Many different fibre optic models are available. The output is PNP or NPN according to the selected model, but can always be selected using an internal switch. An analogue output proportional to the received light is also present.



Features & Benefits:

·Red/Green or White emission: high detection reliability and resolution

·Teach-in push-button: fast and easy setting

·20KHz switching frequency: precise and repeatability reading

·Cable or rotatable M12 5-pole connector: adaptability to the mechanical part of the plant



Applications:

·Packaging lines

·Paper and Printing machines

·Automatic filling machines



Read more
  • Red/green or white LED
  • Touch to teach
  • Cable or rotatable M12 5-pole connector
  • 20KHz switching frequency

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CE, UL
Cable length 3000 mm
Distance max 12 mm
Distance min 6 mm
Electrical connection Pre-cabled 3m
Function Dark on / Light on
IP class IP67
LED indicator Yes
Lens material Glass
Light type Green LED, Red LED
Material of body Zinc
Output PNP
Output current max 0.2 A
Photocell technology Contrast
Power consumption max 0.08 A
Reaction time 0.05 ms
Storage temperature max 70 °C
Storage temperature min -20 °C
Supply voltage 10-30 V DC
Temperature operational max 55 °C
Temperature operational min -10 °C
Type of light LED
Weight 450 g

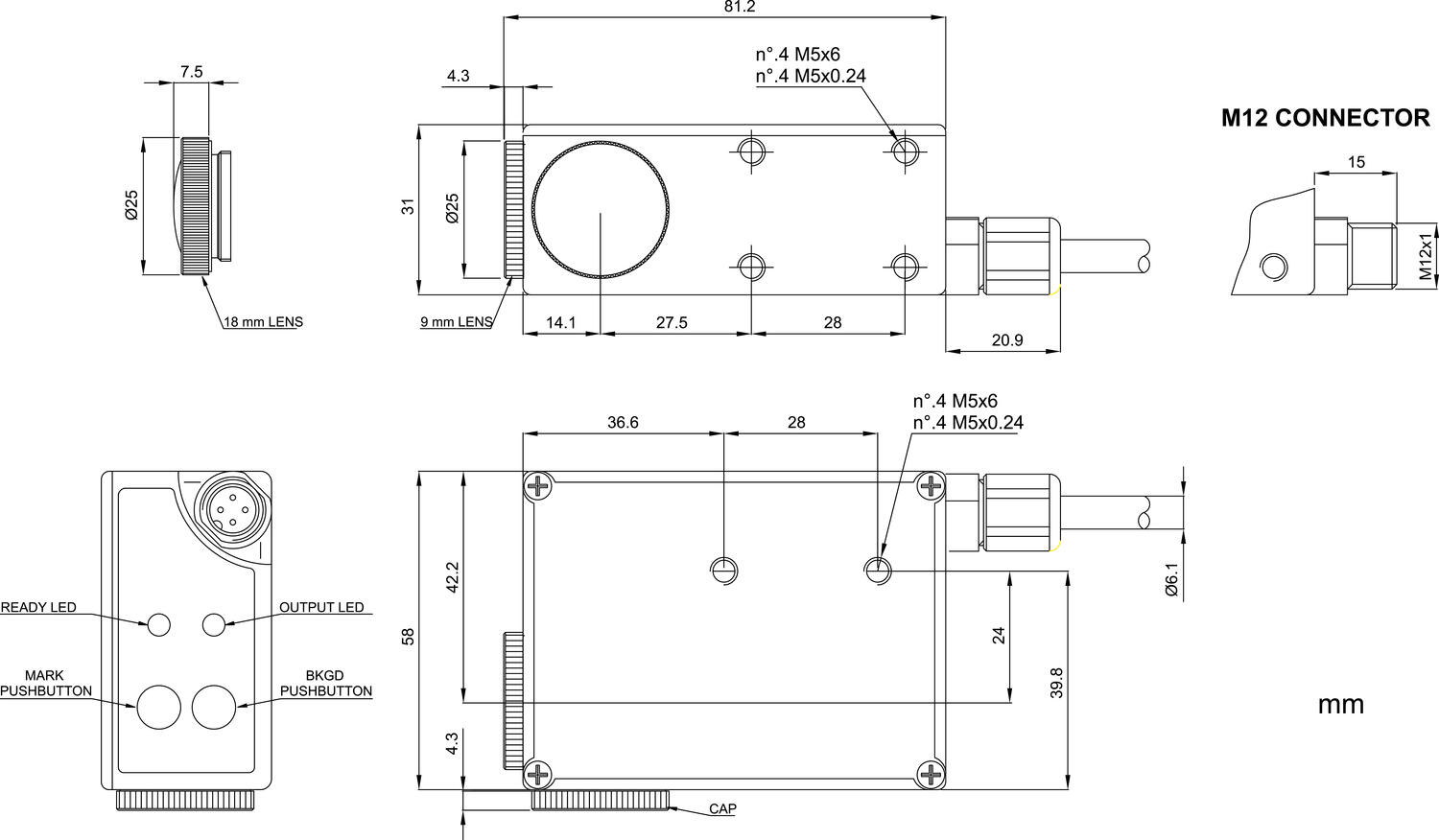

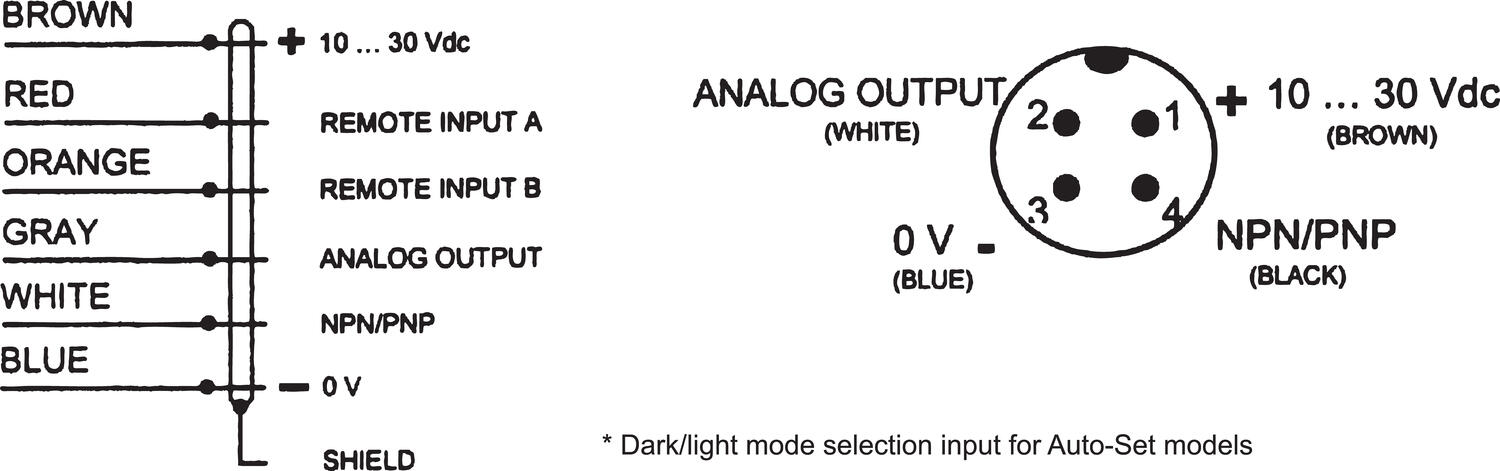

Measurements and connections

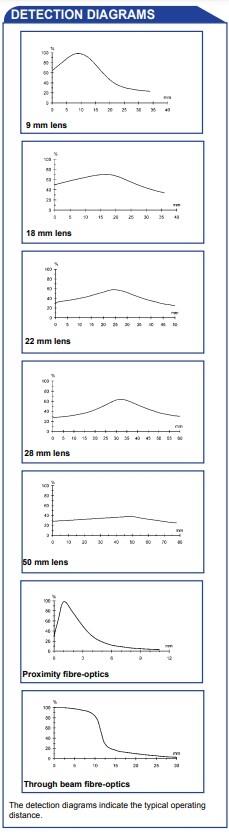

Technical illustrations

Product description

The TLµ contrast sensor series offers solutions for all detection applications of register mark. The microprocessor-based setting can be either 'Teach-in' using two push-buttons or 'Remote' by cable. The LED emission can be red/green with automatic selection, or white offering the possibility of operating on all contrasts.



Models with interchangeable 9mm or 18mm lenses are available, and 22, 28 and 50mm lenses are supplied as accessories. Many different fibre optic models are available. The output is PNP or NPN according to the selected model, but can always be selected using an internal switch. An analogue output proportional to the received light is also present.



Features & Benefits:

·Red/Green or White emission: high detection reliability and resolution

·Teach-in push-button: fast and easy setting

·20KHz switching frequency: precise and repeatability reading

·Cable or rotatable M12 5-pole connector: adaptability to the mechanical part of the plant



Applications:

·Packaging lines

·Paper and Printing machines

·Automatic filling machines
