DATASENSING
The S65-V colour sensors offer the best performances for colour detection in compact housing. The S65-V is suitable for automatic packaging applications, quality control and part checking in the production process. The sensor can memorise and recognise 3 colours on 3 independent channels. The auxiliary functions include key-lock and synchronisation with external events through a specific input. The control panel presents two setting push-buttons, outputs LEDs and a 4-digit display for functioning messages and sensor configuration. Complete remote control is possible for the version with the RS485 serial interface.
Â
Features & Benefits:Â
·White emission
·C or C+I selectable functioning mode
·Teach-in push-button and display 4 digits indicator
·1.5KHz switching frequency
·RS485 serial interface
Â
Applications:
·Packaging lines
·Sorting
·Wood working machines
·Glass working machines
·Automotive
Â
| Approvals | CE, UL |
|---|---|
| Dimension (mm) | 50 x 50 x 25 |
| Distance max | 45 mm |
| Distance min | 5 mm |

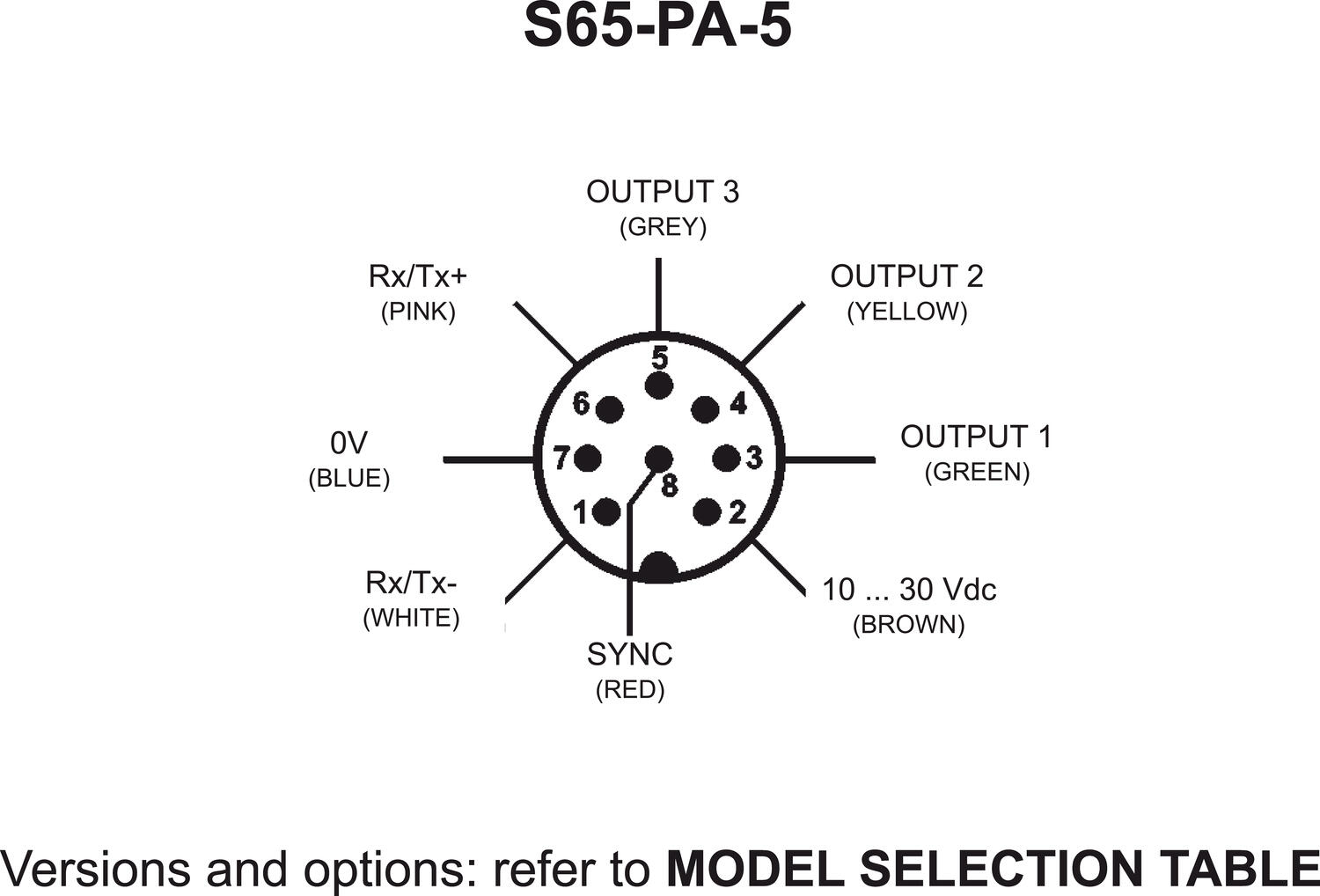

| Electrical connection | M12 8-pin connector |
| IP class | IP67 |

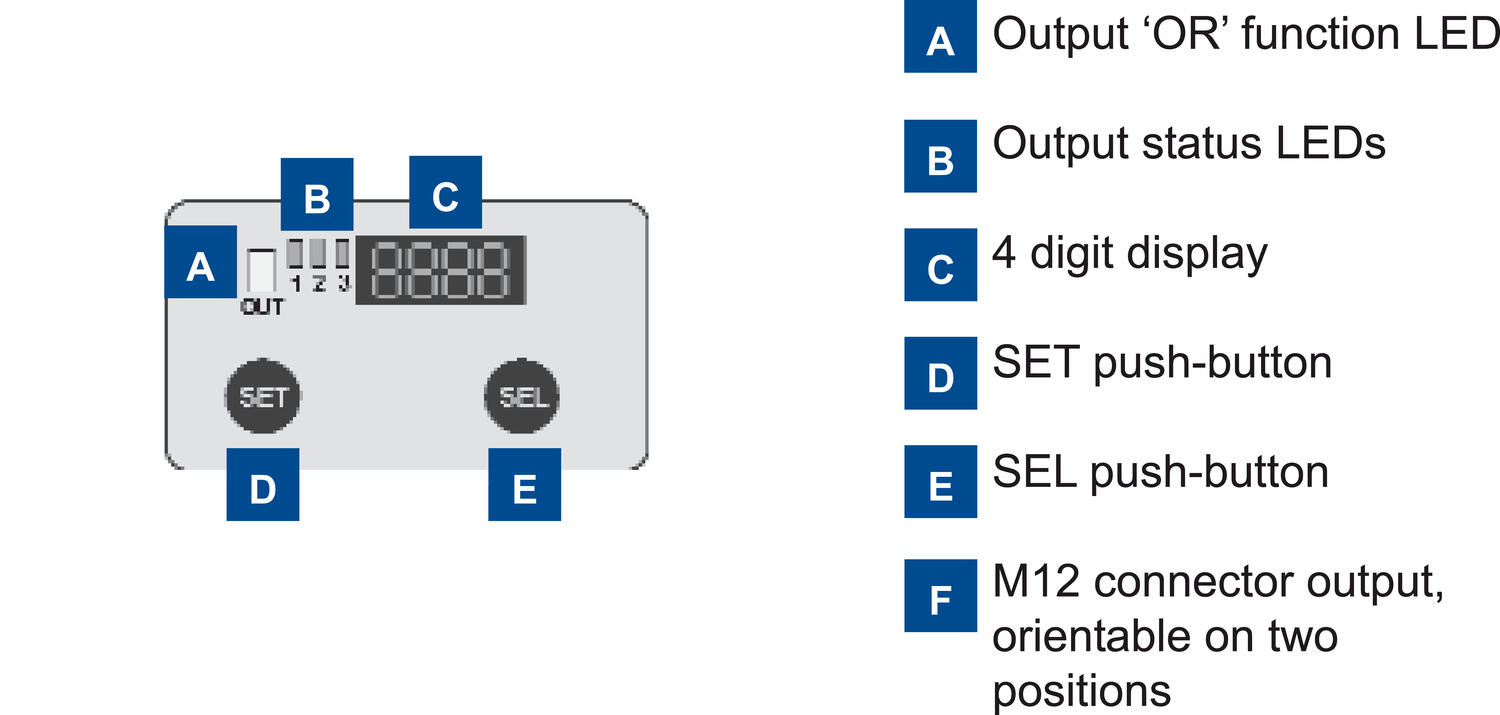

| LED indication | 4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED |
| LED indicator | Yes |
| Lens material | Glass |
| Light type | White LED |
| Material of body | ABS plastic |
| Output | PNP |
| Output current max | 0,1 A |
| Photocell technology | Color sensor |
|---|---|
| Power consumption max | 0,06 A |
| Reaction time | 0,335 ms |
| Sensitivity setting | Yes |
| Sensitivity setting | Push Buttons |
| Storage temperature max | 70 °C |
| Storage temperature min | -20 °C |
| Supply voltage | 10-30 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | -10 °C |
| Type of light | LED |
| Weight | 100 g |
The S65-V colour sensors offer the best performances for colour detection in compact housing. The S65-V is suitable for automatic packaging applications, quality control and part checking in the production process. The sensor can memorise and recognise 3 colours on 3 independent channels. The auxiliary functions include key-lock and synchronisation with external events through a specific input. The control panel presents two setting push-buttons, outputs LEDs and a 4-digit display for functioning messages and sensor configuration. Complete remote control is possible for the version with the RS485 serial interface.
Â
Features & Benefits:Â
·White emission
·C or C+I selectable functioning mode
·Teach-in push-button and display 4 digits indicator
·1.5KHz switching frequency
·RS485 serial interface
Â
Applications:
·Packaging lines
·Sorting
·Wood working machines
·Glass working machines
·Automotive
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | LED indication | Output | Reaction time | Price | ||
|---|---|---|---|---|---|---|
Colour sensor 3xPNP, 5-45mm, M12 connector
Art:
S65-PA-5-V09-PPP
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
PNP
|
0,335 ms
|
| ||
|
956251030 Colour Contrast 3 NPN Outputs M12 Connector
Art:
S65-PA-5-V09-NNN
Copied
|
4 digit display; Green active OUTPUT LEDs, YELLOW 'OR' function OUTPUT LED
|
NPN
|
0,335 ms
|
| ||
|
956251010 Colour Contrast 3 NPN Outputs RS485 M12 Connector
Art:
S65-PA-5-V09-NNNZ
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
NPN
|
0,335 ms
|
| ||
|
956251000 Colour Contrast 3 PNP Outputs RS485 M12 Connector
Art:
S65-PA-5-V09-PPPZ
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
PNP
|
0,335 ms
|
| ||
|
956251110 Colour Contrast 3 Outputs NPN M12 Connector
Art:
S65-PA-5-V19-NNN
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
NPN
|
5 ms
|
| ||
|
956251090 Colour Contrast 3 NPN Outputs RS485 M12 Connector
Art:
S65-PA-5-V19-NNNZ
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
NPN
|
5 ms
|
| ||
|
956251100 Colour Contrast 3 Outputs PNP M12 Connector
Art:
S65-PA-5-V19-PPP
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
PNP
|
5 ms
|
| ||
|
956251080 Colour Contrast 3 PNP Outputs RS485 M12 Connector
Art:
S65-PA-5-V19-PPPZ
Copied
|
4 digit display; Green active OUTPUT LEDs YELLOW 'OR' function OUTPUT LED
|
PNP
|
5 ms
|
|
Select a variant in the list
