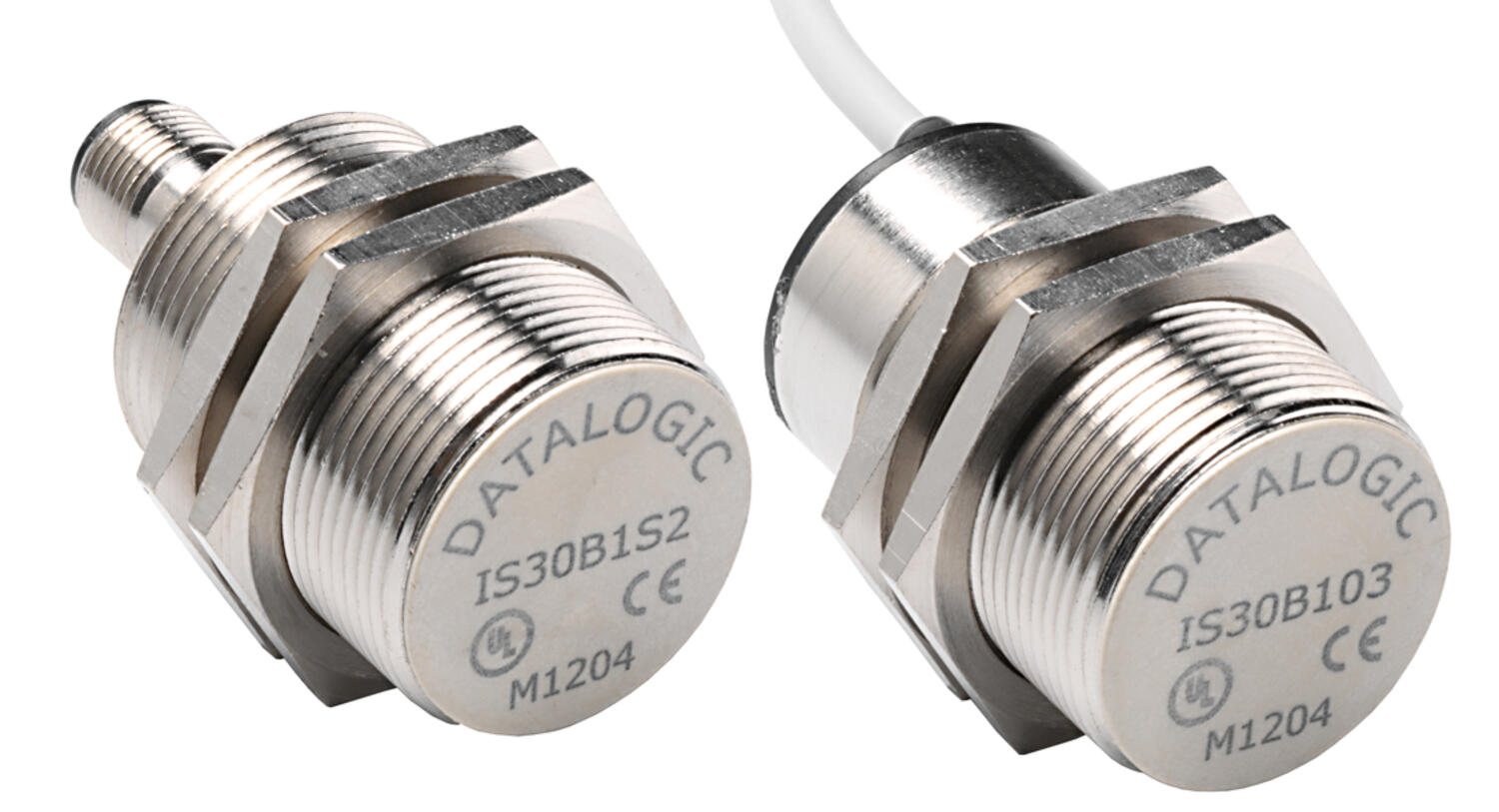

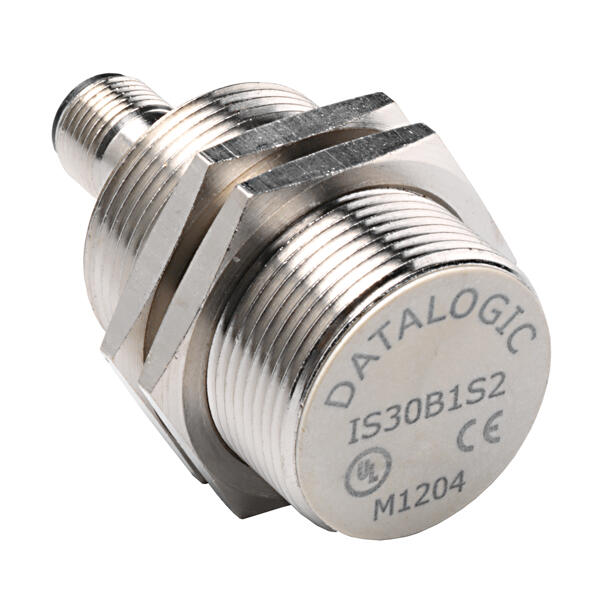

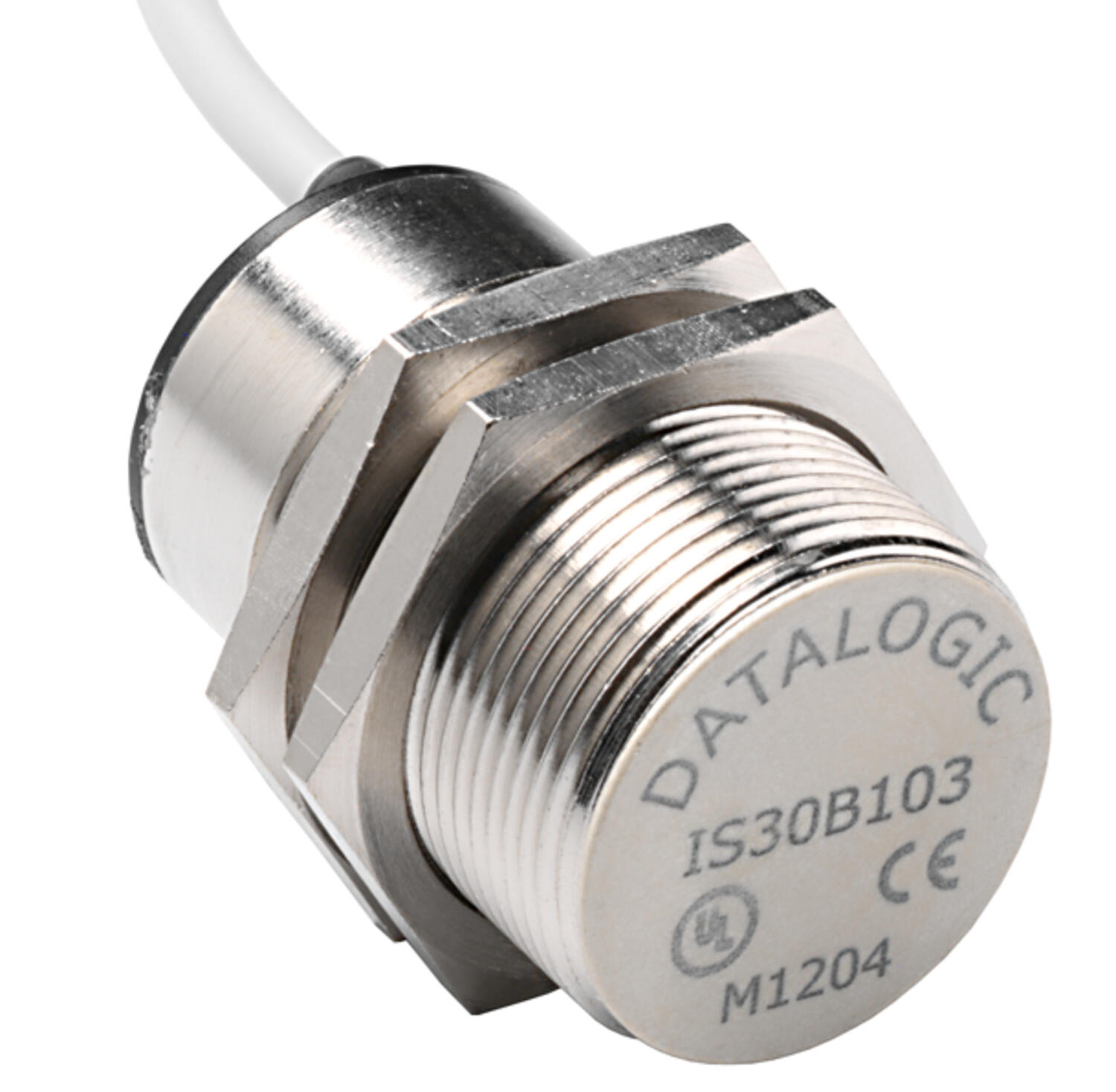

Datalogic - IS-30 - M30 standard inductive sensor

The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass, with housing diameters ranging from 8 to 30mm. They can detect metal objects from 1.5mm to 20mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.

Features & Benefits:

• Nickel-plated Brass housing

• Standard and short housing lengths

• Operating distance: 10 and 15mm

• 2m embedded cable or M12 connector

• 4 wire connection

• Outputs: PNP, NPN, NO, NC

• IP67 protection

Applications:

• Automatic machines

• Packaging lines

• Transportation lines

• Automatic warehouses

• Automotive

10 and 15mm sensing range
Flush or Non-flush
2m embedded Cable or M8 connector
PNP or NPN, NO or NC

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Cable length	2000 mm
Electrical connection	Embedded 2m cable
IP class	IP67
LED indicator	Yes
Material of body	Nickel-plated brass
Mounting	Flush
Output	PNP, NPN, NO, NC
Output current max	0.2 A
Reaction time	50 ms

Sensing distance	10 mm
Sensor Type	Inductive
Size	M30
Supply voltage	10-30 V DC
Temperature operational max	70 °C
Temperature operational min	-25 °C
Weight	210 g

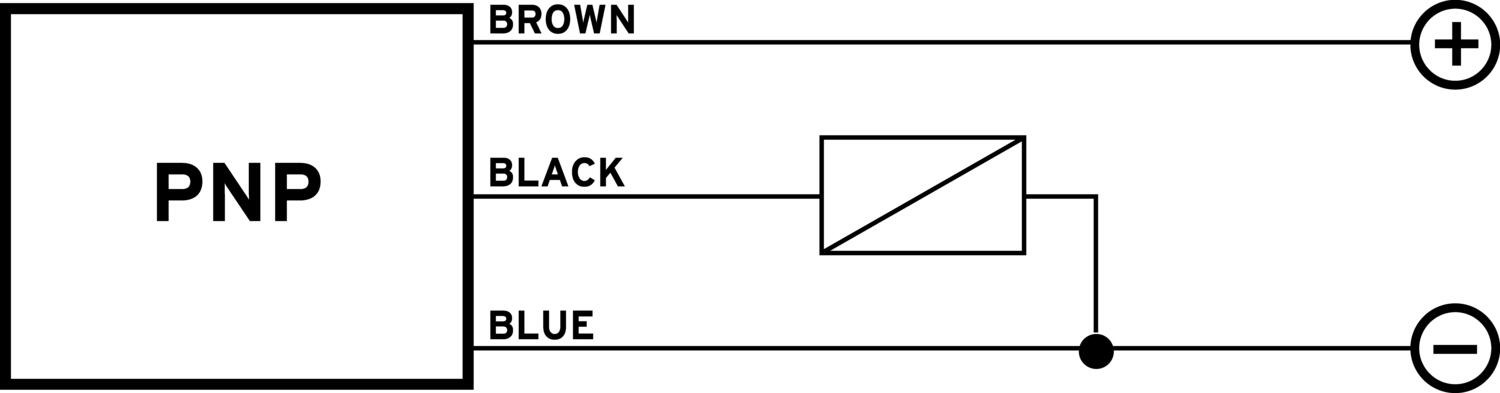

Measurements and connections

Product description

Features & Benefits:

• Nickel-plated Brass housing

• Standard and short housing lengths

• Operating distance: 10 and 15mm

• 2m embedded cable or M12 connector

• 4 wire connection

• Outputs: PNP, NPN, NO, NC

• IP67 protection

Applications:

• Automatic machines

• Packaging lines

• Transportation lines

• Automatic warehouses

• Automotive

Accessories

Learn more about radar systems - discover inxpects certified safety radar system

Learning hub

Discover safety radar sensors

Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.

Product news

Detection and measurement area sensors

Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.

Learning hub

Setting up light curtains & Barriers

OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.

Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Learning hub

Lidar vs Radar vs Laser - Which technology fits your application?

LIDAR, Radar, and Laser scanners are all powerful technologies used to enhance safety in industrial and automated environments. But how do you choose the right one for your application?

Parts	Cable length	Electrical connection	IP class	Material of body	Mounting	Output	Output current max	Reaction time	Sensing distance	Supply voltage	Temperature operational max	Weight
95B064460 M30 Inductive Flush 10mm PNP/NPN NO+NC 2m Cable Art: IS-30-A0-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	PNP, NPN, NO, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	210 g
95B064490 M30 Inductive Flush 10mm PNP/NPN NO+NC M12 Conn Art: IS-30-A0-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	PNP, NPN, NO, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B064610 M30 Inductive Flush 10mm Namur 2m Cable Art: IS-30-A20-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	NAMUR	0.003 A		10 mm	Namur Amplifier	60 °C	210 g
95B061441 M30 Inductive Flush 10mm PNP NC 2m Cable Art: IS-30-A2-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	PNP, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	210 g
95B064630 M30 Inductive Flush 10mm Namur M12 Connector Art: IS-30-A20-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	NAMUR	0.003 A		10 mm	Namur Amplifier	60 °C	170 g
95B061381 M30 Inductive Flush 10mm NPN NO 2m Cable Art: IS-30-A3-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	NPN, NO	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	210 g
95B061391 M30 Inductive Flush 10mm NPN NO M12 Connector Art: IS-30-A3-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	NPN, NO	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B061401 M30 Inductive Flush 10mm NPN NC 2m Cable Art: IS-30-A4-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	NPN, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	210 g
95B061411 M30 Inductive Flush 10mm NPN NC M12 Connector Art: IS-30-A4-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	NPN, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B064570 M30 Inductive Flush 10mm 2-wire NO+NC M12 Conn Art: IS-30-A9-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	NO, NC	0.1 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B062221 M30 Inductive Flush 10mm PNP NO 2m Cable Art: IS-30-B1-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	PNP, NO	0.2 A	50 ms	10 mm	10-30 V DC	60 °C	210 g
95B062181 M30 Inductive Flush 10mm NPN NO 2m Cable Art: IS-30-B3-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	NPN, NO	0.2 A	50 ms	10 mm	10-30 V DC	60 °C	210 g
95B062191 M30 Inductive Flush 10mm NPN NO M12 Connector Art: IS-30-B3-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	NPN, NO	0.2 A	50 ms	10 mm	10-30 V DC	60 °C	170 g
95B062211 M30 Inductive Flush 10mm NPN NC M12 Connector Art: IS-30-B4-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	NPN, NC	0.2 A	50 ms	10 mm	10-30 V DC	60 °C	170 g
95B064510 M30 Inductive Non Flush 15mm PNP/NPN NO+NC M12 Art: IS-30-C0-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	PNP, NPN, NO, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B061821 M30 Inductive Non-Flush 15mm PNP NO 2m Cable Art: IS-30-C1-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	PNP, NO	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	210 g
95B064620 M30 Inductive Non Flush 15mm Namur 2m Cable Art: IS-30-C20-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	NAMUR	0.003 A		15 mm	Namur Amplifier	60 °C	210 g
95B061841 M30 Inductive Non-Flush 15mm PNP NC 2m Cable Art: IS-30-C2-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	PNP, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	210 g
95B064640 M30 Inductive Non Flush 15mm Namur M12 Connector Art: IS-30-C20-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	NAMUR	0.003 A		15 mm	Namur Amplifier	60 °C	170 g
95B061851 M30 Inductive Non-Flush 15mm PNP NC M12 Connector Art: IS-30-C2-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	PNP, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B061781 M30 Inductive Non Flush 15mm NPN NO 2m Cable Art: IS-30-C3-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	NPN, NO	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	210 g
95B061791 M30 Inductive Non Flush 15mm NPN NO M12 Connector Art: IS-30-C3-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	NPN, NO	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B061801 M30 Inductive Non Flush 15mm NPN NC 2m Cable Art: IS-30-C4-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	NPN, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	210 g
95B061811 M30 Inductive Non Flush 15mm NPN NC M12 Connector Art: IS-30-C4-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	NPN, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B064550 M30 Inductive Non Flush 15mm 2-wire NO+NC 2m Cable Art: IS-30-C9-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	NO, NC	0.1 A	50 ms	15 mm	10-30 V DC	70 °C	210 g
95B064590 M30 Inductive Non Flush 15mm 2-wire NO+NC M12 Art: IS-30-C9-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	NO, NC	0.1 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B062581 M30 Inductive Non Flush 15mm NPN NO 2m Cable Art: IS-30-D3-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	NPN, NO	0.2 A	50 ms	15 mm	10-30 V DC	60 °C	210 g
95B062591 M30 Inductive Non Flush 15mm NPN NO M12 Connector Art: IS-30-D3-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	NPN, NO	0.2 A	50 ms	15 mm	10-30 V DC	60 °C	170 g
95B062601 M30 Inductive Non Flush 15mm NPN NC 2m Cable Art: IS-30-D4-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	NPN, NC	0.2 A	50 ms	15 mm	10-30 V DC	60 °C	210 g
95B062611 M30 Inductive Non Flush 15mm NPN NC M12 Connector Art: IS-30-D4-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	NPN, NC	0.2 A	50 ms	15 mm	10-30 V DC	60 °C	170 g
95B067350 M30 Inductive Flush 15mm PNP/NPN NO+NC 2m Cable Art: IS-30-E0-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	PNP, NPN, NO, NC	0.2 A	75 ms	15 mm	10-30 V DC	70 °C	210 g
95B067390 M30 Inductive Flush 15mm PNP/NPN NO+NC M12 Conn Art: IS-30-E0-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Flush	PNP, NPN, NO, NC	0.2 A	75 ms	15 mm	10-30 V DC	70 °C	170 g
95B067360 M30 Inductive Flush 15mm 2-wire NO+NC 2m Cable Art: IS-30-E9-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Flush	NO, NC	0.2 A	75 ms	15 mm	10-30 V DC	70 °C	210 g
95B067370 M30 Inductive Non Flush 20mm PNP/NPN NO+NC 2m Cab Art: IS-30-F0-03 Copied	2000 mm	Embedded 2m cable	IP67	Nickel-plated brass	Non-flush	PNP, NPN, NO, NC	0.2 A	75 ms	20 mm	10-30 V DC	70 °C	210 g
95B067410 M30 Inductive Non Flush 20mm PNP/NPN NO+NC M12 Art: IS-30-F0-S2 Copied		M12 4-pin connector	IP67	Nickel-plated brass	Non-flush	PNP, NPN, NO, NC	0.2 A	75 ms	20 mm	10-30 V DC	70 °C	170 g
95B060400 M30 Inductive Flush 10mm Stainless Steel PNP NO Art: IS-30-M1-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	PNP, NO	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B060410 M30 Inductive Flush 10mm Stainless Steel PNP NC Art: IS-30-M2-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	PNP, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B060420 M30 Inductive Flush 10mm Stainless Steel NPN NO Art: IS-30-M3-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	NPN, NO	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B060430 M30 Inductive Flush 10mm Stainless Steel NPN NC Art: IS-30-M4-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	NPN, NC	0.2 A	50 ms	10 mm	10-30 V DC	70 °C	170 g
95B060440 M30 Inductive Non Flush 10mm St-Steel PNP NO Art: IS-30-N1-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	PNP, NO	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B060450 M30 Inductive Non Flush 10mm St-Steel PNP NC Art: IS-30-N2-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	PNP, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B060460 M30 Inductive Non Flush 10mm St-Steel NPN NO Art: IS-30-N3-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	NPN, NO	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B060470 M30 Inductive Non Flush 10mm St-Steel NPN NC Art: IS-30-N4-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	NPN, NC	0.2 A	50 ms	15 mm	10-30 V DC	70 °C	170 g
95B060160 M30 Inductive Flush 15mm Stainless Steel PNP NO Art: IS-30-O1-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	PNP, NO	0.2 A	75 ms	15 mm	10-30 V DC	70 °C	170 g
95B060180 M30 Inductive Flush 15mm Stainless Steel NPN NO Art: IS-30-O3-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	NPN, NO	0.2 A	75 ms	15 mm	10-30 V DC	70 °C	170 g
95B060190 M30 Inductive Flush 15mm Stainless Steel NPN NC Art: IS-30-O4-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Flush	NPN, NC	0.2 A	75 ms	15 mm	10-30 V DC	70 °C	170 g
95B060200 M30 Inductive Non Flush 15mm St-Steel PNP NO Art: IS-30-P1-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	PNP, NO	0.2 A	75 ms	20 mm	10-30 V DC	70 °C	170 g
95B060210 M30 Inductive Non Flush 15mm St-Steel PNP NC Art: IS-30-P2-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	PNP, NC	0.2 A	75 ms	20 mm	10-30 V DC	70 °C	170 g
95B060220 M30 Inductive Non Flush 15mm St-Steel NPN NO Art: IS-30-P3-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	NPN, NO	0.2 A	75 ms	20 mm	10-30 V DC	70 °C	170 g
95B060230 M30 Inductive Non Flush 15mm St-Steel NPN NC Art: IS-30-P4-S2 Copied		M12 4-pin connector	IP69K	Stainless steel	Non-flush	NPN, NC	0.2 A	75 ms	20 mm	10-30 V DC	70 °C	170 g
