DUELCO
Duelco SSO-2010 Standstill monitor

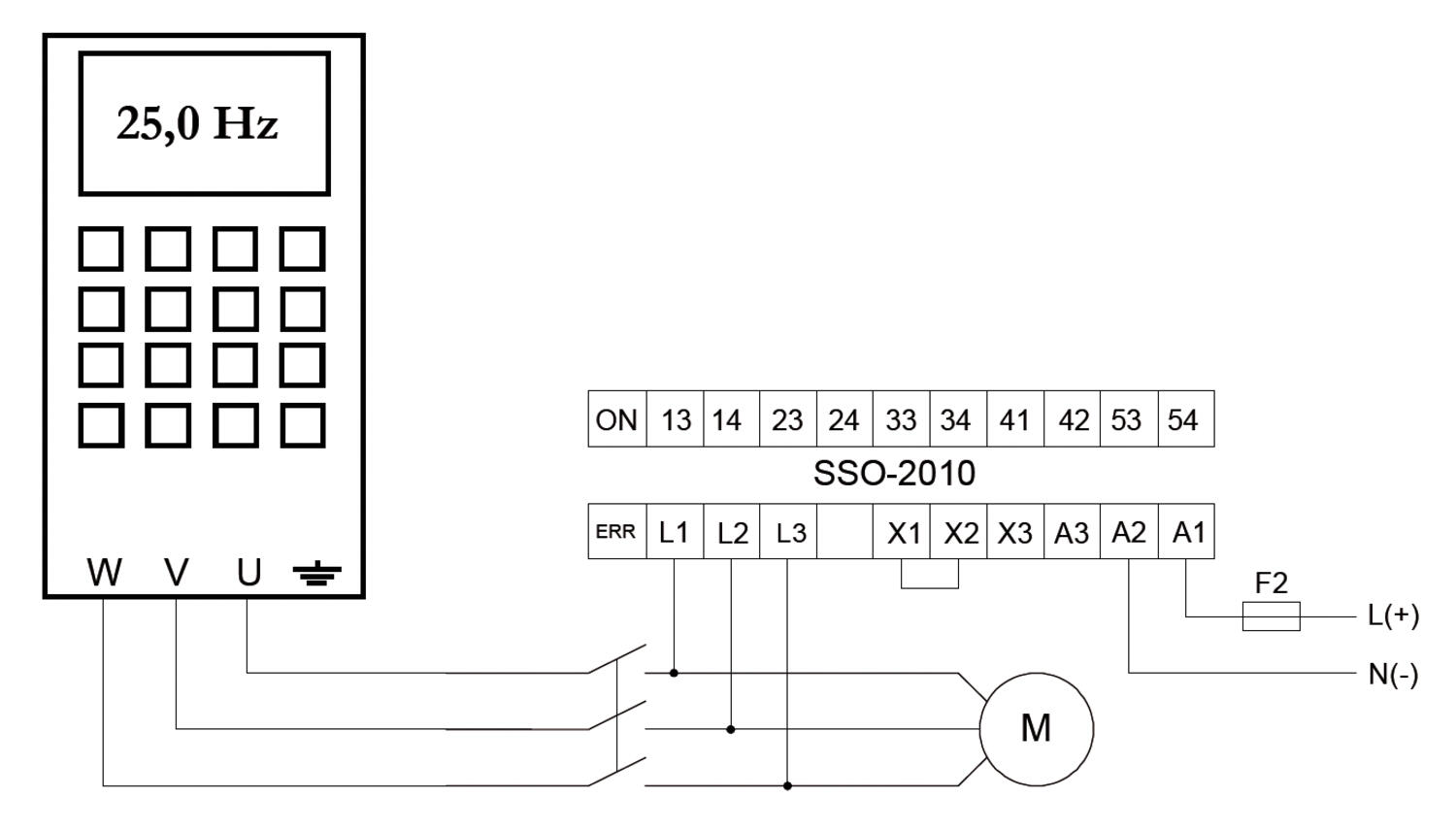

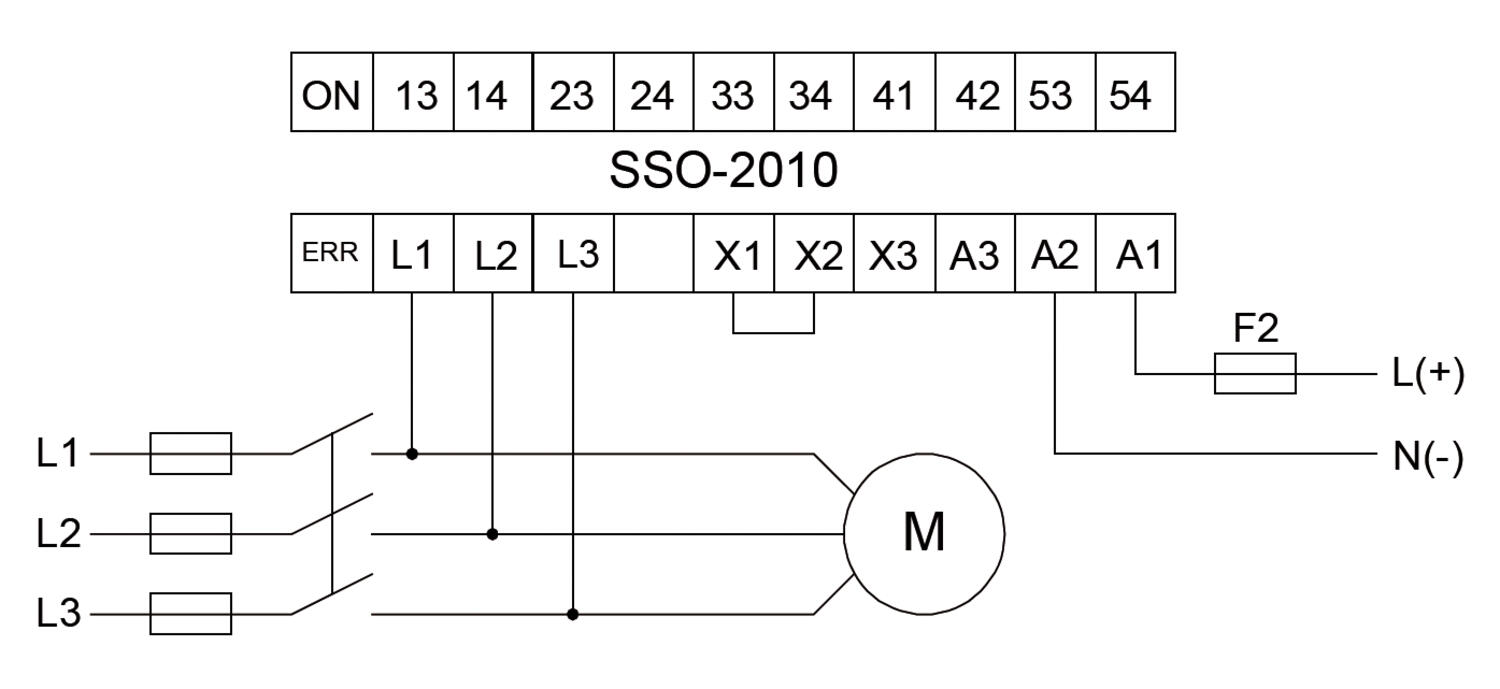

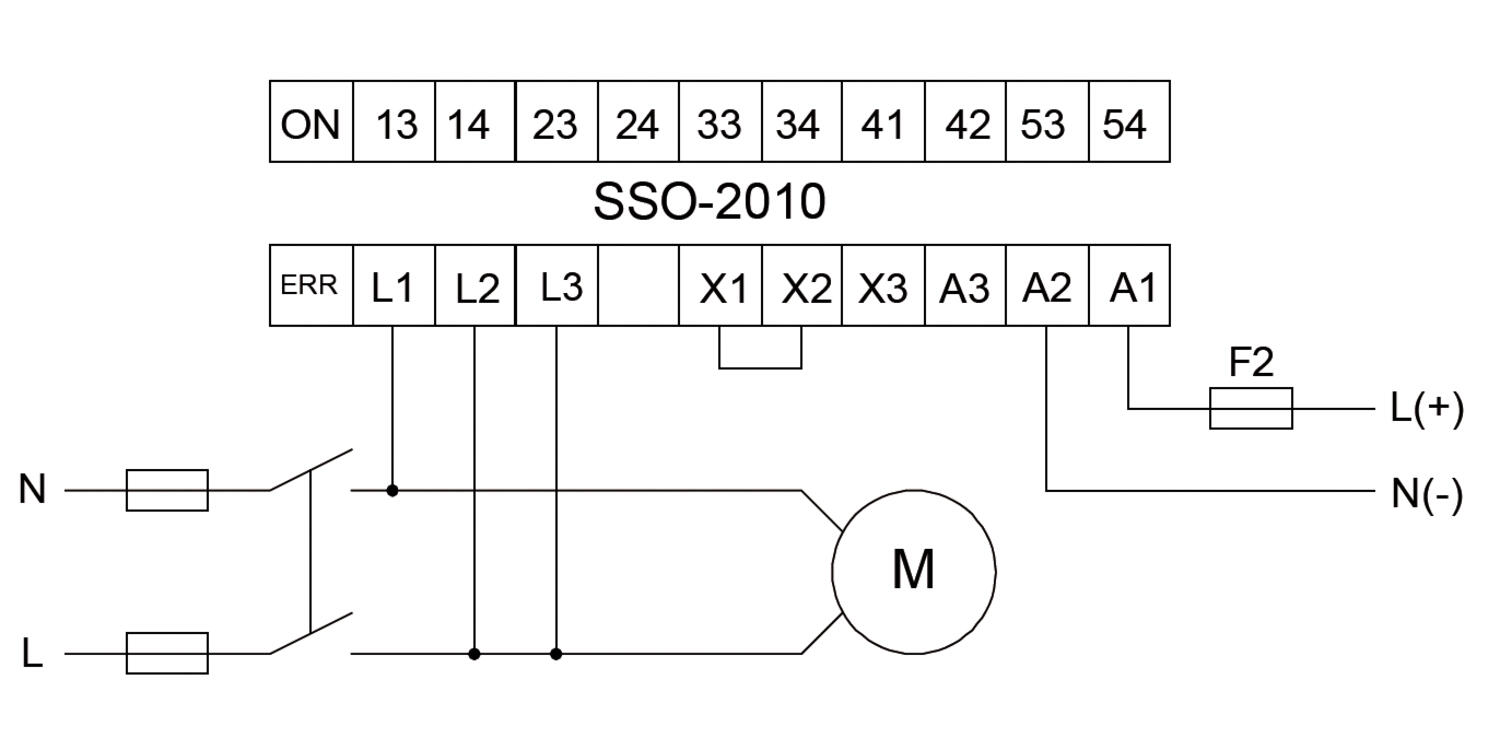

The SSO-2010 can be used for standstill detection on all 3-phase, single phase and DC motors that generate a voltage when freewheeling.
- Safety Category 4 (PLe)
- 3 NO safety outputs + 1 NC safety output
- 2 semiconductor monitoring outputs
- 1 NO monitoring output
- Delayed outputs (0 - 6 sec.)
Selected variant
Technical data
| Approvals | BG, CE |
|---|---|
| Contact current max | 5 A AC/DC |
| Contact voltage max | 250 V AC/24 V DC |
| In compliance with | EMC, LVD, MD |
| IP class connection | IP20 |
| IP class housing | IP40 |
| Motor voltage max | 690 V |
| PL | e |
| Power consumption | 3 W |
| Safety category | 4 |
|---|---|
| Safety outputs NO | 3 |
| Signal output NC | 1 |
| Supply voltage | 24 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Tolerance | ±10 % |
Product description
The SSO-2010 can be used for standstill detection on all 3-phase, single phase and DC motors that generate a voltage when freewheeling.
