Duelco NST-2009D Safety Relay with Timed Outputs
Flexible safety relay with time delayed outputs for the highest safety category.
- Safety Category 4 (PLe)
- 2 NO safety outputs + 1 NC signal output

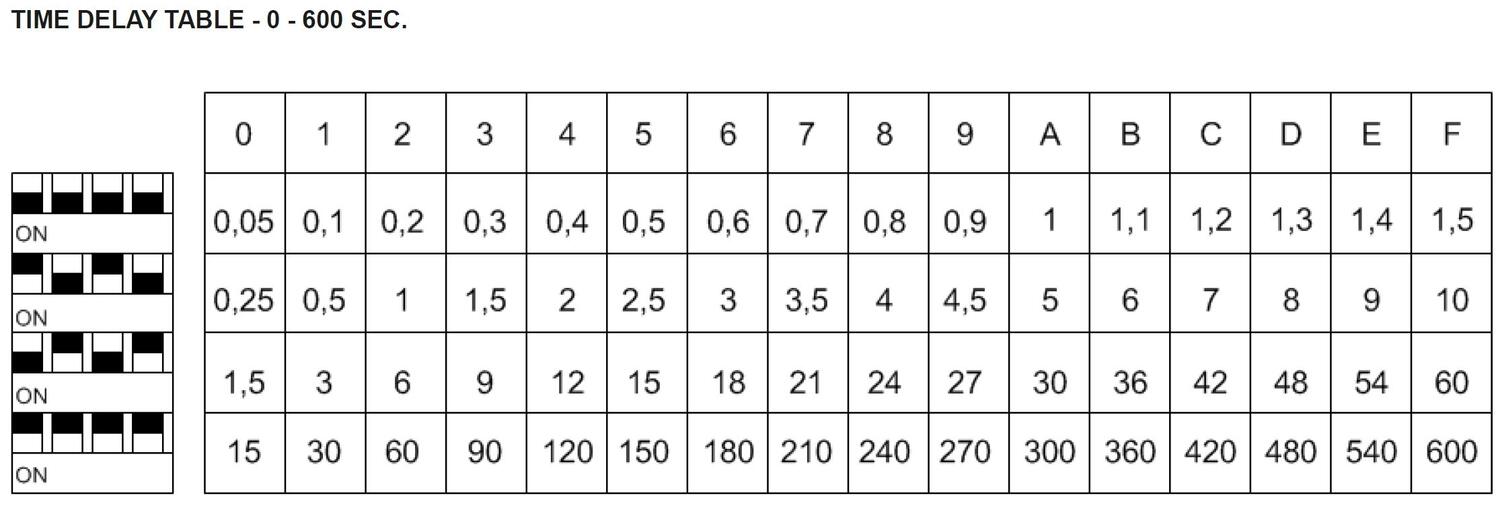

- 2 NO delayed outputs (0 - 600 sec)

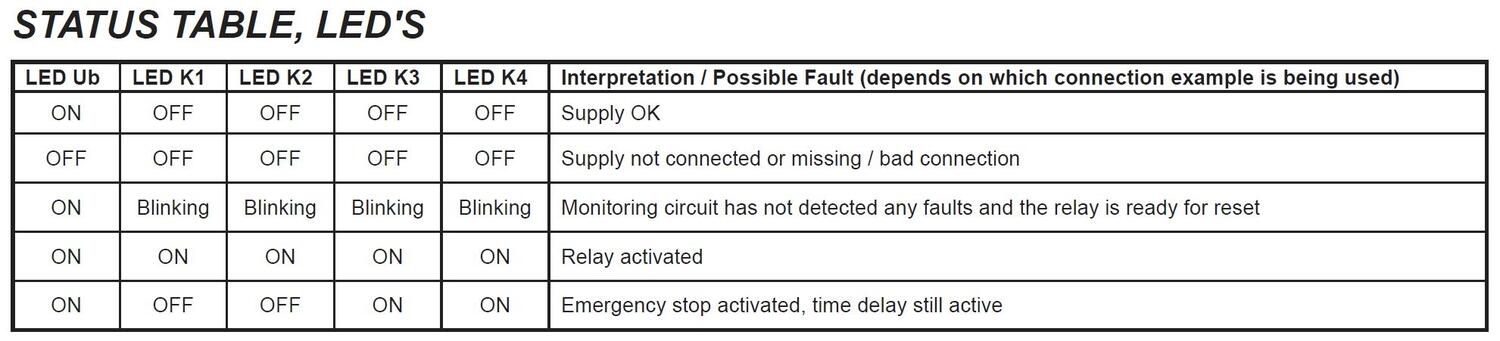

- Status-/fault indication via LEDs
- Short circuit monitoring
Selected variant
Technical data
| Approvals | CE, cULus |
|---|---|
| IP class connection | IP20 |
| IP class housing | IP40 |
| Mechanical life expectancy | 1 million |
| PL | e |
| Safety category | 4 |
| Safety outputs NO | 4 |
| Signal output NC | 1 |
|---|---|
| Supply voltage | 24V AC/DC |
| Temperature operational max | 50 °C |
| Temperature operational min | -25 °C |
| Tolerance | ±10% |
Product description
Flexible safety relay with time delayed outputs for the highest safety category.
