DUELCO
Duelco HR-2007F Two Hand Control Relay
Two-hand control relay for dangerous work processes such as punching or pressing. Verification of the operation of two control buttons within a maximum time of 0.5s. With short circuit monitoring protection.
- Safety Category 4 / Performance level e
- Type IIIC (EN 574)
- Status-/fault indication via LEDs
- 2 NO safety outputs
- Available with 230VAC and 24V AC/DC supply voltage
Selected variant
Technical data
| IP class connection | IP20 |
|---|---|
| IP class housing | IP40 |
| PL | e (EN ISO 13849-1) |
| Safety category | 4 |
| Safety outputs NO | 2 |
| Signal output NC | 1 |
| Supply voltage | 24 V AC/DC |
|---|---|
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Tolerance | ± 10 % |

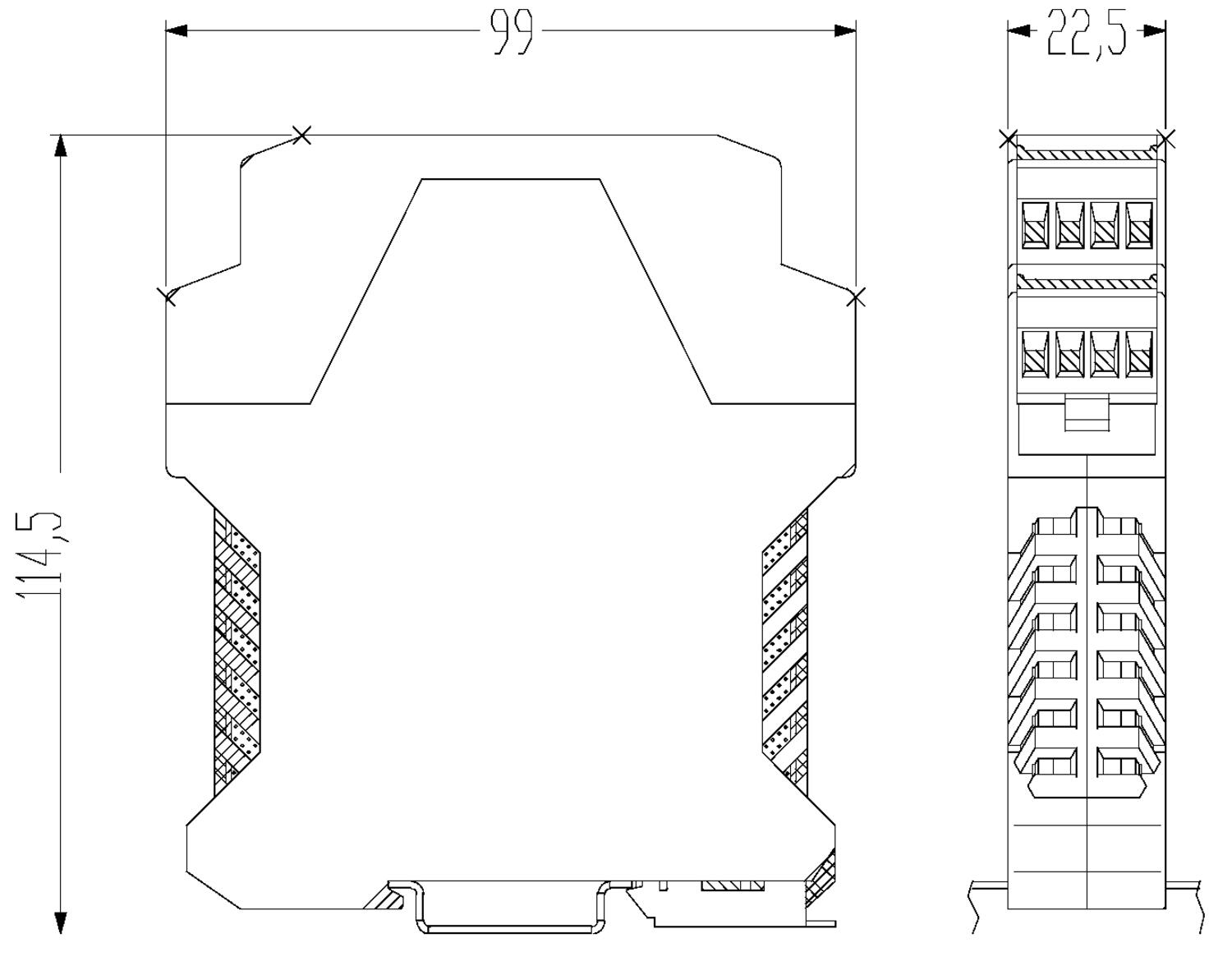

| Width | 22.5 mm |
Downloads
Product description
Two-hand control relay for dangerous work processes such as punching or pressing. Verification of the operation of two control buttons within a maximum time of 0.5s. With short circuit monitoring protection.
