DUELCO
Duelco EU-2001F Extention Module
Extension module for increasing the number of contacts. Compatible with the complete Duelco safety relay range.
Â
- Up to Safety Category 4 (PLe)
- 4 NO Safety Contact with or without delay
- 1 Transistor output
- Status/fault indication via LEDs
Selected variant
Technical data
| IP class connection | IP20 |
|---|---|
| IP class housing | IP40 |
| Mechanical life expectancy | >10 million |
| PL | e |
| Safety category | 4 |
| Safety outputs NO | 4 |
| Supply voltage | 24 V DC |
|---|---|
| Temperature operational max | 50 °C |
| Temperature operational min | 0 °C |
| Tolerance | ±10% |

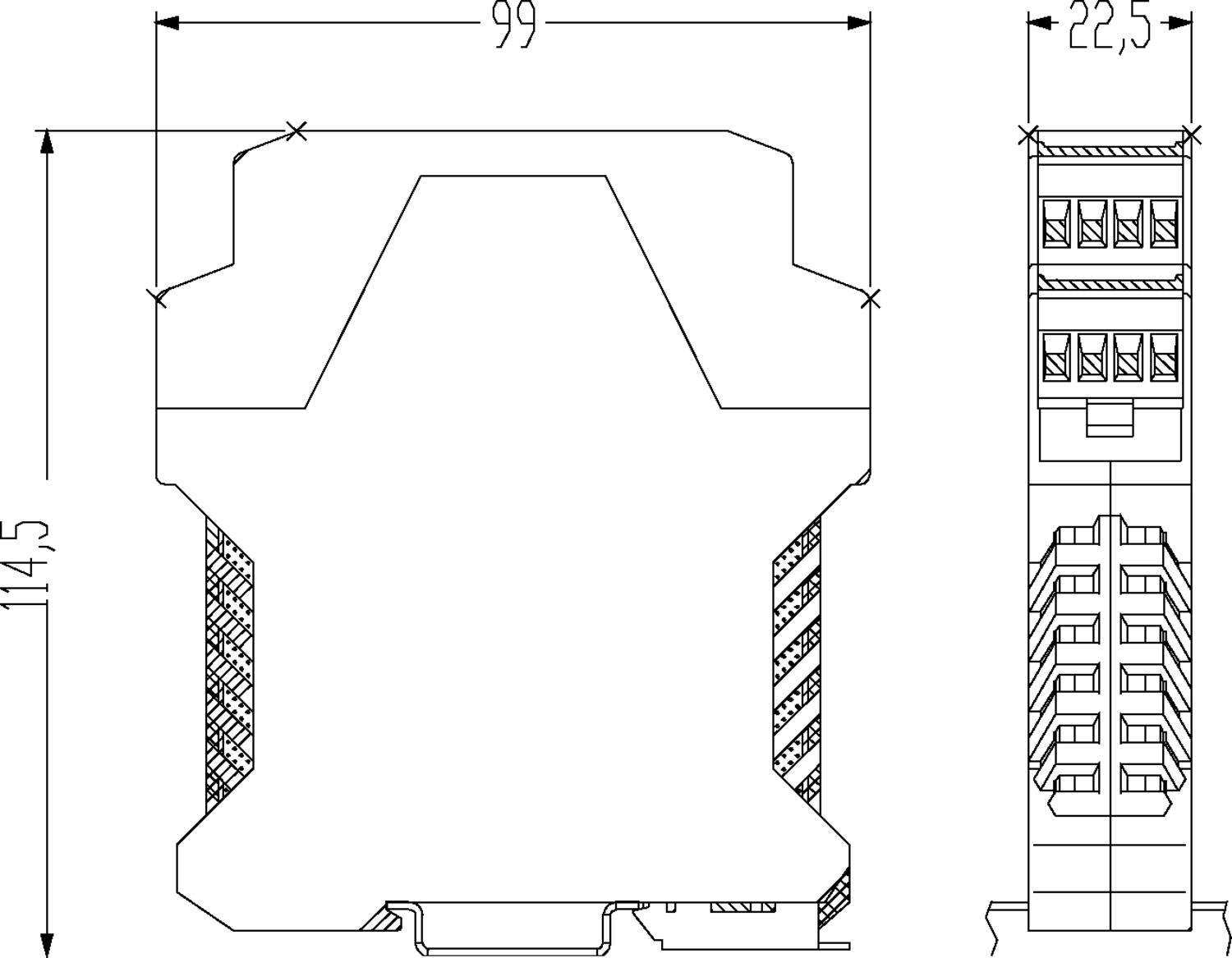

| Width | 22.5 mm |
Downloads
Product description
Extension module for increasing the number of contacts. Compatible with the complete Duelco safety relay range.
Â
