DUELCO
Duelco - NST-3.2 Safety Relay
Small emergency stop relay for monitoring of emergency stop and other safety components.
- Safety Category 3 (PLd)
- 3 NO safety outputs
- 1 NC output
- Status/fault indication via LEDs
- Short circuit monitoring
Selected variant
Technical data
| Approvals | CE |
|---|---|
| IP class connection | IP20 |
| IP class housing | IP40 |
| Mechanical life expectancy | > 10 million |
| PL | d (EN ISO 13849-1) |
| Reset type | Automatic/manual |
| Safety category | 3 |
| Safety outputs NO | 3 |
| Signal output NC | 1 |
|---|---|
| Supply voltage | 12V DC |
| Temperature operational max | 50 °C |
| Temperature operational min | -30 °C |
| Tolerance | ±10% |

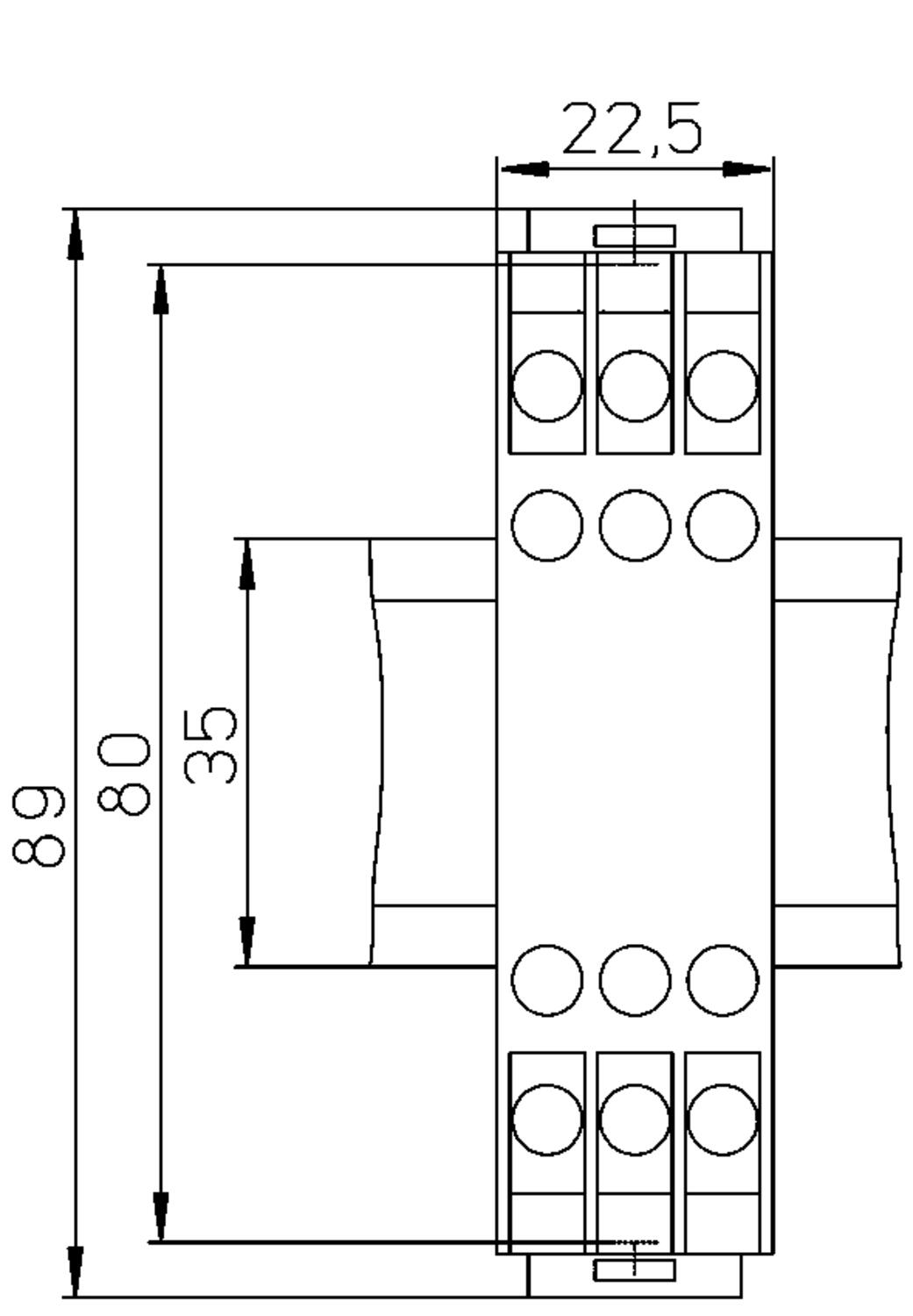

| Width | 22.5 mm |
Product description
Small emergency stop relay for monitoring of emergency stop and other safety components.
