DUELCO

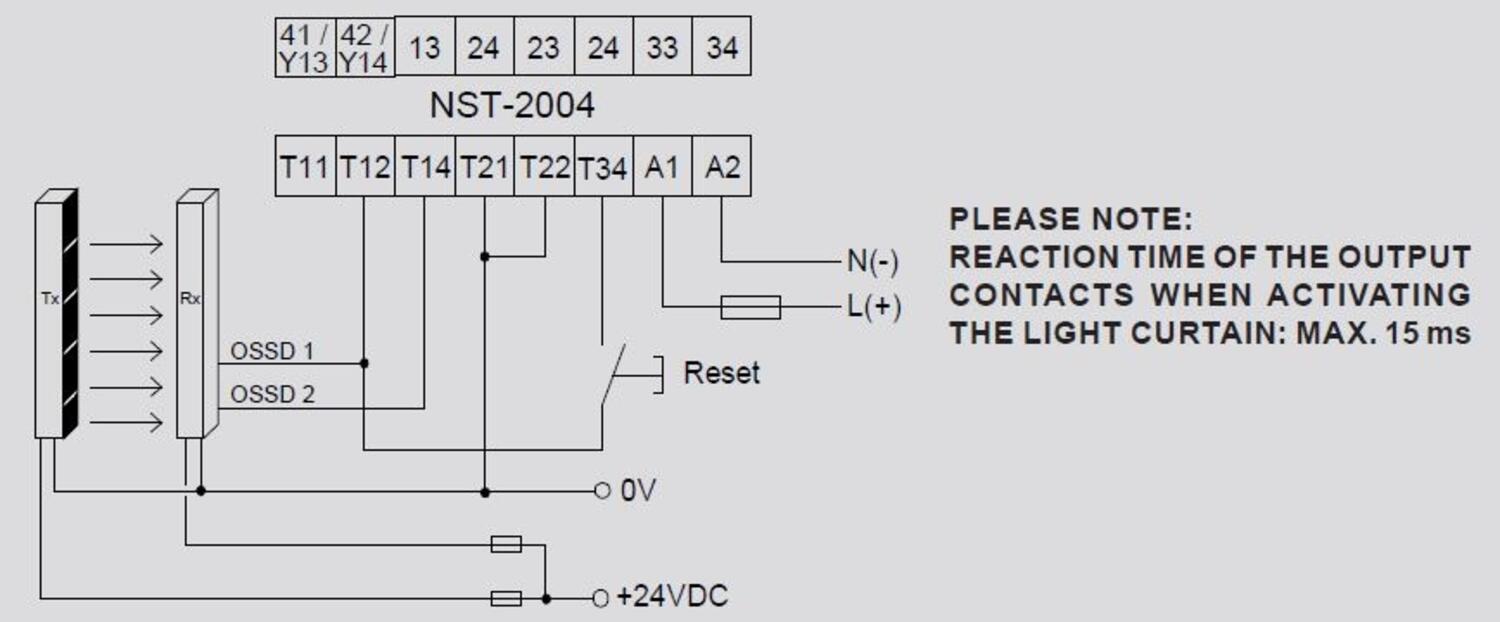

One of the most common relays in our safety relay range. Suitable for most applications including switches, light curtains and non contact switches. Transistor output for PLC monitoring.
Â
| Approvals | CE |
|---|---|
| IP class connection | IP20 |
| IP class housing | IP40 |
| Mechanical life expectancy | > 10 million |
| PL | e (EN ISO 13849-1) |
| Reset type | Automatic/manual, Manual monitored |
| Safety category | 4 |
| Safety outputs NO | 3 |
| Signal output NC | 1 |
|---|---|
| Supply voltage | 24V DC |
| Temperature operational max | 60 °C |
| Temperature operational min | -25 °C |
| Tolerance | ±10% |

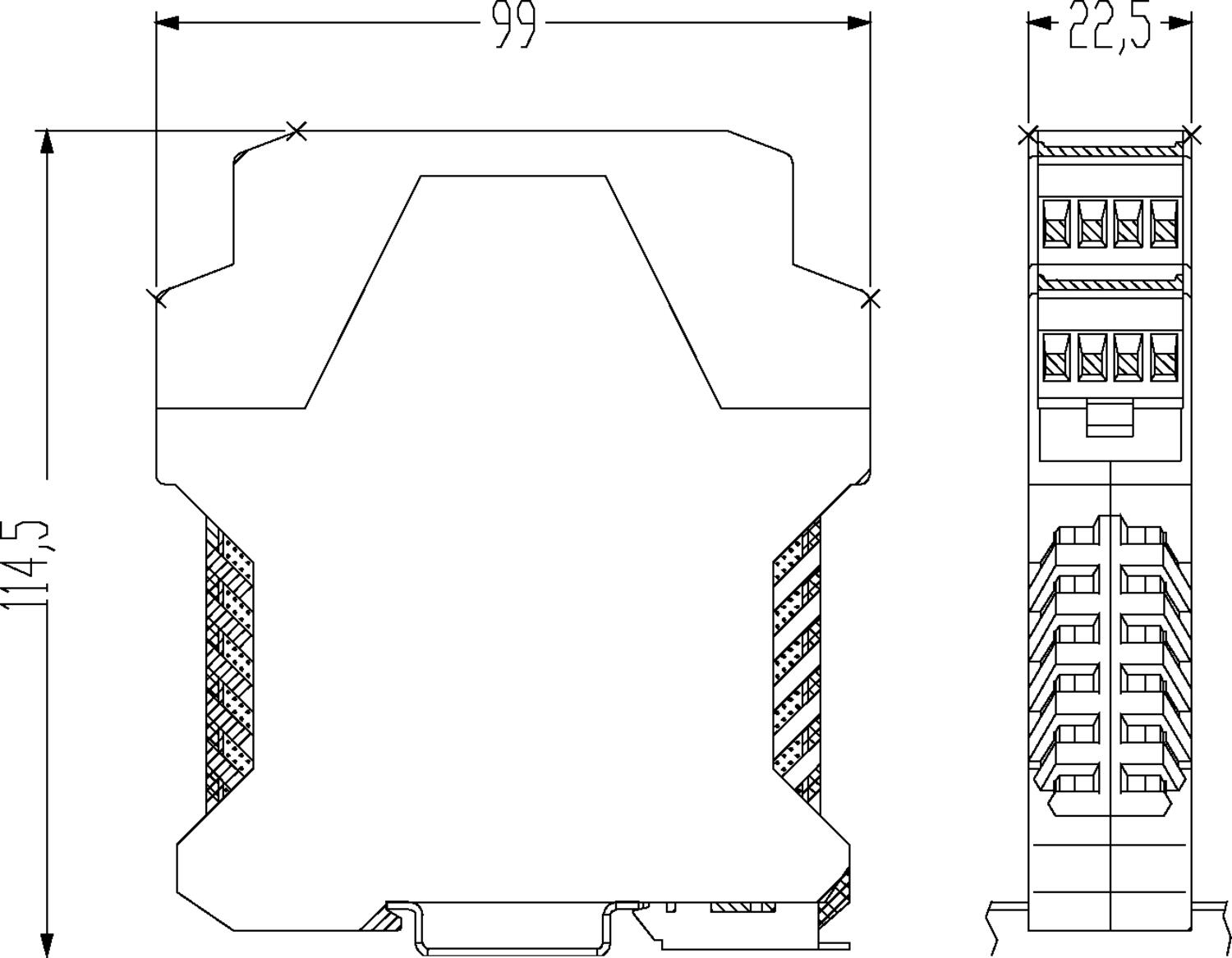

| Width | 22.5 mm |
One of the most common relays in our safety relay range. Suitable for most applications including switches, light curtains and non contact switches. Transistor output for PLC monitoring.
Â
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | PL | Reset type | Supply voltage | Width | Price | ||
|---|---|---|---|---|---|---|---|
NST2004F Cat.4 Emergency Stop Relay 24Vdc
Art:
42010204
Copied
|
e (EN ISO 13849-1)
|
Automatic/manual, Manual monitored
|
24V DC
|
22.5 mm
|
|
||
|
NST2004D Cat.4 Emergency Stop Relay NST-2004F 8-36Vdc
Art:
42011204
Copied
|
e
|
|
24V DC
|
|
|
||
|
NST2004F Cat.4 Emergency Stop Relay 24Vdc
Art:
42012301
Copied
|
e (EN ISO 13849-1)
|
Automatic/manual, Manual monitored
|
230V AC
|
22.5 mm
|
|
||
|
NST2004F Cat.4 Emergency Stop Relay NST-2004F 8-36Vdc
Art:
42010205
Copied
|
e (EN ISO 13849-1)
|
Automatic/manual, Manual monitored
|
8-36V DC
|
22.5 mm
|
|
Select a variant in the list
