Datalogic - Safety relay CSME

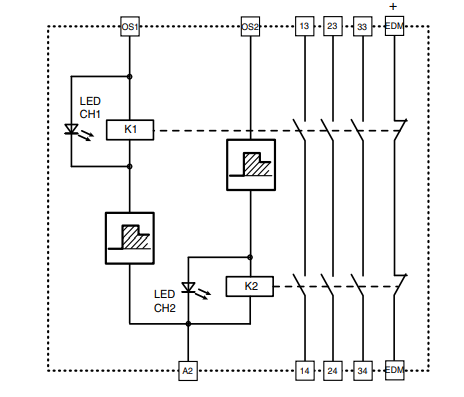

Datalogic safety relay CSME is a low cost safety relay who can be used together with all SG and SE series light curtains that have EDM function (External Device Monitoring). CSME relay does not have internal monitoring so EDM control is compulsory.

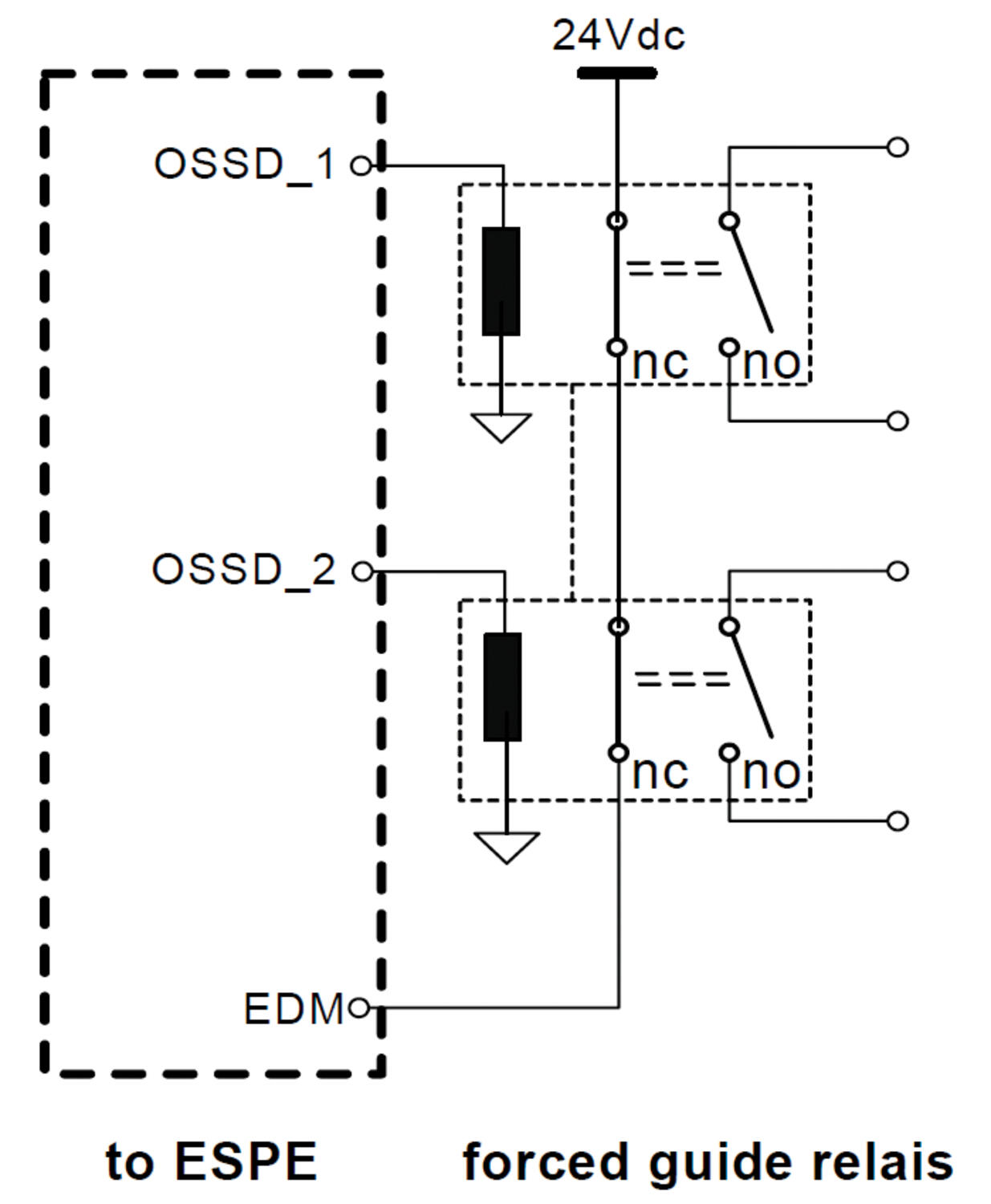

By CSME safety relay the OSSD´s from safety light curtain can be changed to potential free relay contacts.

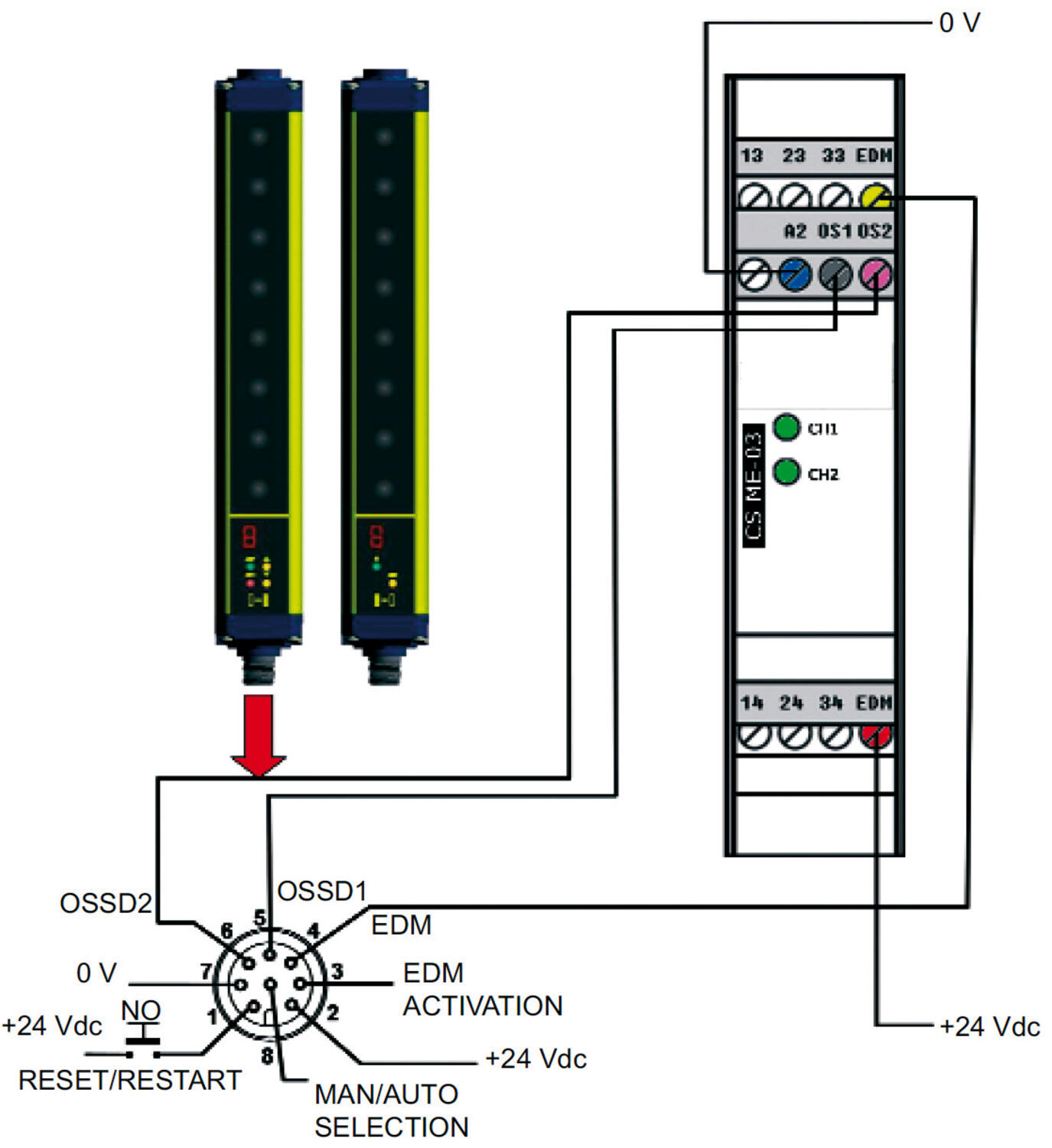

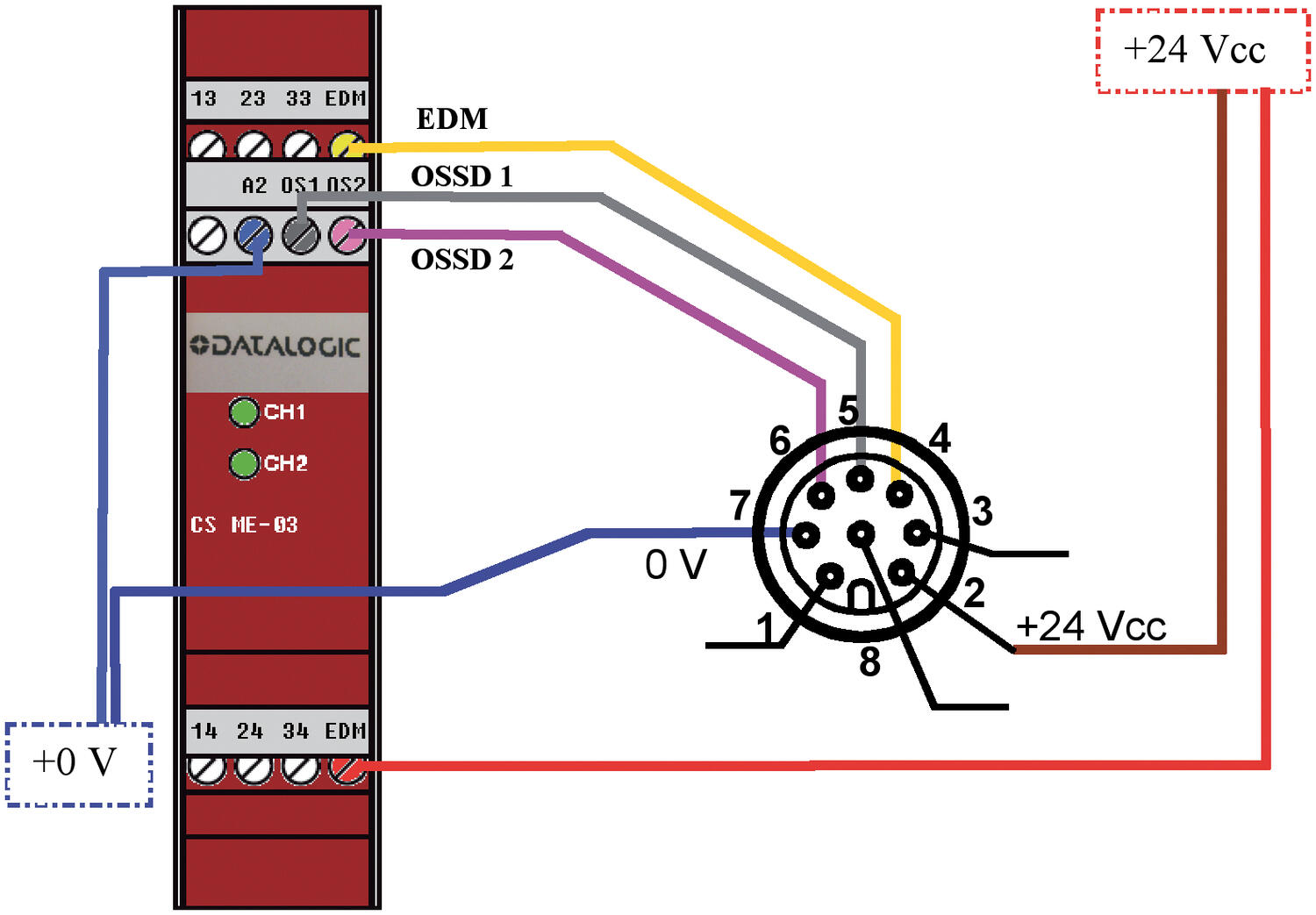

With proper EDM connection it maintain the same safety level as safety light curtain who is connected to CSME relay.
- Cost effective safety relay
- 3 NO safety relay outputs, need EDM control
- 2 inputs for OSSD´s
Selected variant
Technical data
| Contact current max | 6 A |
|---|---|
| Contact voltage max | 230/240 V AC, 300 VDC |
| Dimension (mm) | 91 x 99 x 22.5 mm |
| IP class connection | IP20 |
| IP class housing | IP40 |
| Material protection | Polyamide 6.6 |
| Mounting | DIN rail |
| Power consumption | <2 W max. |
|---|---|
| Response time | 40 ms |
| Supply voltage | 24 V DC |
| Tolerance | ± 15 % |
| Weight | 200 g |
Product description
Datalogic safety relay CSME is a low cost safety relay who can be used together with all SG and SE series light curtains that have EDM function (External Device Monitoring). CSME relay does not have internal monitoring so EDM control is compulsory.
By CSME safety relay the OSSD´s from safety light curtain can be changed to potential free relay contacts.
With proper EDM connection it maintain the same safety level as safety light curtain who is connected to CSME relay.
