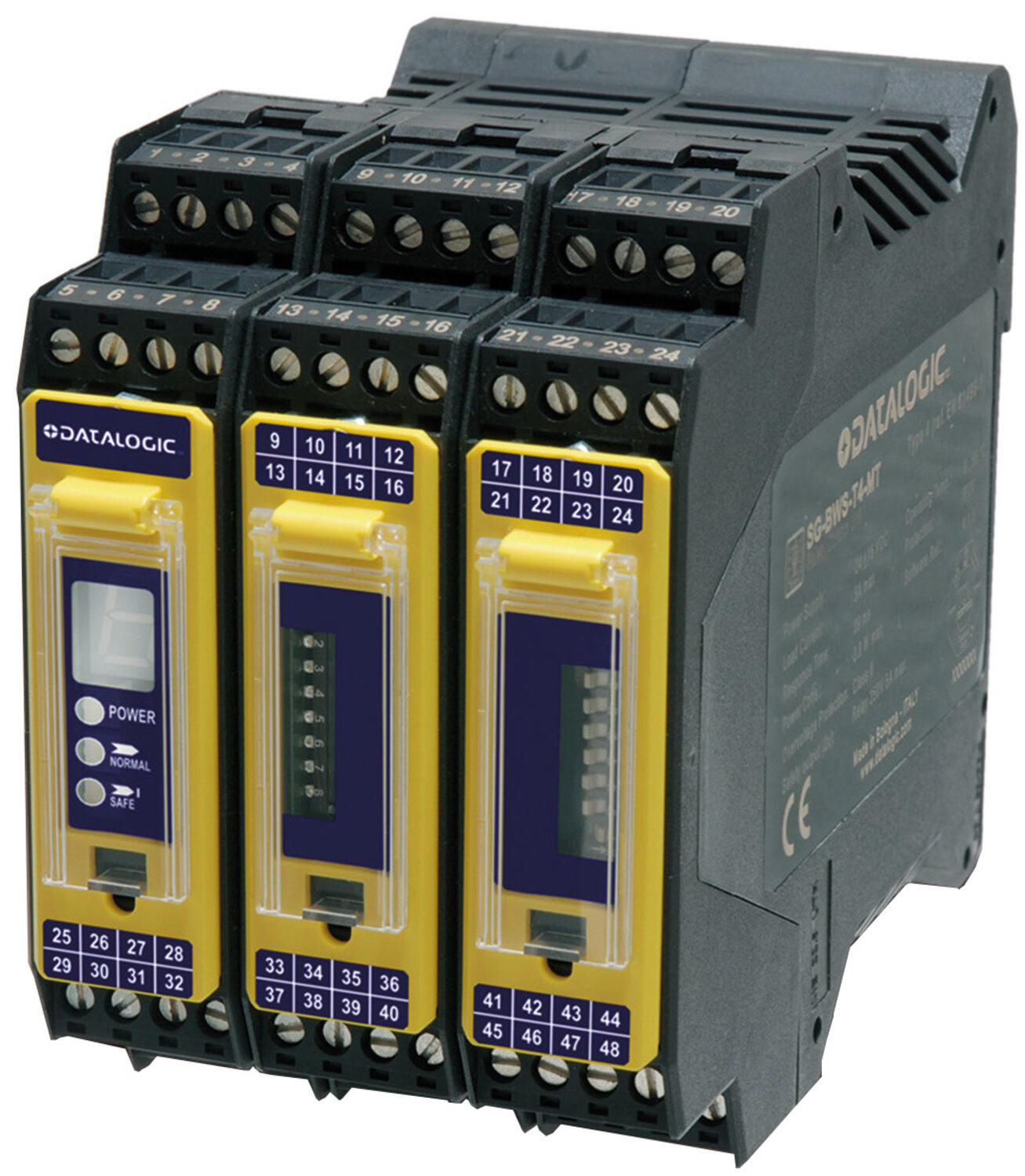

Datalogic - Control unit SG-BWS-T4-MT

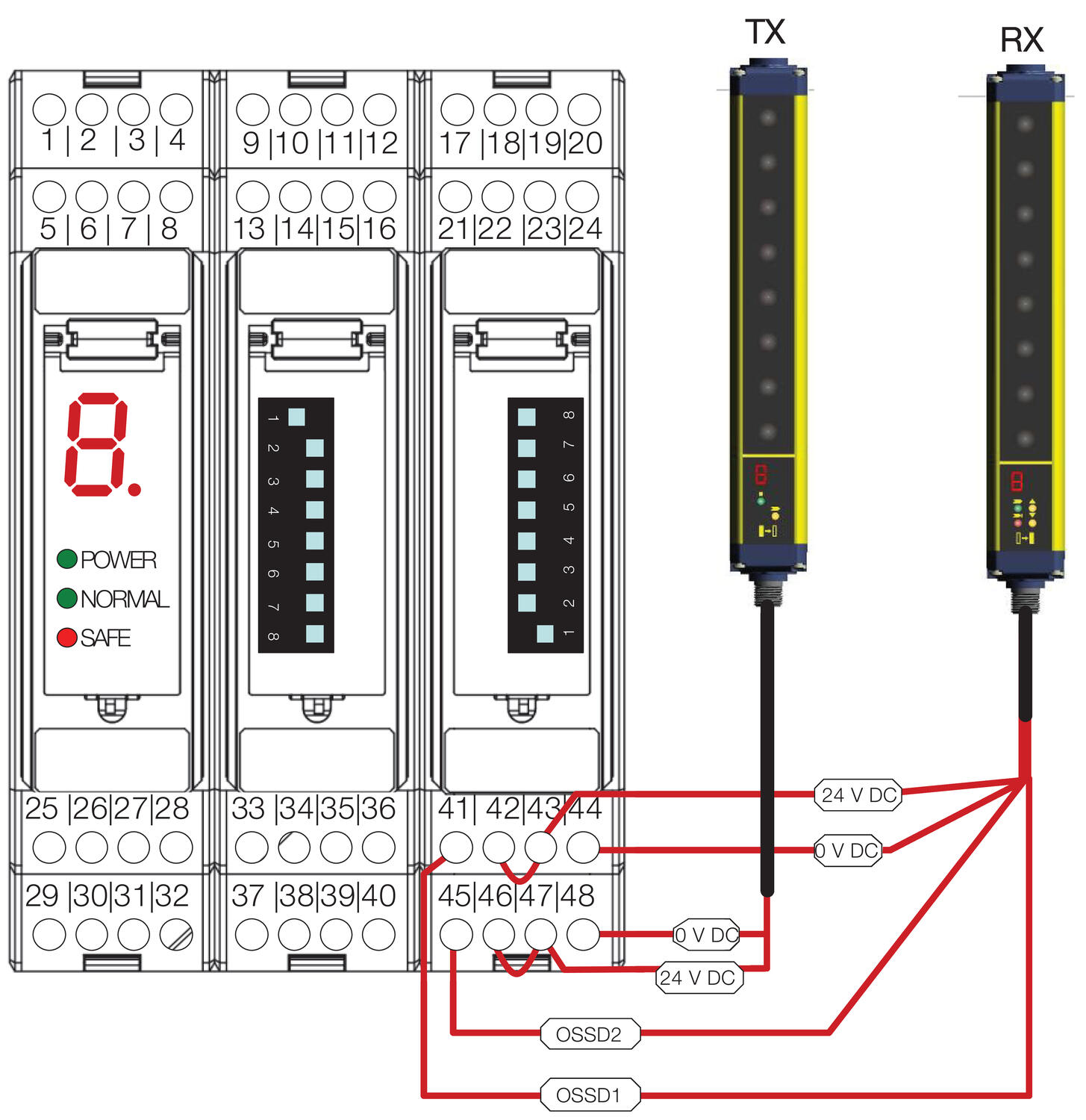

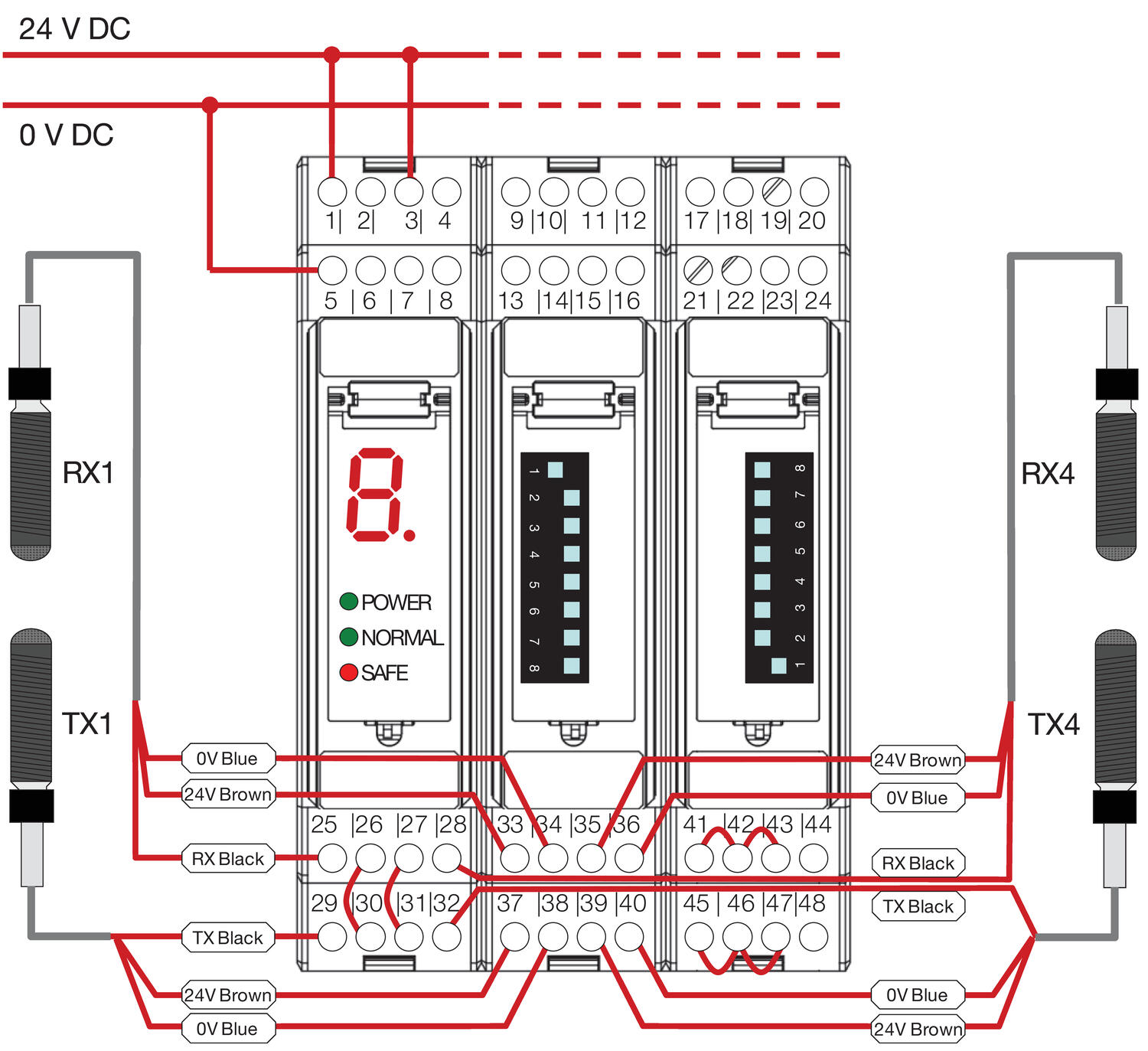

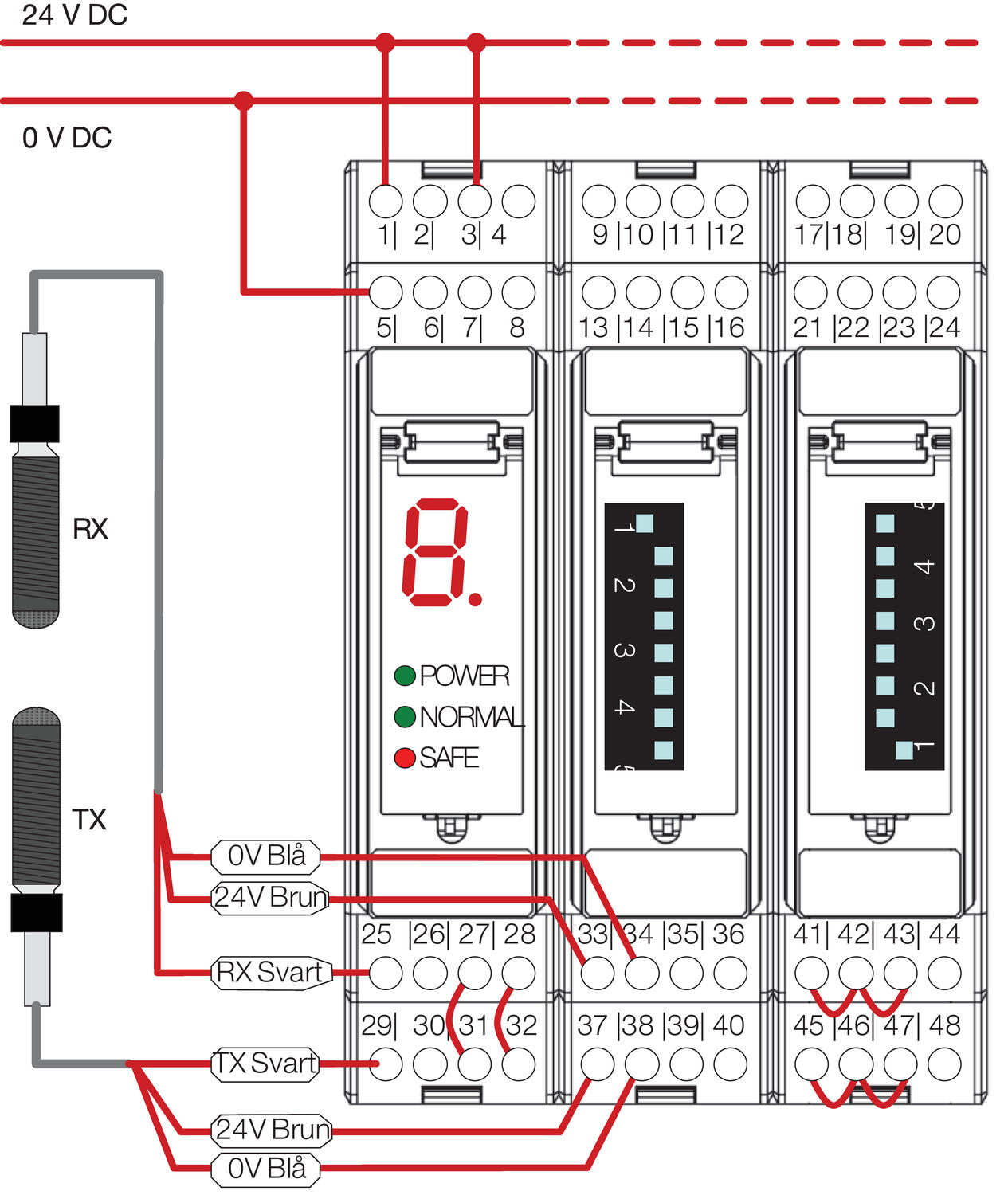

Control unit that up to four pairs of safety photocells can be connected to, as well as two external light beam protectors or other safety components with OSSD outputs.

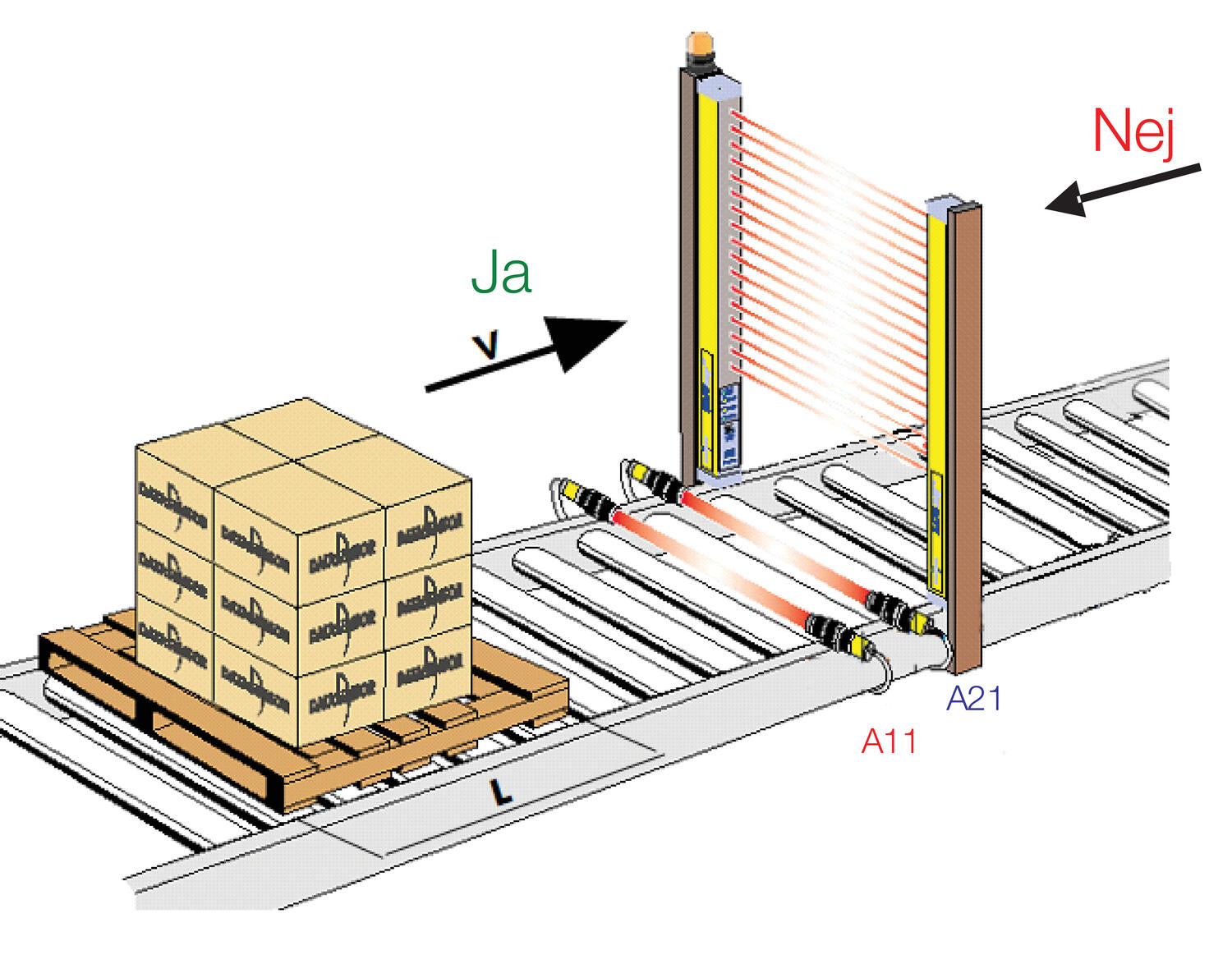

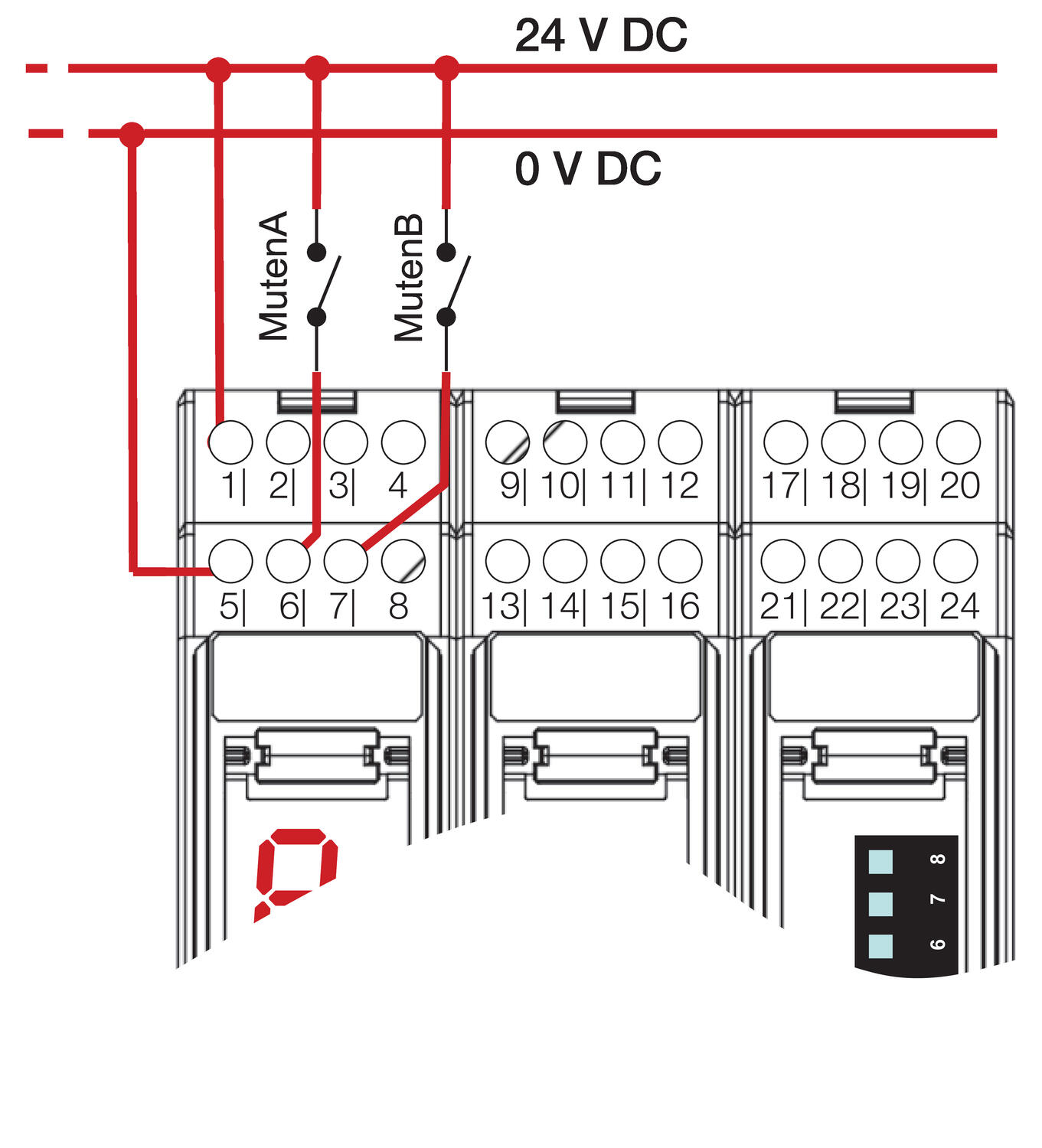

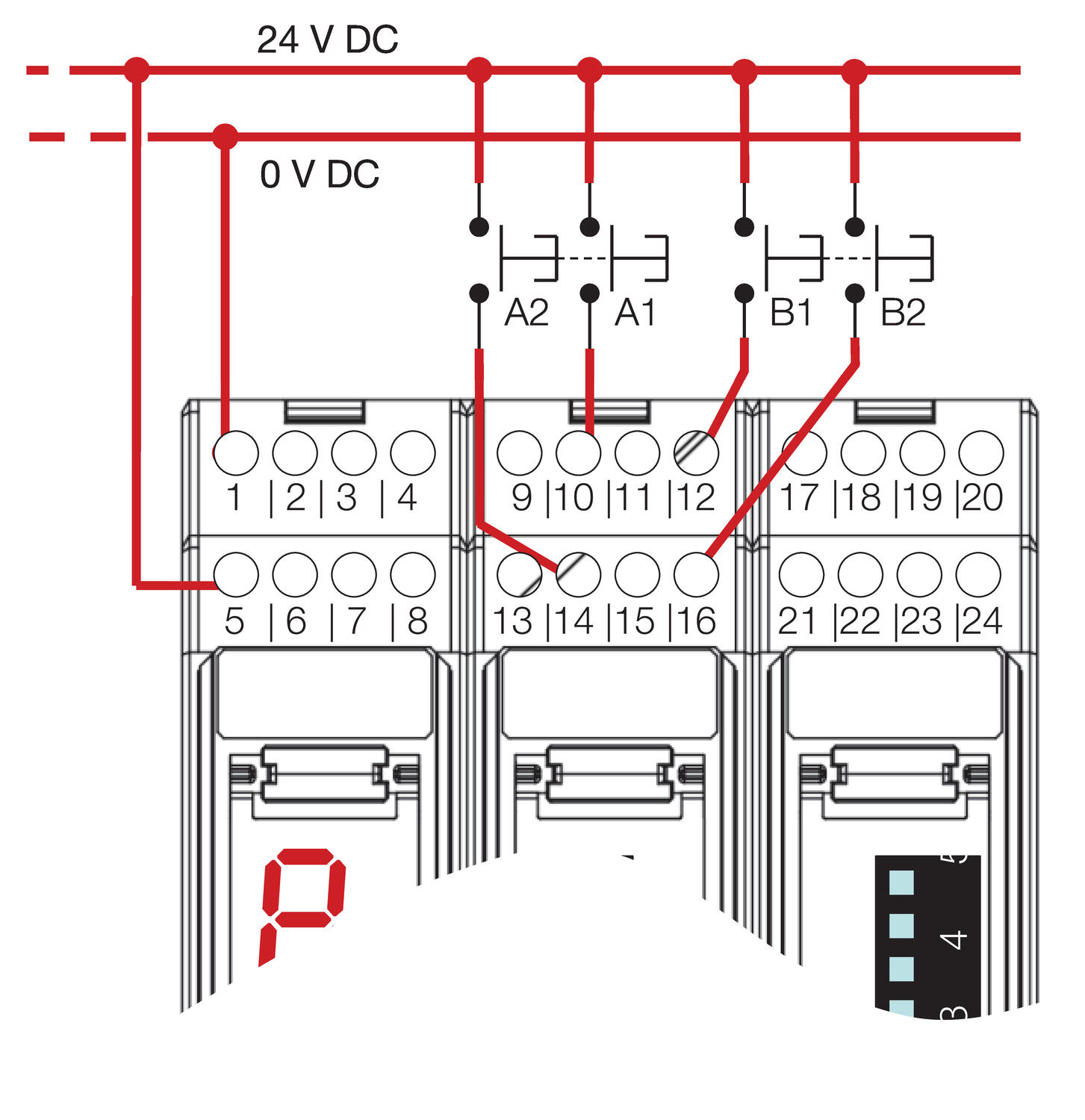

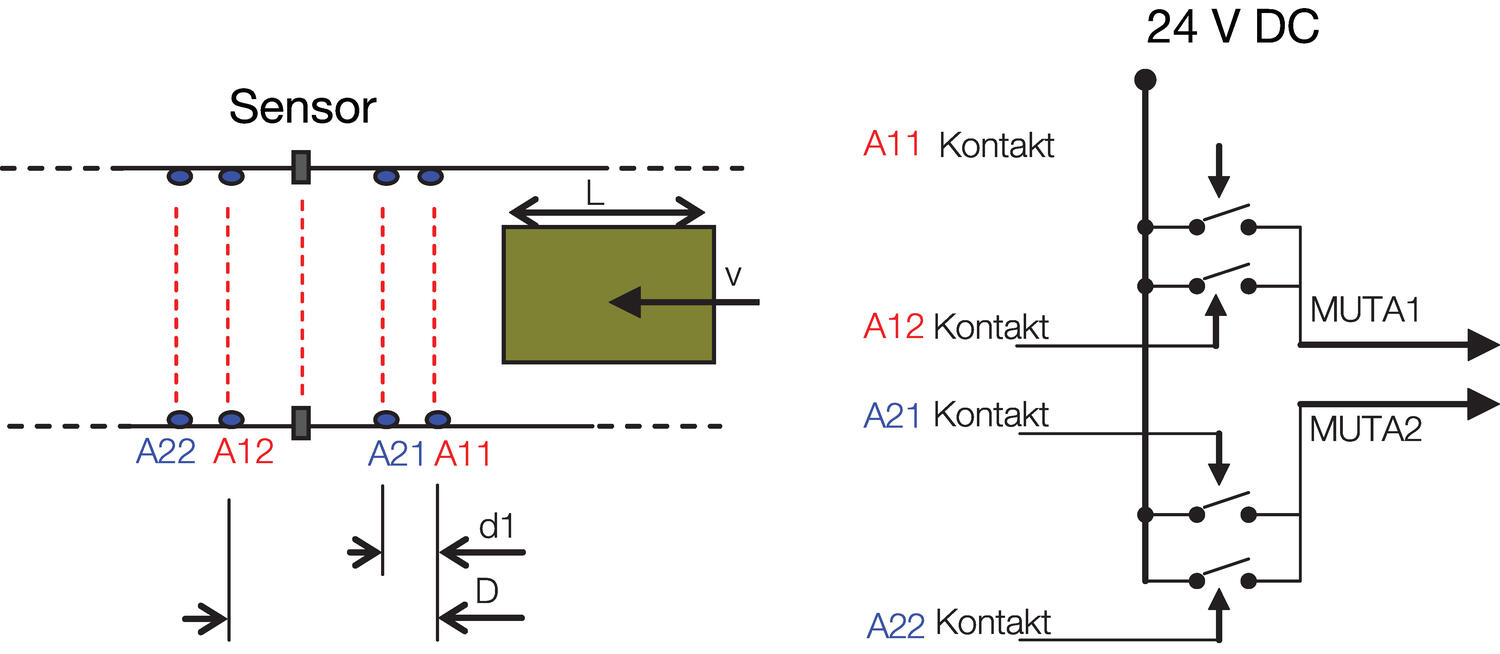

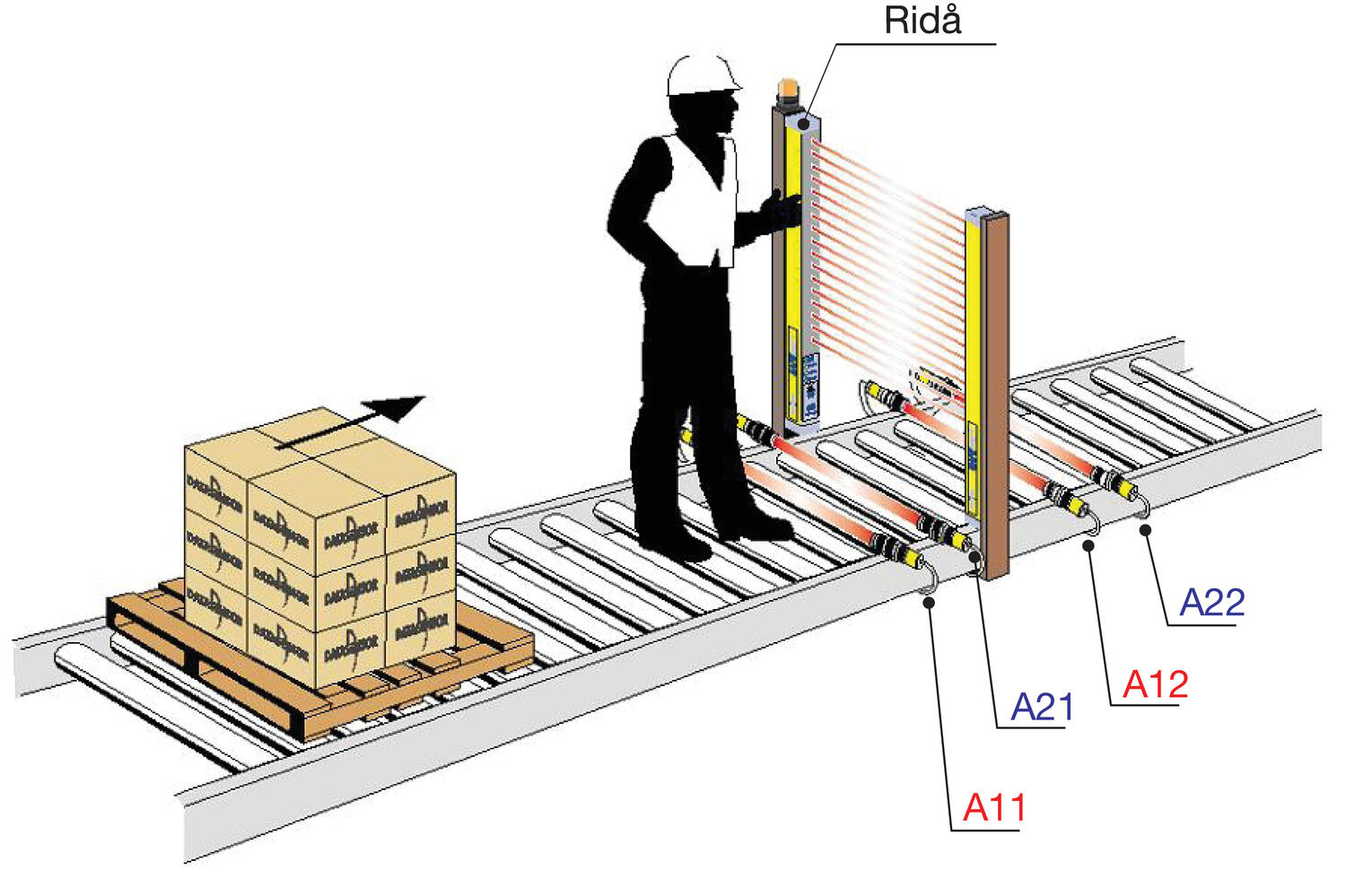

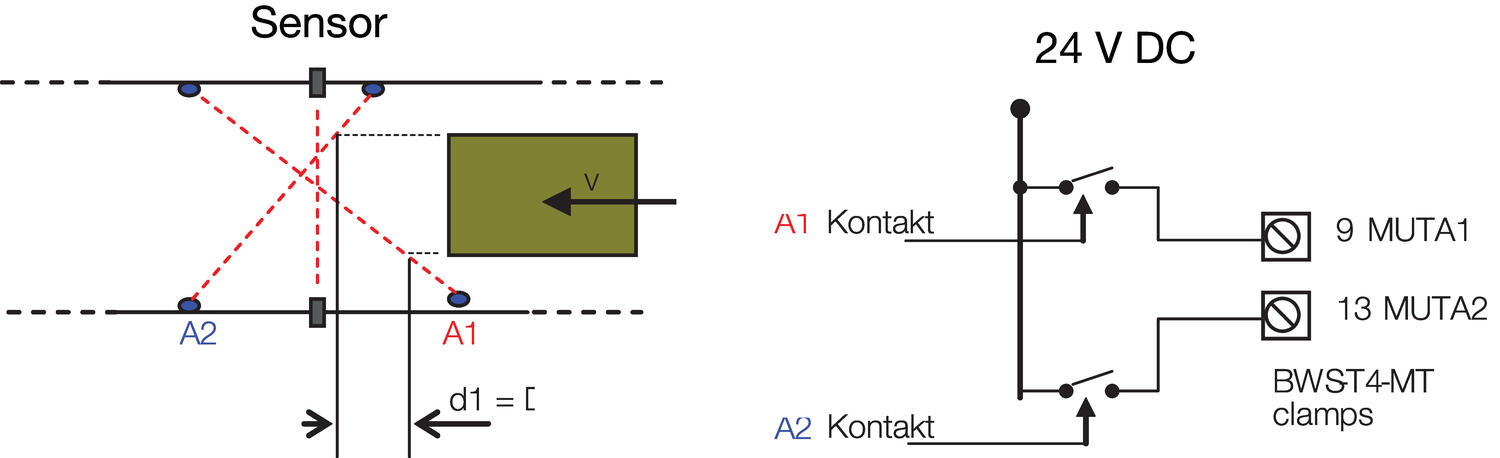

There are two separate muting inputs which permit two different zones to be muted independently. An inbuilt override function allows the movement of goods that have fastened in the protective field. The control unit has two NO secure outputs. There is a 7 segment LED display for status and diagnostics on the front display.
- Up to four pairs of safe photocells and two pairs of light beam protectors
- Muting
- 2 NO secure outputs
- Removable coded terminals
Selected variant
Technical data
| Approvals | CE, cULus, TÜV |
|---|---|
| Cable length max | 50 m |
| DC | 99 % |
| In compliance with | EMC, LVD, MD |
| IP class | IP20 |
| Material of body | Nylon |
| MTTFd | 183 year(s) |
| Output current max | 3.6 A |
| PL | e (EN ISO 13849-1) |
| Power consumption | 3,8 W max |
| Power consumption | 3.8 W |
| SIL | 3 (EN IEC 62061) |
|---|---|
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 24 V DC |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Weight | 370 g |
| Voltage tolerance | ±15 % |
Product description
Control unit that up to four pairs of safety photocells can be connected to, as well as two external light beam protectors or other safety components with OSSD outputs.
There are two separate muting inputs which permit two different zones to be muted independently. An inbuilt override function allows the movement of goods that have fastened in the protective field. The control unit has two NO secure outputs. There is a 7 segment LED display for status and diagnostics on the front display.
