Datalogic - Control unit SG-BWS-T4

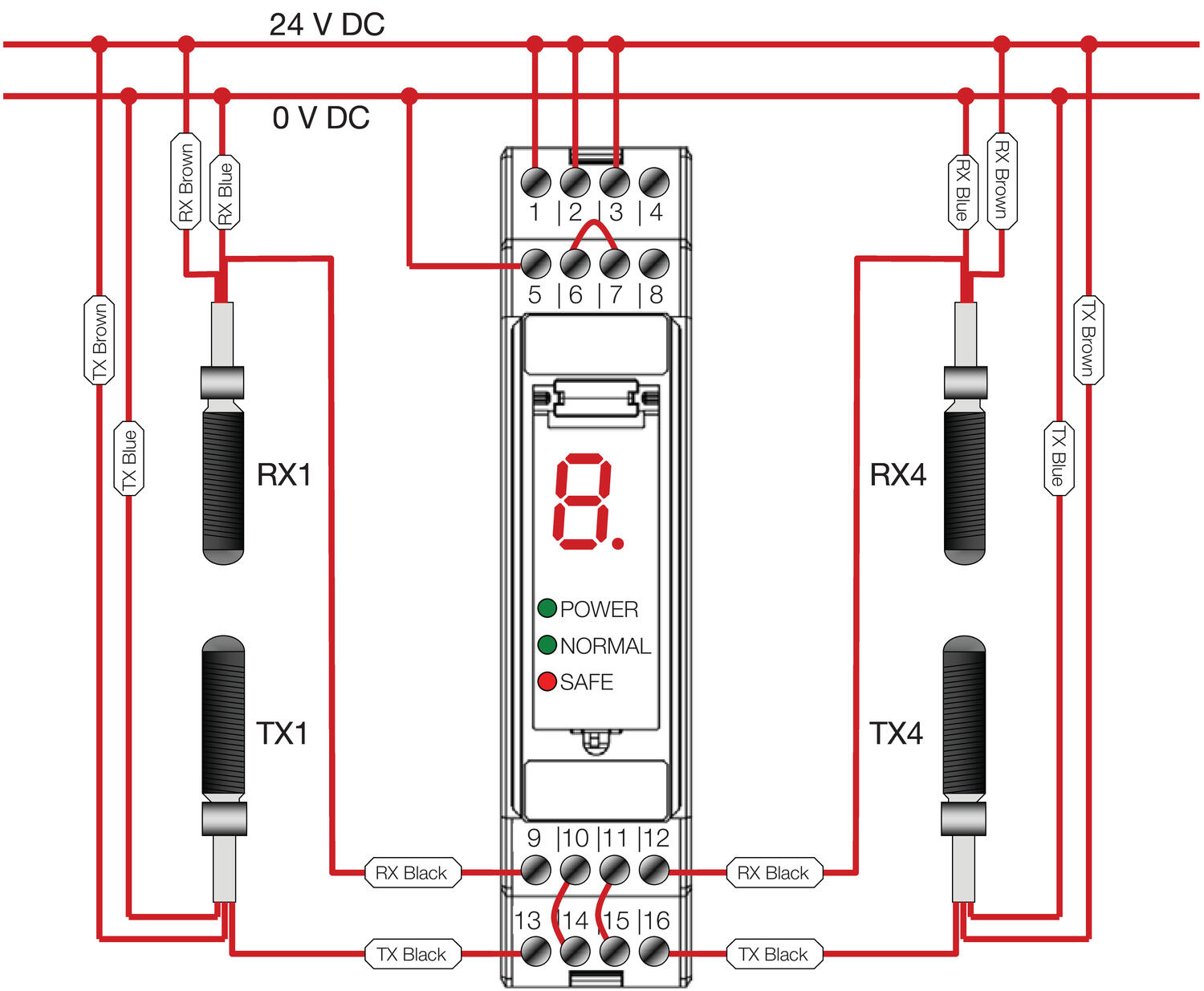

Control unit allowing connection of up to four pairs of safe photocells to obtain four safe light beams for either two double-beam protective fields or one four-beam protective field.

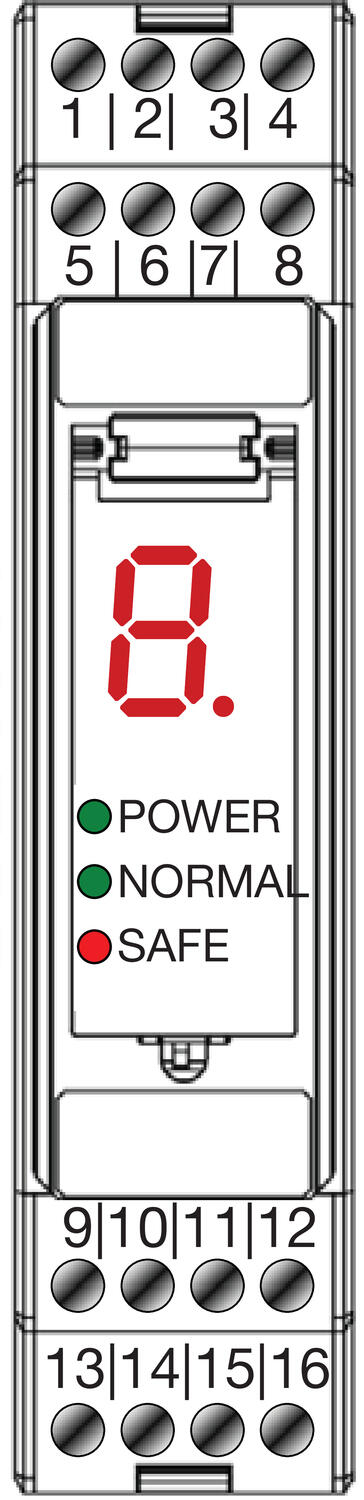

The control unit has two PNP outputs and removable, coded terminals. There is a 7 segment LED display for status and diagnostics on the front.
- Up to four pairs of safe photocells

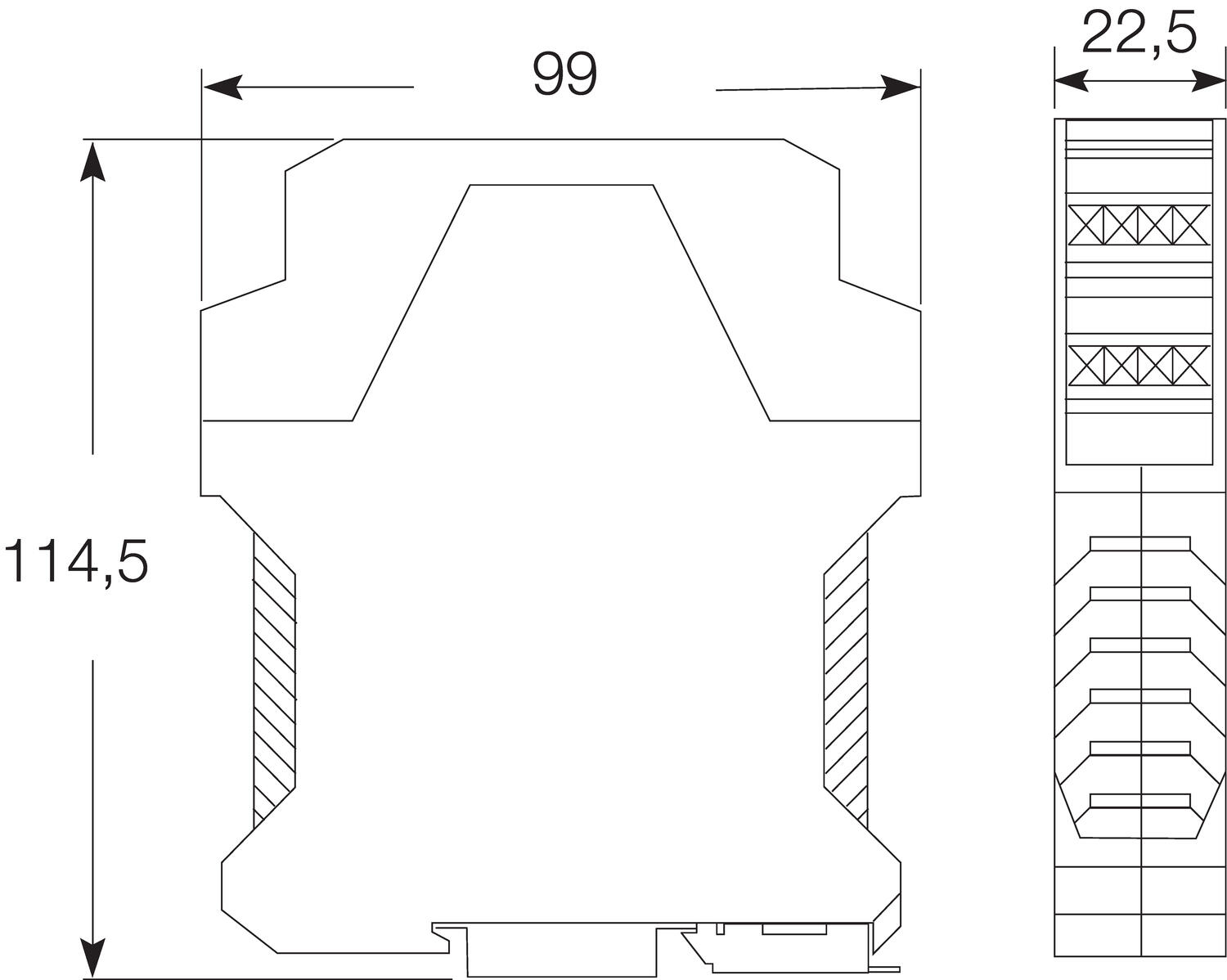

- Compact relay, only 22.5 mm enclosure
- 2 NO PNP Outputs
- Removable coded terminals
Selected variant
Technical data
| Approvals | CE, cULus, TÜV |
|---|---|
| Cable length max | 50 m |
| Contact current max | 0.5 A |
| DC | 99 % |
| In compliance with | EMC, LVD, MD |
| IP class | IP20 |
| MTTFd | 201 year(s) |
| PL | e (EN ISO 13849-1) |
| Power consumption | 2,1 W max |
| SIL | 3 (EN IEC 62061) |
|---|---|
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 24 V DC |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Voltage tolerance | ±15 % |
Product description
Control unit allowing connection of up to four pairs of safe photocells to obtain four safe light beams for either two double-beam protective fields or one four-beam protective field.
The control unit has two PNP outputs and removable, coded terminals. There is a 7 segment LED display for status and diagnostics on the front.
