Datalogic - Protective housing SG-IP69K
Datalogic SG-IP69K protective housing is a PMMA acrylic tube to protect and seal light curtains of SG2-B, SG2-E, SG4-B and SG BODY COMPACT series. Thanks to SG-IP69K accessory the IP protection of the light curtain is increased from IP65 to IP67, IP68 and IP69K.
Â

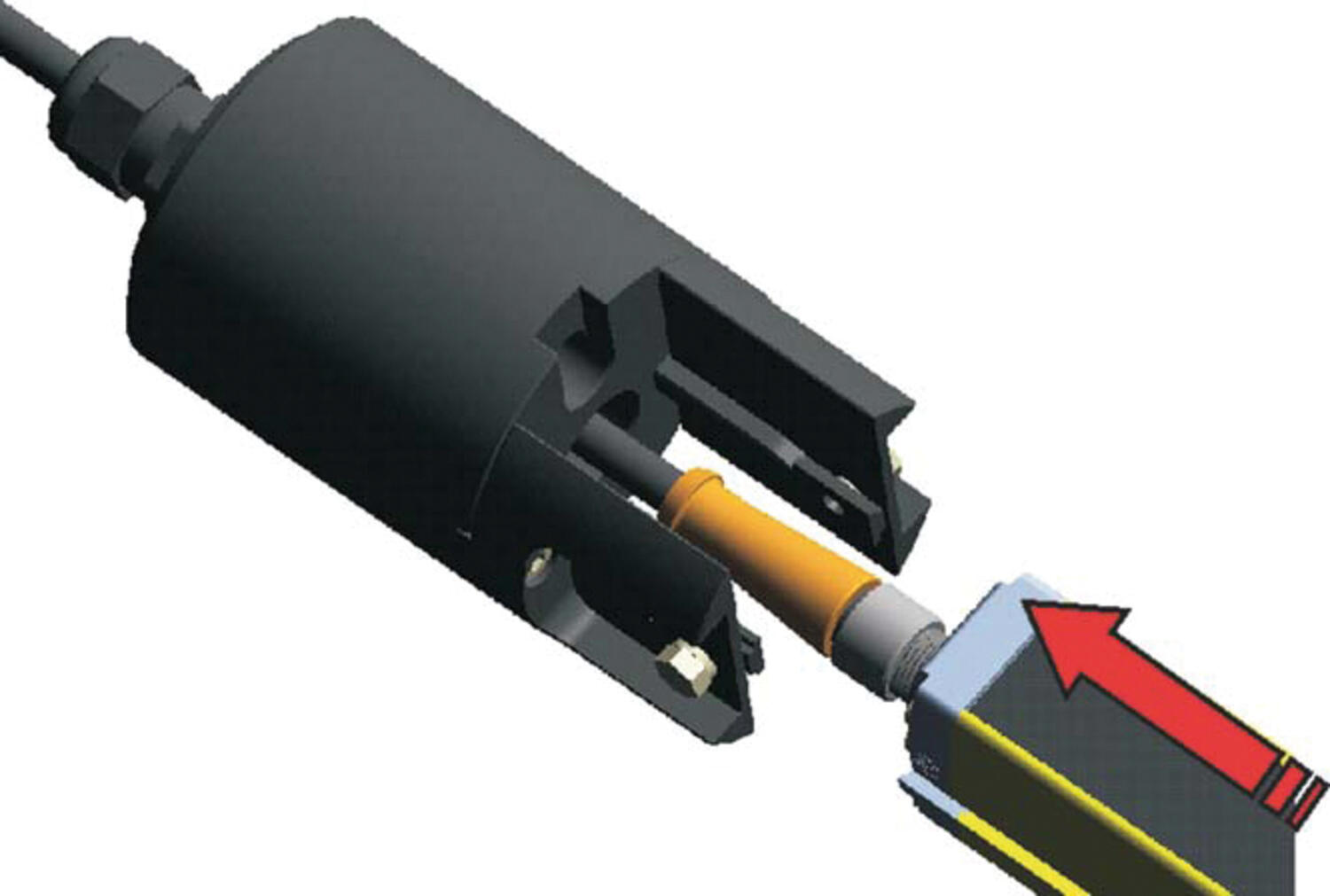

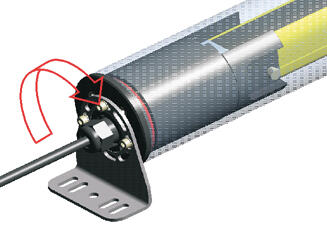

The Gore-Tex membrane on the caps prevents water or dirt entering as well as internal condensation. The connection cable for the light curtain is protected and kept in its place by a M16 metric chock that prevents the entry of water or dirt.
Â
The SG-IP69K accessory is particularly suitable where high levels of humidity and temperature are present and machines or equipments are frequently washed with hot water (up to 80°C) at high pressure (up to 100 bars) and/or cleaned with detergents.
SG-IP69K is particularly suitable for FOOD industry applications:
·beverage production
·meat slaughter
·sausage production
·milk/cheese industryÂ
Â
Â
- IP69K protective housing

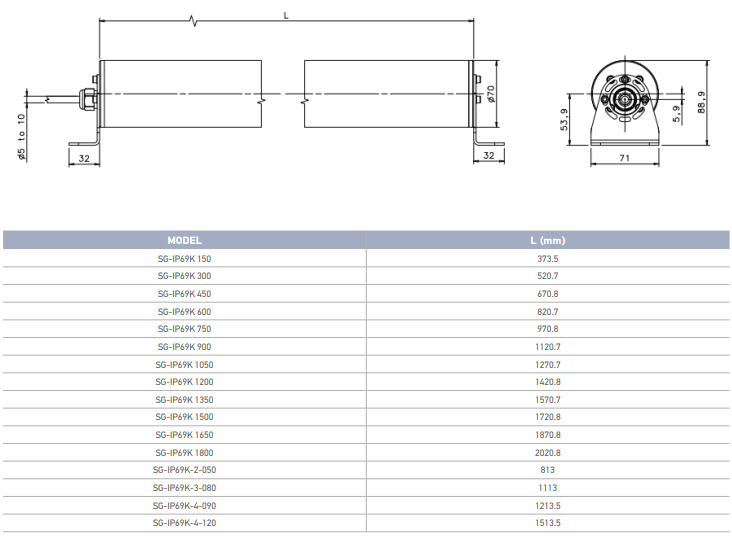

- Available for heights 150–1800 mm
- Installation by user
Selected variant
Technical data
| IP class | IP67, IP68, IP69K |
|---|---|
| Material protection | PMMA |
Product description
Datalogic SG-IP69K protective housing is a PMMA acrylic tube to protect and seal light curtains of SG2-B, SG2-E, SG4-B and SG BODY COMPACT series. Thanks to SG-IP69K accessory the IP protection of the light curtain is increased from IP65 to IP67, IP68 and IP69K.
Â
The Gore-Tex membrane on the caps prevents water or dirt entering as well as internal condensation. The connection cable for the light curtain is protected and kept in its place by a M16 metric chock that prevents the entry of water or dirt.
Â
The SG-IP69K accessory is particularly suitable where high levels of humidity and temperature are present and machines or equipments are frequently washed with hot water (up to 80°C) at high pressure (up to 100 bars) and/or cleaned with detergents.
SG-IP69K is particularly suitable for FOOD industry applications:
·beverage production
·meat slaughter
·sausage production
·milk/cheese industryÂ
Â
Â
