DATASENSING
SG2-B 50/90 is suitable for detection of personnel in a dangerous area (Ie. horizontal detection of a person standing in a dangerous area) with a range of up to 19 metres.
This Type 2 light curtain maintains level PLc according to the latest safety standards, EN ISO 13849-1 and EN 62061.
SG2-B 50/90 has basic functionality with two OSSD (PNP) safety outputs and manual reset.
| Additional features | Reset, test |
|---|---|
| Approvals | CE, cULus, TÜV |

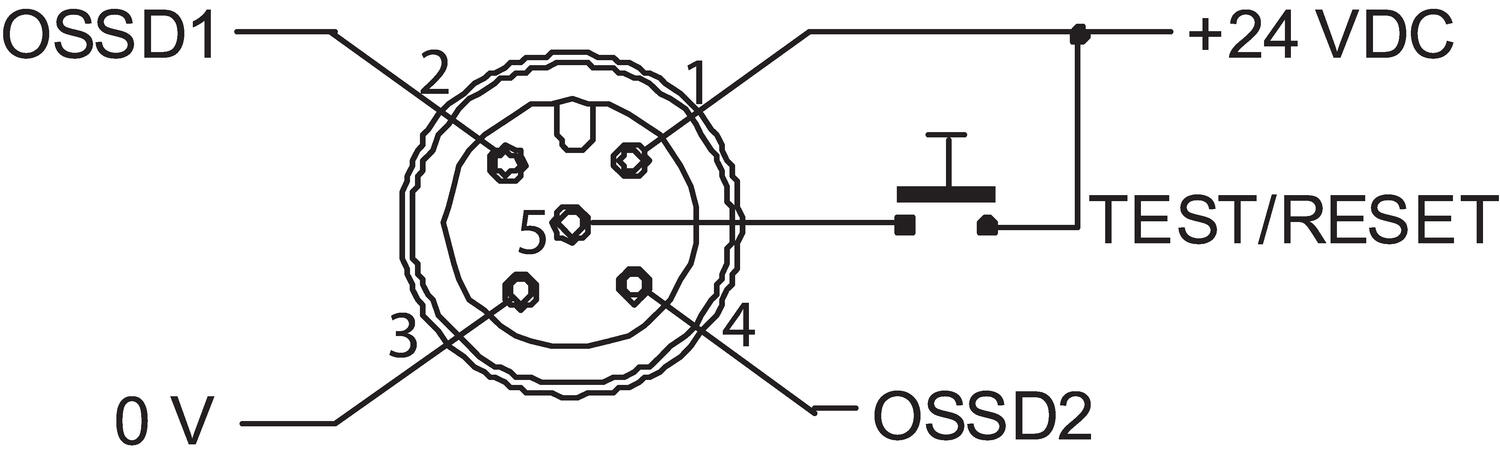

| Cable connection receiver | M12, 5-pole |

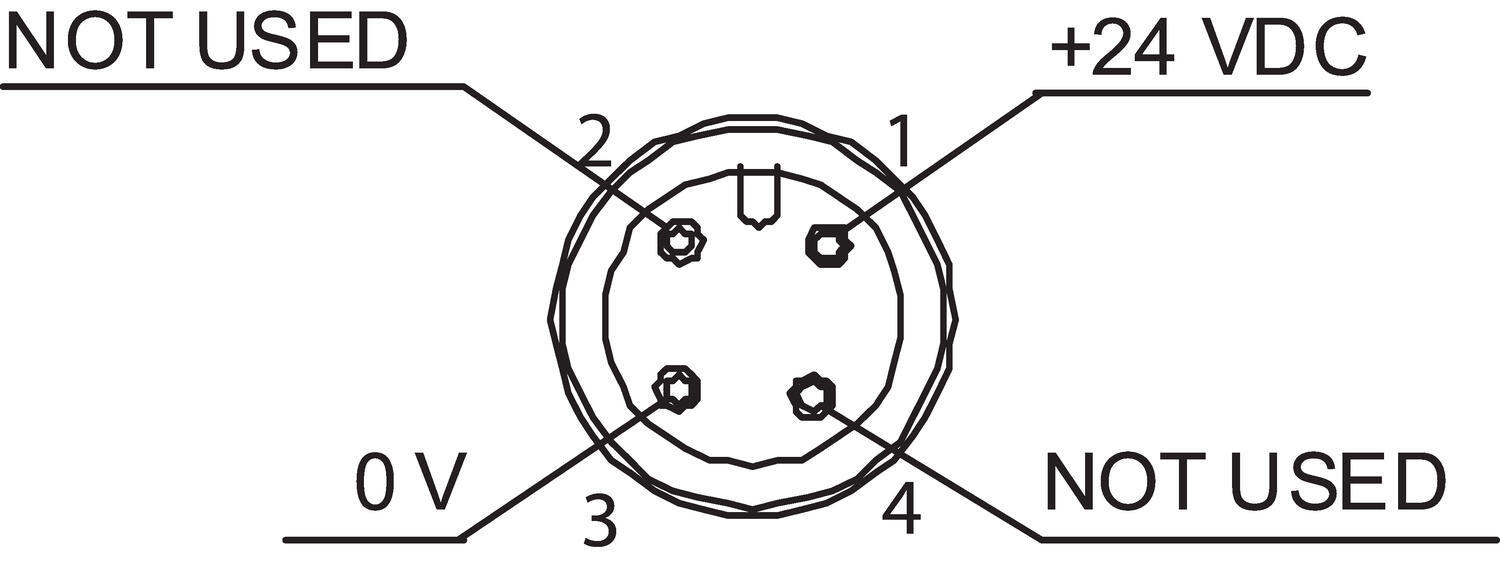

| Cable connection transmitter | M12, 4-pole |
| Cable length max | 50 m |
| Contact current max | 0.5 A |
| DC | 97,50 % |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| LED indication | 6 x LED |
| Material of body | Aluminium |
| MTTFd | 273 year(s) |
| Number of beams | 9 |
| PL | c (EN ISO 13849-1) |
| Power consumption | Transmitter 2W, receiver 3,5W (without load) |
|---|---|
| Protection height | 300 mm |
| Range | 0,2-19 m |
| Reaction time | 9 ms |
| Safe outputs | 2 x OSSD |
| SIL | 1 (EN IEC 62061) |
| Supply voltage | 24 V DC, stabilized |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | -10 °C |
| Type | 2 |
| Voltage tolerance | ±20 % |
SG2-B 50/90 is suitable for detection of personnel in a dangerous area (Ie. horizontal detection of a person standing in a dangerous area) with a range of up to 19 metres.
This Type 2 light curtain maintains level PLc according to the latest safety standards, EN ISO 13849-1 and EN 62061.
SG2-B 50/90 has basic functionality with two OSSD (PNP) safety outputs and manual reset.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of beams | Protection height | Reaction time | Price | ||
|---|---|---|---|---|---|---|
957801120 Type 2 50mm Res 300mm Protection Height
Art:
SG2-50-030-OO-X
Copied
|
9
|
300 mm
|
9 ms
|
|
||
|
957801130 Type 2 50mm Res 450mm Protection Height
Art:
SG2-50-045-OO-X
Copied
|
7
|
450 mm
|
10 ms
|
|
||
|
SG2-50-060-OO-X 50mm ResType
Art:
SG2-50-060-OO-X
Copied
|
17
|
600 mm
|
11 ms
|
|
||
|
957801150 Type 2 50mm Res 750mm Protection Height
Art:
SG2-50-075-OO-X
Copied
|
21
|
750 mm
|
12 ms
|
|
||
|
957801160 Type 2 50mm Res 300mm Protection Height
Art:
SG2-50-090-OO-X
Copied
|
25
|
900 mm
|
14 ms
|
|
||
|
957801170 Type 2 50mm Res 1050mm Protection Height
Art:
SG2-50-105-OO-X
Copied
|
29
|
1050 mm
|
15 ms
|
|
||
|
957801180 Type 2 50mm Res 1200mm Protection Height
Art:
SG2-50-120-OO-X
Copied
|
33
|
1200 mm
|
16 ms
|
|
||
|
957801190 Type 2 50mm Res 1350mm Protection Height
Art:
SG2-50-135-OO-X
Copied
|
37
|
1350 mm
|
17 ms
|
|
||
|
957801200 Type 2 50mm Res 1500mm Protection Height
Art:
SG2-50-150-OO-X
Copied
|
41
|
1500 mm
|
18 ms
|
|
||
|
957801210 Type 2 50mm Res 1650mm Protection Height
Art:
SG2-50-165-OO-X
Copied
|
45
|
1650 mm
|
19 ms
|
|
||
|
957801220 Type 2 50mm Res 1800mm Protection Height
Art:
SG2-50-180-OO-X
Copied
|
49
|
1800 mm
|
20 ms
|
|
||
|
957801230 Type 2 90mm Res 300mm Protection Height
Art:
SG2-90-030-OO-X
Copied
|
5
|
300 mm
|
9 ms
|
|
||
|
957801240 Type 2 90mm Res 450mm Protection Height
Art:
SG2-90-045-OO-X
Copied
|
7
|
450 mm
|
10 ms
|
|
||
|
957801250 Type 2 90mm Res 600mm Protection Height
Art:
SG2-90-060-OO-X
Copied
|
9
|
600 mm
|
11 ms
|
|
||
|
957801260 Type 2 90mm Res 750mm Protection Height
Art:
SG2-90-075-OO-X
Copied
|
11
|
750 mm
|
12 ms
|
|
||
|
957801270 Type 2 90mm Res 900mm Protection Height
Art:
SG2-90-090-OO-X
Copied
|
13
|
900 mm
|
13 ms
|
|
||
|
957801280 Type 2 90mm Res 1050mm Protection Height
Art:
SG2-90-105-OO-X
Copied
|
15
|
1050 mm
|
14 ms
|
|
||
|
957801290 Type 2 90mm Res 1200mm Protection Height
Art:
SG2-90-120-OO-X
Copied
|
17
|
1200 mm
|
15 ms
|
|
||
|
957801300 Type 2 90mm Res 1350mm Protection Height
Art:
SG2-90-135-OO-X
Copied
|
19
|
1350 mm
|
16 ms
|
|
||
|
957801310 Type 2 90mm Res 1500mm Protection Height
Art:
SG2-90-150-OO-X
Copied
|
21
|
1500 mm
|
17 ms
|
|
||
|
957801320 Type 2 90mm Res 1650mm Protection Height
Art:
SG2-90-165-OO-X
Copied
|
23
|
1650 mm
|
18 ms
|
|
||
|
957801330 Type 2 90mm Res 1800mm Protection Height
Art:
SG2-90-180-OO-X
Copied
|
25
|
1800 mm
|
19 ms
|
|
