Datalogic - SG4-Body compact base
Datalogic safety light curtain SG4-BODY COMPACT Base is made for body detection with a range of up to 50 meters. The safety light curtain is available as type 4, and maintains highest level PL e according to the latest safety standards, EN ISO 13849-1 and EN 62061.
SG4-BODY COMPACT Base has a compact housing with basic functions as integrated manual reset /automatic reset and input for monitoring of external contactors (EDM). Configurations will be made by DIP switches.
Â
SG4-BODY COMPACT models are provided in 2 different versions: Base and Muting.
Â
SG4-BODY COMPACT Base safety light curtain include two safe electronic short-circuit detection outputs (PNP). If potential free contacts are needed We can offer forexample Datalogic safety relay CSME. Safety light curtain supplied complete with standard bracket.
Â
Datalogic has a 3 year warranty for safety light curtains.
- Body protection (2, 3 and 4 beam), Type 4, PL e
- Range 0.5-50 m
- Protective height 500-800-900-1200 mm
Selected variant
Technical data
| Approvals | CE, cULus, TÃœV |
|---|---|

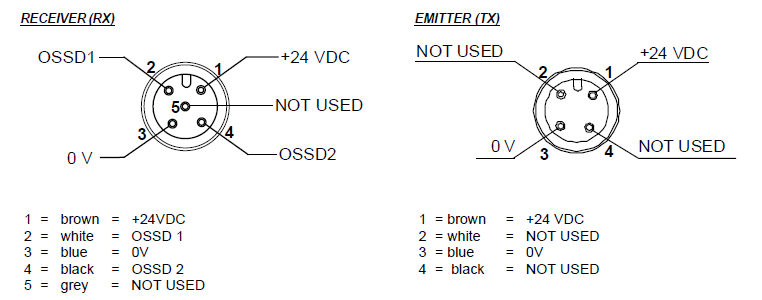

| Cable connection receiver | M12, 4-pole |
| Cable connection transmitter | M12, 4-pole |
| Cable length max | 50 m |
| Contact current max | 0.5 A |
| DC | 98,90% |
| Function | Automatic restart |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| Material of body | Aluminium |
| MTTFd | 384 year(s) |
| Number of beams | 4 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter max 0,9 W. Receiver 2,2 W (without load) |
| Protection height | 900 mm |
| Reaction time | 16 ms |
|---|---|
| Safe outputs | 2 OSSD |
| Sensing distance | 0,5-50 m |
| SFF | 99,38% |
| SIL | 3 (EN IEC 61508) |
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 24 V DC |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | -10 °C |
| Type | 4 |
| Voltage tolerance | ±20 % |
Product description
Datalogic safety light curtain SG4-BODY COMPACT Base is made for body detection with a range of up to 50 meters. The safety light curtain is available as type 4, and maintains highest level PL e according to the latest safety standards, EN ISO 13849-1 and EN 62061.
SG4-BODY COMPACT Base has a compact housing with basic functions as integrated manual reset /automatic reset and input for monitoring of external contactors (EDM). Configurations will be made by DIP switches.
Â
SG4-BODY COMPACT models are provided in 2 different versions: Base and Muting.
Â
SG4-BODY COMPACT Base safety light curtain include two safe electronic short-circuit detection outputs (PNP). If potential free contacts are needed We can offer forexample Datalogic safety relay CSME. Safety light curtain supplied complete with standard bracket.
Â
Datalogic has a 3 year warranty for safety light curtains.
