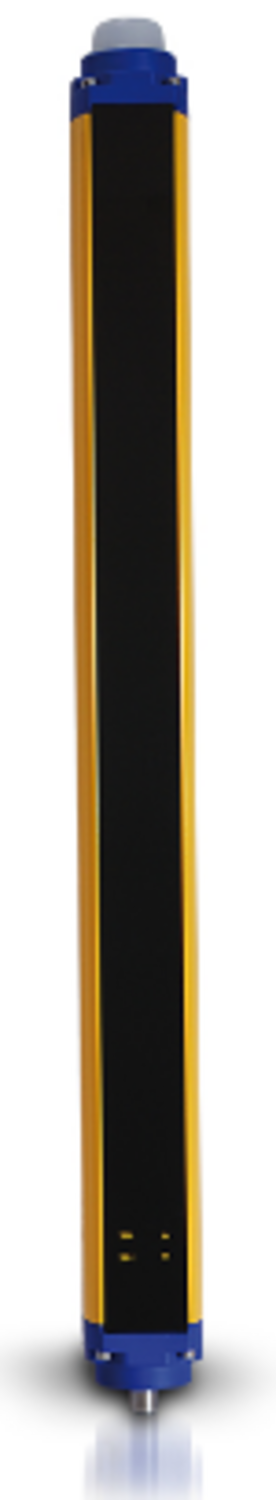

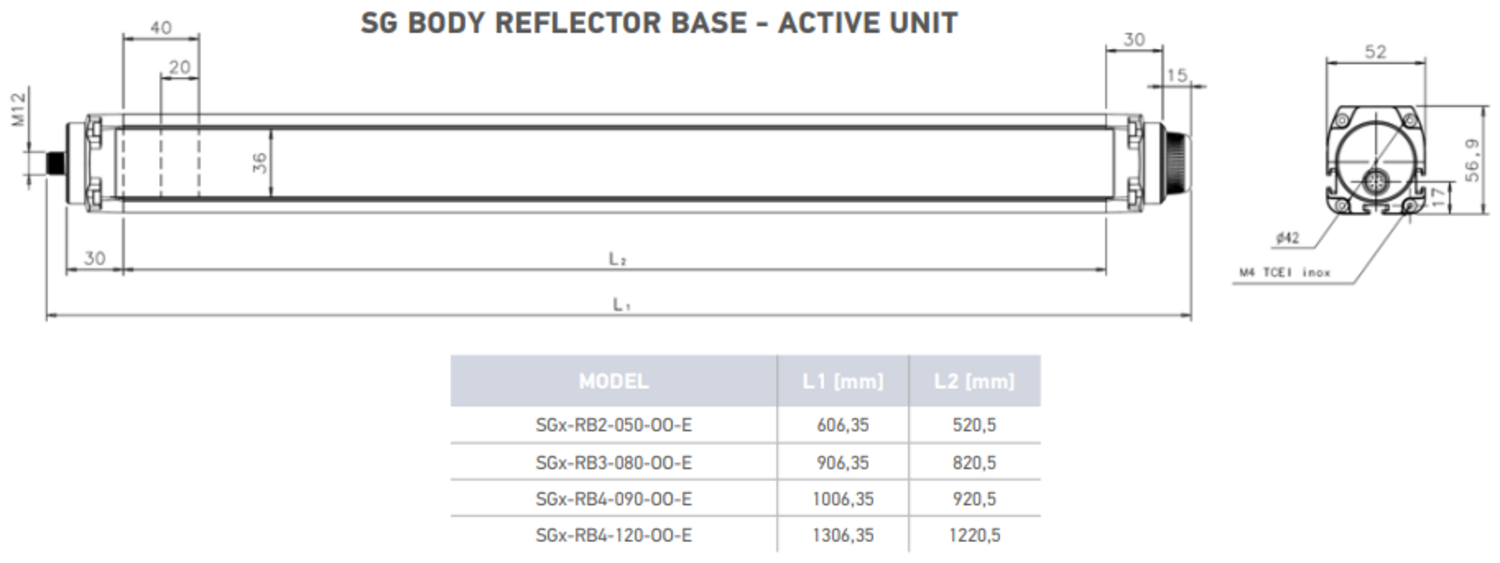

Datalogic SG4-BODY BIG Reflector Base is ideal body protection for shorter distances. Reflector models is made by an active unit and a complete passive unit, with integrated moulded plastic mirrors, reaching up to 8 m, available in 2, 3 and 4 beams with 500, 800, 900 and 1200mm controlled height. REFLECTOR models are provided in 2 different versions: Base and Muting.
Â
New robust housing and new design of optical-electronic platform ensures the best performance. In addition total absence of "dead zone", 7-segment displays, alignement aid function and 3 different types of brackets (swivelling side, top-bottom rotating and rear) complete the product and make it the ideal and most performing solution for all the industrial application.
Â
The safety light curtain is available as type 4, and maintains the highest safety level PL e according to the latest safety standards, EN ISO 13849-1 and EN 62061. SG4-BODY BIG Reflector Bas has integrated manual reset /automatic reset and input for monitoring of external contactors (EDM). The safety light curtain has two safe electronic short-circuit detection outputs (PNP). If potential free contacts are needed we can offer for example Datalogic safety relay CSME.
Â
Datalogic has a 3 year warranty for safety light curtains.
Additional features | EDM, reset (automatic/manual), test input |
---|---|
Approvals | CE, cULus, TÜV |
Cable connection | M12, 8-pole |
Cable length max | 70 m |
Contact current max | 0.5 A |
DC | 99 % |
Disconnection | 11 ms |
In compliance with | EMC, LVD, MD |
IP class | IP65 |
Material of body | Aluminium |
MTTFd | 463 year(s) |
Number of beams | 2 |
PL | e (EN ISO 13849-1) |
Power consumption | 6,5 W (without load) |
Protection field | 500 mm |
Range | 0,5-8 m |
---|---|
Resolution | 519,75 |
Safe outputs | 2 OSSD |
SFF | 97,20 % |
SIL | 3 (EN IEC 62061) |
Storage temperature max | 70 °C |
Storage temperature min | -25 °C |
Supply voltage | 24 V DC, stabilized |
T1 (Life time in years) | 20 |
Temperature operational max | 55 °C |
Temperature operational min | -10 °C |
Type | 4 |
Typical of light | IR (950 nm) |
Voltage tolerance | ±20 % |
Datalogic SG4-BODY BIG Reflector Base is ideal body protection for shorter distances. Reflector models is made by an active unit and a complete passive unit, with integrated moulded plastic mirrors, reaching up to 8 m, available in 2, 3 and 4 beams with 500, 800, 900 and 1200mm controlled height. REFLECTOR models are provided in 2 different versions: Base and Muting.
Â
New robust housing and new design of optical-electronic platform ensures the best performance. In addition total absence of "dead zone", 7-segment displays, alignement aid function and 3 different types of brackets (swivelling side, top-bottom rotating and rear) complete the product and make it the ideal and most performing solution for all the industrial application.
Â
The safety light curtain is available as type 4, and maintains the highest safety level PL e according to the latest safety standards, EN ISO 13849-1 and EN 62061. SG4-BODY BIG Reflector Bas has integrated manual reset /automatic reset and input for monitoring of external contactors (EDM). The safety light curtain has two safe electronic short-circuit detection outputs (PNP). If potential free contacts are needed we can offer for example Datalogic safety relay CSME.
Â
Datalogic has a 3 year warranty for safety light curtains.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Additional features | Approvals | Cable connection | Cable length max | Contact current max | DC | Disconnection | In compliance with | IP class | Material of body | MTTFd | Number of beams | PL | Power consumption | Protection field | Range | Resolution | Safe outputs | SFF | SIL | Storage temperature max | Storage temperature min | Supply voltage | T1 (Life time in years) | Temperature operational max | Temperature operational min | Type | Typical of light | Voltage tolerance | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
SG4-RB2-050-OO-E 2 BEAM TYPE 4
Art:
SG4-RB2-050-OOE
Copied
|
EDM, reset (automatic/manual), test input
|
CE, cULus, TÜV
|
M12, 8-pole
|
70 m
|
0.5 A
|
99 %
|
11 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
463 year(s)
|
2
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
500 mm
|
0,5-8 m
|
519,75
|
2 OSSD
|
97,20 %
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
4
|
IR (950 nm)
|
±20 %
|
| ||
![]()
SG4-RB3-080-OO-E 3 Beam Type 4
Art:
SG4-RB3-080-OOE
Copied
|
EDM, reset (automatic/manual), test input
|
CE, cULus, TÜV
|
M12, 8-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
463 year(s)
|
3
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
800 mm
|
0,5-8 m
|
399,75
|
2 OSSD
|
97,20 %
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
4
|
IR (950 nm)
|
±20 %
|
| ||
![]()
SG4-RB4-090-OO-E 4 Beam Type 4
Art:
SG4-RB4-090-OOE
Copied
|
EDM, reset (automatic/manual), test input
|
CE, cULus, TÜV
|
M12, 8-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
463 year(s)
|
4
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
900 mm
|
0,5-6,5 m
|
319,75
|
2 OSSD
|
97,20 %
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
4
|
IR (950 nm)
|
±20 %
|
| ||
![]()
SG4-RB4-120-OO-E 4 Beam Type 4
Art:
SG4-RB4-120-OOE
Copied
|
EDM, reset (automatic/manual), test input
|
CE, cULus, TÜV
|
M12, 8-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
463 year(s)
|
4
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
1200 mm
|
0,5-6,5 m
|
419,75
|
2 OSSD
|
97,20 %
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
4
|
IR (950 nm)
|
±20 %
|
| ||
![]()
SG4-RB2-050-OO-W 2 BEAM TYPE 4
Art:
SG4-RB2-050-OOW
Copied
|

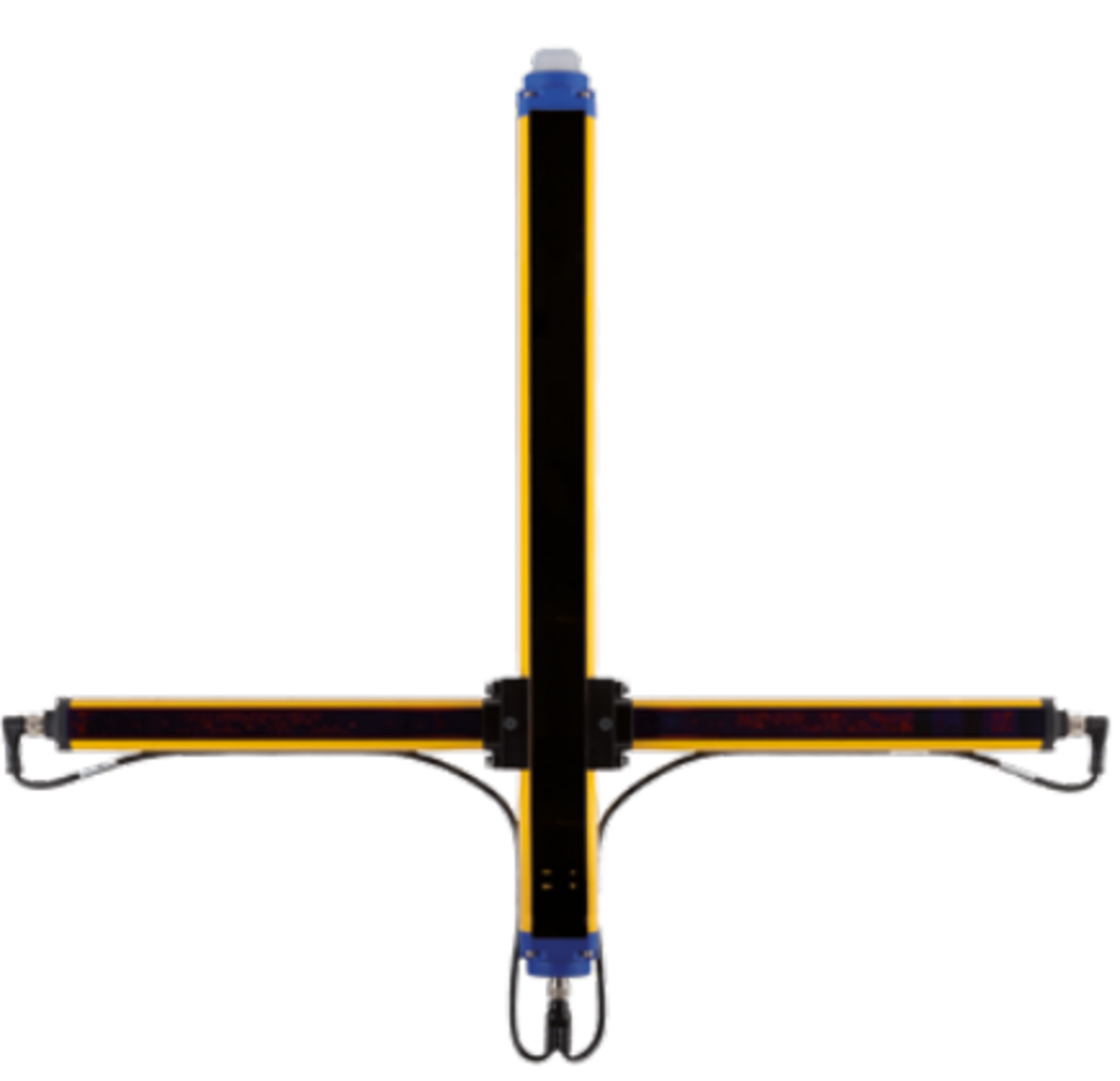

Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
11 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
439 year(s)
|
2
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
500 mm
|
0,5-8 m
|
519,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
4
|
IR (950 nm)
|
±20 %
|
| ||
![]()
SG4-RB3-080-OO-W MUTING TYPE 4 800mm
Art:
SG4-RB3-080-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
439 year(s)
|
3
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
800 mm
|
0,5-8 m
|
399,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
Art:
SG4-RB4-090-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
439 year(s)
|
4
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
900 mm
|
0,5-6,5 m
|
319,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
SG4-RB4-120-OO-W 4 BEAM TYPE 4
Art:
SG4-RB4-120-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
439 year(s)
|
4
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
1200 mm
|
0,5-8 m
|
419,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
Art:

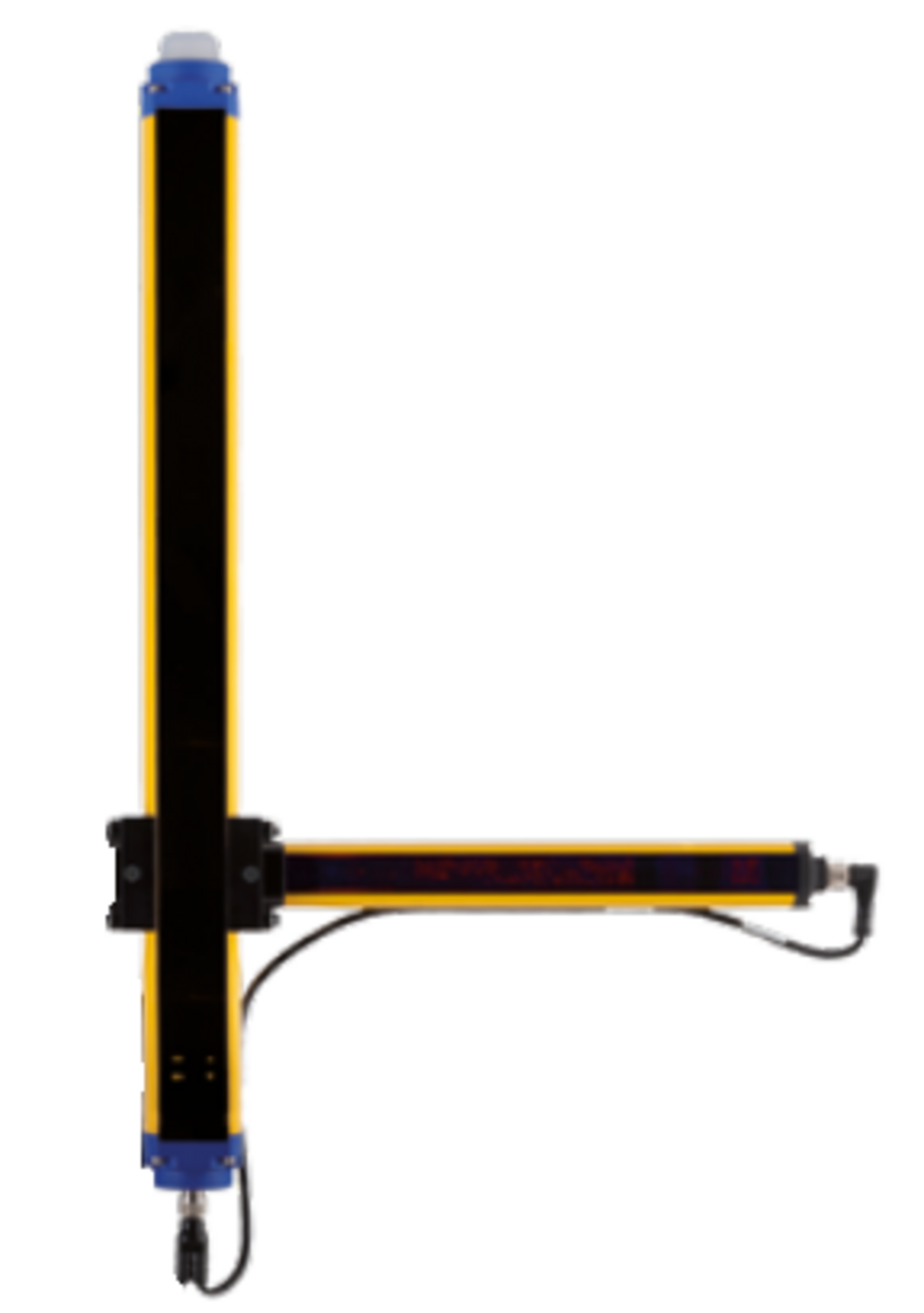

SG4-RB2L-050-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
11 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
439 year(s)
|
2
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
500 mm
|
0,5-8 m
|
519,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
Art:
SG4-RB3L-080-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
439 year(s)
|
3
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
800 mm
|
0,5-8 m
|
399,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
Art:
SG4-RB2T-050-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
11 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
463 year(s)
|
2
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
500 mm
|
0,5-8 m
|
519,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
Art:
SG4-RB3T-080-OOW
Copied
|
Muting(+) functions, Override, EDM, reset (automatic/manual)
|
CE, cULus, TÜV
|
M12 12-pole + Muting M12 5-pole
|
70 m
|
0.5 A
|
99 %
|
12 ms
|
EMC, LVD, MD
|
IP65
|
Aluminium
|
463 year(s)
|
3
|
e (EN ISO 13849-1)
|
6,5 W (without load)
|
800 mm
|
0,5-8 m
|
399,75
|
2 OSSD
|
97,50%
|
3 (EN IEC 62061)
|
70 °C
|
-25 °C
|
24 V DC, stabilized
|
20
|
55 °C
|
-10 °C
|
|
IR (950 nm)
|
±20 %
|
| ||
![]()
957951100 Passive Muting Arms for SG4-RB2-050-OO-E
Art:
SG4-RDB2
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
957951110 Passive Muting Arms for SG4-RB3-080-OO-E
Art:
SG4-RDB3
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
SG4-RDB4-090 4 Beam 900mm Pass
Art:
SG4-RDB4-090
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
SG4-RDB4-120 H=1200PASSIVE BA
Art:
SG4-RDB4-120
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Art:

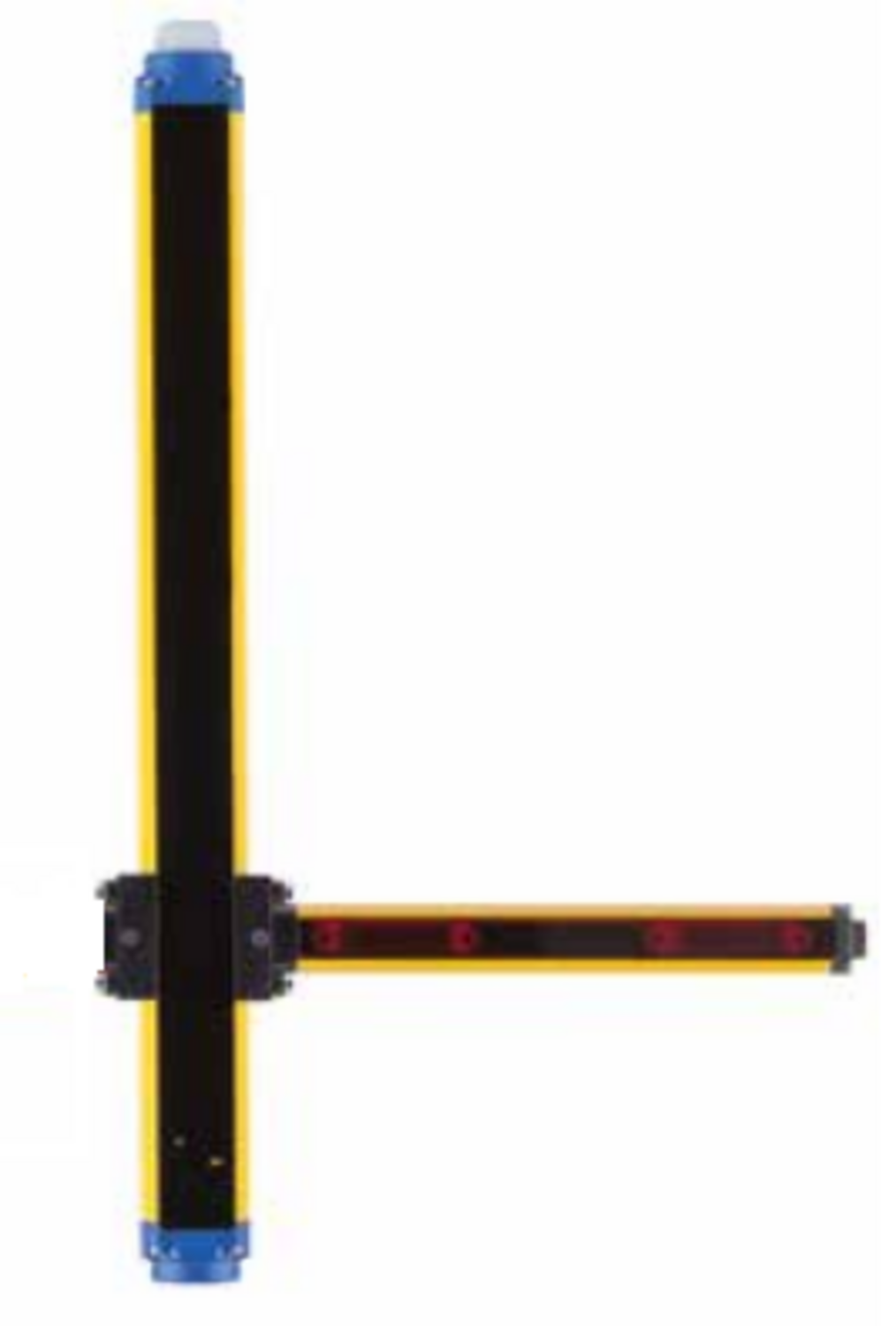

SG4-RDB2L
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Art:
SG4-RDB3L
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Art:

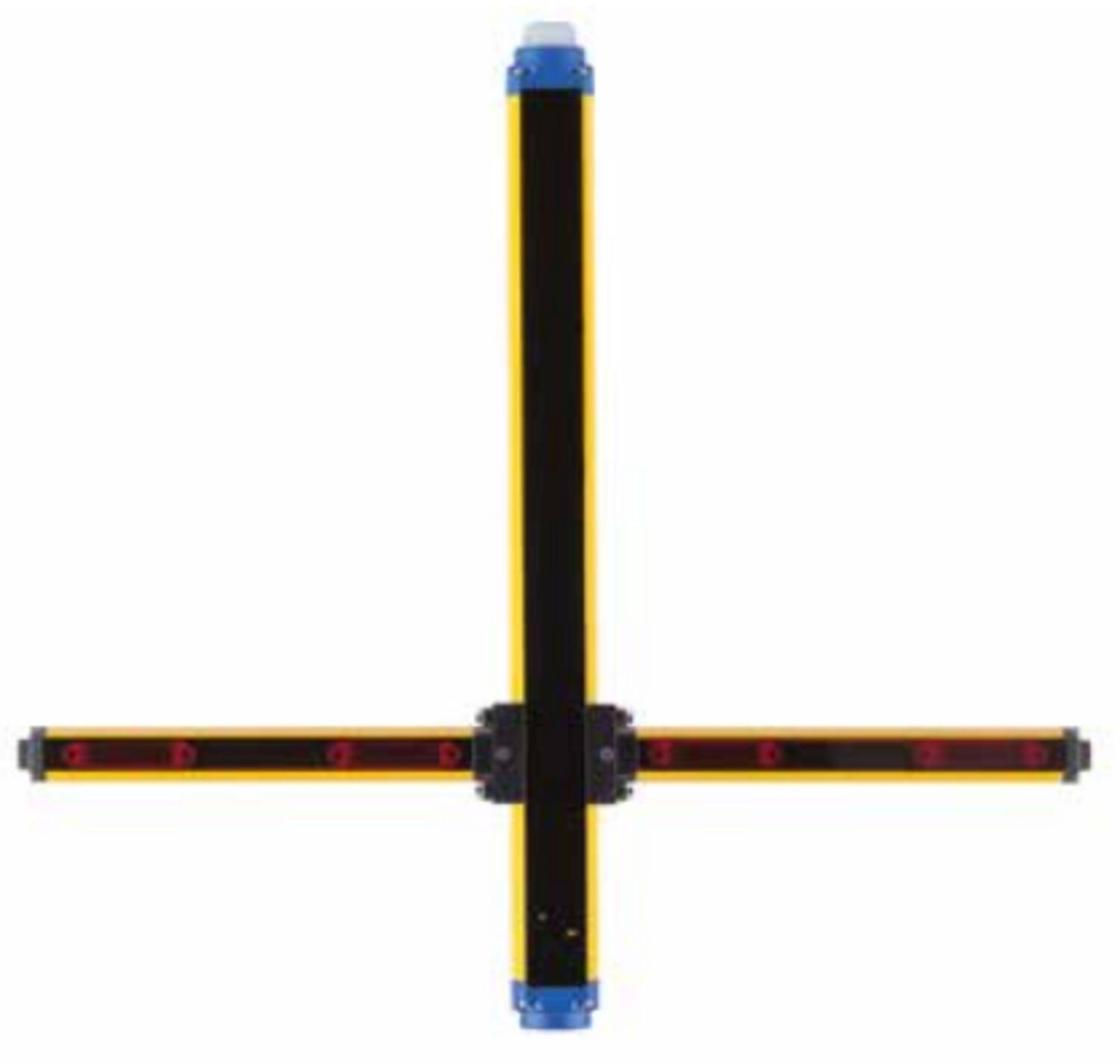

SG4-RDB2T
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Art:
SG4-RDB3T
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
