| Additional features | EDM, reset functions |
|---|---|
| Approvals | CE, cULus, TÜV |

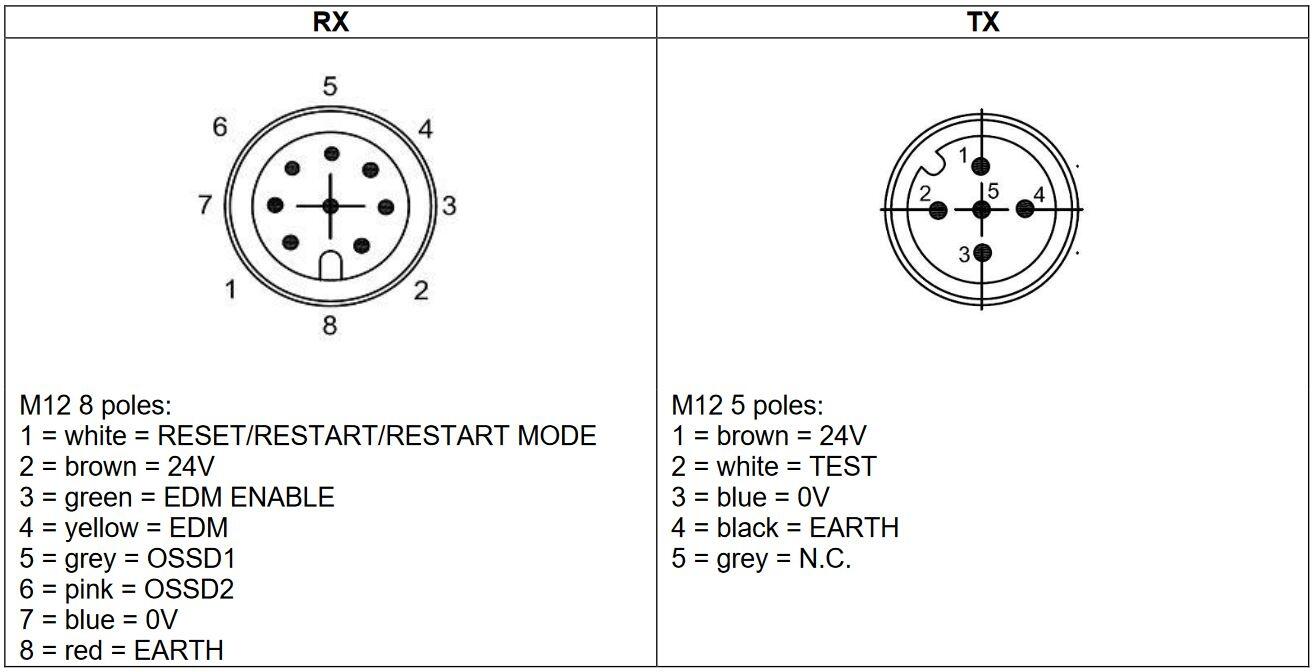

| Cable connection receiver | M12, 8-pole |
| Cable connection transmitter | M12, 5-pole |
| Cable length max | 70 m |
| Contact current max | 0.5 A |
| Distance max | 60 m |

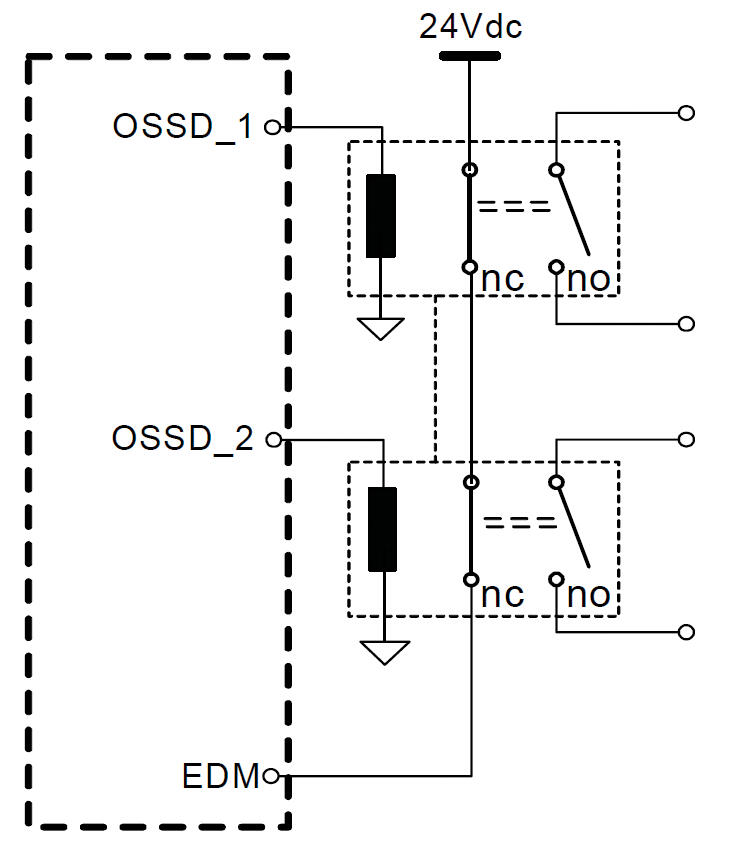

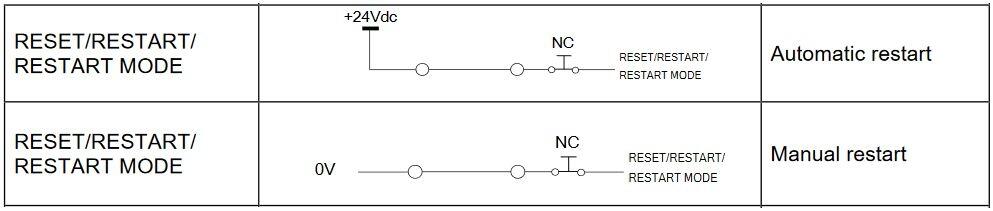

| Function | EDM, Manual/automatic restart |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| Material of body | Aluminium |
| Number of beams | 2 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter 1,6W. Receiver 4,2 W. (without load) |
|---|---|
| Protection height | 500 mm |
| Range | 6-60 m |
| Safe outputs | 2 OSSD |
| SFF | 98,93 % |
| SIL | 3 (EN IEC 61508) |
| Supply voltage | 24 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Type | 4 |
| Voltage tolerance | ±20 % |
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.

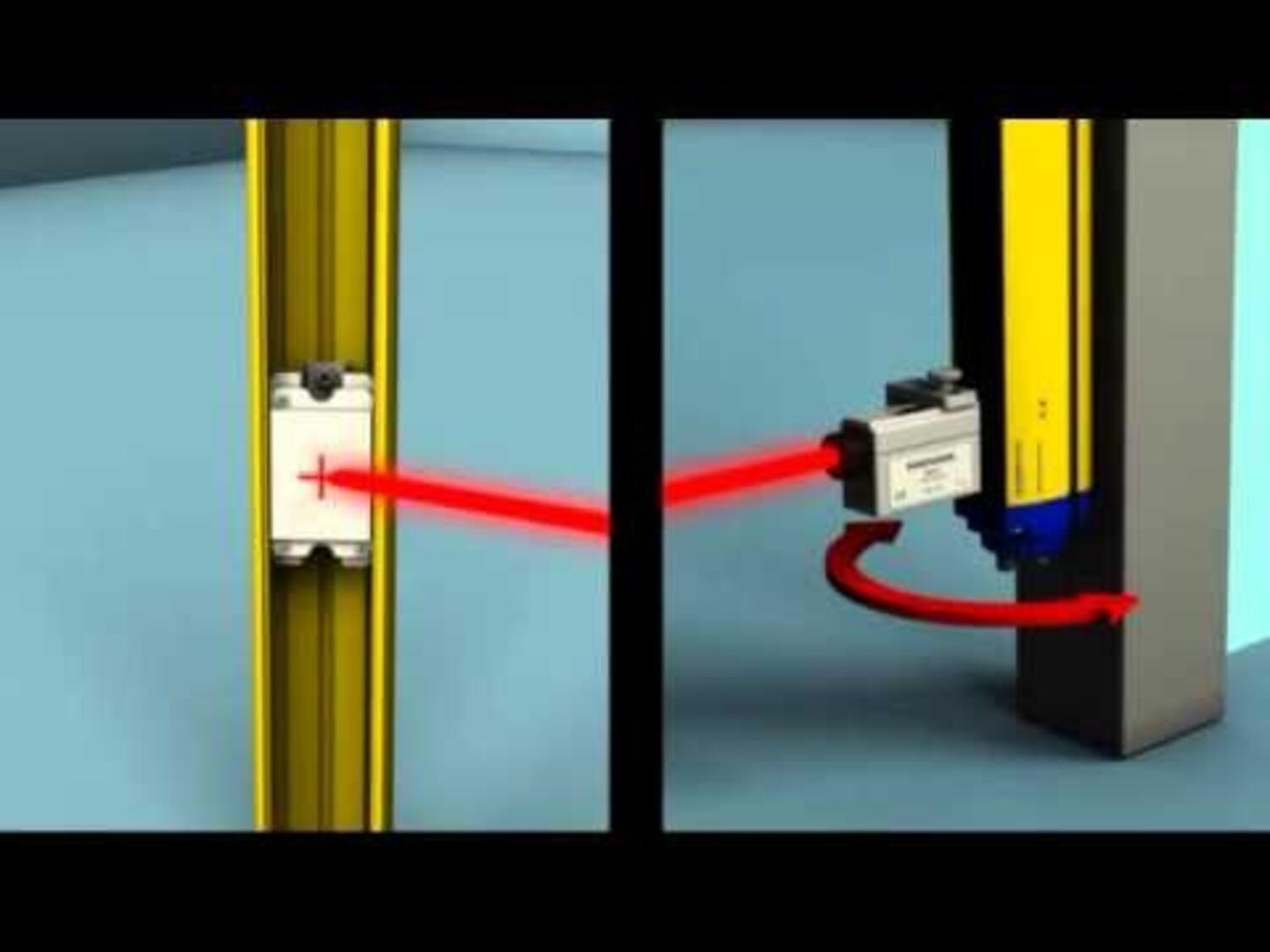

OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of beams | Protection height | Price | ||
|---|---|---|---|---|---|

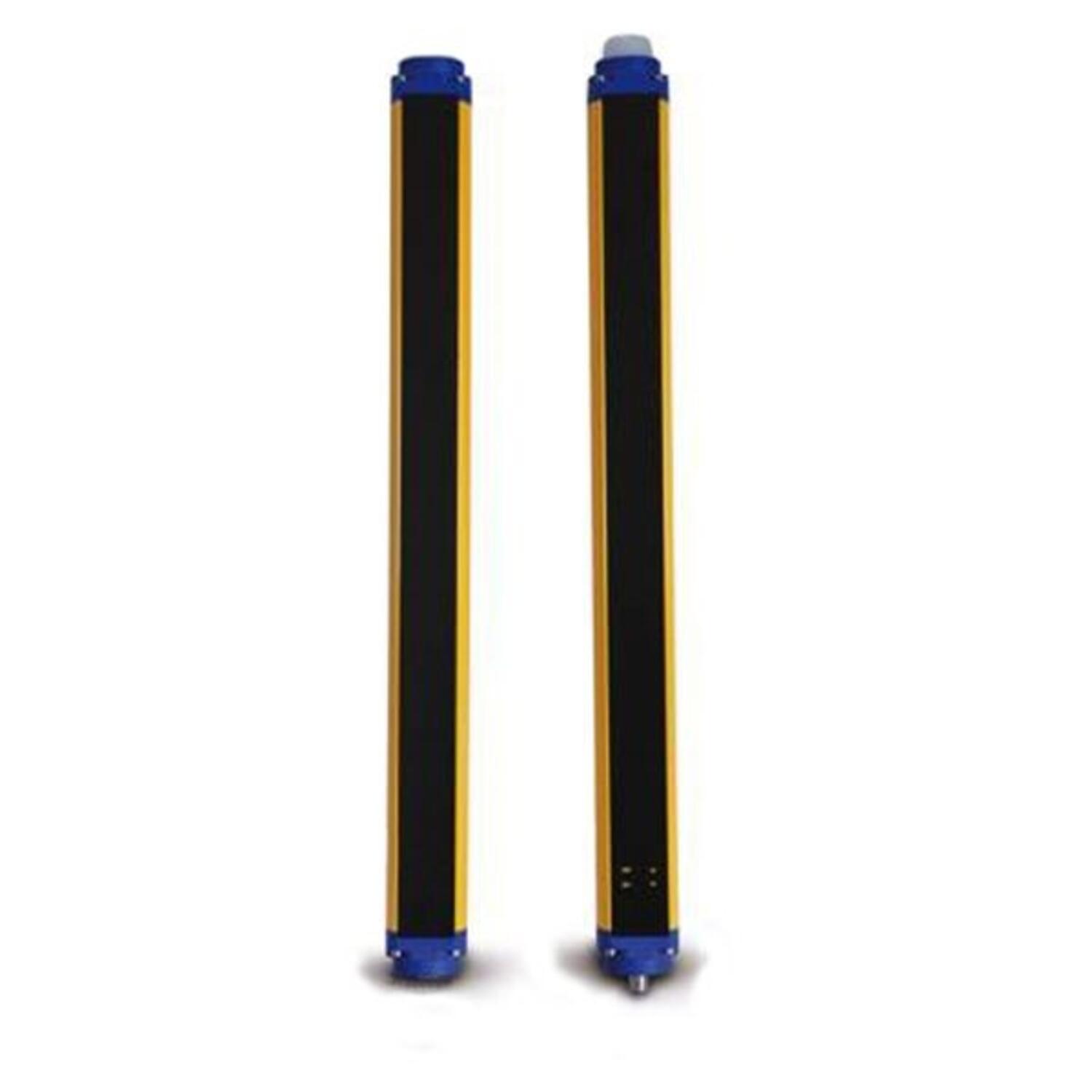

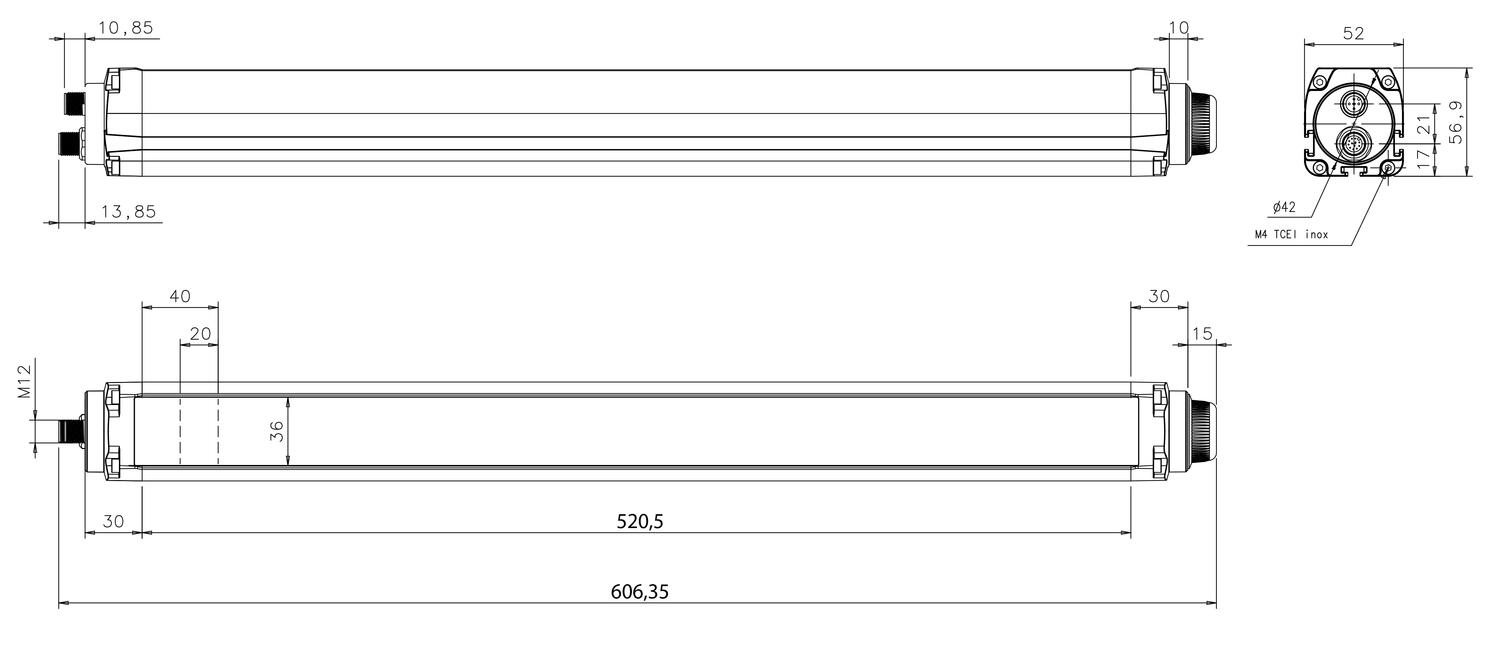

957851280 Type 4 Body Det 2-Beam 500mm Protection Height
Art:
SG4-B2-050-OO-E
Copied
|
2
|
500 mm
|
|
||
|
957851290 Type 4 Body Det 3-Beam 800mm Protection Height
Art:
SG4-B3-080-OO-E
Copied
|
3
|
800 mm
|
|
||
|
957851300 Type 4 Body Det 4-Beam 900mm Protection Height
Art:
SG4-B4-090-OO-E
Copied
|
4
|
900 mm
|
|
||
|
SG4-B4-120-OO-E 4 Beam Type 4
Art:
SG4-B4-120-OO-E
Copied
|
4
|
1200 mm
|
|
Select a variant in the list
