DATASENSING
Datalogic - Muting control box SG-SRT
Datalogic SG-SRT is developed to fit the advanced functionalities of new SG BODY BIG, SG BODY REFLECTOR and SG BODY COMPACT safety light curtains guaranteeing easy installation, connection, configuration and use.
SG-SRT is then provided in 2 different models :
SG-SRT-1 Muting control box for SG BODY COMPACT and SG BODY BIG and SG BODY BIG REFLECTOR series including:
+ Reset button
+ Over-ride key switch

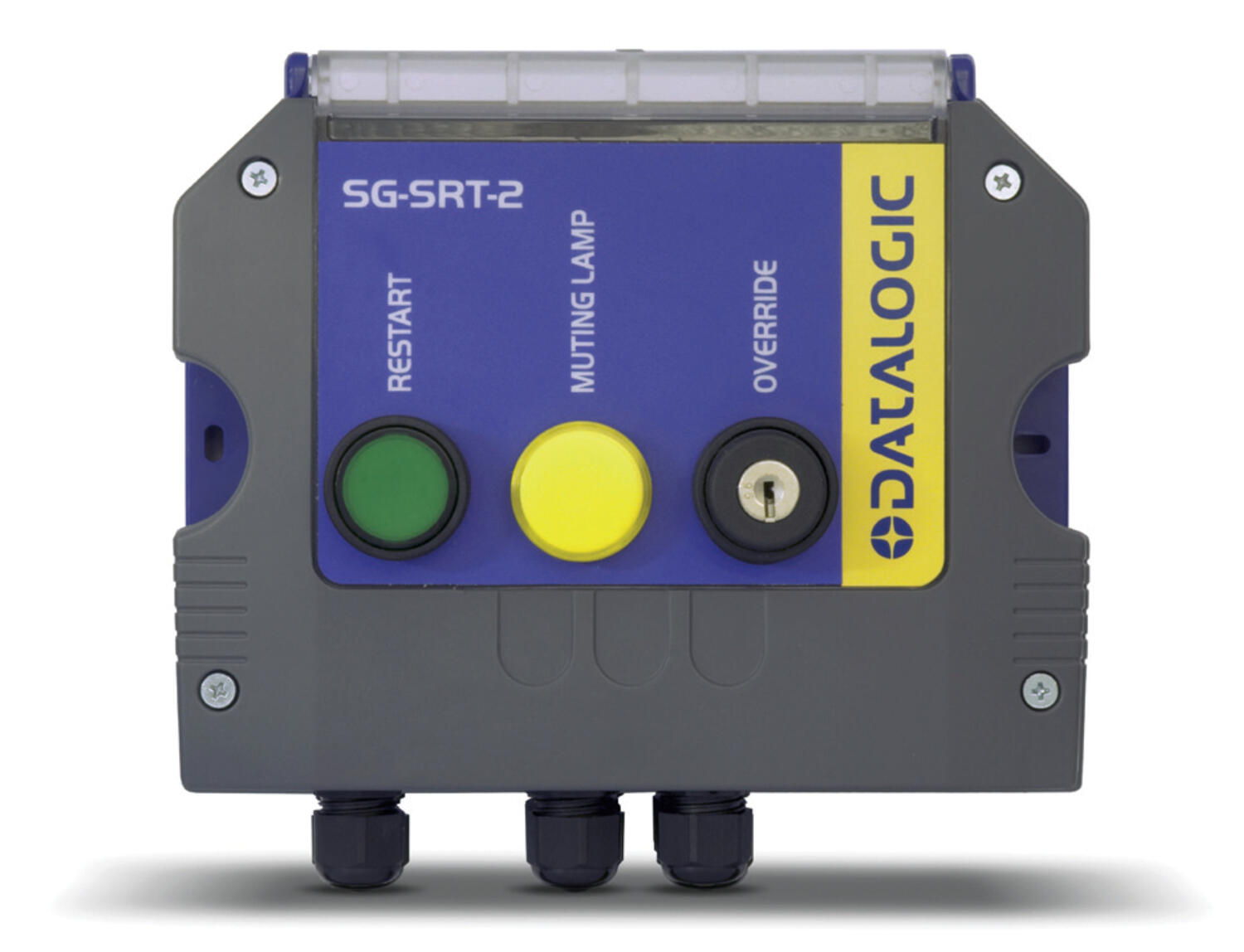

SG-SRT-2 Muting control box is especially designed to work together with new SG BODY BIG and SG BODY REFLECTOR series exploiting their full functionalities including:
+ Reset button
+ Over-ride key switch
+ External muting lamp
SG-SRT Muting control boxes have 2 force guided safety outputs (250 VAC/2A) + 1 NC signal output.
- Muting control box for SG BODY COMPACT and SG BODY BIG
- Override key switch + Reset button
- 2 NO safety relay + 1 NC
Selected variant
Technical data
Product description
Datalogic SG-SRT is developed to fit the advanced functionalities of new SG BODY BIG, SG BODY REFLECTOR and SG BODY COMPACT safety light curtains guaranteeing easy installation, connection, configuration and use.
SG-SRT is then provided in 2 different models :
SG-SRT-1 Muting control box for SG BODY COMPACT and SG BODY BIG and SG BODY BIG REFLECTOR series including:
+ Reset button
+ Over-ride key switch
SG-SRT-2 Muting control box is especially designed to work together with new SG BODY BIG and SG BODY REFLECTOR series exploiting their full functionalities including:
+ Reset button
+ Over-ride key switch
+ External muting lamp
SG-SRT Muting control boxes have 2 force guided safety outputs (250 VAC/2A) + 1 NC signal output.
