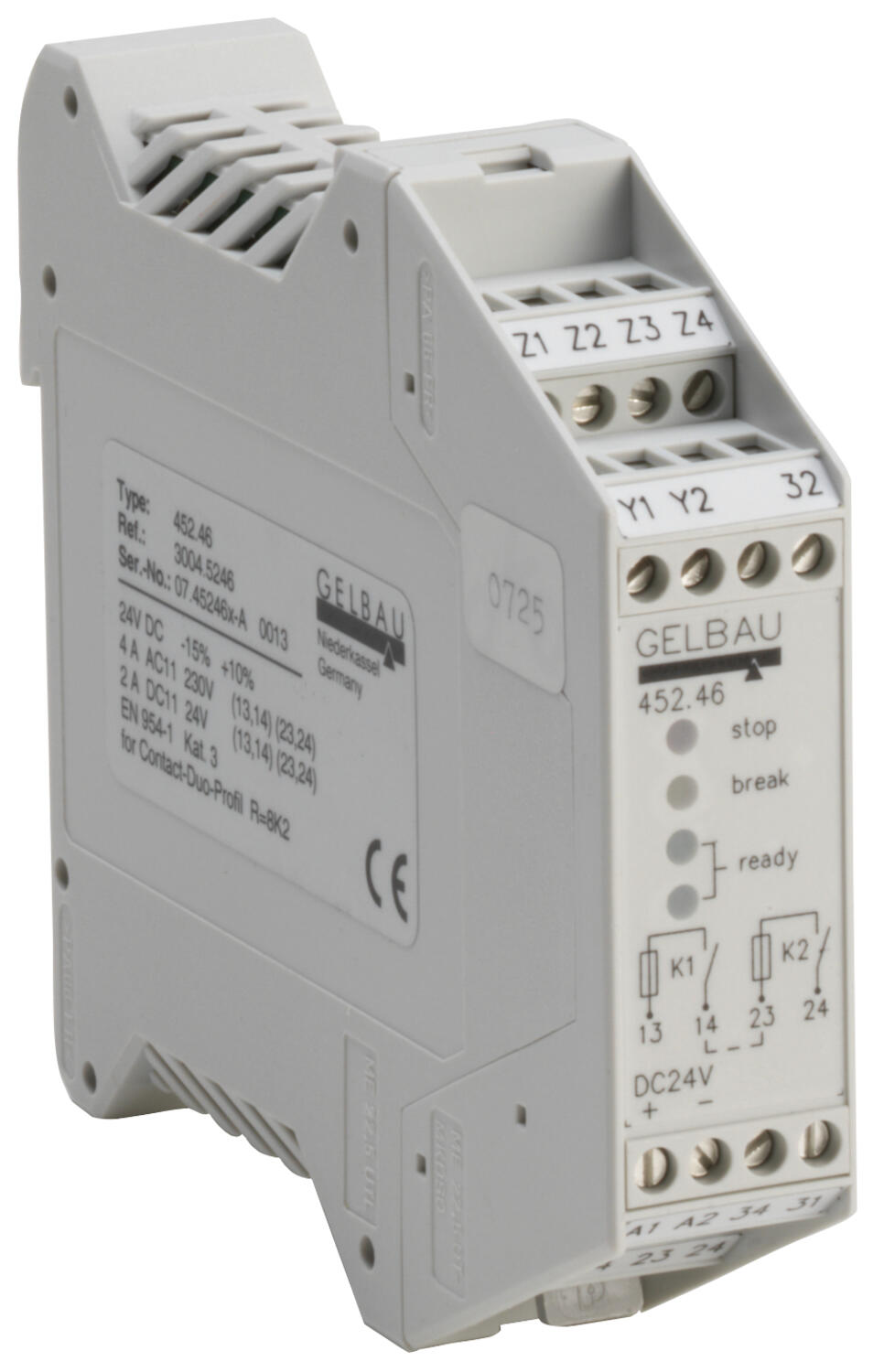

Gelbau - Control unit 452.4/462.4

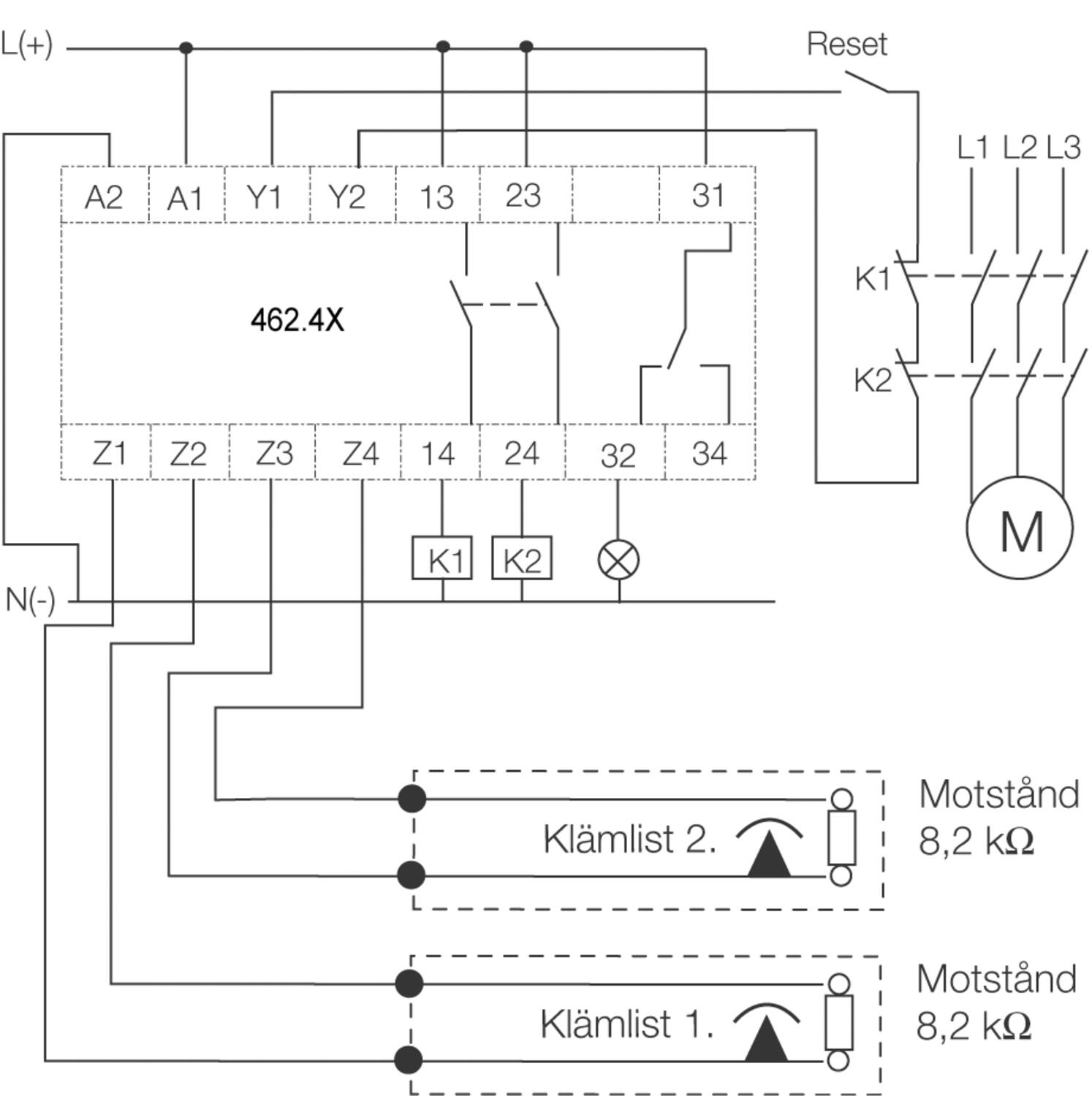

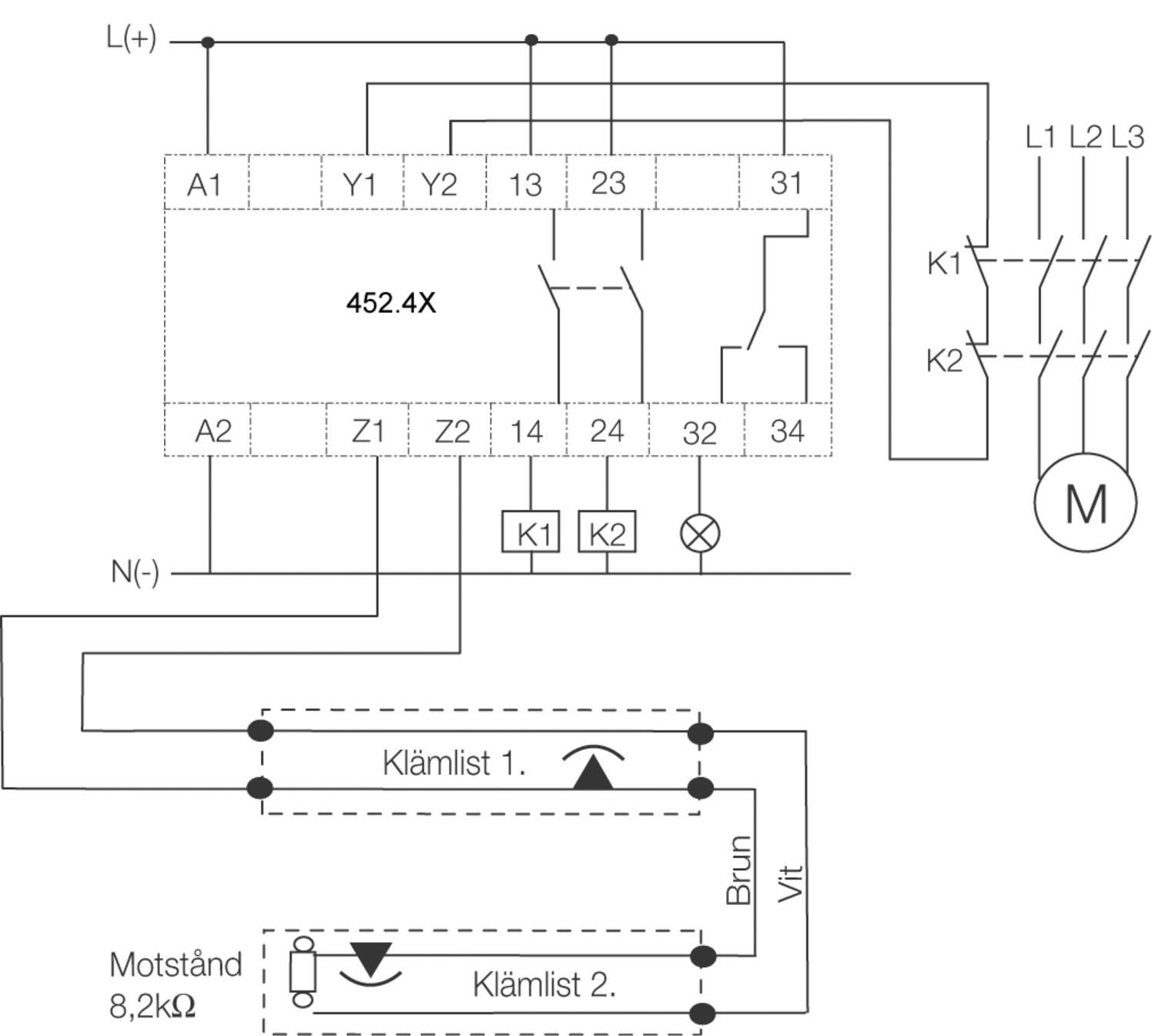

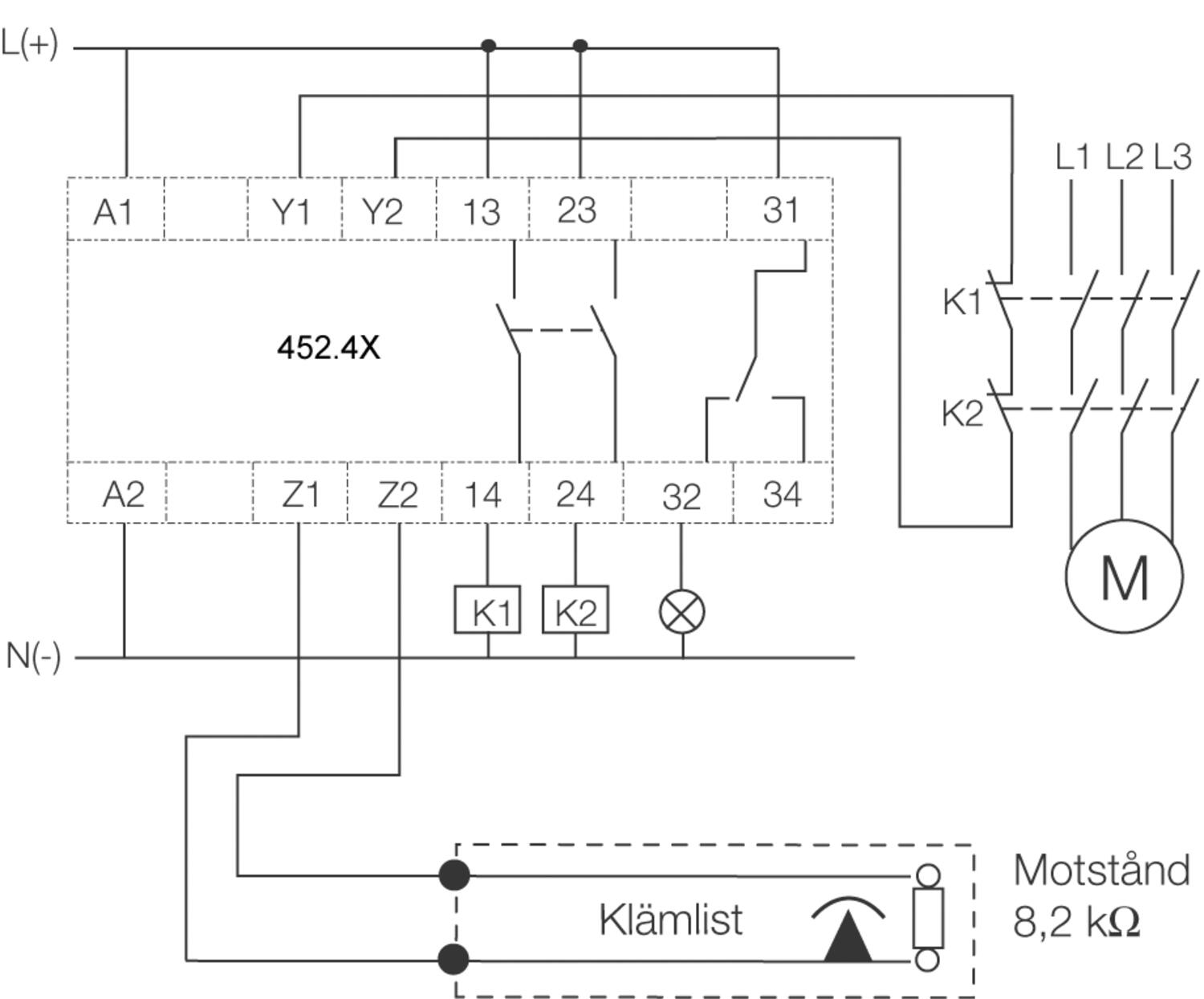

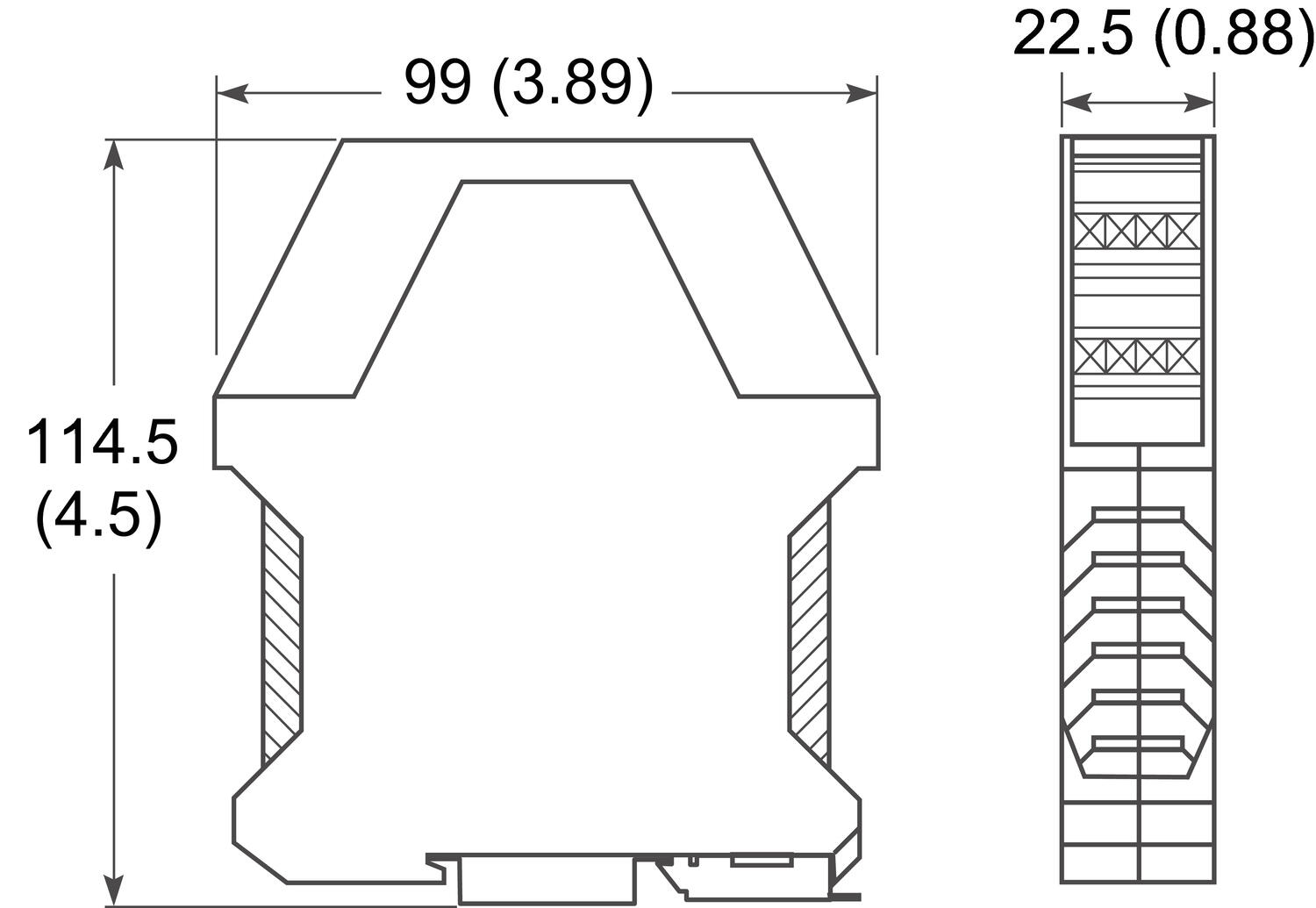

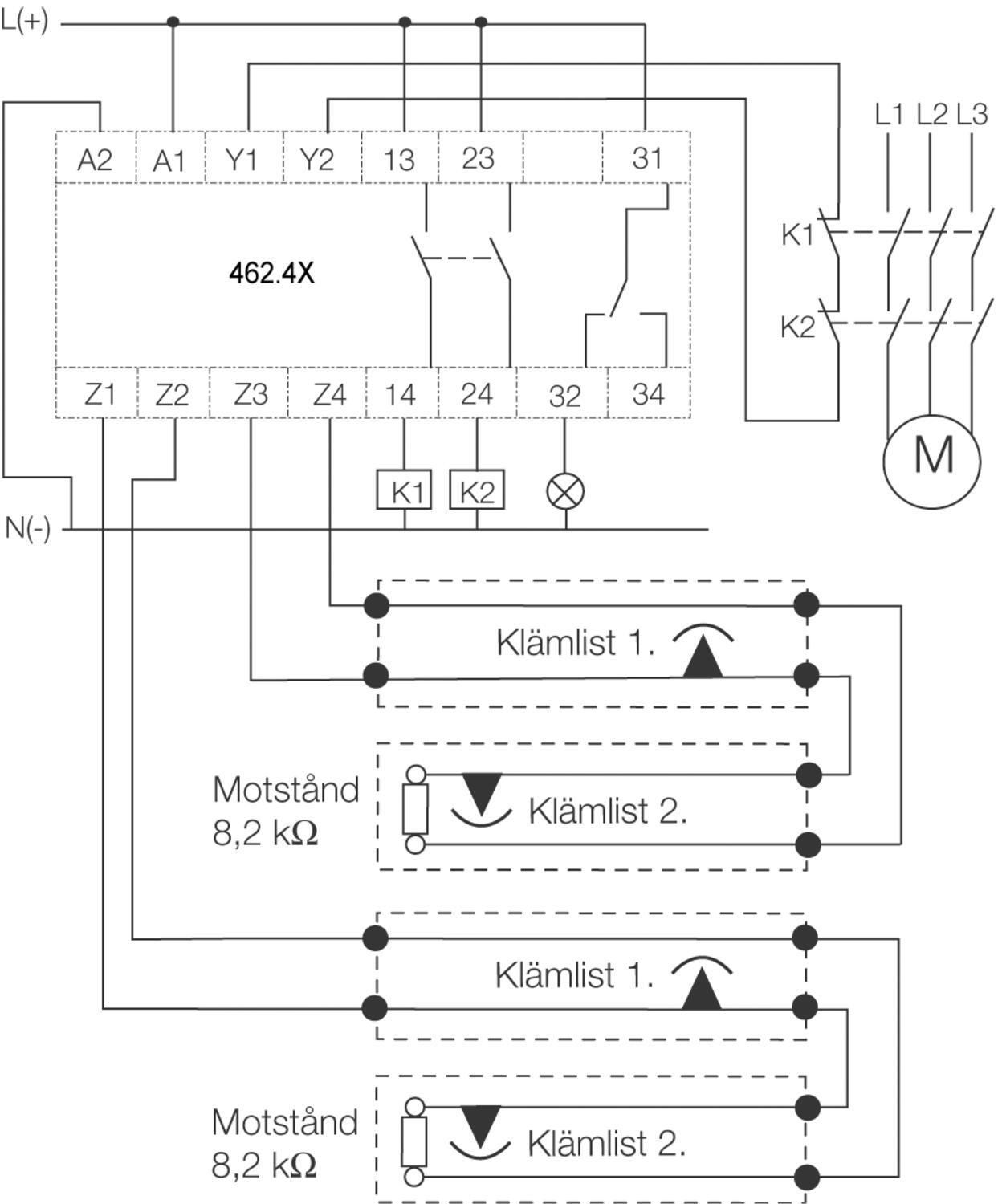

Compact control unit with only 22.5 mm enclosure for the monitoring of sensing strips in dangerous applications. It is also suitable for use on motorised gates which, in line with the standard, must have relays conforming to safety category 3. A low current is transmitted from the control unit connectors (Z1 and Z2) through the sensing strip, and a closed circuit is formed via a resistor (8.2 kΩ). The control units outputs cut the power if anyone/anything presses the sensing strip and also following a short-circuit or open circuit.
- 2 NO+1 CO output
- Safety category 3 in accordance with EN954-1

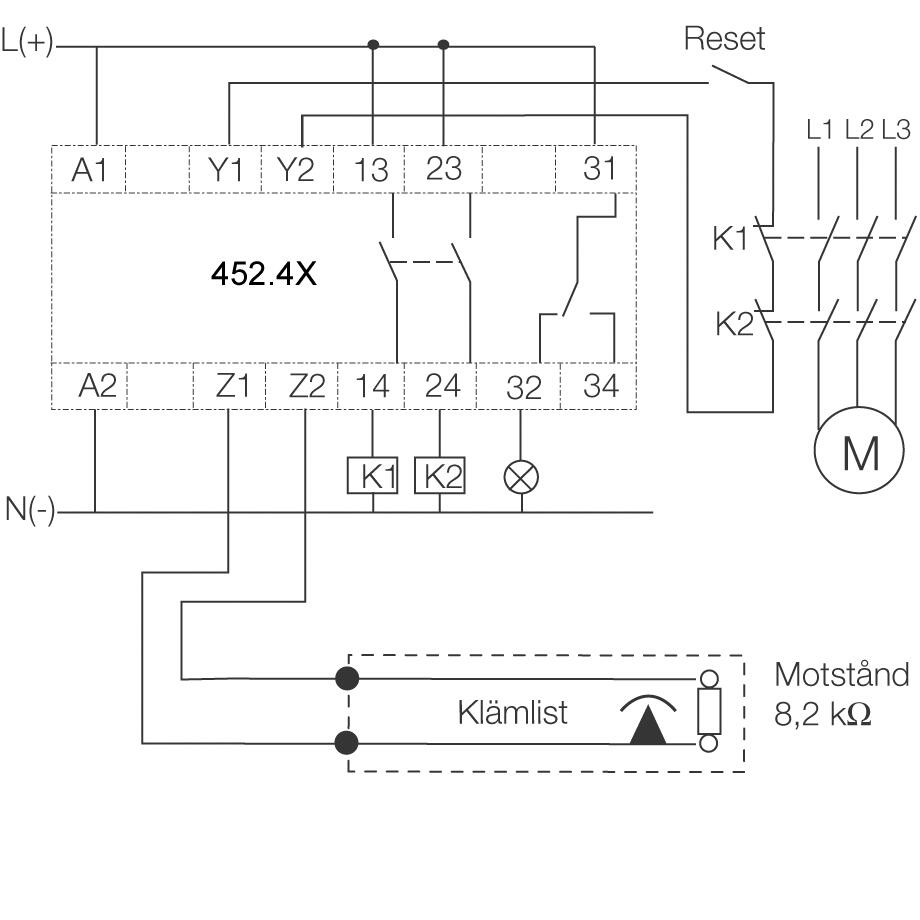

- Automatic or manual reset
- Available with variable supply voltage
Selected variant
Technical data
| Approvals | CE, TÃœV NORD |
|---|---|
| Cable length to clip list max | 50 m (min. 0,5 m2) |
| Contact current max | 4 A AC/DC |
| Contact voltage max | 250 V AC/24 V DC |
| Disconnection | 15 ms |
| Fuse output | 4 A |
| In compliance with | EMC, LVD, MD |
| IP class connection | IP20 |
| IP class of housing | IP40 |
| Mounting | DIN rail |
| PL | e enl. SS-EN ISO 13849-1:2008 |
|---|---|
| Power consumption | 3 W |
| Supply voltage | 24 V DC |
| Temperature ambient from | -20 °C |
| Temperature ambient to | 55 °C |
| Terminal strip length max | 100 m |
| Tolerance max | 10 % |
| Tolerance min | -15 % |
Downloads
Product description
Compact control unit with only 22.5 mm enclosure for the monitoring of sensing strips in dangerous applications. It is also suitable for use on motorised gates which, in line with the standard, must have relays conforming to safety category 3. A low current is transmitted from the control unit connectors (Z1 and Z2) through the sensing strip, and a closed circuit is formed via a resistor (8.2 kΩ). The control units outputs cut the power if anyone/anything presses the sensing strip and also following a short-circuit or open circuit.
