INXPECT
Safety Radar S203A
Radar Sensor S203A-W, S203A-WL
- Can work in dust, steam, smoke and when splashed with water
- 0.5m-9m safety zone

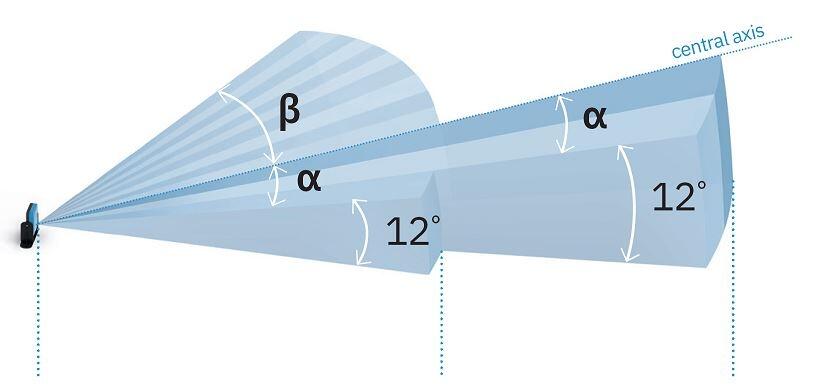

- 10°-100° Horizontal field of view

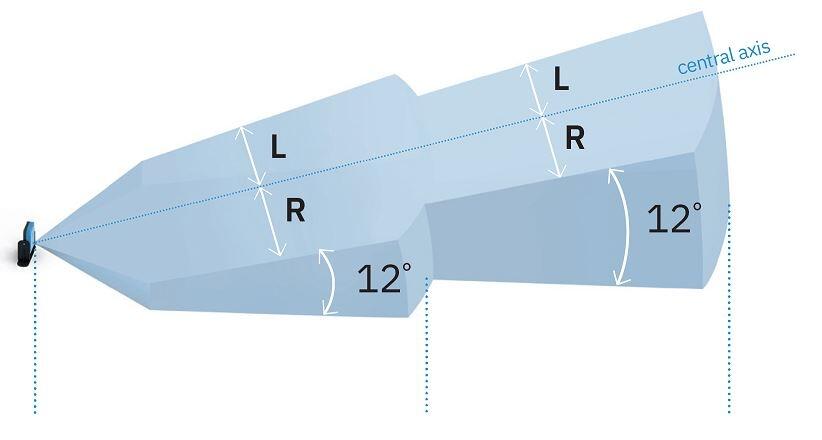

- Vertical spread 12°
- SIL 2, PLd
Selected variant
Technical data
| Connection | 2xM12 5-pin connector |
|---|---|
| Data | CANbus |
| Detection method | Radar |
| IP class | IP67 |
| Life span | 20 years |
| Manufacturer part no. | 90306111 |
| Material of body | Glass fibre polyester, Aluminium |
| MTTFd | 42 years |
| PL | d |
|---|---|
| Power consumption | 1.2 W |
| Scanning angle | 100 ° |
| Security Field | 5/9 |
| SIL | 2 |
| Supply voltage | 24 V |
| Temperature range fixed use from | -30 °C |
Downloads
-
Inxpect-Product-Brochure-v2.8-EN.pdf
-
Inxpect_Product_Catalogue_v2.8_-_EN_8ceMS1W.pdf
-
Inxpect-SAF-IM-200S_9m_7_00240_en_v1.5.pdf
-
Inxpect-SAF-MI-100S-200S_7_00046_multi_v3.1_26000041.pdf
-
Inxpect Brochure Pallet StackerDestacker Solution v1.1 - EN.pdf
-
S203A_2AXES.stp
-
S203A_3AXES.stp
-
S203A_2AXES_iges.iges
-
S203A_3AXES_iges.iges
-
S203A-W_PATTERN_5m_FOV100 v1.iges
-
Inxpect-EPLAN-file-S203A-WL_7_00267_en_v2.zip
-
Cables_specifications_v15.pdf
-
Inxpect 100S_200S Cable Validator tool_7_00066_en_v1.9.xlsx
-
Inxpect-200S-SISTEMA-libs-no-PROFIsafe_7_00092_en_v1.2.zip
-
Inxpect-200S-SISTEMA-libs-PROFIsafe_7_00091_en_v1.2.zip
-
Inxpect Safety - Windows (installer version)_7_00062_en_2.7.108.exe
Product description
The Inxpect S203A-W is a third-generation safety radar sensor designed for high-precision applications that demand focused detection and advanced safety features. With a reduced vertical spread of just 12°, it offers more controlled coverage, making it ideal for complex and mobile environments where targeted protection is essential. When paired with the C201A control unit, the system supports up to 32 dynamically selectable detection fields and four alarm areas, allowing for highly customisable safety zones tailored to the specific needs of the application.
Like other sensors in the Inxpect range, the S203A-W performs advanced motion and scenario analysis, communicates motion detection signals via CAN bus, and includes the Static Object Detection (ST.O.D) feature. ST.O.D enhances safety by preventing machine restarts if static obstacles are detected in the monitored area. Compact, precise, and intelligent, the S203A-W is ideal for industries where safety, space constraints, and adaptability go hand in hand.
