Safety Radar S201A

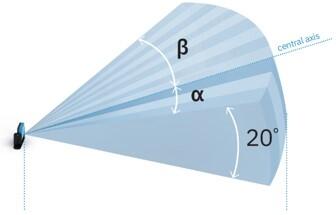

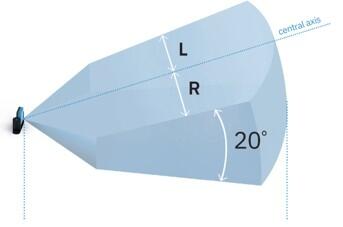

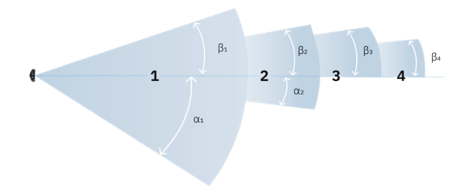

The Inxpect S201A (MLR) is a cutting-edge, second-generation safety radar sensor designed for dynamic and complex industrial applications, including mobile scenarios. Paired with the C201A control unit, the system supports up to 32 dynamically selectable fields of vision and four alarm areas, offering highly customisable safety coverage. Depending on the model, users can configure symmetrical, asymmetrical, or corridor-shaped detection fields, making the S201A ideal for environments with irregular layouts or variable operating conditions. Its adaptability and robustness make it especially suited for challenging environments where optical systems may struggle.

Equipped with intelligent functions, the S201A performs motion and scenario analysis, communicates motion detection signals via CAN bus, and includes a powerful static object detection (ST.O.D) feature. ST.O.D enhances safety by preventing machine restart when static obstacles are detected in the monitored area, an essential function for restart prevention. Designed for flexibility and reliability, the S201A meets the needs of modern industrial automation, offering superior protection without compromising on performance or configurability.
