INXPECT
Safety Radar S201A
Radar Sensor S201A (MLR)
- Can work in dust, steam, smoke and when splashed with water
- 0.5m-9m safety zone
- Field of view adjustable from 10°-100°
- -30°C to +60 °C
- SIL 2, Pld
Selected variant
Technical data
| Connection | 2xM12 5-pin connector |
|---|---|
| Data | CANbus |
| Detection method | Radar |
| IP class | IP67 |
| Life span | 20 years |
| Manufacturer part no. | 90305010 |
| Material of body | Glass fibre polyester, Aluminium |
| MTTFd | 42 years |
| PL | d |
|---|---|
| Power consumption | 1.2 W |
| Scanning angle | 100 ° |
| Security Field | 5/9 |
| SIL | 2 |
| Supply voltage | 24 V |
| Temperature range fixed use from | -30 °C |
Downloads
-
Inxpect_Product_Catalogue_v2.8_-_EN_8ceMS1W.pdf
-
Inxpect-SAF-IM-200S_9m_7_00240_en_v1.5.pdf
-
Inxpect-SAF-MI-100S-200S_7_00046_multi_v3.1_26000041.pdf
-
Cables_specifications_v15.pdf
-
Inxpect 100S_200S Cable Validator tool_7_00066_en_v1.9.xlsx
-
Inxpect-EPLAN-file-S201A-MLR_7_00089_en_v2.zip
-
Inxpect-200S-SISTEMA-libs-no-PROFIsafe_7_00092_en_v1.2.zip
-
Inxpect-200S-SISTEMA-libs-PROFIsafe_7_00091_en_v1.2.zip
Product description

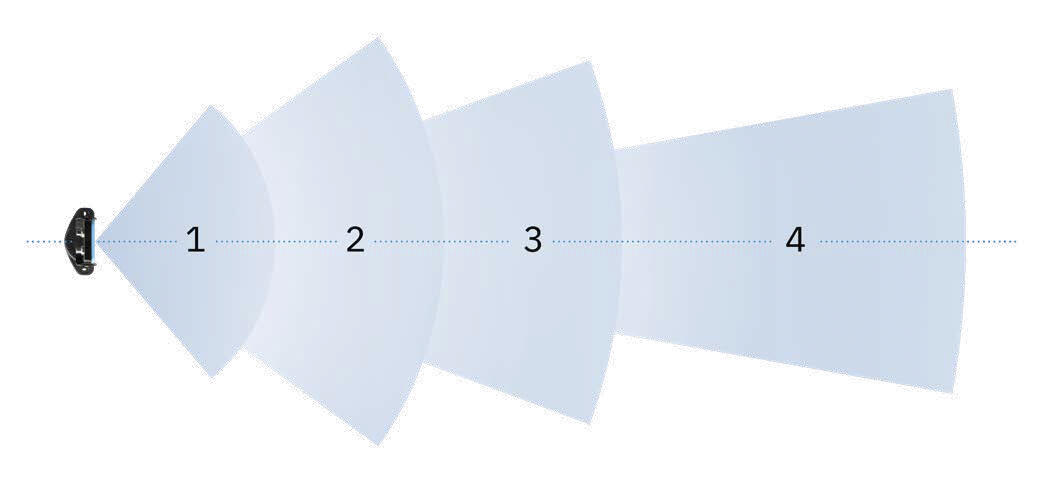

The Inxpect S201A (MLR) is a cutting-edge, second-generation safety radar sensor designed for dynamic and complex industrial applications, including mobile scenarios. Paired with the C201A control unit, the system supports up to 32 dynamically selectable fields of vision and four alarm areas, offering highly customisable safety coverage. Depending on the model, users can configure symmetrical, asymmetrical, or corridor-shaped detection fields, making the S201A ideal for environments with irregular layouts or variable operating conditions. Its adaptability and robustness make it especially suited for challenging environments where optical systems may struggle.
Equipped with intelligent functions, the S201A performs motion and scenario analysis, communicates motion detection signals via CAN bus, and includes a powerful static object detection (ST.O.D) feature. ST.O.D enhances safety by preventing machine restart when static obstacles are detected in the monitored area, an essential function for restart prevention. Designed for flexibility and reliability, the S201A meets the needs of modern industrial automation, offering superior protection without compromising on performance or configurability.
